Model # LSXS26366S/05 Official LG side-by-side refrigerator

Here are the diagrams and repair parts for Official LG LSXS26366S-05 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Refrigerator Filter Dryer ADH73590310

#317A

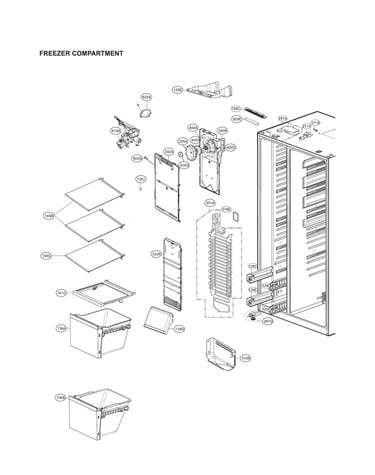

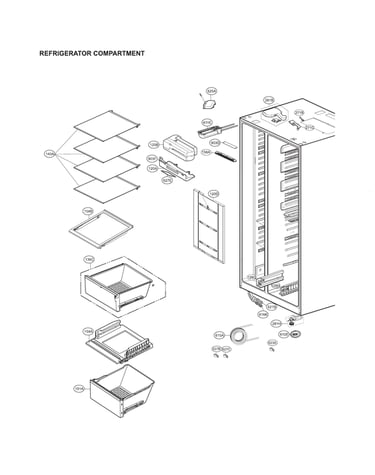

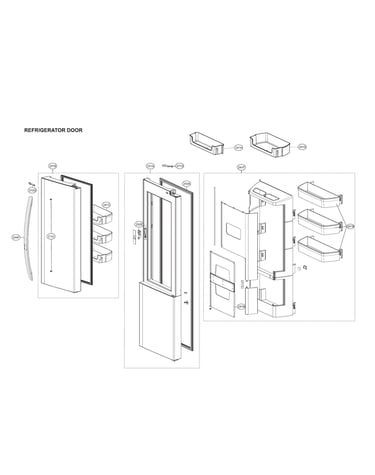

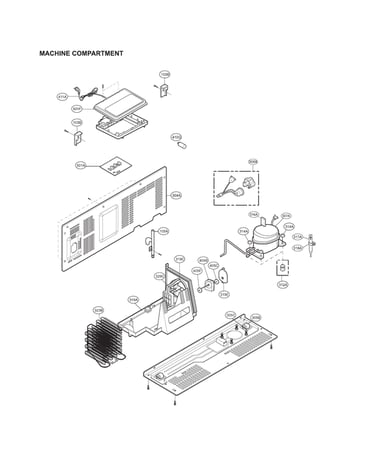

All parts diagram

Refrigerator filter dryer

Part #ADH73590310

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204

#405H

All parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$50.02 |
11% OFF Phone Price : $56.02
In Stock
Lg Lt800p Refrigerator Water Filter (replaces Agm76550401) ADQ73613401

#611B

All parts diagram

Lg lt800p refrigerator water filter (replaces agm76550401)

Part #ADQ73613401

BEST SELLER

Get free shipping with Automatic Reorder

$66.49
In Stock
Lg Refrigerator Ice Maker AEQ73209906

#600A

All parts diagram

Lg refrigerator ice maker

Part #AEQ73209906

BEST SELLER
$159.56 |
7% OFF Phone Price : $171.56
In Stock
Refrigerator Condenser Coil (replaces Acg75305701) ACG73748502

#323B

All parts diagram

Refrigerator condenser coil (replaces acg75305701)

Part #ACG73748502

BEST SELLER
$124.97 |
9% OFF Phone Price : $136.97
In Stock
Refrigerator Water Tube Fitting (replaces 4932ja3013b, Mcd38280802, Mcd38280805, Mcd61866802, Mcd61866804) 4932JA3002C

#621B

All parts diagram

Refrigerator water tube fitting (replaces 4932ja3013b, mcd38280802, mcd38280805, mcd61866802, mcd61866804)

Part #4932JA3002C

BEST SELLER
$16.64 |
11% OFF Phone Price : $18.64
In Stock
Refrigerator Compressor Overload Protector EBG60663229

#308A

All parts diagram

Refrigerator compressor overload protector

Part #EBG60663229

BEST SELLER
$50.75 |
11% OFF Phone Price : $56.75
In Stock
Refrigerator Dispenser Ice Chute Door Hinge Spring 4970JA3011K

#113E

All parts diagram

Refrigerator dispenser ice chute door hinge spring

Part #4970JA3011K

BEST SELLER
$14.75 |
12% OFF Phone Price : $16.75
In Stock
Refrigerator Ice Maker And Auger Motor Assembly EAU61004412

#612A

All parts diagram

Refrigerator ice maker and auger motor assembly

Part #EAU61004412

BEST SELLER
$222.42 |
5% OFF Phone Price : $234.42
In Stock
Refrigerator Condenser Fan Motor (replaces Eau63103302) EAU63103301

#404B

All parts diagram

Refrigerator condenser fan motor (replaces eau63103302)

Part #EAU63103301

BEST SELLER
$79.67 |
7% OFF Phone Price : $85.67
Back Order
