Whirlpool
Gas Cooktop

Model # WCG55US6HW05 Official Whirlpool cooktop, gas

Here are the diagrams and repair parts for Official Whirlpool WCG55US6HW05 cooktop, gas, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Spark Module (red) W10475149
#9

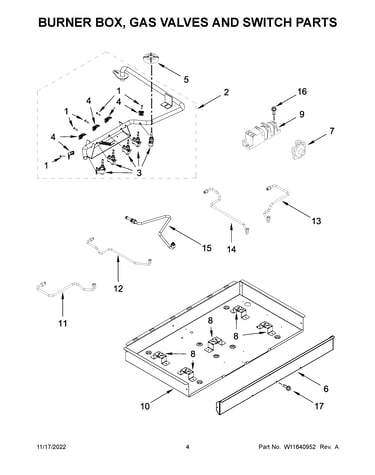

Burner box, gas valves and switch parts diagram

Spark module (red)

Part #W10475149

Replaced by #WPW10475149

?
Manufacturer substitution
This part replaces W10475149. Substitute parts can look different from the original.
BEST SELLER
$143.12 |
8% OFF Phone Price : $155.12
In Stock
Screw 3196537
#17

Burner box, gas valves and switch parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Pressure Regulator W10449143
#7

Burner box, gas valves and switch parts diagram

Cooktop pressure regulator

Part #W10449143

Replaced by #W11087445

?
Manufacturer substitution
This part replaces W10449143. Substitute parts can look different from the original.
$130.91 |
8% OFF Phone Price : $142.91
In Stock
Ikea Cooktop Griddle W10685483
#NI

Burner box, gas valves and switch parts diagram

Ikea cooktop griddle

Part #W10685483

$65.49 |
8% OFF Phone Price : $71.49
In Stock
Cooktop Burner Head 8286815
#8A

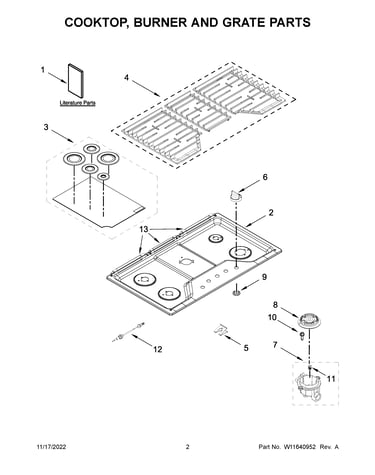

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286815

Replaced by #WP8286815

?
Manufacturer substitution
This part replaces 8286815. Substitute parts can look different from the original.
$64.14 |
9% OFF Phone Price : $70.14
In Stock
Grate Kit W11047088
#4

Cooktop, burner and grate parts diagram

Grate kit

Part #W11047088

Replaced by #W11204377

?
Manufacturer substitution
This part replaces W11047088. Substitute parts can look different from the original.
$215.63 |
5% OFF Phone Price : $227.63
In Stock
Cooktop Burner Head 8286813
#8B

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286813

Replaced by #WP8286813

?
Manufacturer substitution
This part replaces 8286813. Substitute parts can look different from the original.
$64.15 |
9% OFF Phone Price : $70.15
In Stock
Cooktop Burner Knob (white) W11084621
#6A

Cooktop, burner and grate parts diagram

Cooktop burner knob (white)

Part #W11084621

$40.17 |
13% OFF Phone Price : $46.17
In Stock
Cooktop Burner Orifice, 9,100-btu W10652710
#11

Cooktop, burner and grate parts diagram

Cooktop burner orifice, 9,100-btu

Part #W10652710

$17.39 |
10% OFF Phone Price : $19.39
In Stock
Harness-swit W10889265
#NI

Cooktop, burner and grate parts diagram

Harness-swit

Part #W10889265

Replaced by #W11561443

?
Manufacturer substitution
This part replaces W10889265. Substitute parts can look different from the original.
$26.47
In Stock
