Model # S3755 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3755 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

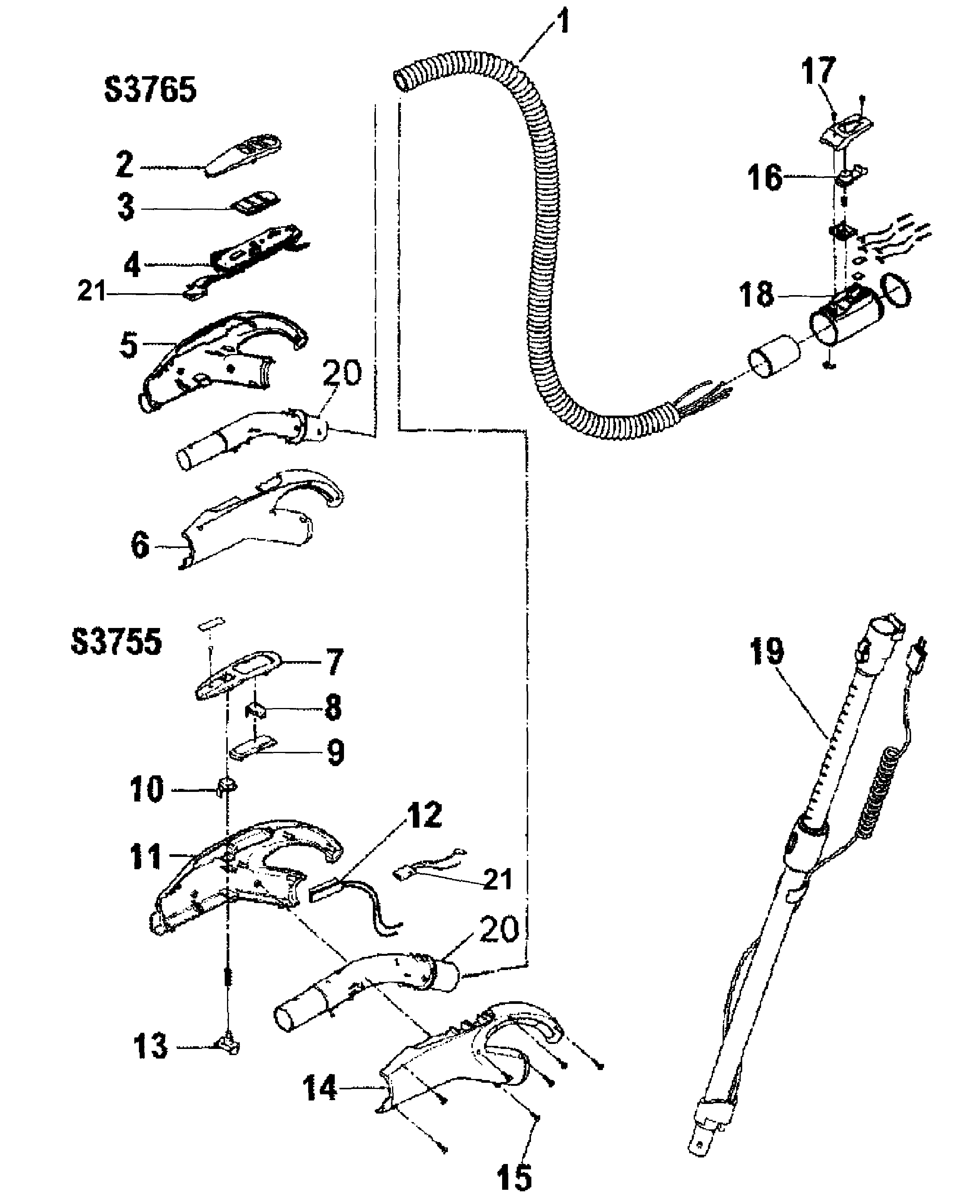

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |

Ribbed Shoe 013261AY
#13

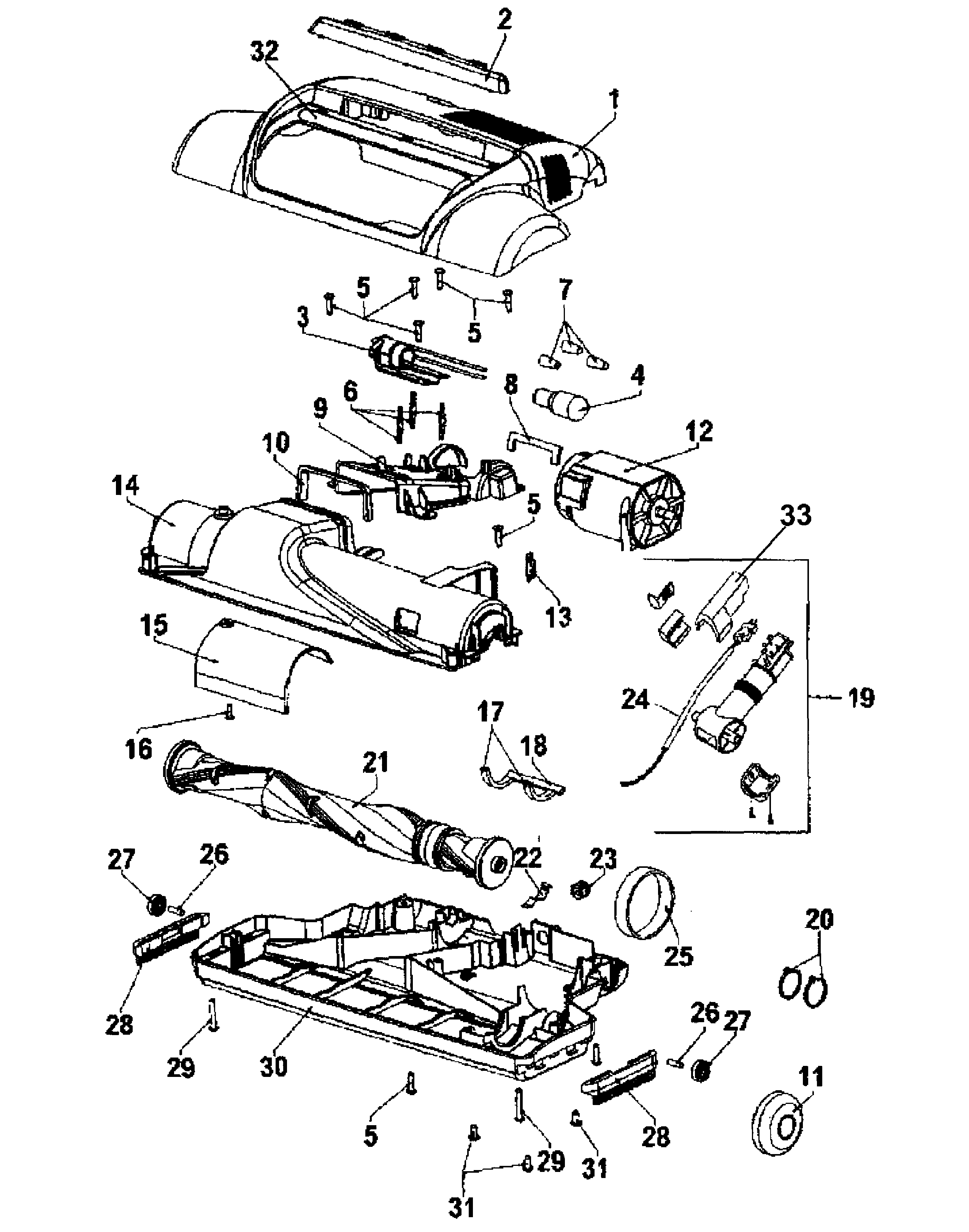

Power nozzle diagram

Ribbed shoe

Part #013261AY

The manufacturer no longer makes this part, and there's no substitute part

Cover 59134039
#18

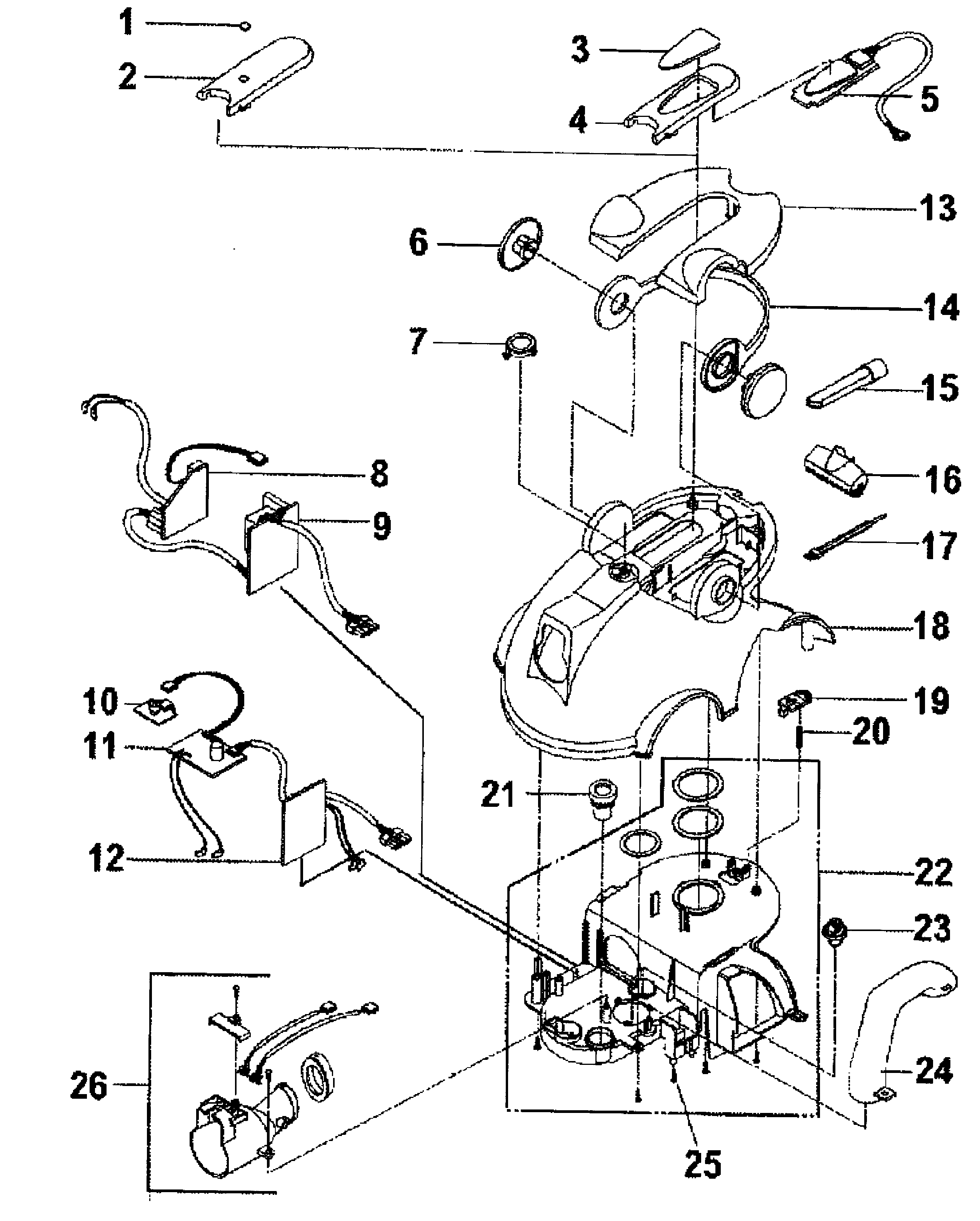

Top assy diagram

Cover

Part #59134039

The manufacturer no longer makes this part, and there's no substitute part

Detergent Plate 34373002
#NI

Power nozzle diagram

Detergent plate

Part #34373002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Nozzle Duct Cover 37243066
#9

Power nozzle diagram

Vacuum floor nozzle duct cover

Part #37243066

The manufacturer no longer makes this part, and there's no substitute part

Cord 59134072
#24

Power nozzle diagram

Cord

Part #59134072

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 59134026
#3

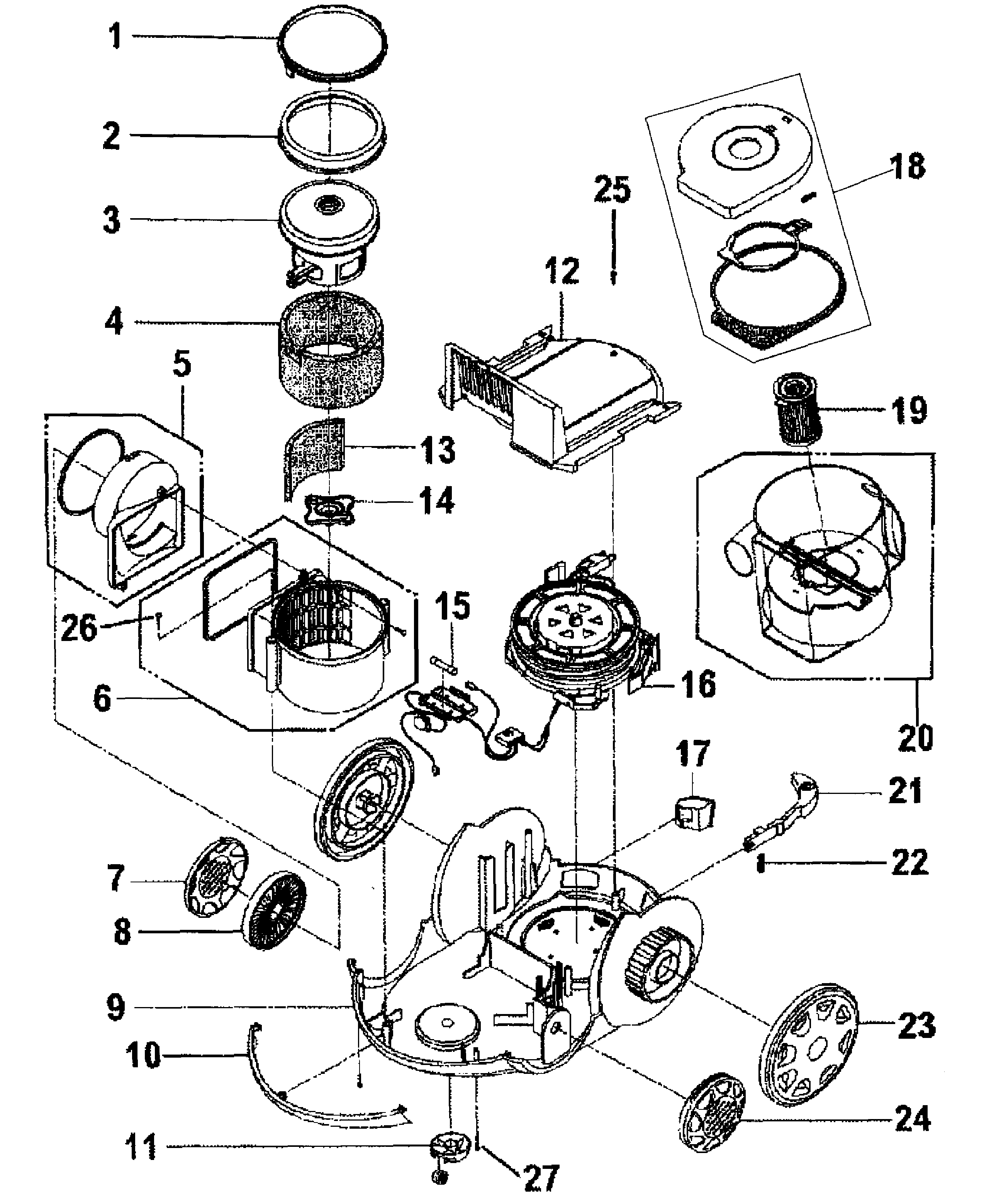

Bottom assy diagram

Vacuum motor

Part #59134026

The manufacturer no longer makes this part, and there's no substitute part

Handle Cap 59134031
#6

Top assy diagram

Handle cap

Part #59134031

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 59134024
#23

Bottom assy diagram

Vacuum wheel

Part #59134024

The manufacturer no longer makes this part, and there's no substitute part

Plug Holde 59134029
#17

Bottom assy diagram

Plug holde

Part #59134029

The manufacturer no longer makes this part, and there's no substitute part

Connector 59134055
#26

Top assy diagram

Connector

Part #59134055

The manufacturer no longer makes this part, and there's no substitute part
