Model # GFC520T Official GE garbage disposal
Here are the diagrams and repair parts for Official GE GFC520T garbage disposal, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
GFC520T Garbage Disposal
#1

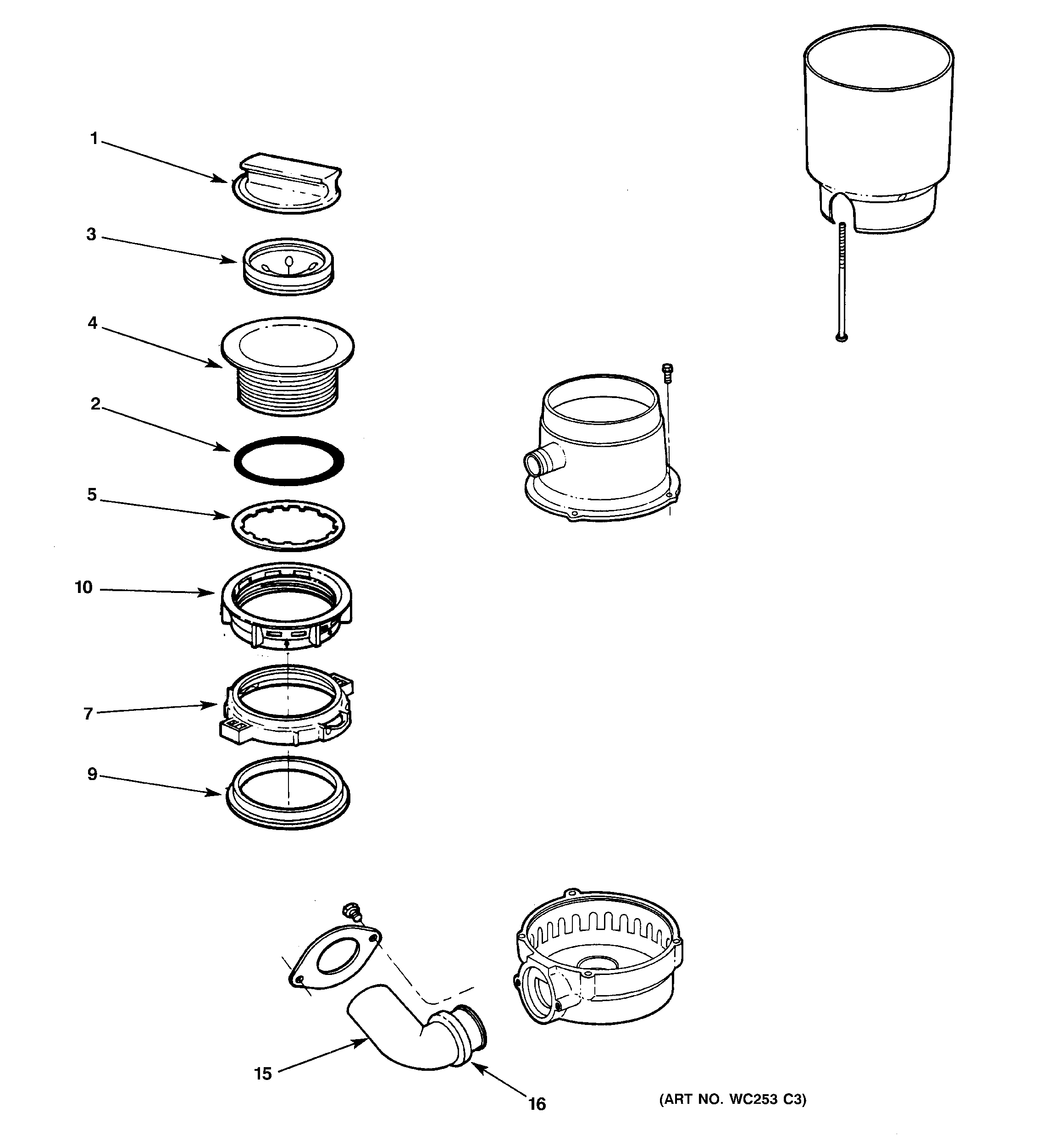

Disposer diagram
Stopper
Part #WC11X10001
Replaced by #WC11X20163
?
Manufacturer substitution
This part replaces WC11X10001. Substitute parts can look different from the original.
$14.56 |
12% OFF Phone Price : $16.56
In Stock
#4
Disposer diagram
Sink flange
Part #WC15X10001
Replaced by #WC15X20161
?
Manufacturer substitution
This part replaces WC15X10001. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
#7
Disposer diagram
Mounting ring
Part #WC05X0104
Replaced by #WC15X20161
?
Manufacturer substitution
This part replaces WC05X0104. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
#2
Disposer diagram
Gasket
Part #WC03X0116
Replaced by #WC15X20161
?
Manufacturer substitution
This part replaces WC03X0116. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
#5
Disposer diagram
Gasket
Part #WC03X0113
Replaced by #WC03X10008
?
Manufacturer substitution
This part replaces WC03X0113. Substitute parts can look different from the original.
$18.44 |
10% OFF Phone Price : $20.44
In Stock
#9
Disposer diagram
Mounting cushion
Part #WC05X0102
Replaced by #WC15X20161
?
Manufacturer substitution
This part replaces WC05X0102. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
#4
Disposer diagram
Sink flange
Part #WC15X0041
Replaced by #WC15X20161
?
Manufacturer substitution
This part replaces WC15X0041. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
#10
Disposer diagram
Support ring
Part #WC05X10001
Replaced by #WC05X10002
?
Manufacturer substitution
This part replaces WC05X10001. Substitute parts can look different from the original.
This item is not returnable
$11.68 |
15% OFF Phone Price : $13.68
In Stock
#16
Disposer diagram
Seal drive elbow
Part #WC03X0127
Replaced by #WC14X20160
?
Manufacturer substitution
This part replaces WC03X0127. Substitute parts can look different from the original.
$27.99 |
18% OFF Phone Price : $33.99
In Stock
#3
Disposer diagram
Splash guard
Part #WC03X10002
The manufacturer no longer makes this part, and there's no substitute part
