Model # N4A342GKA300 Official ICP split-system air conditioner - r410a

Here are the diagrams and repair parts for Official ICP N4A342GKA300 split-system air conditioner - r410a, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Central Air Conditioner Condenser Fan Grille 1178644
#L

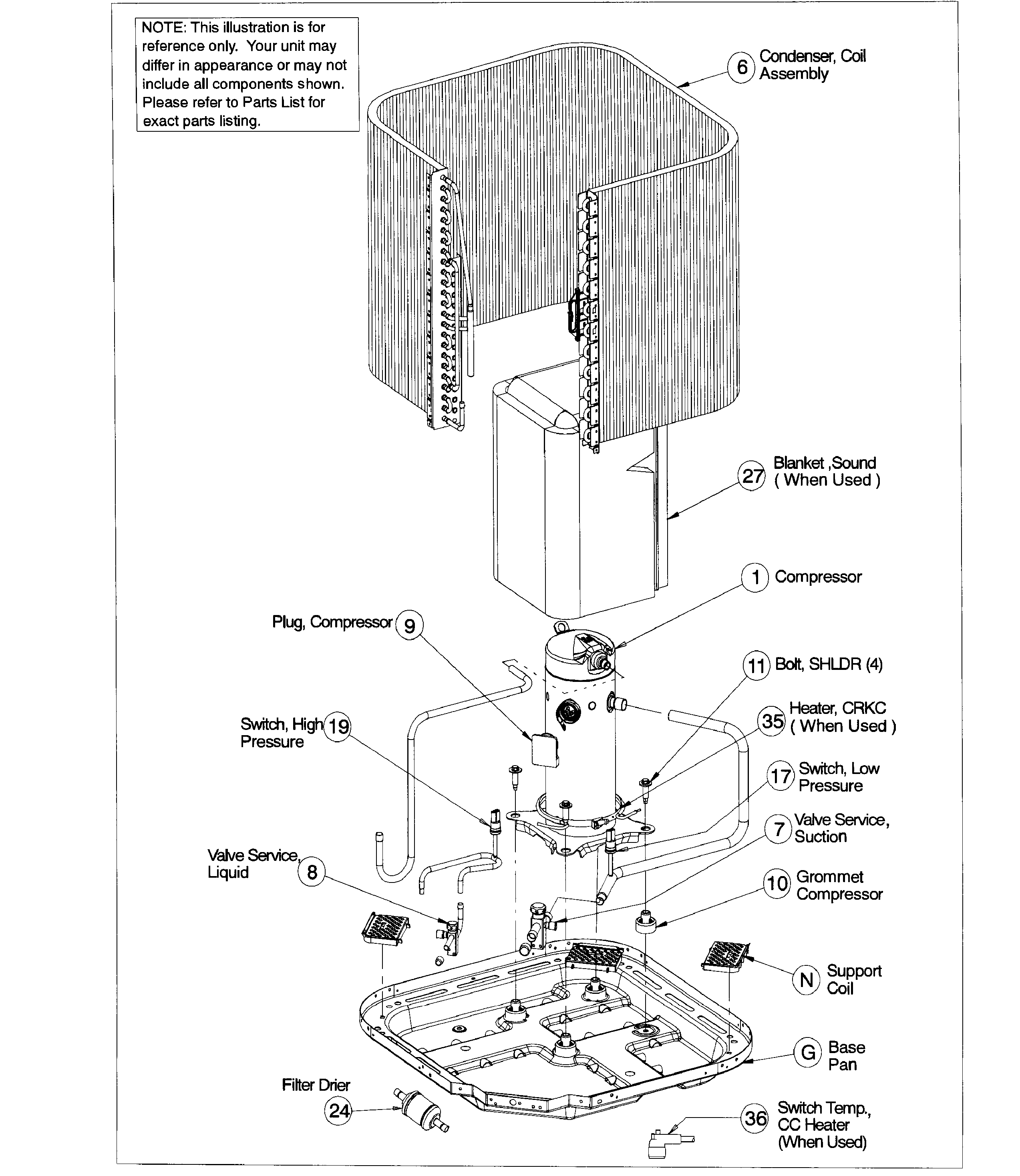

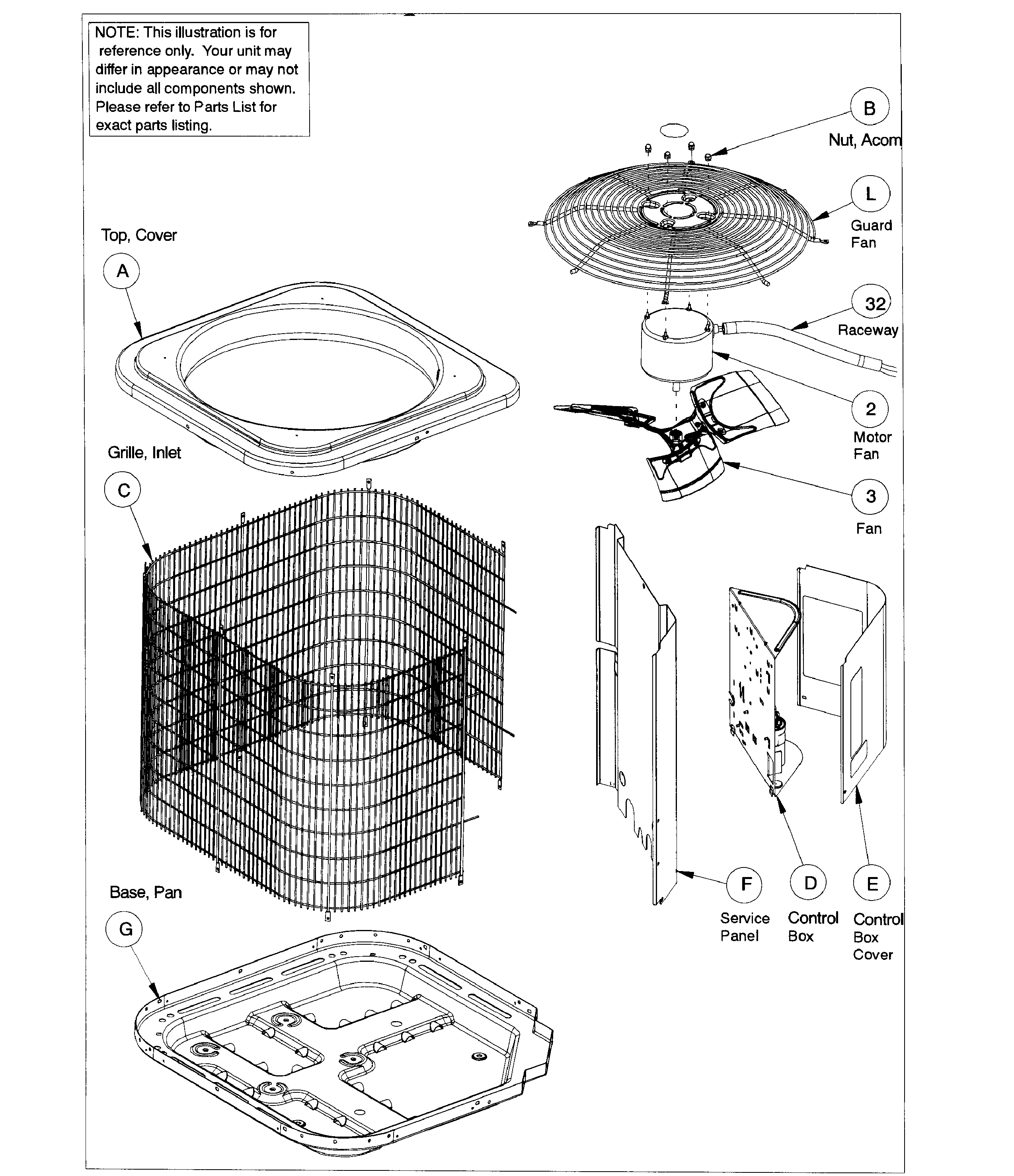

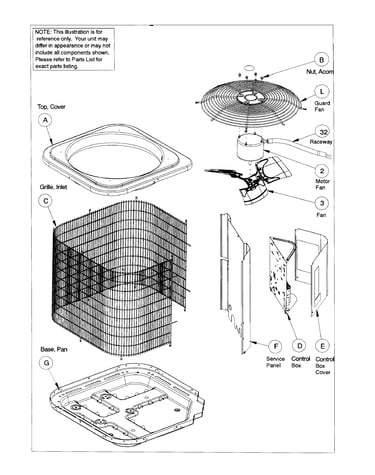

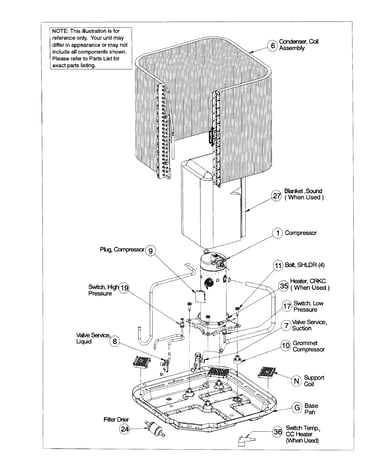

Main asy 2 diagram

Central air conditioner condenser fan grille

Part #1178644

$87.51
In Stock
Central Air Conditioner Contactor 1172472
#4

Main asy 1 diagram

Central air conditioner contactor

Part #1172472

$61.35 |
9% OFF Phone Price : $67.35
In Stock
Raceway 1171428
#32

Main asy 2 diagram

Raceway

Part #1171428

This item is not returnable
$6.69
In Stock
Central Air Conditioner Service Valve Cap Kit 1175650
#NI

Main asy 1 diagram

Central air conditioner service valve cap kit

Part #1175650

$90.53
In Stock
Support 1174068
#N

Main asy 1 diagram

Support

Part #1174068

$21.40
In Stock
Clamp 1172734
#P

Main asy 2 diagram

Clamp

Part #1172734

$9.66
In Stock
Carrier Grommet 1171270
#10

Main asy 1 diagram

Carrier grommet

Part #1171270

This item is not returnable
$4.00
In Stock
Ser Panel 1178528
#F

Main asy 2 diagram

Ser panel

Part #1178528

$68.71
In Stock
Pan Base 1178308
#G

Main asy 1 diagram

Pan base

Part #1178308

$283.18
In Stock
Central Air Conditioner Condenser Fan Blade 1172713
#3

Main asy 2 diagram

Central air conditioner condenser fan blade

Part #1172713

$172.38
In Stock
