Frigidaire
Wall Oven/Microwave Combo

Model # FGMC2765PBF Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC2765PBF wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

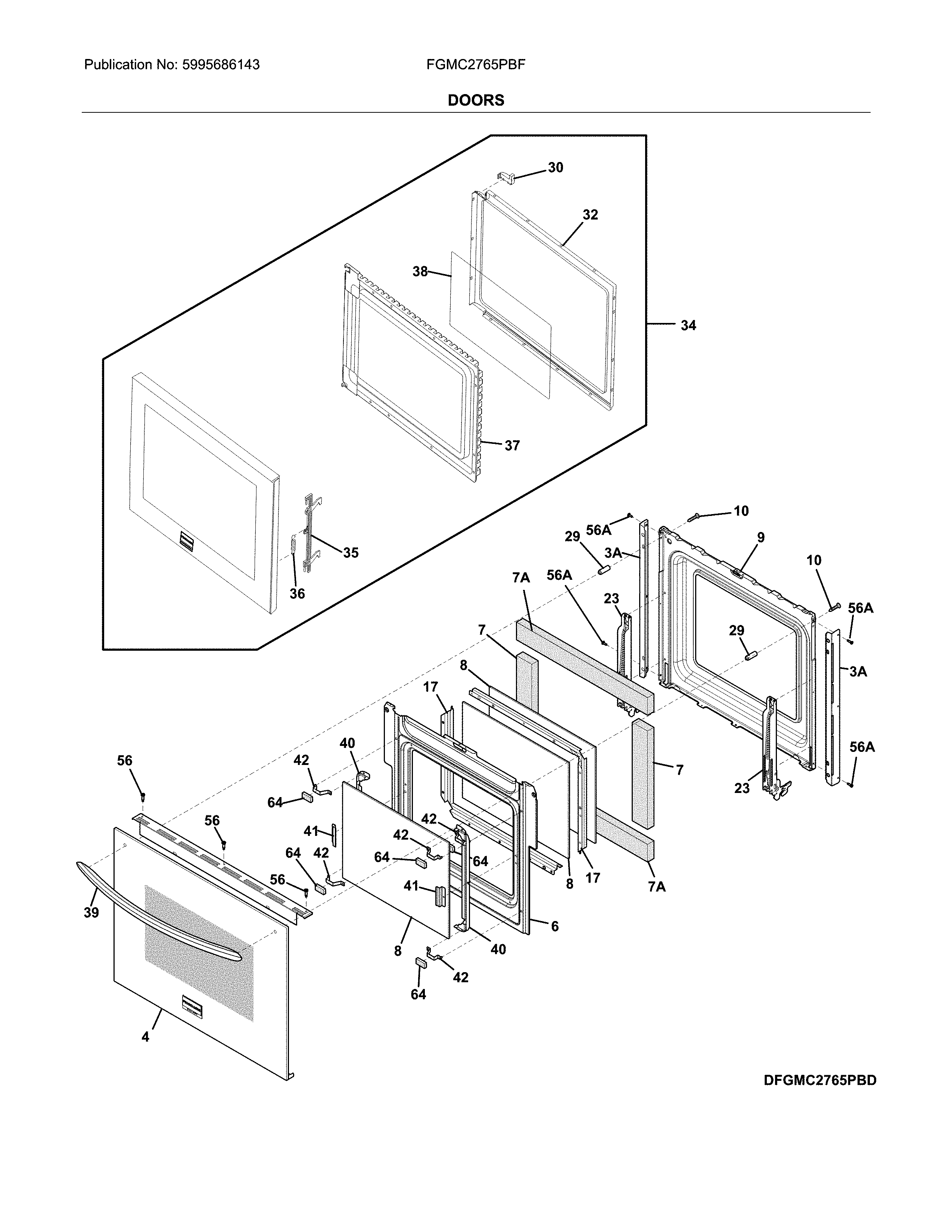

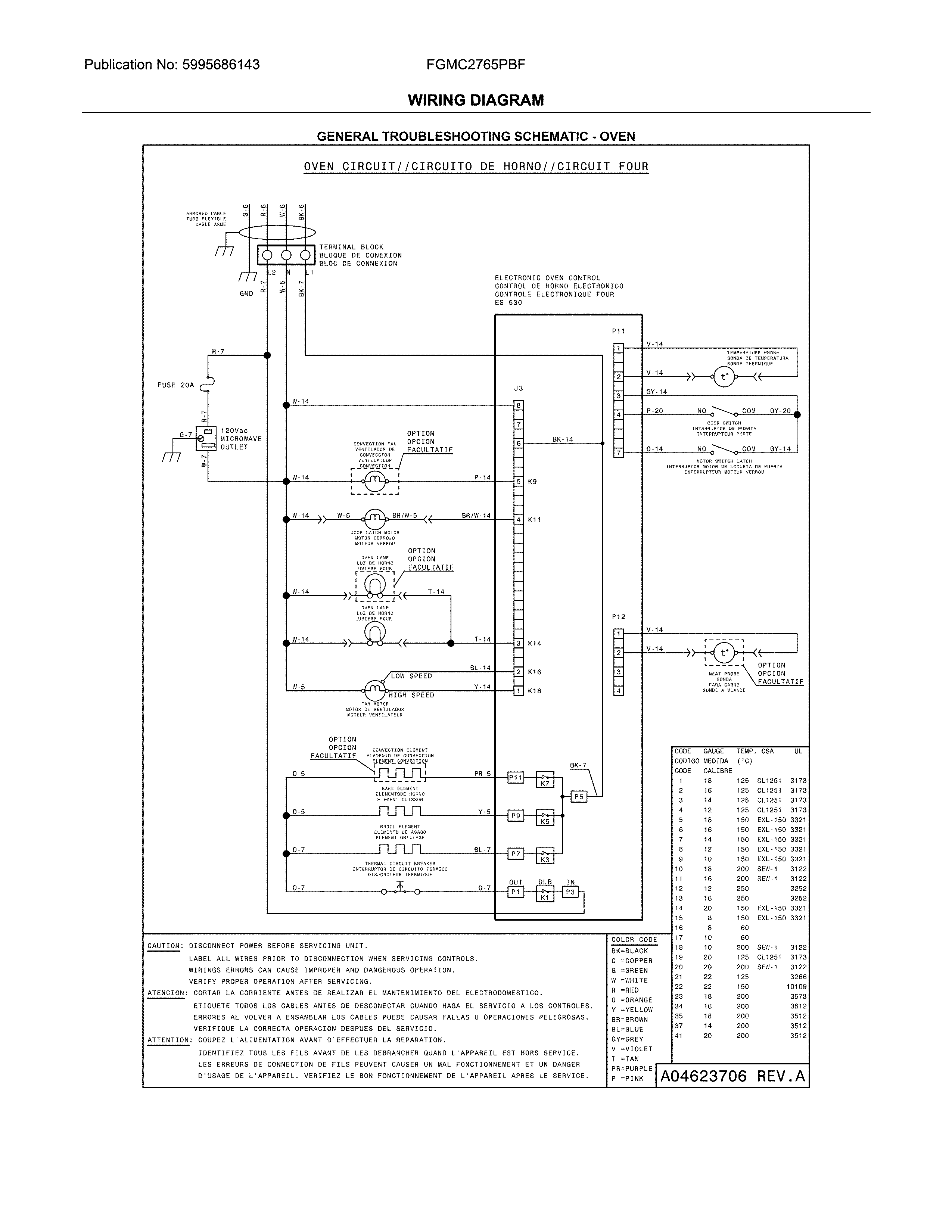

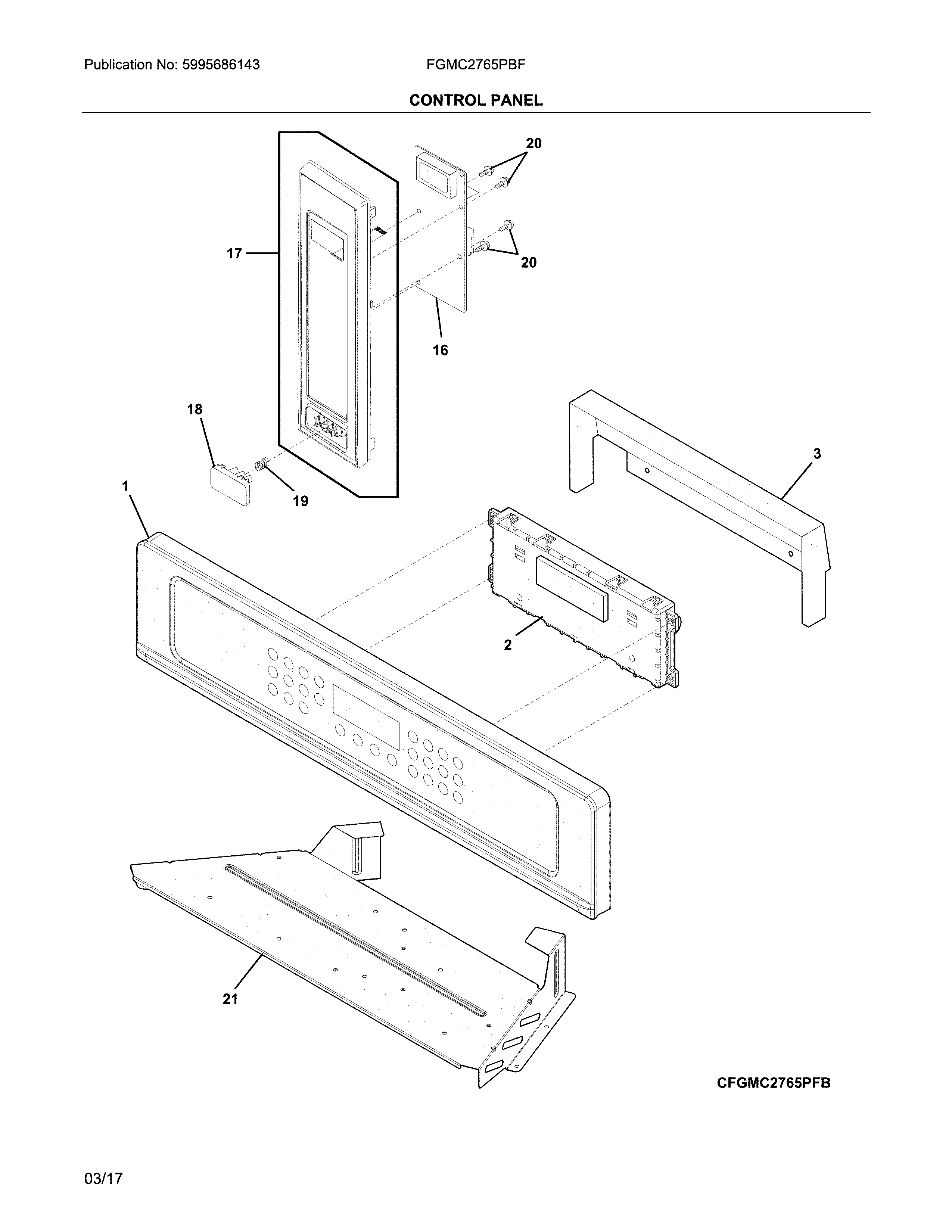

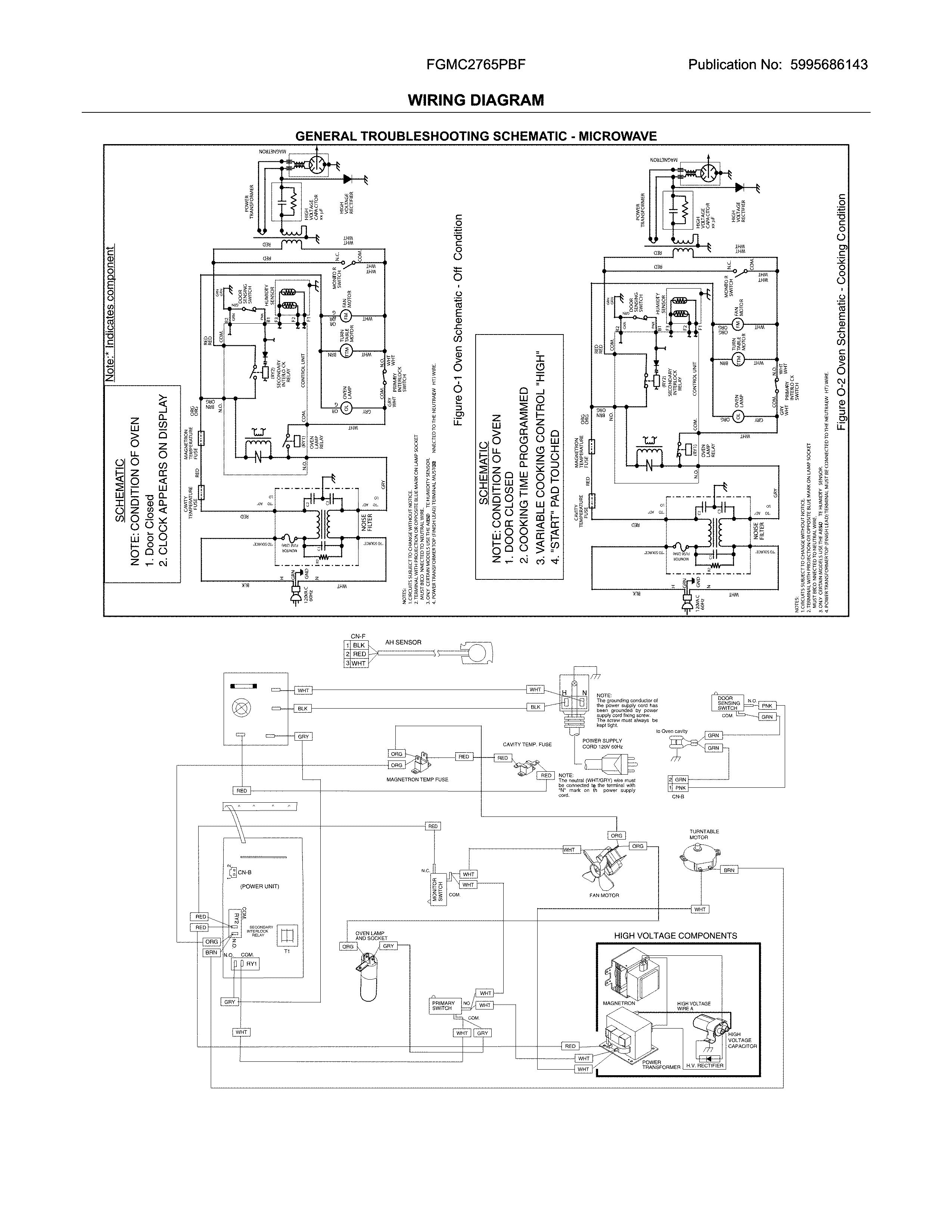

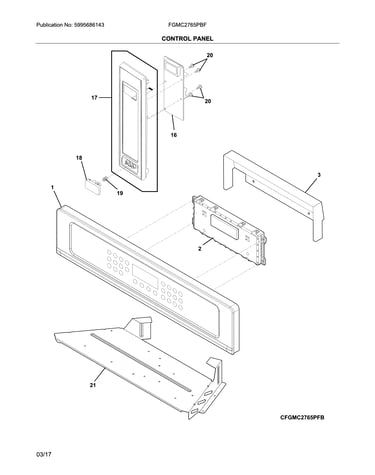

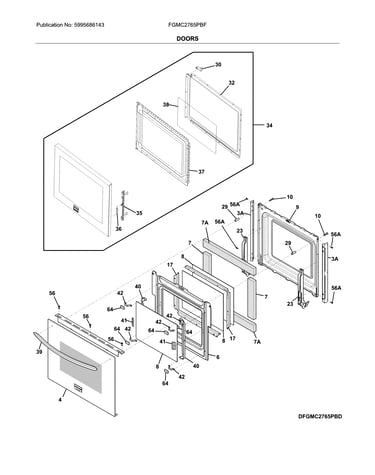

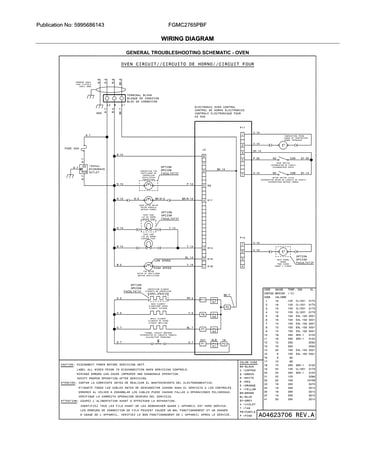

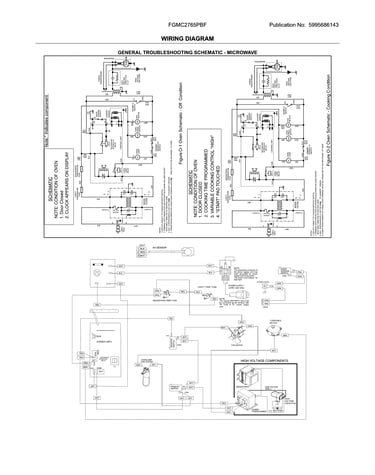

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |

Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

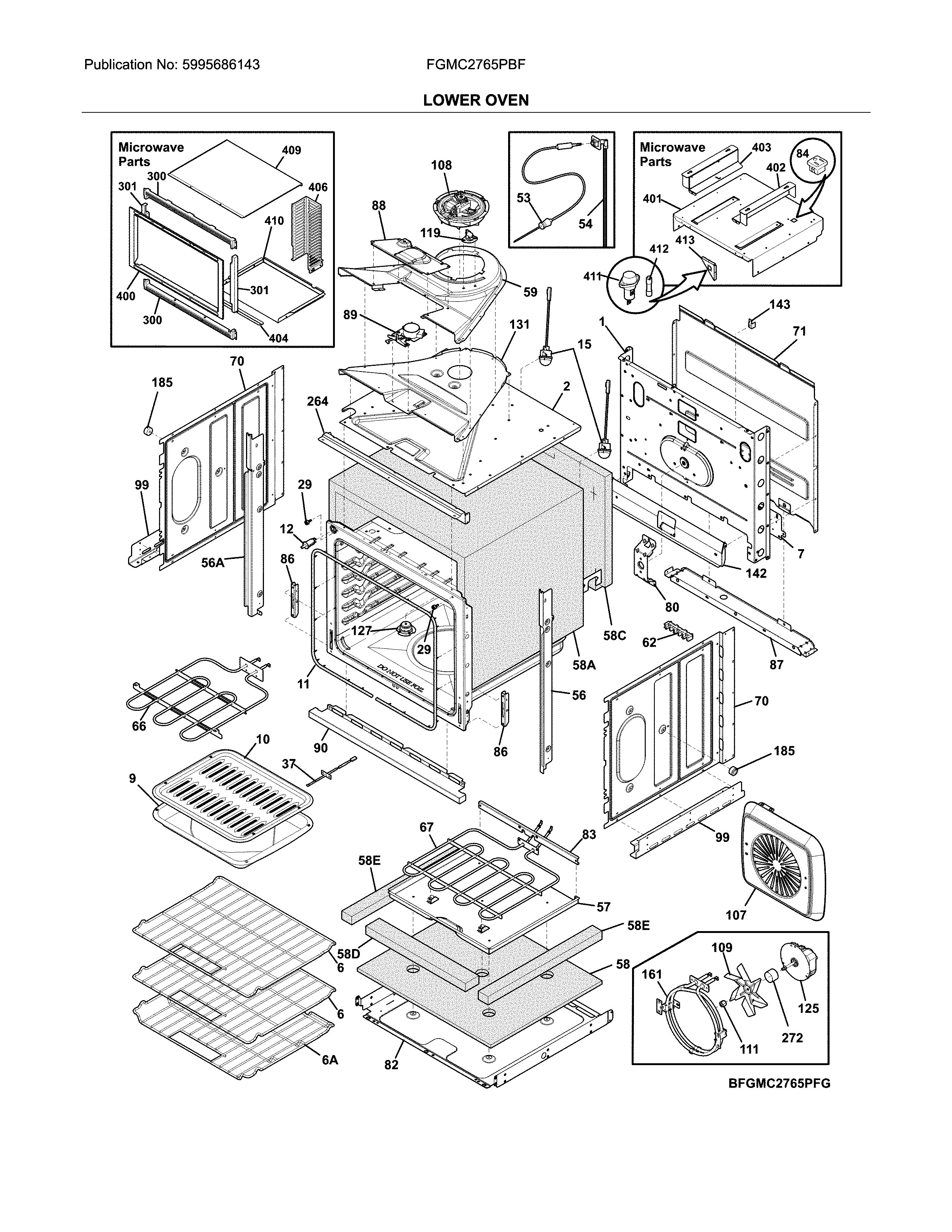

Lower oven diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79
13% OFF Phone Price : $44.79
In Stock
Fuse 318576100
#412

Lower oven diagram

Fuse

Part #318576100

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576100. Substitute parts can look different from the original.
BEST SELLER
$108.36
10% OFF Phone Price : $120.36
In Stock
Holder 318576200
#411

Lower oven diagram

Holder

Part #318576200

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576200. Substitute parts can look different from the original.
BEST SELLER
$108.36
10% OFF Phone Price : $120.36
In Stock
Latch Hook 5304483410
#23

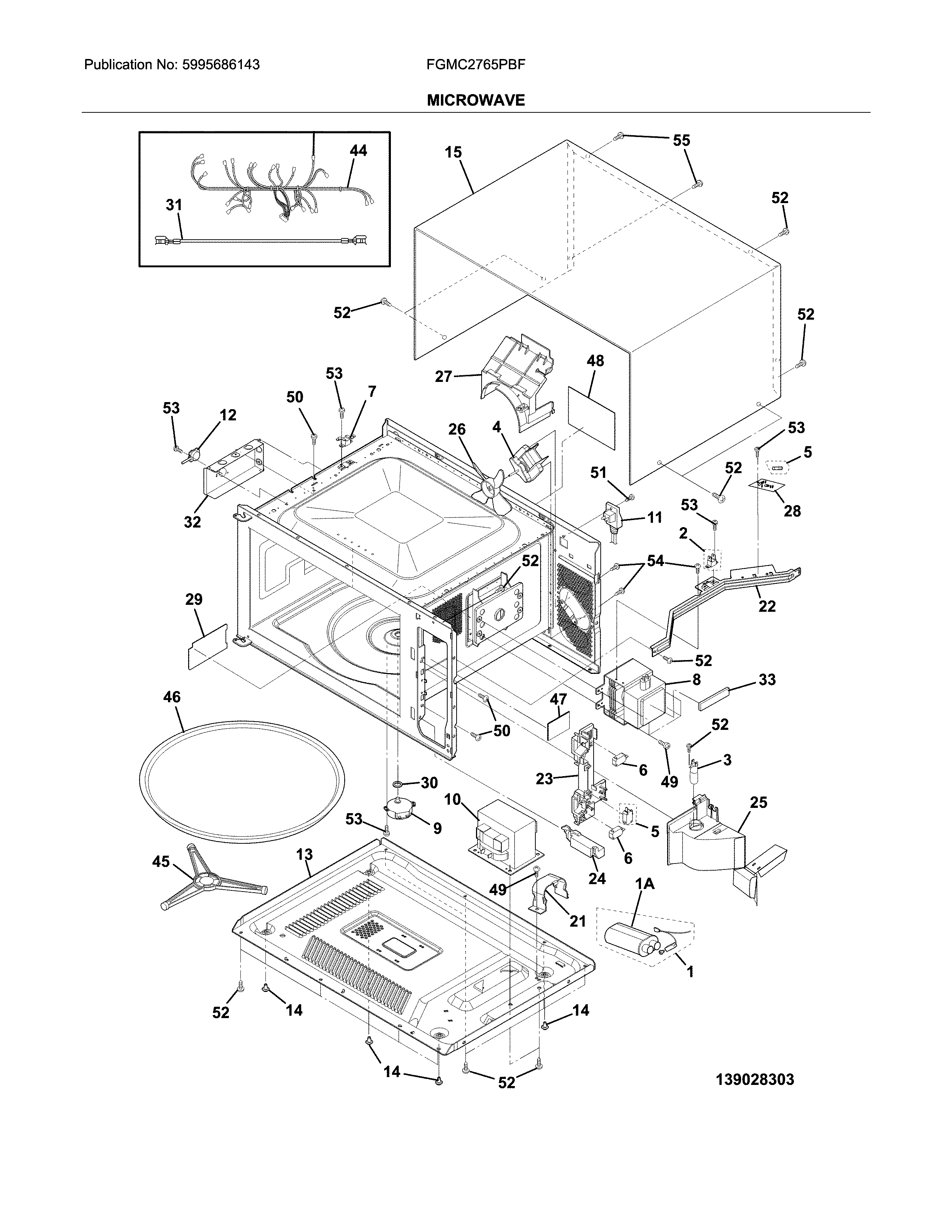

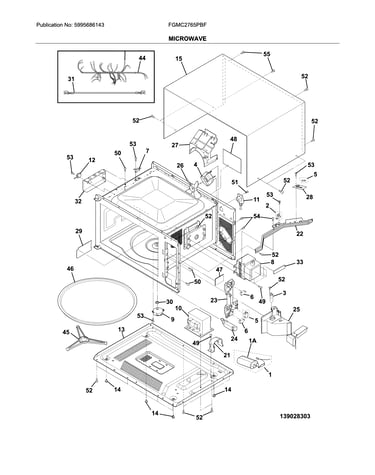

Microwave diagram

Latch hook

Part #5304483410

Replaced by #5304503439

?
Manufacturer substitution
This part replaces 5304483410. Substitute parts can look different from the original.
BEST SELLER
$48.11
11% OFF Phone Price : $54.11
In Stock
Lever 5304464899
#24

Microwave diagram

Lever

Part #5304464899

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304464899. Substitute parts can look different from the original.
BEST SELLER
$51.29
10% OFF Phone Price : $57.29
In Stock
Microwave High-voltage Capacitor 5304493150
#1

Microwave diagram

Microwave high-voltage capacitor

Part #5304493150

BEST SELLER
This item is not returnable
$28.19
18% OFF Phone Price : $34.19
In Stock
Microwave Door Interlock Switch And Fuse (replaces 75303319559) 5303319559
#5

Microwave diagram

Microwave door interlock switch and fuse (replaces 75303319559)

Part #5303319559

BEST SELLER
$77.69
7% OFF Phone Price : $83.69
In Stock
Range Control Panel Cooling Fan 318575612
#108

Lower oven diagram

Range control panel cooling fan

Part #318575612

$167.94
7% OFF Phone Price : $179.94
In Stock
Range Oven Meat Probe Sensor (replaces 5304514885) 5304504202
#53

Lower oven diagram

Range oven meat probe sensor (replaces 5304514885)

Part #5304504202

$89.51
6% OFF Phone Price : $95.51
In Stock
Range Oven Light Bulb (replaces 808564103) 318946500
#NI

Lower oven diagram

Range oven light bulb (replaces 808564103)

Part #318946500

$38.98
13% OFF Phone Price : $44.98
In Stock
