Electric Line Trimmer

Model # 257798500 Official Craftsman double insulated bladeless electric line trimmer

Here are the diagrams and repair parts for Official Craftsman 257798500 double insulated bladeless electric line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Screw 1938
#40

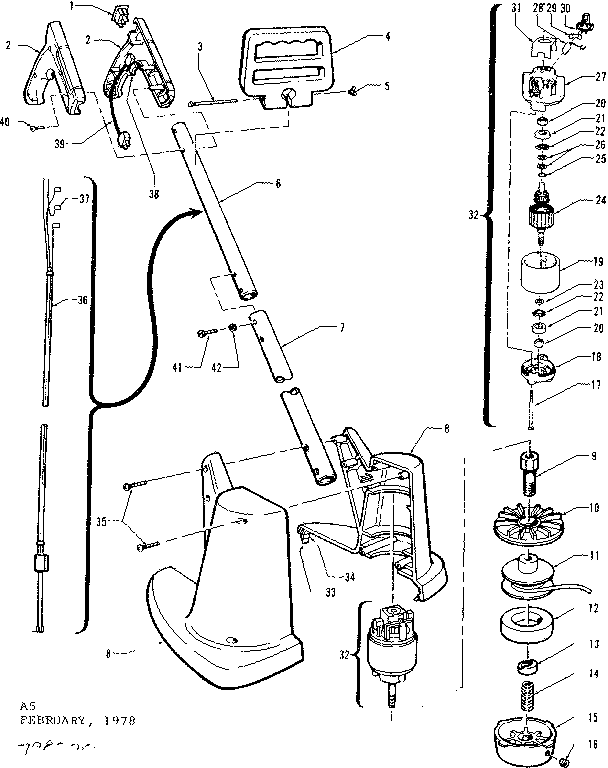

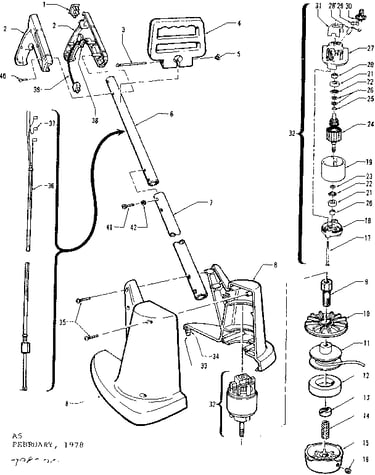

Replacement parts diagram

Screw

Part #1938

The manufacturer no longer makes this part, and there's no substitute part

Washer 2288
#26

Replacement parts diagram

Washer

Part #2288

The manufacturer no longer makes this part, and there's no substitute part

Holder 2277
#30

Replacement parts diagram

Holder

Part #2277

The manufacturer no longer makes this part, and there's no substitute part

Washer 131096
#42

Replacement parts diagram

Washer

Part #131096

The manufacturer no longer makes this part, and there's no substitute part

Screw 2224
#35

Replacement parts diagram

Screw

Part #2224

The manufacturer no longer makes this part, and there's no substitute part

Span Wrench 1699

#NI

All parts diagram

Span wrench

Part #1699

The manufacturer no longer makes this part, and there's no substitute part

Spool 1571
#11

Replacement parts diagram

Spool

Part #1571

The manufacturer no longer makes this part, and there's no substitute part

Complete Housing 2821-06
#8

Replacement parts diagram

Complete housing

Part #2821-06

The manufacturer no longer makes this part, and there's no substitute part

Washer 2389-3
#23

Replacement parts diagram

Washer

Part #2389-3

The manufacturer no longer makes this part, and there's no substitute part

Switch 1583
#1

Replacement parts diagram

Switch

Part #1583

The manufacturer no longer makes this part, and there's no substitute part
