Model # 5648996990 Official Kenmore microwave/convection oven

Here are the diagrams and repair parts for Official Kenmore 5648996990 microwave/convection oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

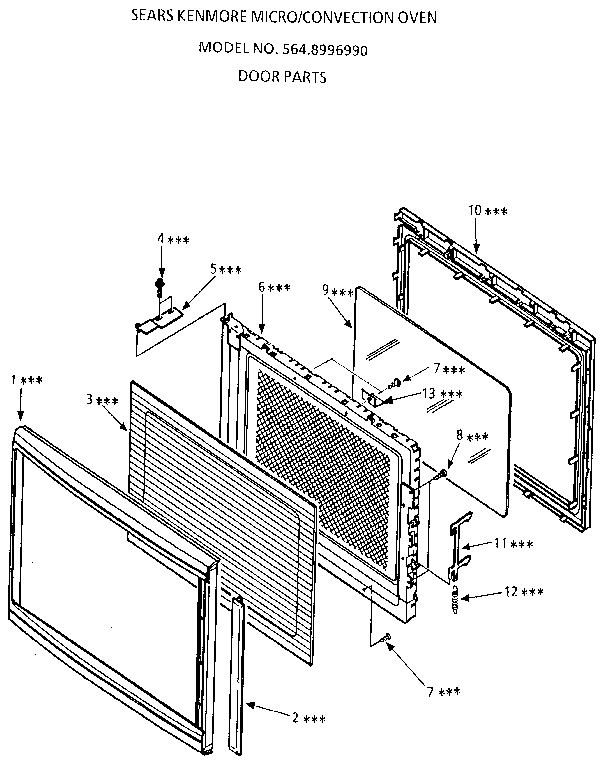

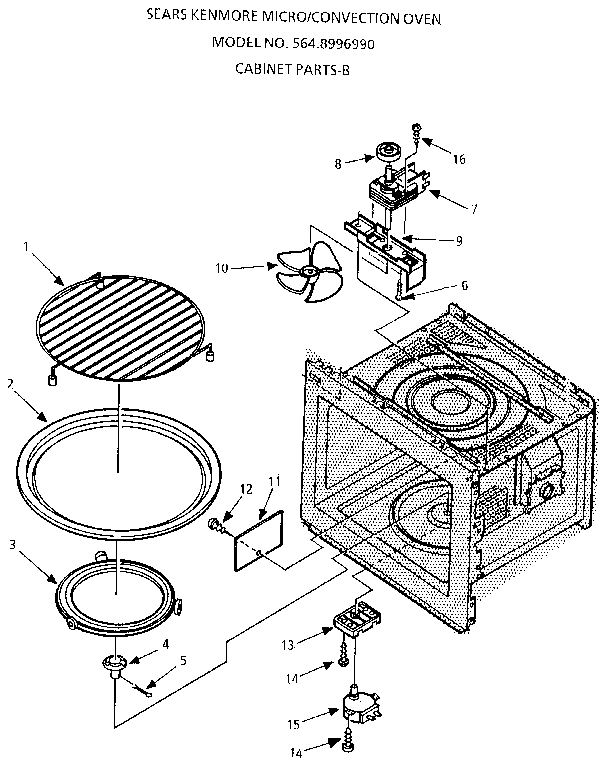

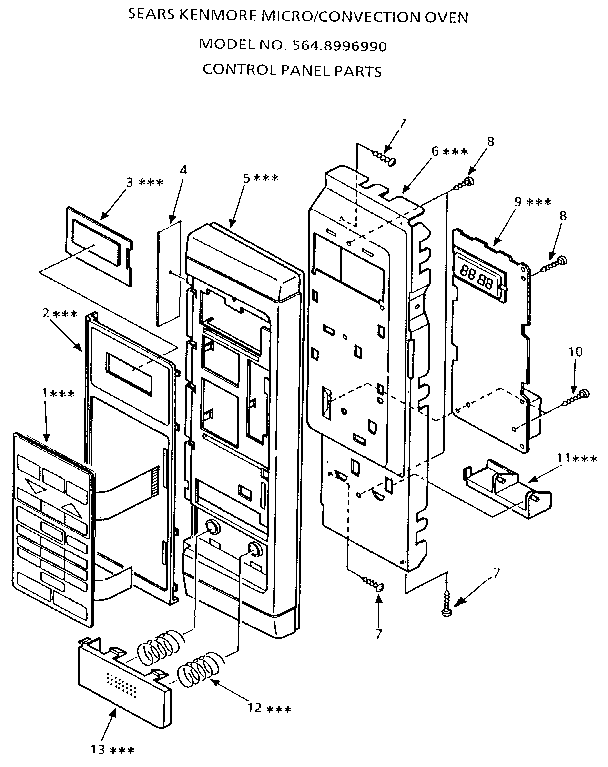

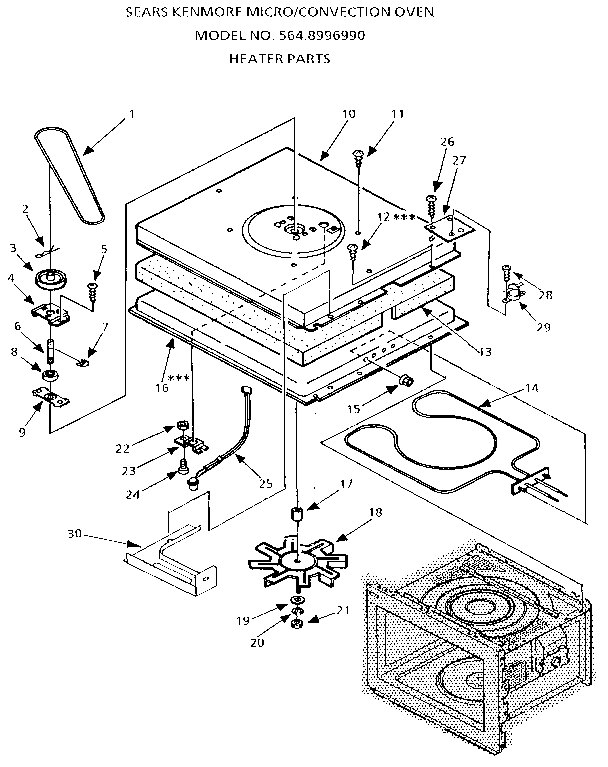

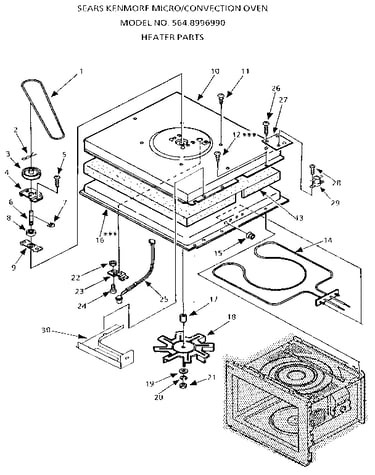

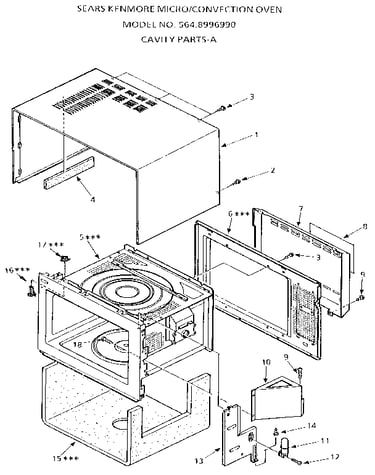

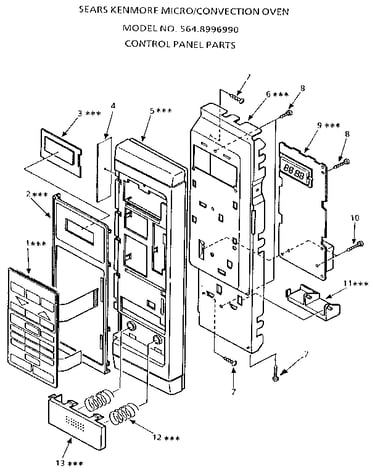

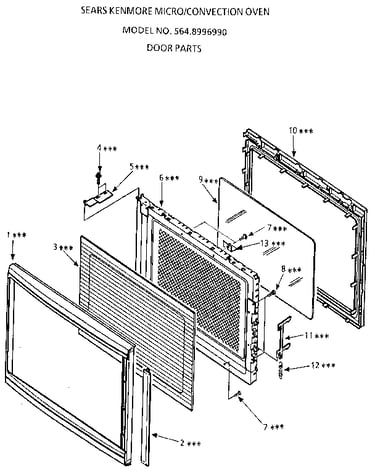

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
20a Fuse 15628
#10

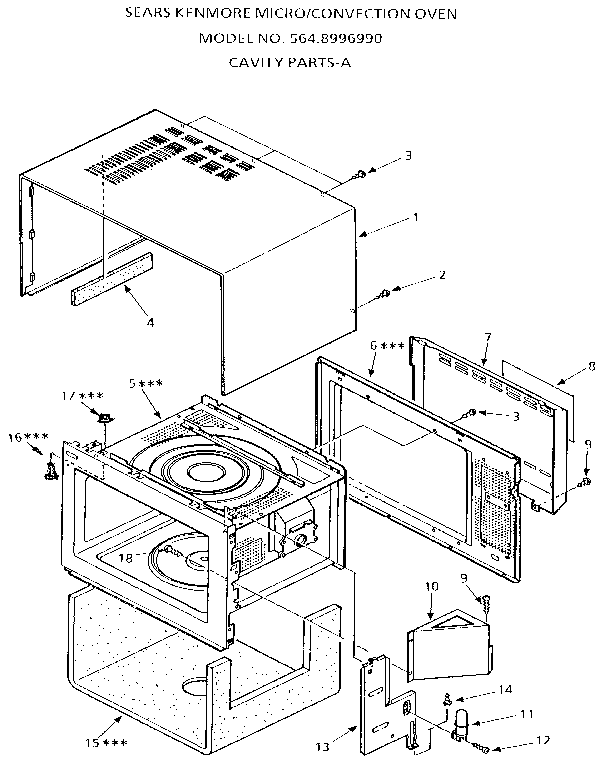

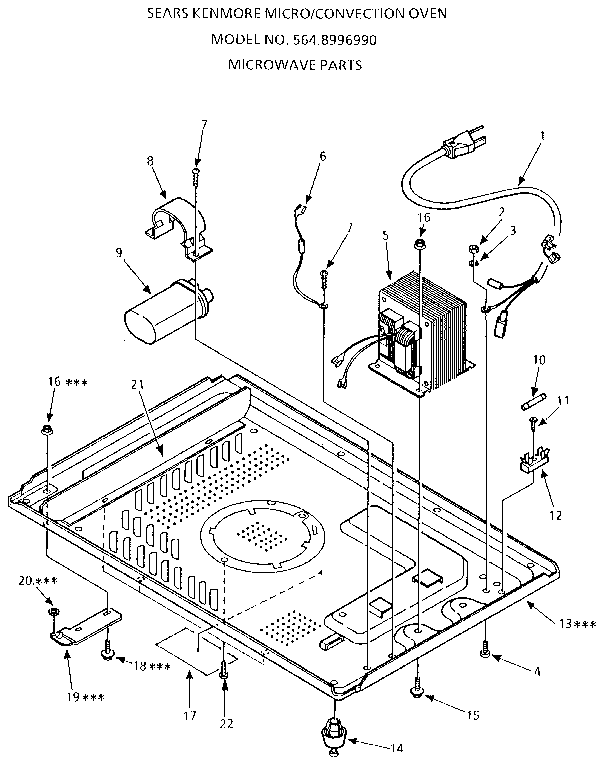

Microwave diagram

20a fuse

Part #15628

The manufacturer no longer makes this part, and there's no substitute part

Microwave Magnetron 15637
#7

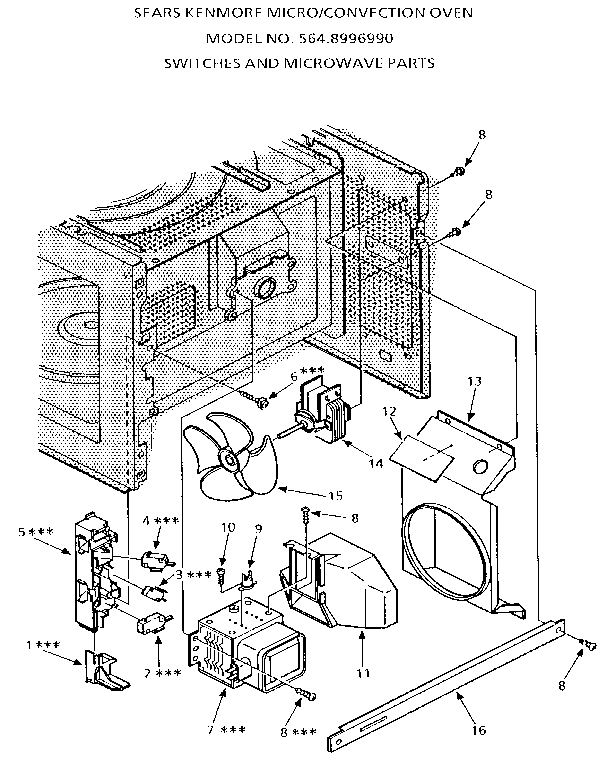

Switches and microwave diagram

Microwave magnetron

Part #15637

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 14254
#46

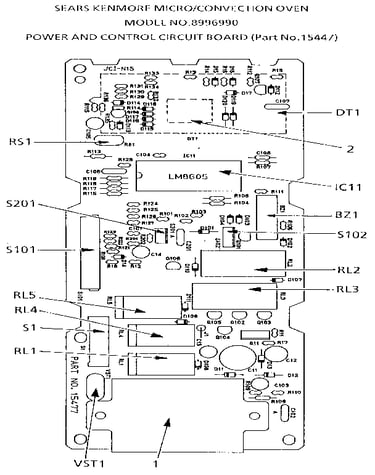

Power and control circuit board (part no. 15447) diagram

Capacitor

Part #14254

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 15336
#4

Switches and microwave diagram

Micro-switch

Part #15336

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 14981
#44

Power and control circuit board (part no. 15447) diagram

Capacitor

Part #14981

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 10657
Capacitor

Part #10657

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 15380
#9

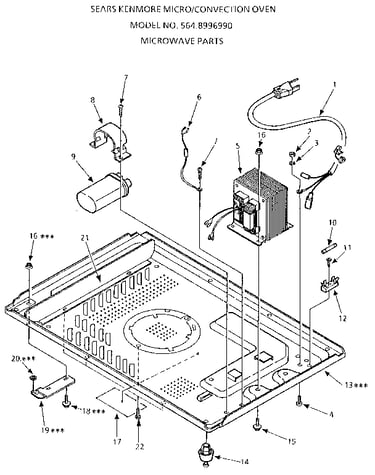

Microwave diagram

Capacitor

Part #15380

The manufacturer no longer makes this part, and there's no substitute part

Resistor 12135
Resistor

Part #12135

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 15112
#38

Power and control circuit board (part no. 15447) diagram

Capacitor

Part #15112

The manufacturer no longer makes this part, and there's no substitute part

Diode 13512
#31

Power and control circuit board (part no. 15447) diagram

Diode

Part #13512

The manufacturer no longer makes this part, and there's no substitute part
