KitchenAid
Stand Mixer

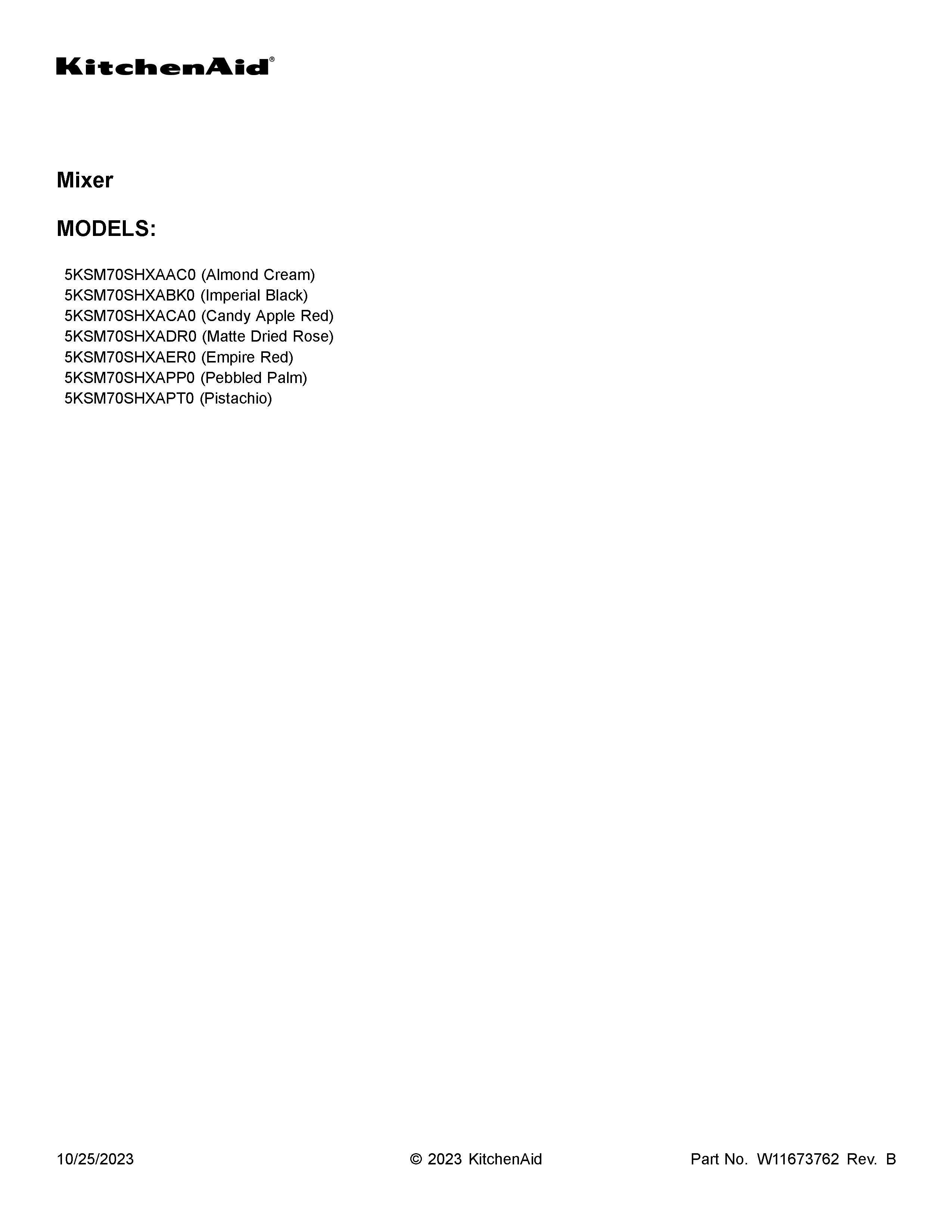

Model # 5KSM70SHXAER0 Official KitchenAid stand mixer

Here are the diagrams and repair parts for Official KitchenAid 5KSM70SHXAER0 stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Pin-bowl 240185
#4

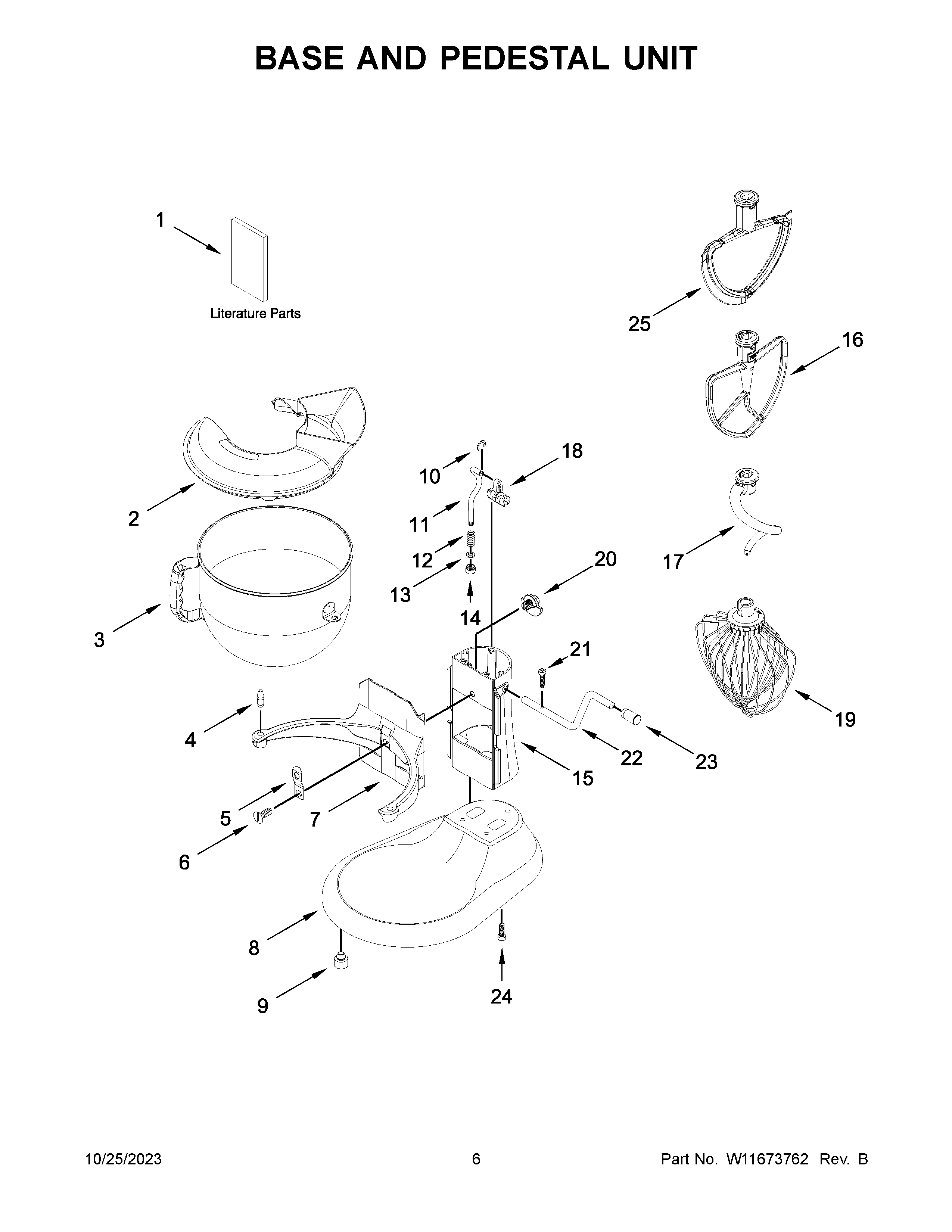

Base and pedestal unit diagram

Pin-bowl

Part #240185

Replaced by #WP240185

?
Manufacturer substitution
This part replaces 240185. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 3400814
#9

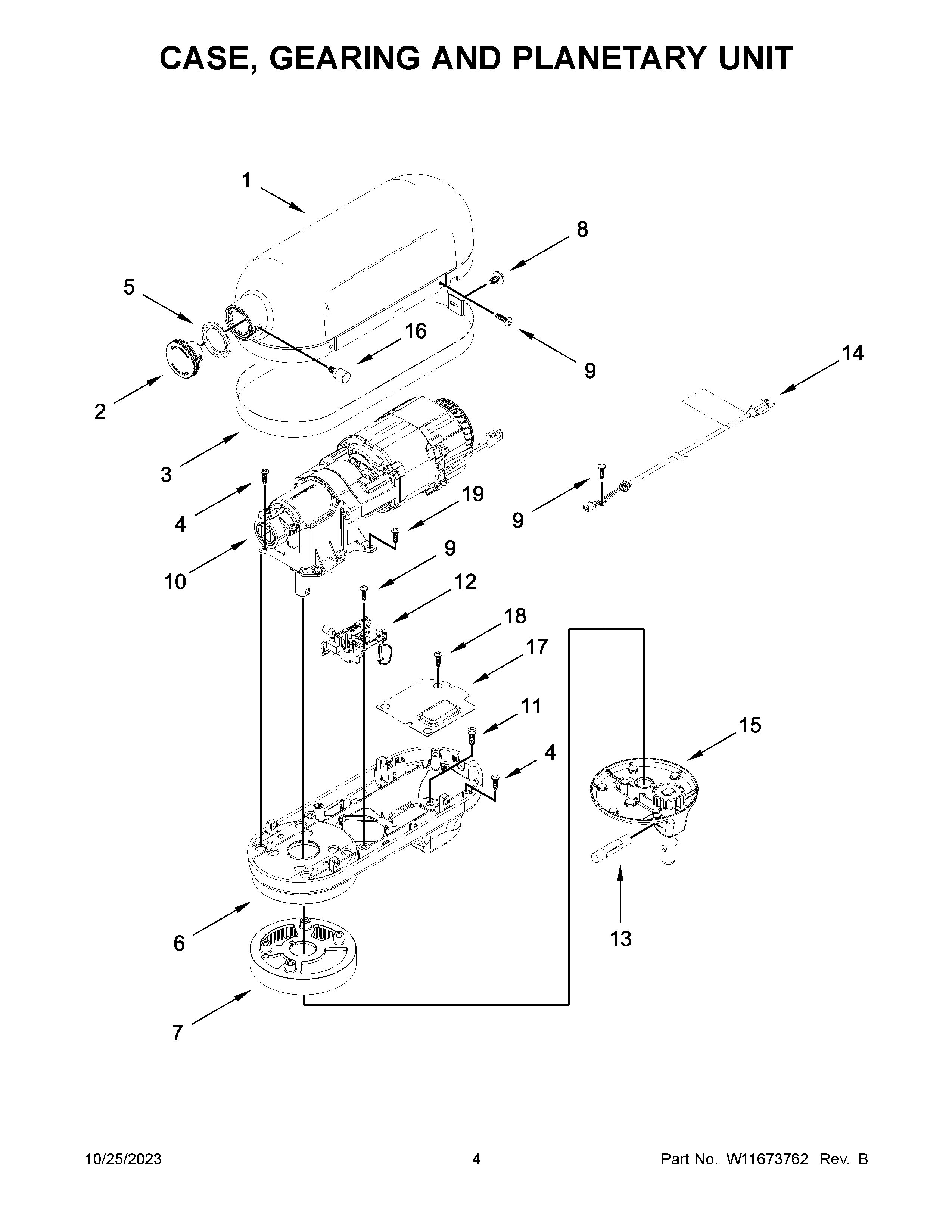

Case, gearing and planetary unit diagram

Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Pin-groove W10234531
#13

Case, gearing and planetary unit diagram

Pin-groove

Part #W10234531

Replaced by #WPW10234531

?
Manufacturer substitution
This part replaces W10234531. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Motor, 230 Volt Assembly W11480076
#10

Case, gearing and planetary unit diagram

Motor, 230 volt assembly

Part #W11480076

Replaced by #W11649201

?
Manufacturer substitution
This part replaces W11480076. Substitute parts can look different from the original.
$131.50
In Stock
Lower Gearcase (pistachio) W11520137
#3

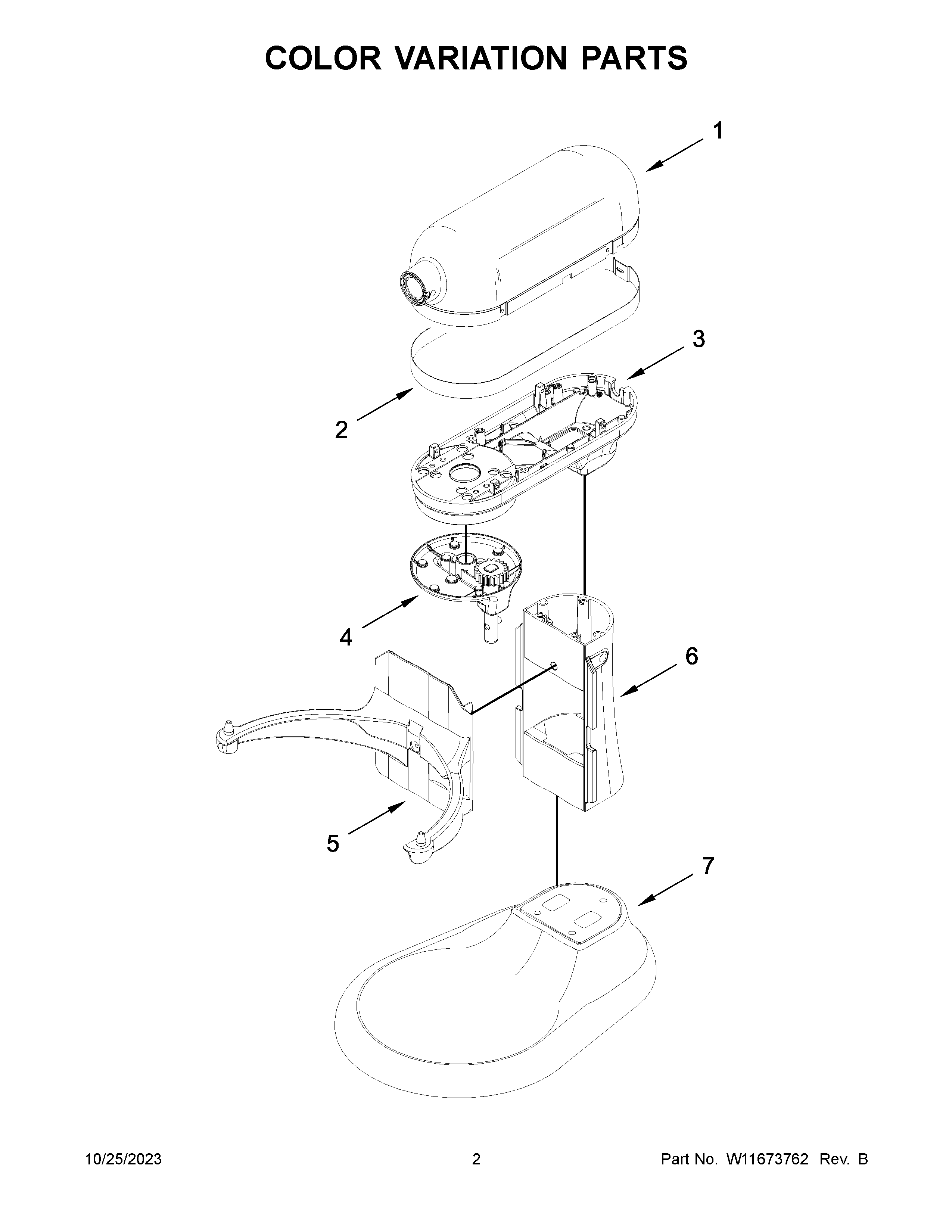

Color variation parts diagram

Lower gearcase (pistachio)

Part #W11520137

$52.36
In Stock
Base & Foot Assembly (pistachio) 9708107
#7

Color variation parts diagram

Base & foot assembly (pistachio)

Part #9708107

$62.56
In Stock
Lower Gearcase (candy Apple Red) W11520129
#3B

Color variation parts diagram

Lower gearcase (candy apple red)

Part #W11520129

$53.98
In Stock
Bowl Support & Pins (pebbled Palm) W11415373
#5E

Color variation parts diagram

Bowl support & pins (pebbled palm)

Part #W11415373

$43.04
In Stock
Column And Pins (pistachio) 9708104
#6

Color variation parts diagram

Column and pins (pistachio)

Part #9708104

$58.84
In Stock
Screw 3400617
#8

Case, gearing and planetary unit diagram

Screw

Part #3400617

This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
