Model # D6800-3 Official Footedana transaxle

Here are the diagrams and repair parts for Official Footedana D6800-3 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Ring 2225J
#10

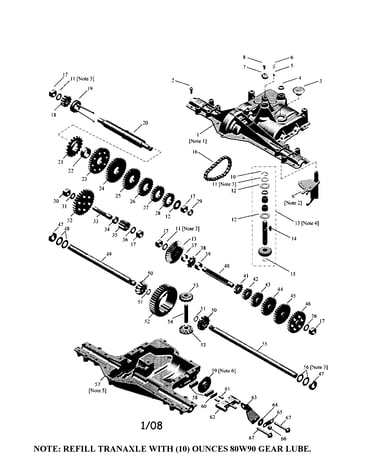

Transaxle diagram

Ring

Part #2225J

Replaced by #812000002

?
Manufacturer substitution
This part replaces 2225J. Substitute parts can look different from the original.
This item is not returnable
$4.99
In Stock
Rh Axle 407131
#55

Transaxle diagram

Rh axle

Part #407131

Replaced by #583301101

?
Manufacturer substitution
This part replaces 407131. Substitute parts can look different from the original.
$167.98
In Stock
Washer 108996X
#64

Transaxle diagram

Washer

Part #108996X

Replaced by #583657101

?
Manufacturer substitution
This part replaces 108996X. Substitute parts can look different from the original.
$10.26
In Stock
Danger Bushing 407118
#17

Transaxle diagram

Danger bushing

Part #407118

Replaced by #583300701

?
Manufacturer substitution
This part replaces 407118. Substitute parts can look different from the original.
$22.26
In Stock
Sprocket 120470X
#21

Transaxle diagram

Sprocket

Part #120470X

Replaced by #532120470

?
Manufacturer substitution
This part replaces 120470X. Substitute parts can look different from the original.
$34.04
In Stock
Gear.miter 1 190987
#50

Transaxle diagram

Gear.miter 1

Part #190987

Replaced by #582996901

?
Manufacturer substitution
This part replaces 190987. Substitute parts can look different from the original.
$37.31
In Stock
Washer 2264J
#48

Transaxle diagram

Washer

Part #2264J

Replaced by #583729701

?
Manufacturer substitution
This part replaces 2264J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn Tractor Screw 160953
#67

Transaxle diagram

Lawn tractor screw

Part #160953

Replaced by #532160953

?
Manufacturer substitution
This part replaces 160953. Substitute parts can look different from the original.
$8.54
In Stock
Jaw Brake 160952
#62

Transaxle diagram

Jaw brake

Part #160952

The manufacturer no longer makes this part, and there's no substitute part

Bushing, .501 X .874 Sq X .650 407124
#30

Transaxle diagram

Bushing, .501 x .874 sq x .650

Part #407124

The manufacturer no longer makes this part, and there's no substitute part
