Model # WGVB2122 Official Devilbiss pressure washer

Here are the diagrams and repair parts for Official Devilbiss WGVB2122 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 65 parts |

Delta Pressure Washer Spray Nozzle Cleaning Tool NCT001

#26

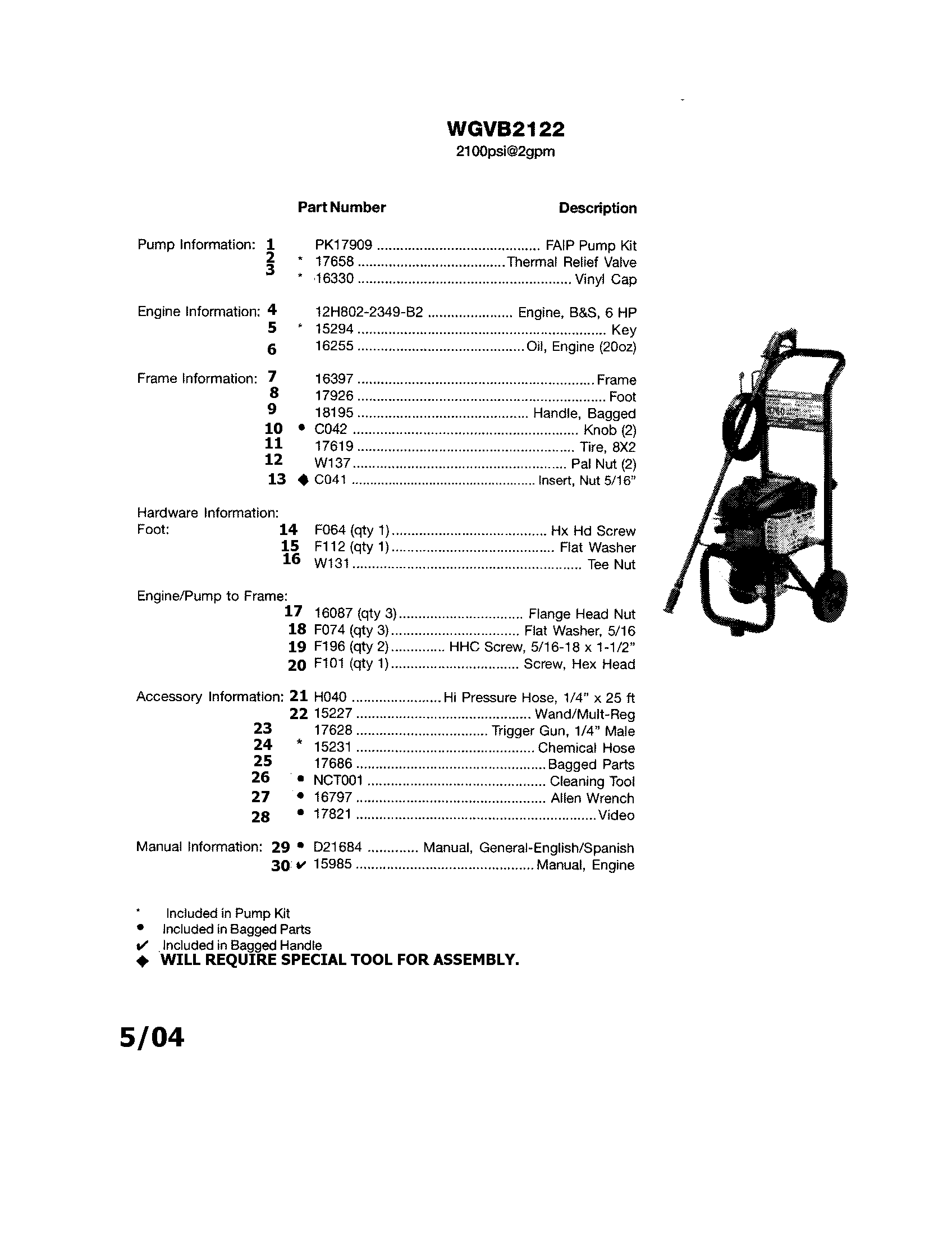

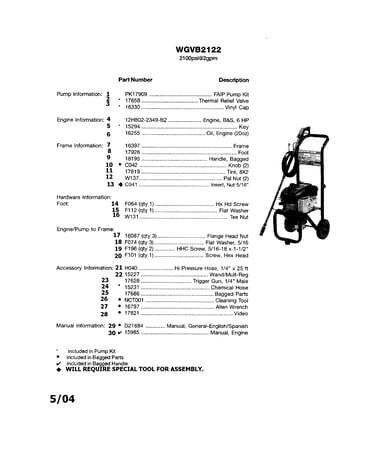

Handle/engine/tire/frame diagram

Delta pressure washer spray nozzle cleaning tool

Part #NCT001

The manufacturer no longer makes this part, and there's no substitute part

#22

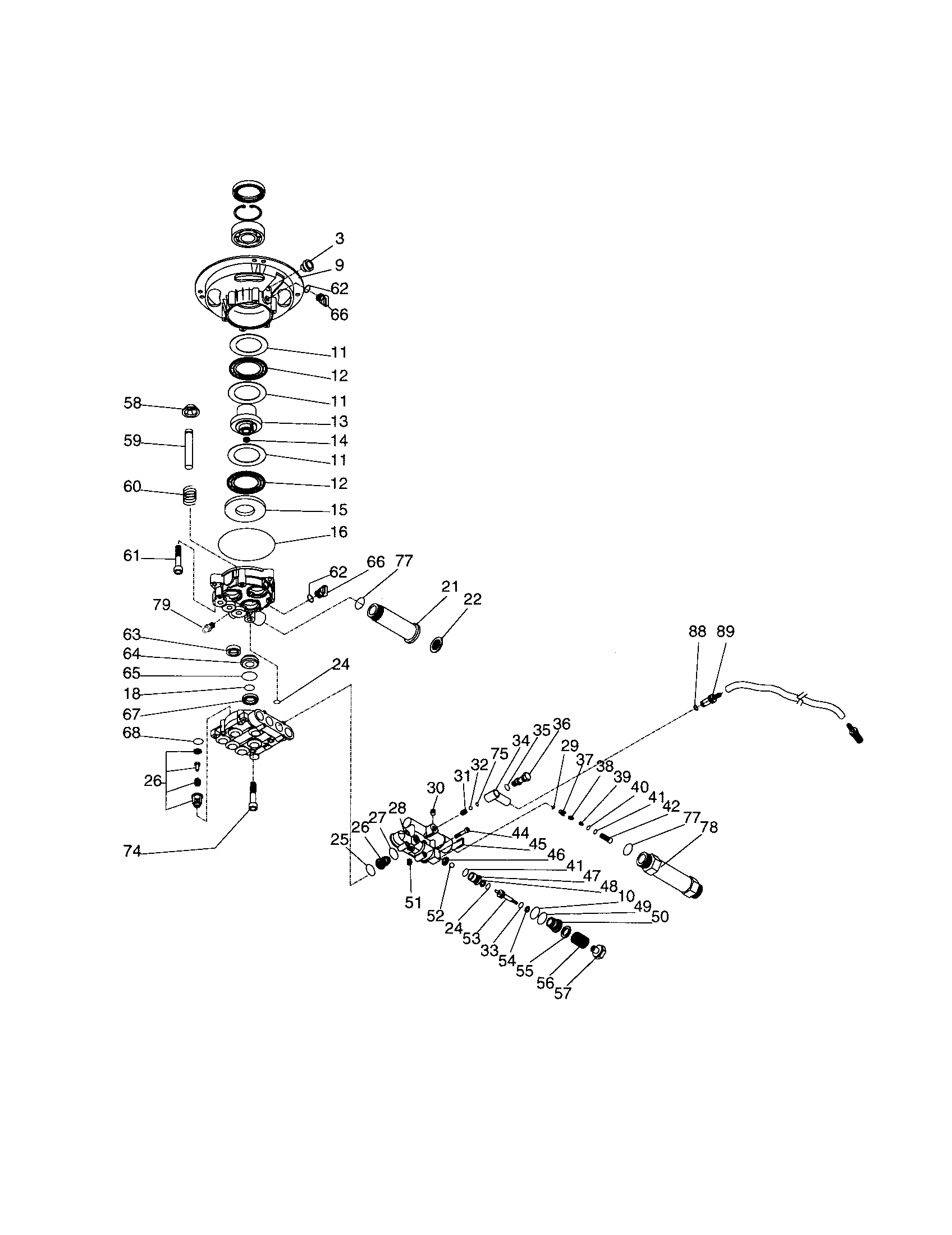

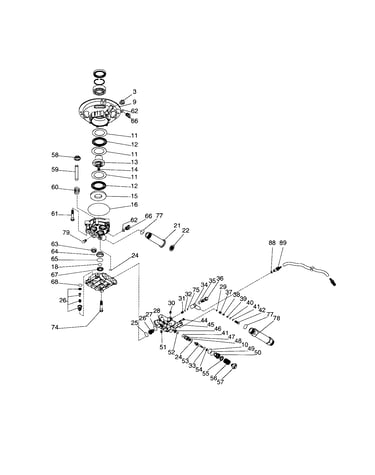

Pump, faip - pk17907 diagram

Filter

Part #F187

The manufacturer no longer makes this part, and there's no substitute part

#18

Pump, faip - pk17907 diagram

Devilbiss o-ring

Part #FA-15001500

The manufacturer no longer makes this part, and there's no substitute part

#16

Pump, faip - pk17907 diagram

Devilbiss o-ring

Part #FA-15024000

The manufacturer no longer makes this part, and there's no substitute part

#27

Handle/engine/tire/frame diagram

Delta wrench

Part #16797

The manufacturer no longer makes this part, and there's no substitute part

#27

Pump, faip - pk17907 diagram

Devilbiss o-ring

Part #FA-15060500

The manufacturer no longer makes this part, and there's no substitute part

Devilbiss Pressure Washer Water Hose H040

#21

Handle/engine/tire/frame diagram

Devilbiss pressure washer water hose

Part #H040

The manufacturer no longer makes this part, and there's no substitute part

Devilbiss Screw Tcei M6 X 30 FA-10200400

#61

Pump, faip - pk17907 diagram

Devilbiss screw tcei m6 x 30

Part #FA-10200400

The manufacturer no longer makes this part, and there's no substitute part

#35

Pump, faip - pk17907 diagram

Devilbiss o-ring

Part #FA-15000600

The manufacturer no longer makes this part, and there's no substitute part

#20

Handle/engine/tire/frame diagram

Devilbiss screw

Part #F101

The manufacturer no longer makes this part, and there's no substitute part
