GE
Electric Range

Model # JHP69G*K4 Official GE range

Here are the diagrams and repair parts for Official GE JHP69GK4 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 291 parts  |
Range Oven Light Bulb WX12X1510
Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Diode WB27X5333
#774

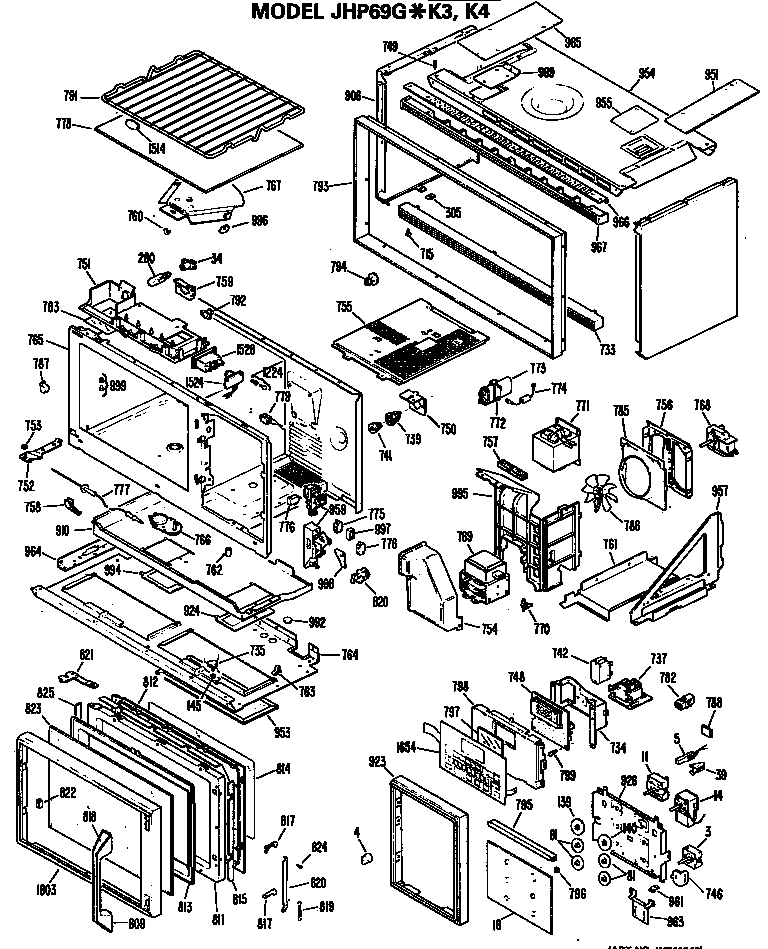

Chassis assembly diagram

Diode

Part #WB27X5333

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5333. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Range Bake Element (replaces 8030, Wb44x10003, Wb44x5061, Wb44x5072, Wb44x5082r, Wb44x5083) WB44X5082
#650

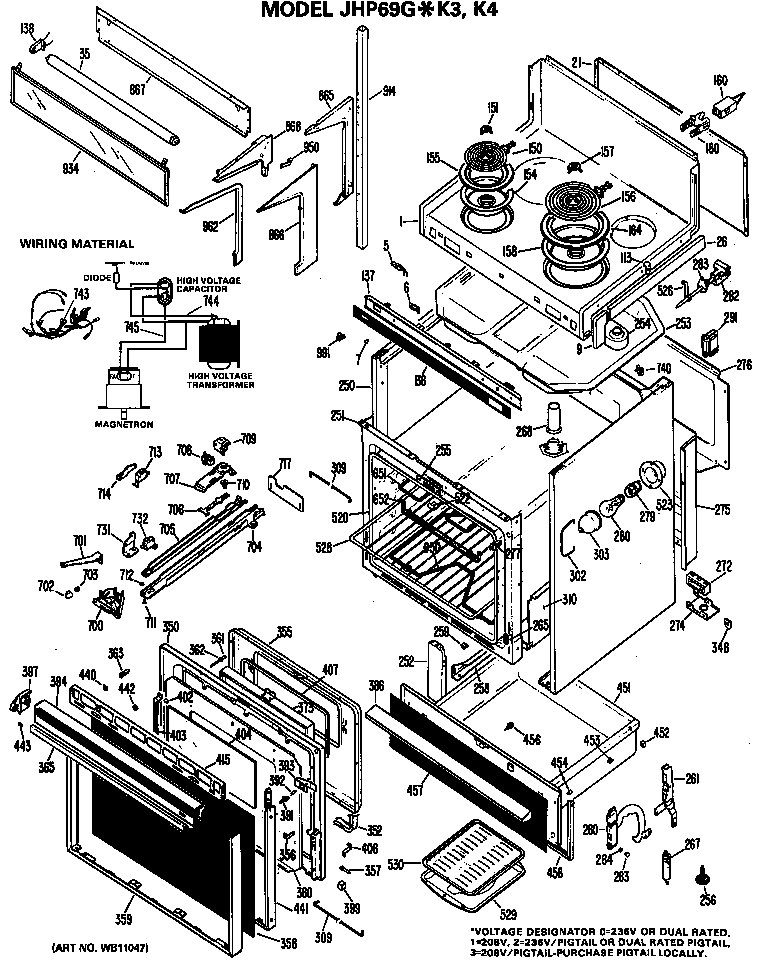

Wiring material diagram

Range bake element (replaces 8030, wb44x10003, wb44x5061, wb44x5072, wb44x5082r, wb44x5083)

Part #WB44X5082

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Magnetron WB27X5410
#769

Chassis assembly diagram

Magnetron

Part #WB27X5410

The manufacturer no longer makes this part, and there's no substitute part

Surface Unit, 8" WB30X5072
#156

Wiring material diagram

Surface unit, 8"

Part #WB30X5072

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30X5072. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Receptacle WB8X5095
#279

Wiring material diagram

Receptacle

Part #WB8X5095

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB8X5095. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Surface Unit, 6" WB30X5071
#150

Wiring material diagram

Surface unit, 6"

Part #WB30X5071

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30X5071. Substitute parts can look different from the original.
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Lamp Cover WB36X389
#303

Wiring material diagram

Lamp cover

Part #WB36X389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Receptacle WB2X7618
#180

Wiring material diagram

Receptacle

Part #WB2X7618

Replaced by #WB17X5113

?
Manufacturer substitution
This part replaces WB2X7618. Substitute parts can look different from the original.
This item is not returnable
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Receptacle WB17X5094
#160

Wiring material diagram

Receptacle

Part #WB17X5094

Replaced by #WB17X5113

?
Manufacturer substitution
This part replaces WB17X5094. Substitute parts can look different from the original.
This item is not returnable
$31.51 |
16% OFF Phone Price : $37.51
In Stock
