Model # BF-MS3271E Official Onan engine

Here are the diagrams and repair parts for Official Onan BF-MS3271E engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

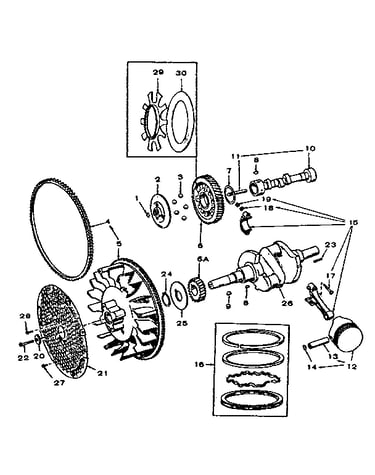

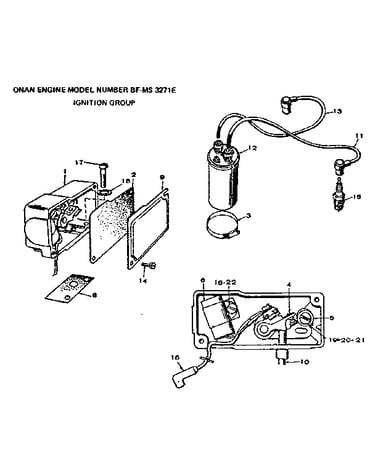

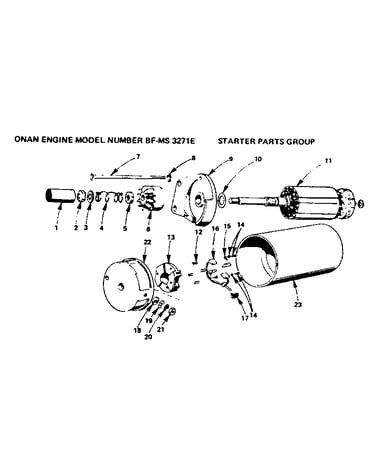

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Element 140-1216
#13

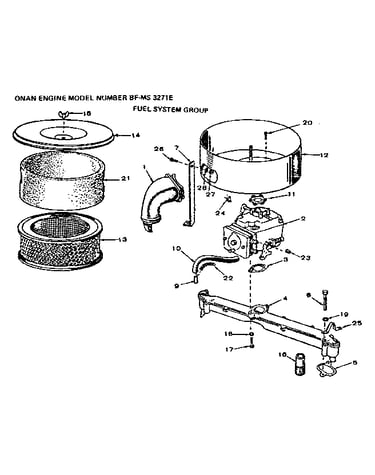

Fuel system group diagram

Element

Part #140-1216

Replaced by #45-083-02-S

?
Manufacturer substitution
This part replaces 140-1216. Substitute parts can look different from the original.
This item is not returnable
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Pre-clner 140-1259
#21

Fuel system group diagram

Pre-clner

Part #140-1259

Replaced by #45-083-01-S

?
Manufacturer substitution
This part replaces 140-1259. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Spring 150-1398
#11

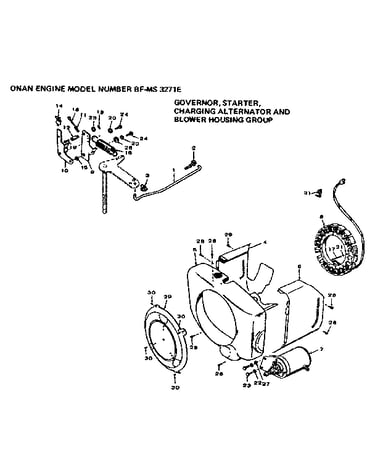

Governor, starter, charging alternator & blower housing grp. diagram

Spring

Part #150-1398

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 800-0056
#28

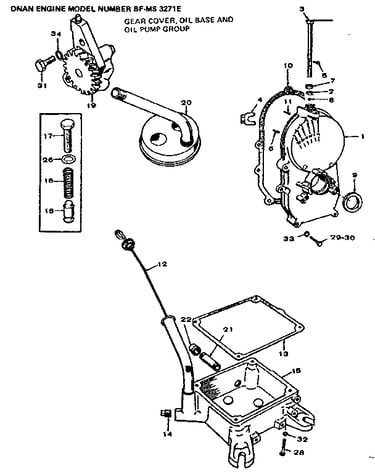

Gear cover, oil base and oil pump group diagram

Cap screw

Part #800-0056

The manufacturer no longer makes this part, and there's no substitute part

Support 140-1198
#7

Fuel system group diagram

Support

Part #140-1198

The manufacturer no longer makes this part, and there's no substitute part

Housing 134-2890
#4

Governor, starter, charging alternator & blower housing grp. diagram

Housing

Part #134-2890

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 142-0533
#2

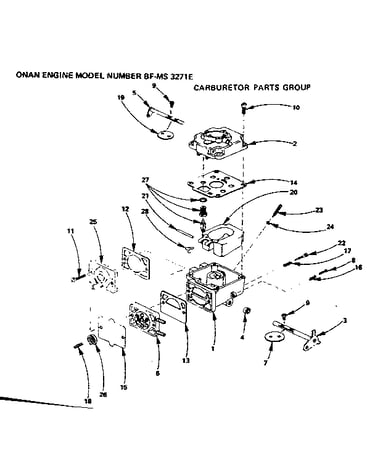

Carburetor parts group diagram

Sleeve

Part #142-0533

The manufacturer no longer makes this part, and there's no substitute part

Bearing 101-0432
#41A

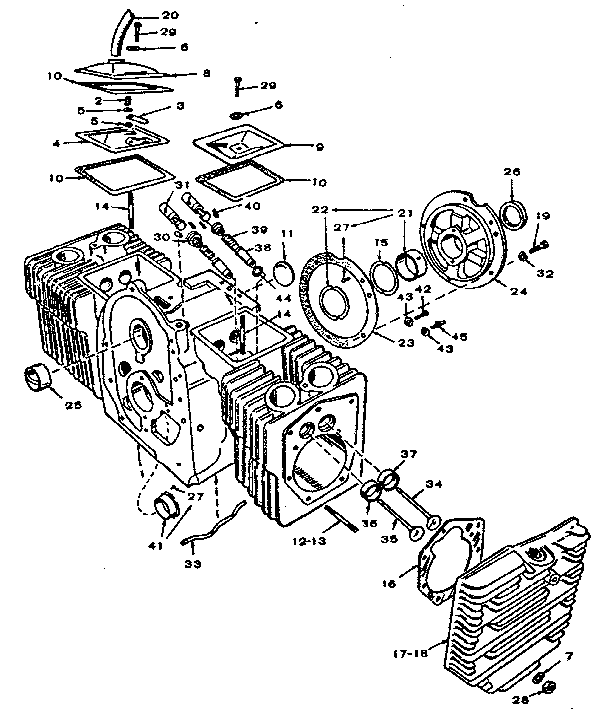

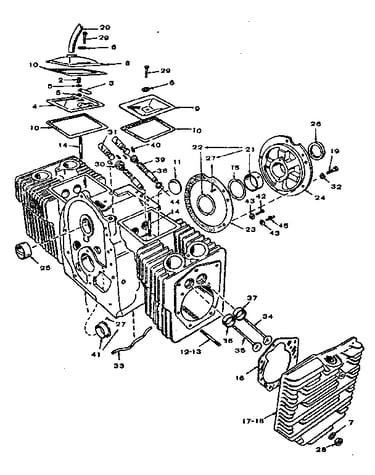

Cylinder block group diagram

Bearing

Part #101-0432

The manufacturer no longer makes this part, and there's no substitute part

Nipple 505-0755
#16

Fuel system group diagram

Nipple

Part #505-0755

The manufacturer no longer makes this part, and there's no substitute part

Body 142-0532
#1

Carburetor parts group diagram

Body

Part #142-0532

The manufacturer no longer makes this part, and there's no substitute part
