Model # UN55C6500VFXZA-SK03 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN55C6500VFXZA-SK03 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Television Remote Control BN59-01042A
#15

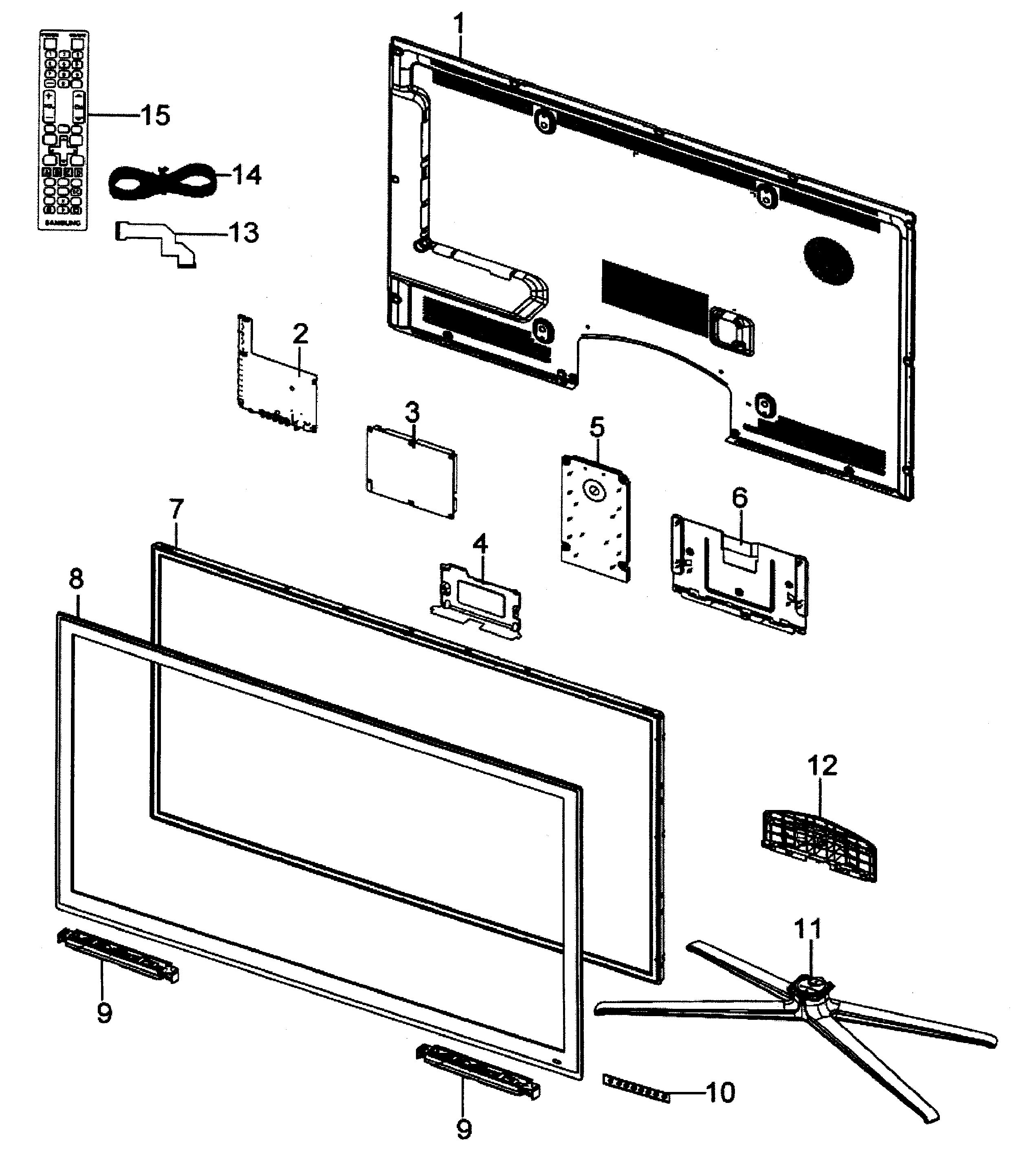

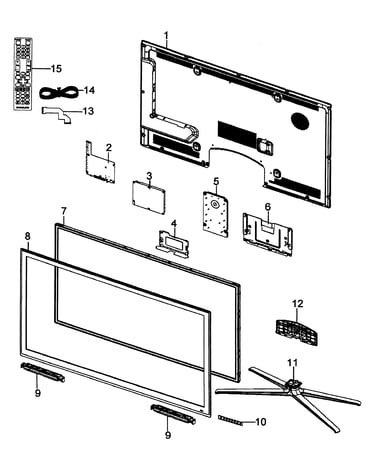

Cabinet parts diagram

Television remote control

Part #BN59-01042A

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Assembly BN96-13133A
#11

Cabinet parts diagram

Television stand assembly

Part #BN96-13133A

The manufacturer no longer makes this part, and there's no substitute part

Samsung Lcd Panel BN07-00861A
#7

Cabinet parts diagram

Samsung lcd panel

Part #BN07-00861A

The manufacturer no longer makes this part, and there's no substitute part

Bracket BN96-12929A
#6

Cabinet parts diagram

Bracket

Part #BN96-12929A

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly BN96-13844A
#1

Cabinet parts diagram

Cover assembly

Part #BN96-13844A

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 6003-001785
#NI

Cabinet parts diagram

Television screw

Part #6003-001785

The manufacturer no longer makes this part, and there's no substitute part

Lvds Cable BN96-12723N
#13

Cabinet parts diagram

Lvds cable

Part #BN96-12723N

The manufacturer no longer makes this part, and there's no substitute part

Timing Control Board BN81-04357A
#4

Cabinet parts diagram

Timing control board

Part #BN81-04357A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly BN96-13679E
#10

Cabinet parts diagram

Pcb assembly

Part #BN96-13679E

The manufacturer no longer makes this part, and there's no substitute part

Television Power Supply Board BN44-00358B
#3

Cabinet parts diagram

Television power supply board

Part #BN44-00358B

The manufacturer no longer makes this part, and there's no substitute part
