Model # 31-2759-00-01 Official Tappan electric range - lt32089440

Here are the diagrams and repair parts for Official Tappan 31-2759-00-01 electric range - lt32089440, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

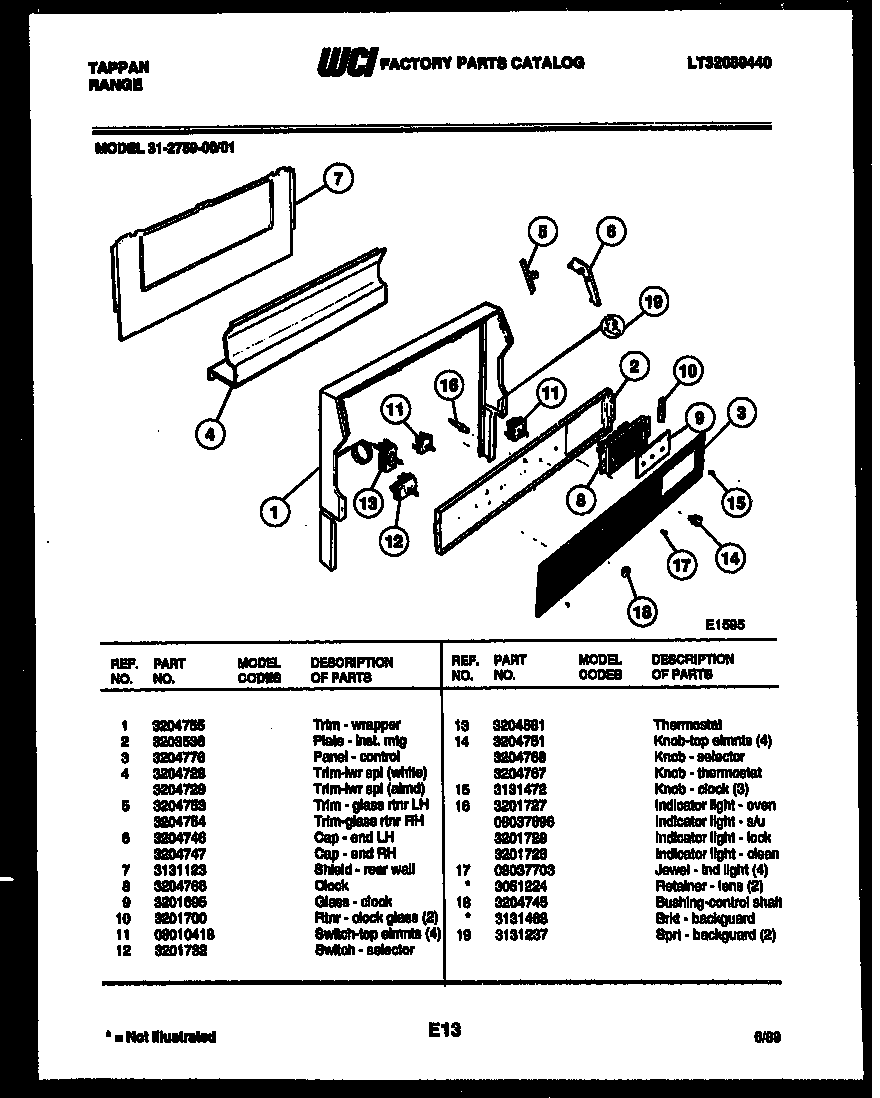

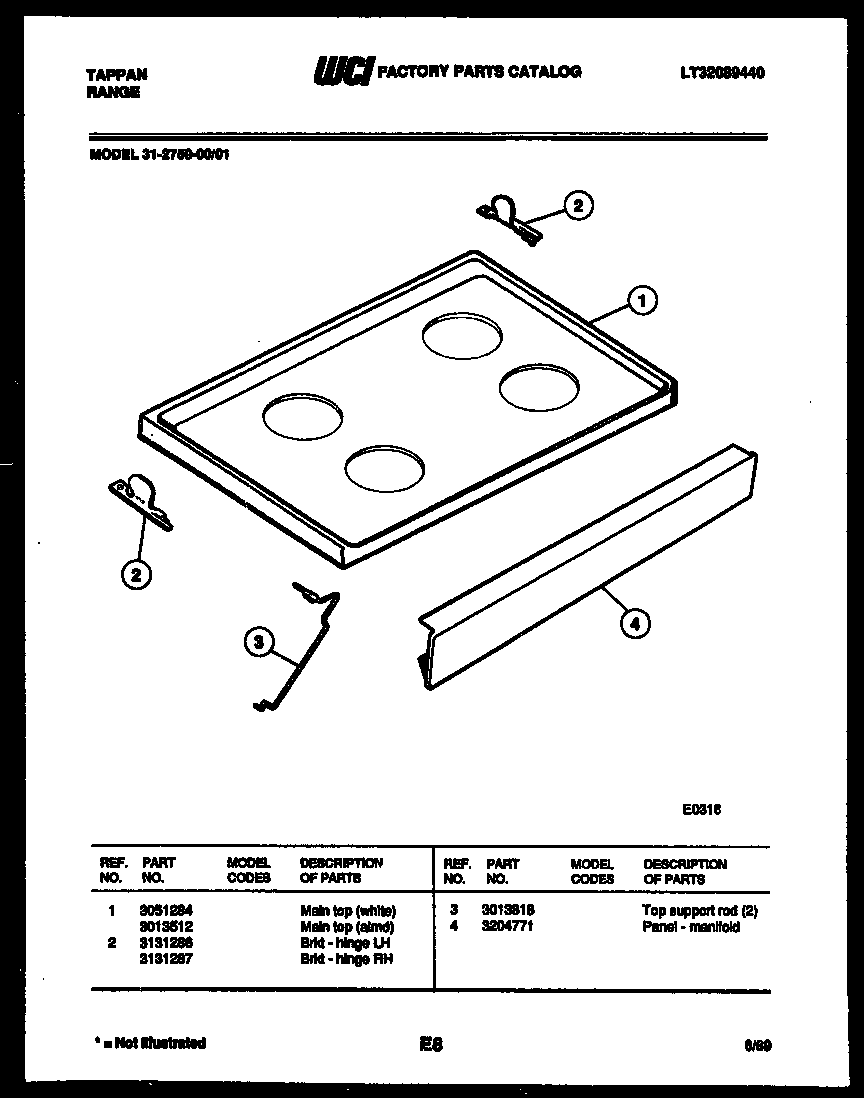

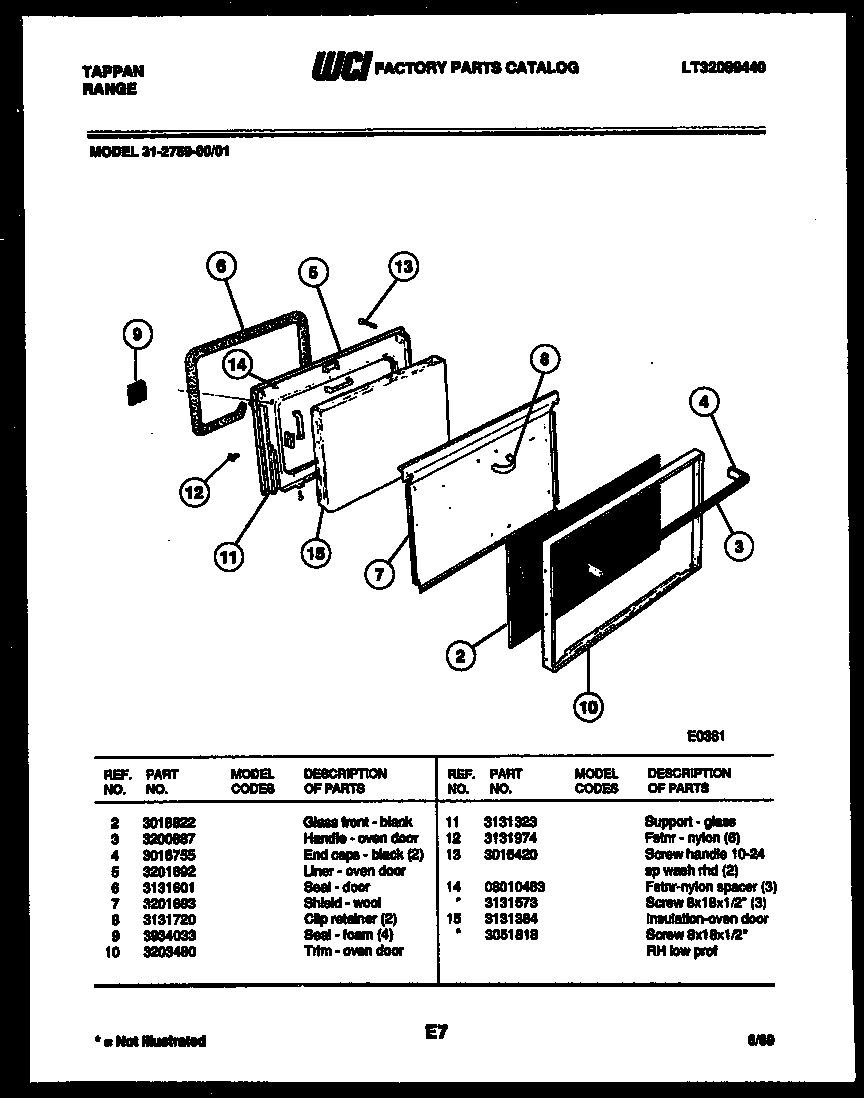

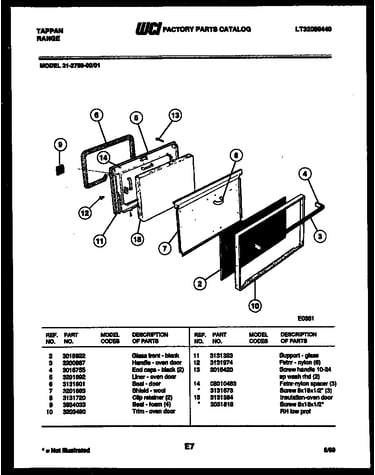

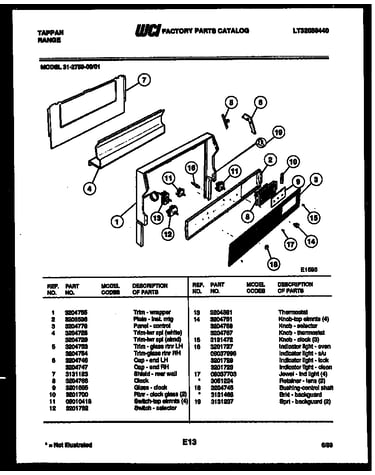

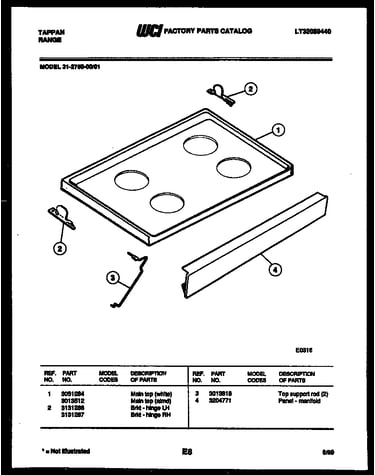

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Element 3012223
#1

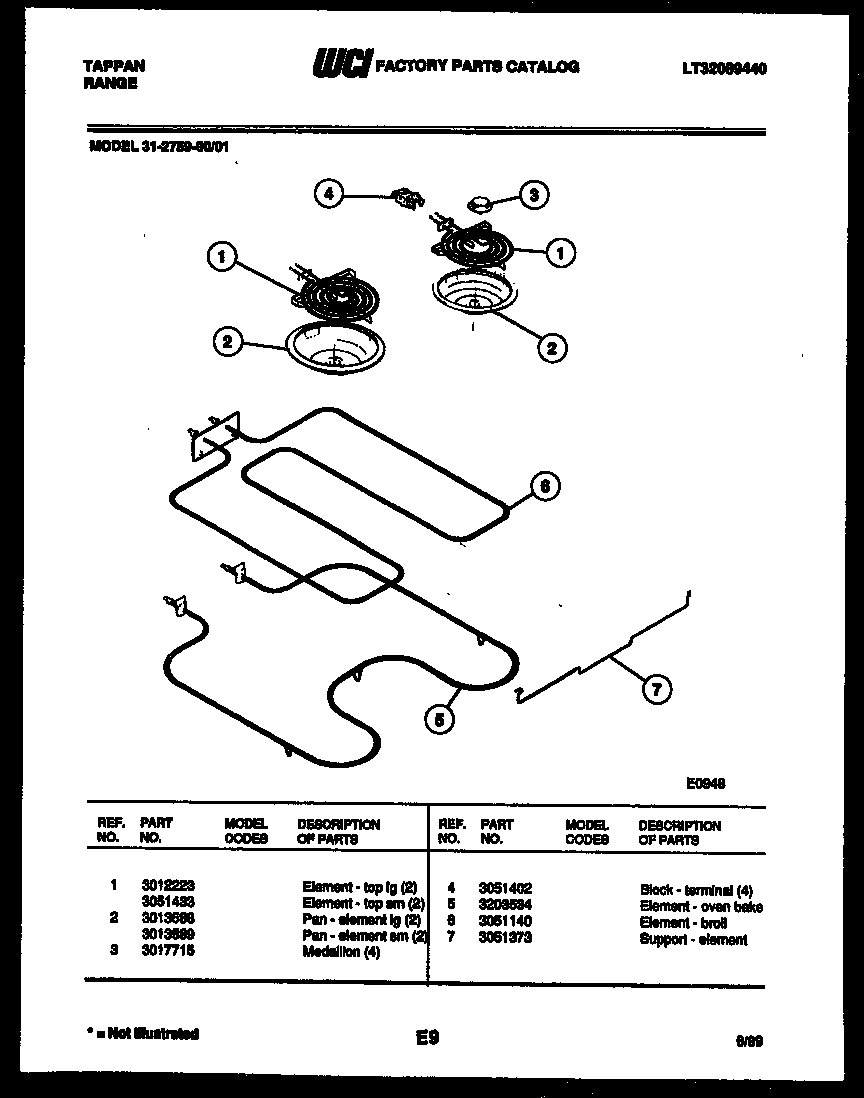

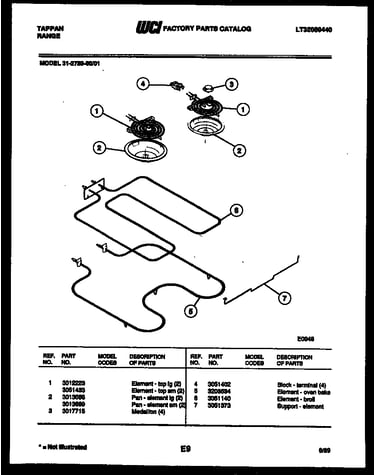

Broiler parts diagram

Element

Part #3012223

Replaced by #316442301

?
Manufacturer substitution
This part replaces 3012223. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Light 3013071
#37

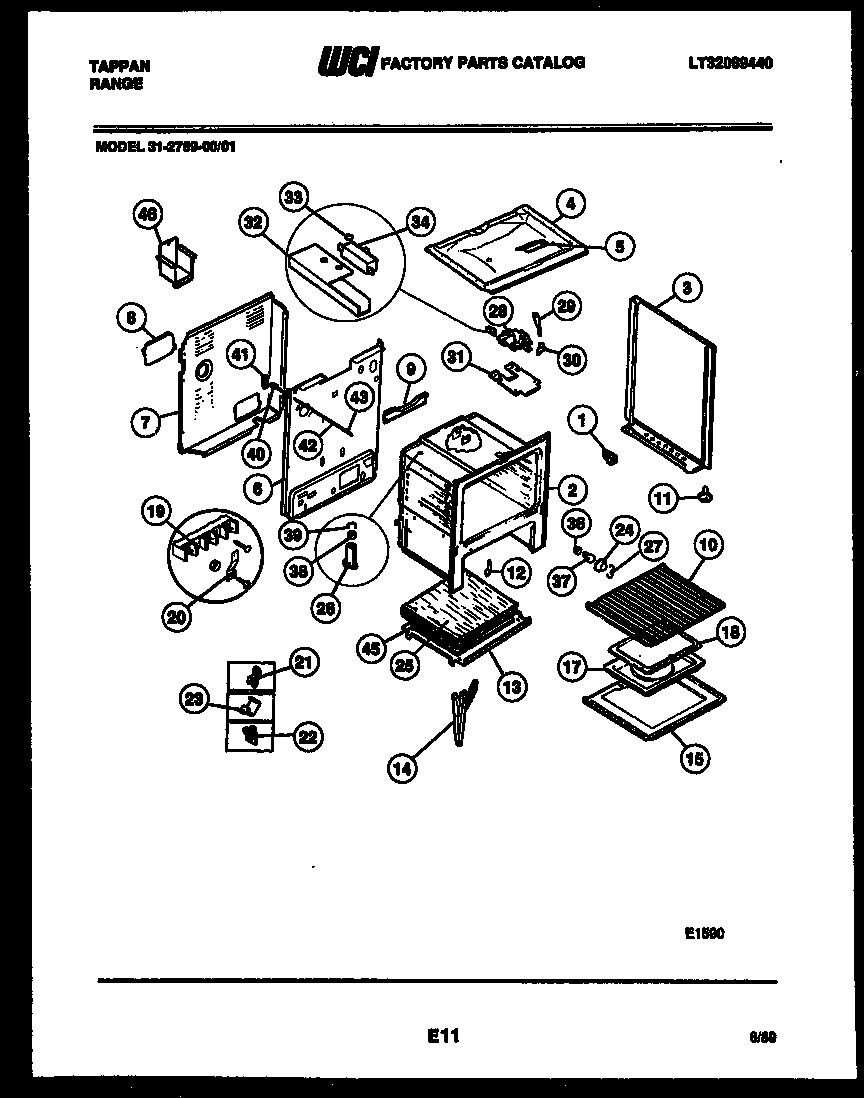

Body parts diagram

Light

Part #3013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Terminal 3051402
#4

Broiler parts diagram

Terminal

Part #3051402

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 3051402. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Pan 3013588
#2

Broiler parts diagram

Pan

Part #3013588

Replaced by #316048413

?
Manufacturer substitution
This part replaces 3013588. Substitute parts can look different from the original.
BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Element 3051433
#1A

Broiler parts diagram

Element

Part #3051433

Replaced by #318372211

?
Manufacturer substitution
This part replaces 3051433. Substitute parts can look different from the original.
BEST SELLER
$37.93 |
14% OFF Phone Price : $43.93
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#2

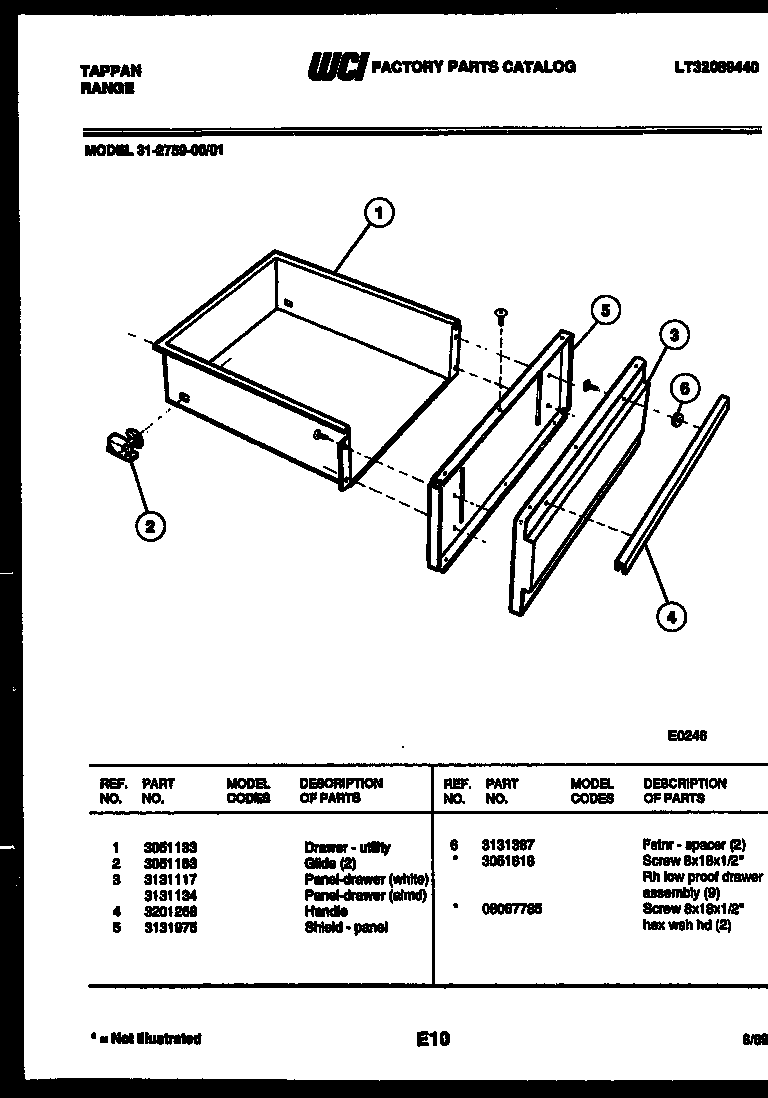

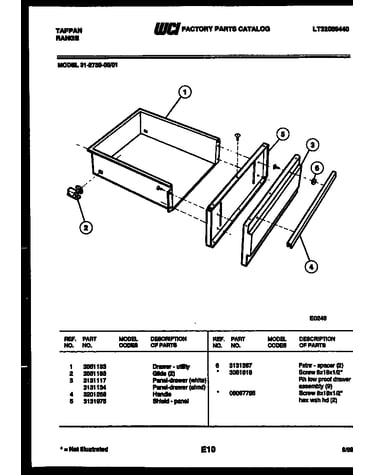

Drawer parts diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Socket 3014073
#36

Body parts diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Rack 3131973
#10

Body parts diagram

Oven rack

Part #3131973

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 3131973. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Element 3051140
#6

Broiler parts diagram

Element

Part #3051140

Replaced by #5303051140

?
Manufacturer substitution
This part replaces 3051140. Substitute parts can look different from the original.
This item is not returnable
$136.99 |
8% OFF Phone Price : $148.99
In Stock
Medallion 3017715
#3

Broiler parts diagram

Medallion

Part #3017715

Replaced by #5303017715

?
Manufacturer substitution
This part replaces 3017715. Substitute parts can look different from the original.
$48.99 |
11% OFF Phone Price : $54.99
In Stock
