Model # PHP9036BM3TS Official GE electric cooktop

Here are the diagrams and repair parts for Official GE PHP9036BM3TS electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Element Induction 3700w WB30X38227
#13

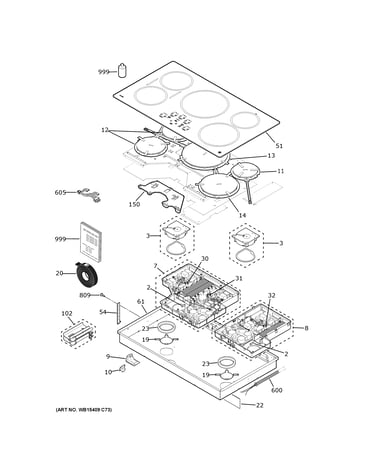

Control panel & cooktop diagram

Element induction 3700w

Part #WB30X38227

$111.10
In Stock
Element Induction 2500w WB30X38226
#12

Control panel & cooktop diagram

Element induction 2500w

Part #WB30X38226

$100.60
In Stock
Display Board WB27X24230
#150

Control panel & cooktop diagram

Display board

Part #WB27X24230

$60.14 |
9% OFF Phone Price : $66.14
In Stock
Cooktop Gas Blower WB26X24235
#3

Control panel & cooktop diagram

Cooktop gas blower

Part #WB26X24235

$100.15 |
11% OFF Phone Price : $112.15
In Stock
Screw WB01X1137
#809

Control panel & cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Baffle WB02X26802
#22

Control panel & cooktop diagram

Baffle

Part #WB02X26802

$58.85 |
9% OFF Phone Price : $64.85
In Stock
Induction Assembly WB27X44889
#8

Control panel & cooktop diagram

Induction assembly

Part #WB27X44889

$419.48
In Stock
Fan WB02X24262
#19

Control panel & cooktop diagram

Fan

Part #WB02X24262

$8.71
In Stock
Maintop Glass Assembly WB62X42891
#51

Control panel & cooktop diagram

Maintop glass assembly

Part #WB62X42891

$1819.57
In Stock
Burner Bottom Box WB63X29540
#61

Control panel & cooktop diagram

Burner bottom box

Part #WB63X29540

$101.98
In Stock
