Model # MDG16CSSAW Official Maytag dryer

Here are the diagrams and repair parts for Official Maytag MDG16CSSAW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

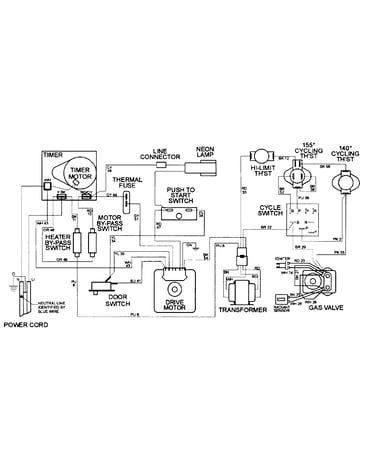

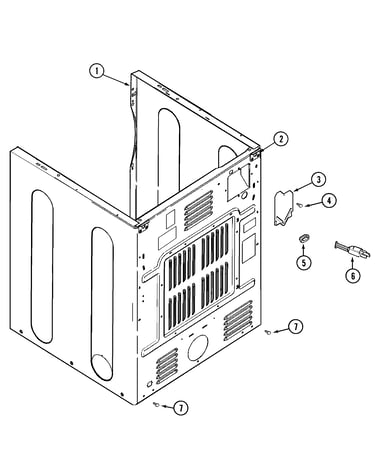

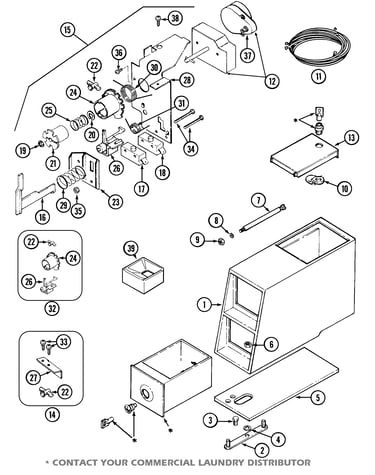

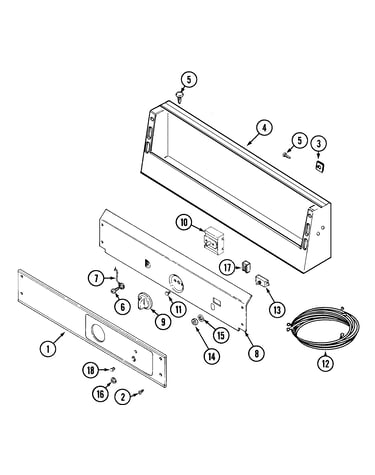

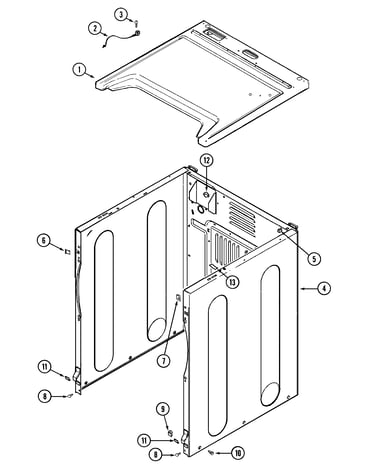

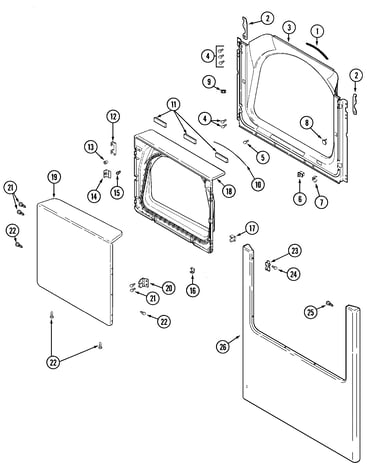

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Holding Coil 306106
#7

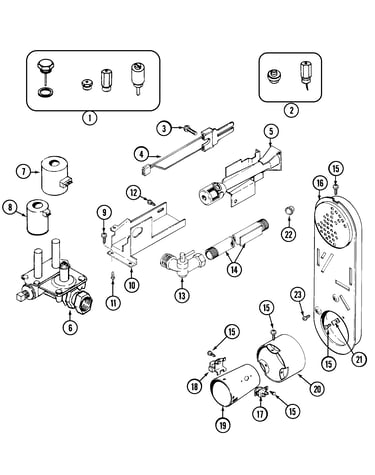

Gas valve (mdg16cssaw) diagram

Holding coil

Part #306106

Replaced by #279834

?
Manufacturer substitution
This part replaces 306106. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Second Coil 306105
#8

Gas valve (mdg16cssaw) diagram

Second coil

Part #306105

Replaced by #279834

?
Manufacturer substitution
This part replaces 306105. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Roller W/bea 303373
#24

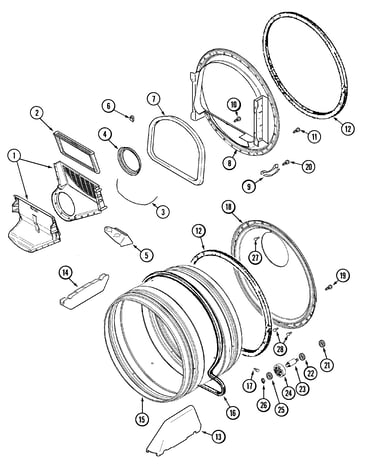

Tumbler (mdg16cssaw) diagram

Roller w/bea

Part #303373

Replaced by #12001541

?
Manufacturer substitution
This part replaces 303373. Substitute parts can look different from the original.
BEST SELLER
$26.88 |
18% OFF Phone Price : $32.88
In Stock
Belt, Tumble 33001777
#16

Tumbler (mdg16cssaw) diagram

Belt, tumble

Part #33001777

Replaced by #WP33002535

?
Manufacturer substitution
This part replaces 33001777. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Gas Sensor 303377
#18

Gas valve (mdg16cssaw) diagram

Gas sensor

Part #303377

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 303377. Substitute parts can look different from the original.
BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Idler Pulley 33001783
#24

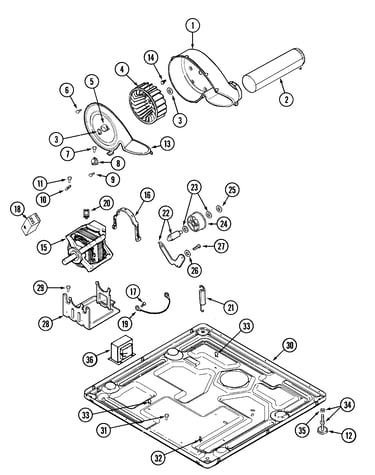

Motor drive (mdg16cssaw) diagram

Idler pulley

Part #33001783

Replaced by #WP6-3700340

?
Manufacturer substitution
This part replaces 33001783. Substitute parts can look different from the original.
BEST SELLER
$17.67 |
10% OFF Phone Price : $19.67
In Stock
Cycling Thermostat 303392
#8

Motor drive (mdg16cssaw) diagram

Cycling thermostat

Part #303392

Replaced by #WP694674

?
Manufacturer substitution
This part replaces 303392. Substitute parts can look different from the original.
BEST SELLER
$57.19 |
9% OFF Phone Price : $63.19
In Stock
Dryer Drum Bearing Kit (replaces 312940, 312941) 306508
#9

Tumbler (mdg16cssaw) diagram

Dryer drum bearing kit (replaces 312940, 312941)

Part #306508

BEST SELLER
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Dryer Blower Wheel 33001790
#4

Motor drive (mdg16cssaw) diagram

Dryer blower wheel

Part #33001790

BEST SELLER
$43.99 |
12% OFF Phone Price : $49.99
In Stock
Idler Arm 33001782
#22

Motor drive (mdg16cssaw) diagram

Idler arm

Part #33001782

Replaced by #WP6-3705180

?
Manufacturer substitution
This part replaces 33001782. Substitute parts can look different from the original.
BEST SELLER
$37.97 |
14% OFF Phone Price : $43.97
In Stock
