Kenmore Elite
Gas Cooktop

Model # 91133209101 Official Kenmore Elite 30" gas cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 91133209101 30" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Cooktop Burner Igniter WB13T10010
#154

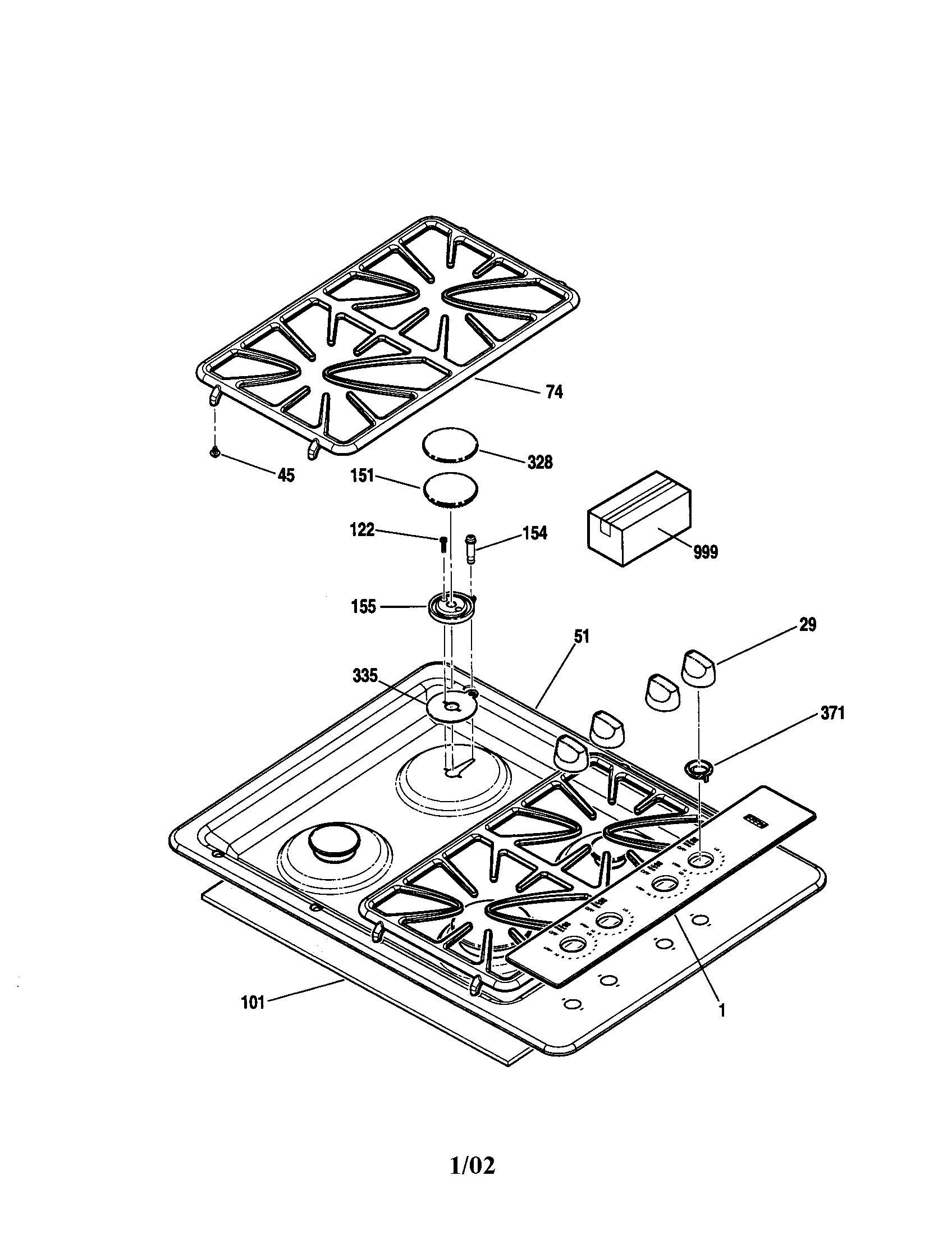

Maintop diagram

Cooktop burner igniter

Part #WB13T10010

Replaced by #WB13X27058

?
Manufacturer substitution
This part replaces WB13T10010. Substitute parts can look different from the original.
$59.88 |
9% OFF Phone Price : $65.88
In Stock
Screw WH02X0930
#875

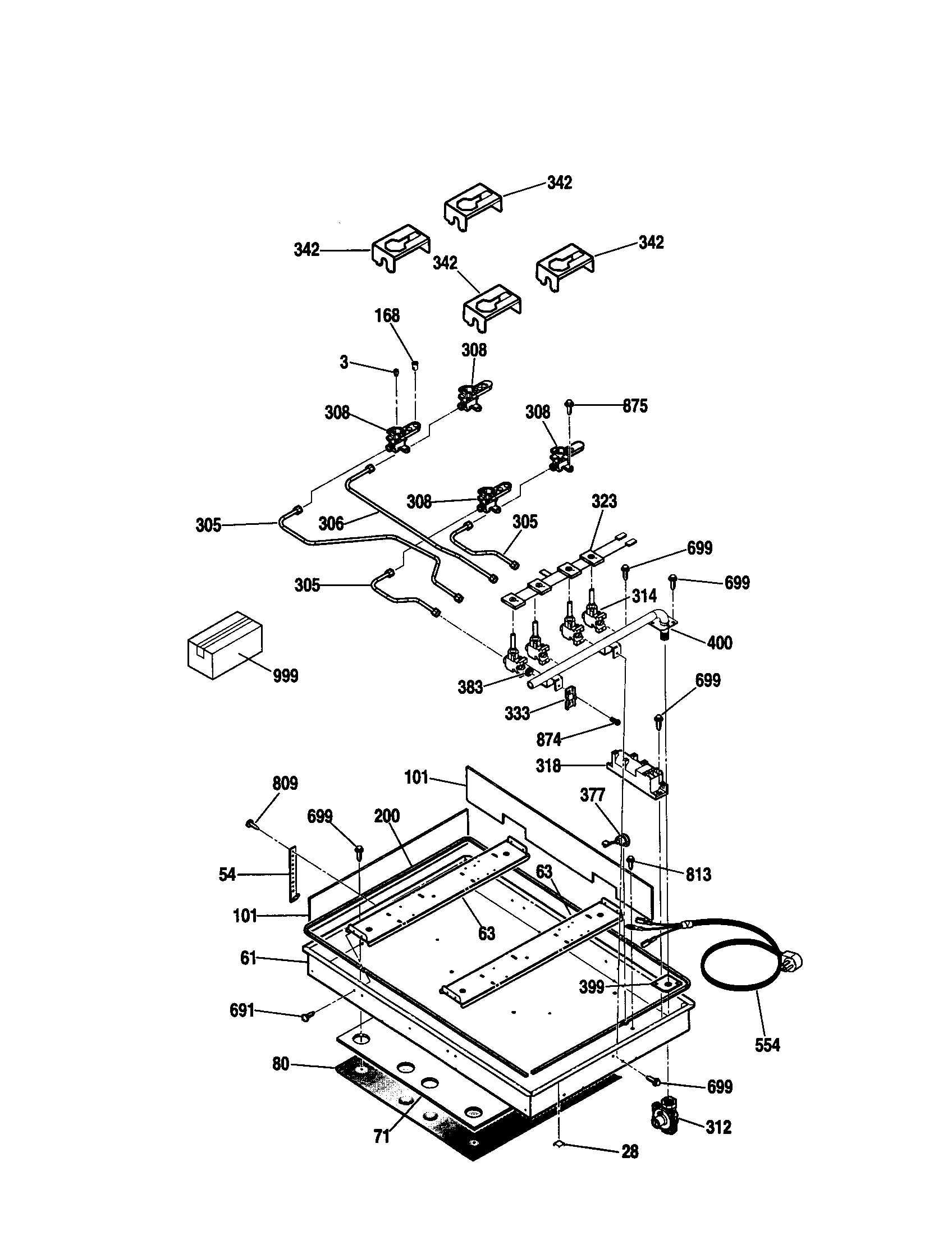

Burner diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Clip Mounting Element WB01K10007
#168

Burner diagram

Clip mounting element

Part #WB01K10007

Replaced by #WB01K10112

?
Manufacturer substitution
This part replaces WB01K10007. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Range Surface Burner Gasket, Large WB04T10012
#335B

Maintop diagram

Range surface burner gasket, large

Part #WB04T10012

$8.11
In Stock
Burner Head WB16T10016
#151

Maintop diagram

Burner head

Part #WB16T10016

Replaced by #WB16K10036

?
Manufacturer substitution
This part replaces WB16T10016. Substitute parts can look different from the original.
$65.18 |
8% OFF Phone Price : $71.18
In Stock
Pressure Regulator WB19K5019
#312

Burner diagram

Pressure regulator

Part #WB19K5019

Replaced by #WB19T10078

?
Manufacturer substitution
This part replaces WB19K5019. Substitute parts can look different from the original.
$45.34 |
12% OFF Phone Price : $51.34
In Stock
Burner Head WB16T10017
#151A

Maintop diagram

Burner head

Part #WB16T10017

Replaced by #WB16T10029

?
Manufacturer substitution
This part replaces WB16T10017. Substitute parts can look different from the original.
$80.86 |
7% OFF Phone Price : $86.86
In Stock
Cooktop Burner Seal WB16T10011
#335

Maintop diagram

Cooktop burner seal

Part #WB16T10011

$11.43
In Stock
Screw WB01X1137
#809

Burner diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Burner Base WB16T10006
#155B

Maintop diagram

Burner base

Part #WB16T10006

Replaced by #WB16T10033

?
Manufacturer substitution
This part replaces WB16T10006. Substitute parts can look different from the original.
$30.76 |
16% OFF Phone Price : $36.76
In Stock
