Model # XV-N410B Official JVC dvd player

Here are the diagrams and repair parts for Official JVC XV-N410B dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Jvc Fl Screen GN30092-001A
#5

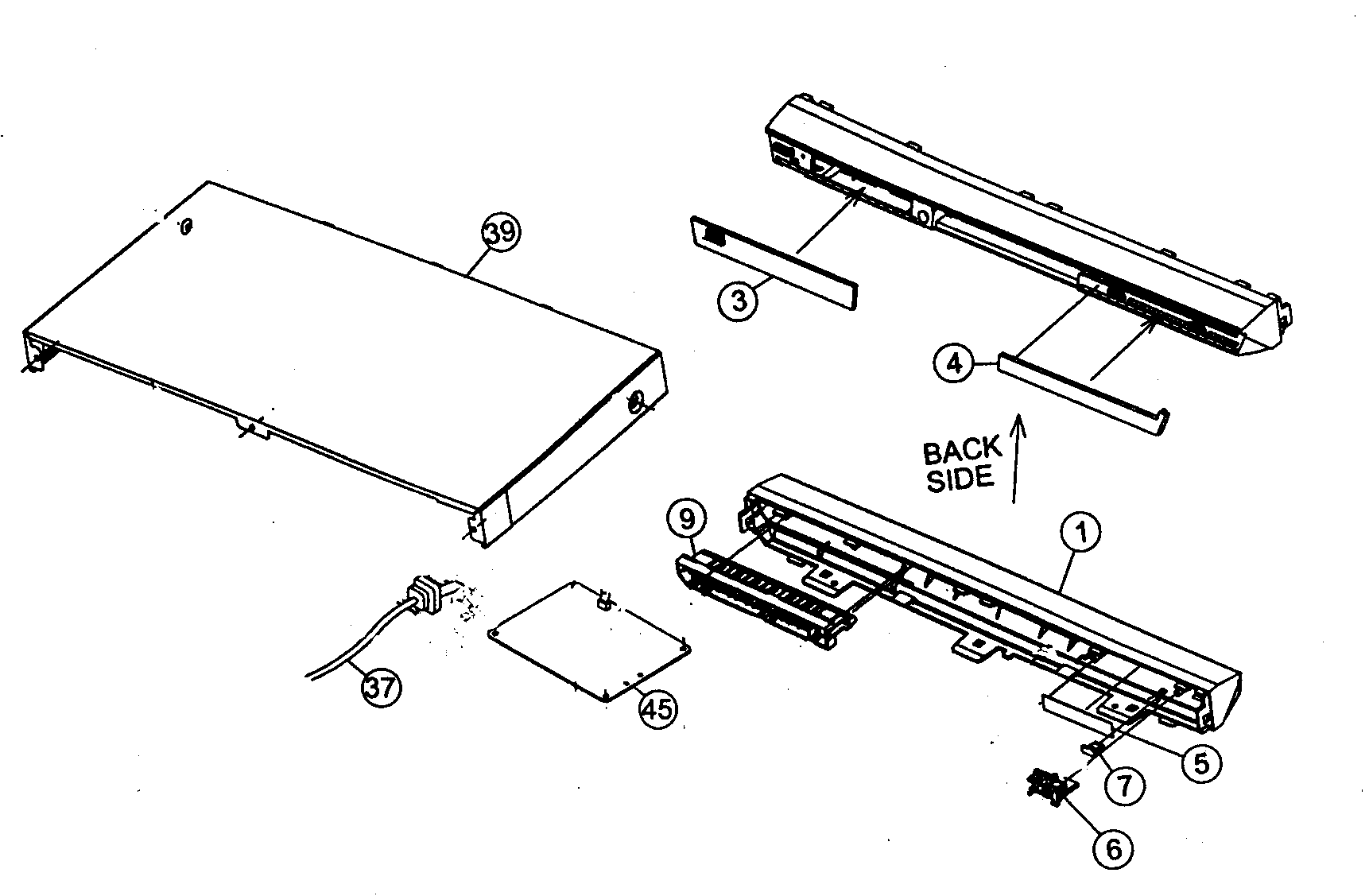

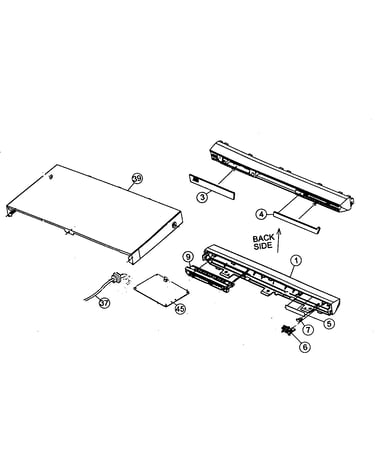

Cabinet parts diagram

Jvc fl screen

Part #GN30092-001A

The manufacturer no longer makes this part, and there's no substitute part

Idle Gear LE31044-001A
#NI

Cabinet parts diagram

Idle gear

Part #LE31044-001A

The manufacturer no longer makes this part, and there's no substitute part

Jvc Integrated Circuit GP1UE281XK
#NI

Cabinet parts diagram

Jvc integrated circuit

Part #GP1UE281XK

The manufacturer no longer makes this part, and there's no substitute part

Tray Dvd LE10276-002A
#NI

Cabinet parts diagram

Tray dvd

Part #LE10276-002A

The manufacturer no longer makes this part, and there's no substitute part

Jvc Screen GN20093-001A
#4

Cabinet parts diagram

Jvc screen

Part #GN20093-001A

The manufacturer no longer makes this part, and there's no substitute part

Indicator GN30093-001A
#7

Cabinet parts diagram

Indicator

Part #GN30093-001A

The manufacturer no longer makes this part, and there's no substitute part

Feed Motor QAR0215-001
#NI

Cabinet parts diagram

Feed motor

Part #QAR0215-001

The manufacturer no longer makes this part, and there's no substitute part

Jvc Screen GN20092-001A
#3

Cabinet parts diagram

Jvc screen

Part #GN20092-001A

The manufacturer no longer makes this part, and there's no substitute part

Motor QAR0311-001
#NI

Cabinet parts diagram

Motor

Part #QAR0311-001

The manufacturer no longer makes this part, and there's no substitute part

Motor QAR0197-001
#NI

Cabinet parts diagram

Motor

Part #QAR0197-001

The manufacturer no longer makes this part, and there's no substitute part
