Model # 14360231 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 14360231 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Plug 27625
#30

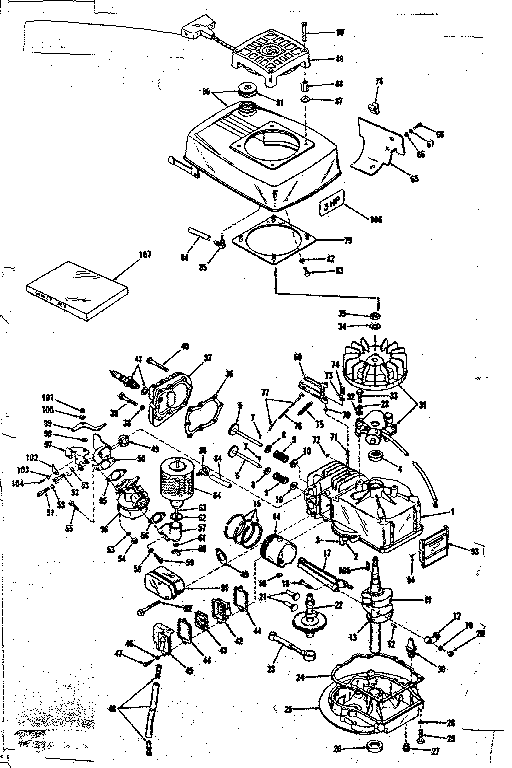

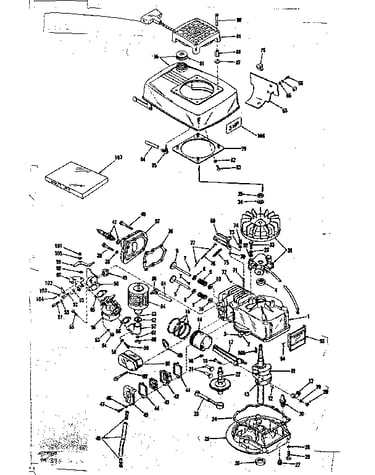

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#9

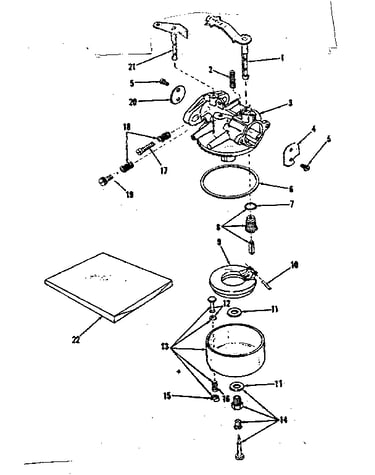

Carburetor diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Breaker Assembly 27948
#6

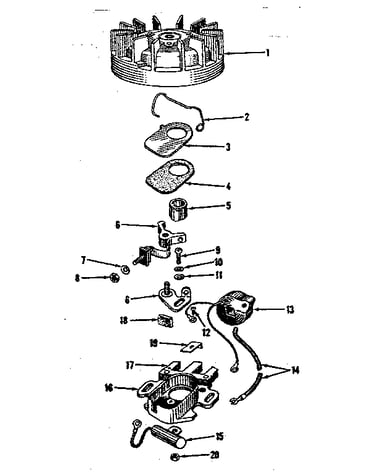

Magneto diagram

Breaker assembly

Part #27948

The manufacturer no longer makes this part, and there's no substitute part

Lifter 27241
#21

Basic engine diagram

Lifter

Part #27241

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27234
#44

Basic engine diagram

Gasket

Part #27234

The manufacturer no longer makes this part, and there's no substitute part

Clip 27275
#78

Basic engine diagram

Clip

Part #27275

The manufacturer no longer makes this part, and there's no substitute part

Ring Set 27565
#15

Basic engine diagram

Ring set

Part #27565

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27110
#11

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Handle 27263
#2

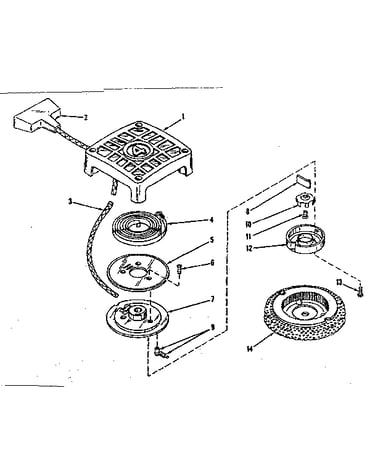

Rewind starter diagram

Handle

Part #27263

The manufacturer no longer makes this part, and there's no substitute part
