Countertop Microwave

Model # JES831WB002 Official GE microwave

Here are the diagrams and repair parts for Official GE JES831WB002 microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JES831WB002 Microwaves
Switch-micro WB24X0829
#19

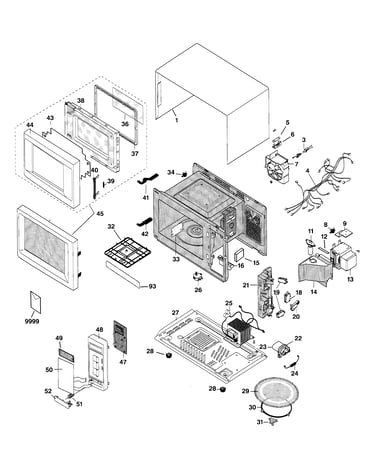

Microwave diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$35.62 |
14% OFF Phone Price : $41.62
In Stock
Fuse Ferrule WB27X10288
#5

Microwave diagram

Fuse ferrule

Part #WB27X10288

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10288. Substitute parts can look different from the original.
BEST SELLER
$11.95 |
14% OFF Phone Price : $13.95
In Stock
Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#23

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$80.17 |
7% OFF Phone Price : $86.17
In Stock
High-voltage Diode WB27X10169
#24

Microwave diagram

High-voltage diode

Part #WB27X10169

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27X10169. Substitute parts can look different from the original.
BEST SELLER
$50.58 |
11% OFF Phone Price : $56.58
In Stock
Microwave Magnetron (replaces Wb27x10343, Wb27x1114) WB27X10516
#13

Microwave diagram

Microwave magnetron (replaces wb27x10343, wb27x1114)

Part #WB27X10516

BEST SELLER
$303.87 |
$12.00 OFF Phone Price : $315.87
In Stock
Microwave Turntable Motor WB26X10024
#26

Microwave diagram

Microwave turntable motor

Part #WB26X10024

$52.46
In Stock
Thermistor Bracket WB02X10517
#9

Microwave diagram

Thermistor bracket

Part #WB02X10517

$11.11
In Stock
Door Lever WB06X10186
#16

Microwave diagram

Door lever

Part #WB06X10186

$9.77
In Stock
Cushion Spon WB02X10669
#15

Microwave diagram

Cushion spon

Part #WB02X10669

$31.49
In Stock
Microwave Thermostat WB20X10003
#8

Microwave diagram

Microwave thermostat

Part #WB20X10003

$30.39 |
16% OFF Phone Price : $36.39
In Stock
