Model # RLS356 Official Caloric gas range
Here are the diagrams and repair parts for Official Caloric RLS356 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forRLS356 Ranges

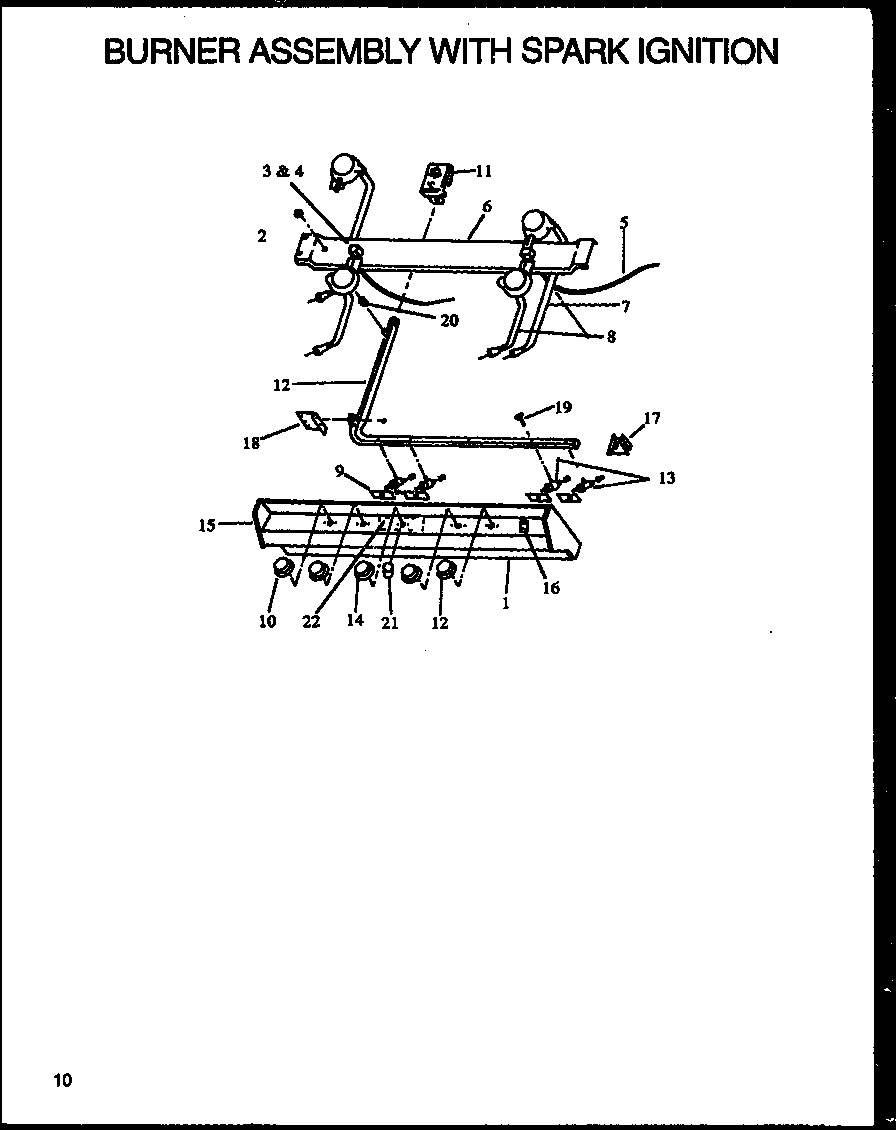

- Switch
Part #0088874
Replaced by #WP4157180
?Manufacturer substitutionThis part replaces 0088874. Substitute parts can look different from the original.$53.13 |10% OFF Phone Price : $59.13In Stock #NI

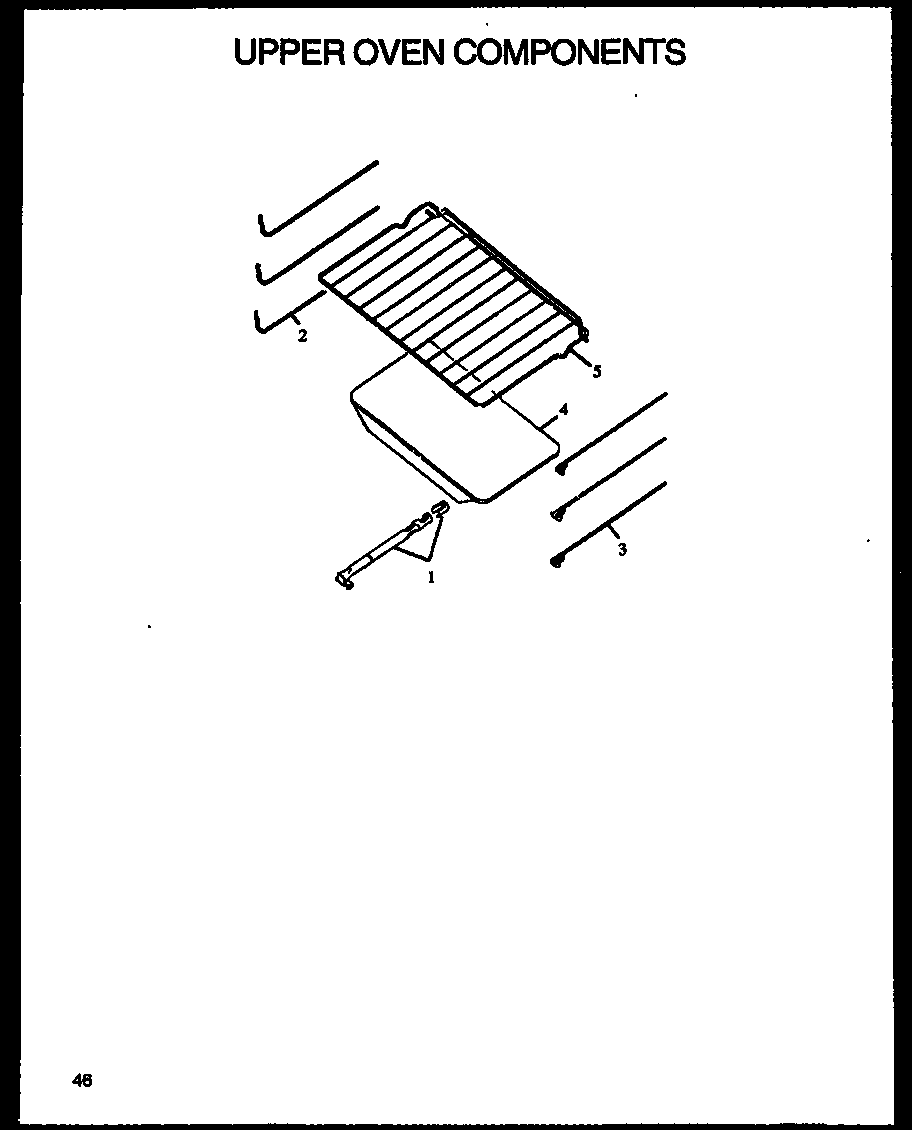

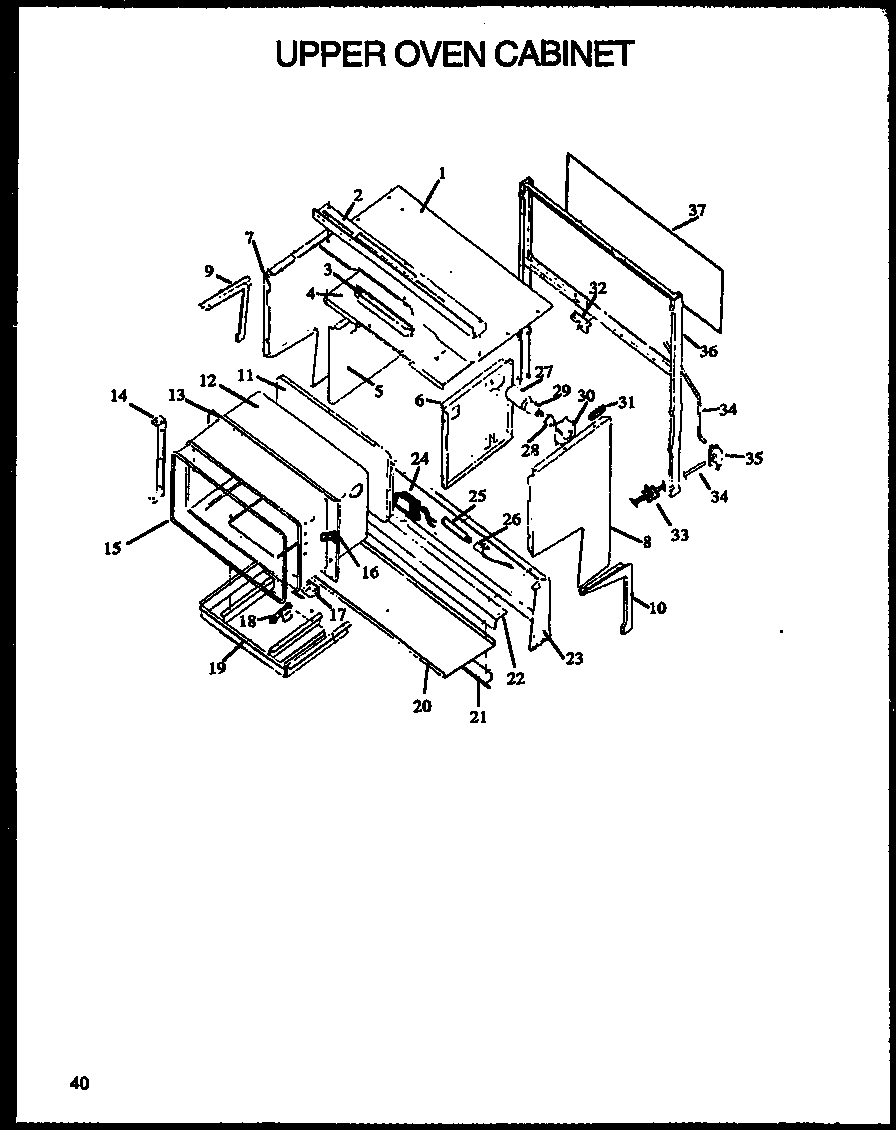

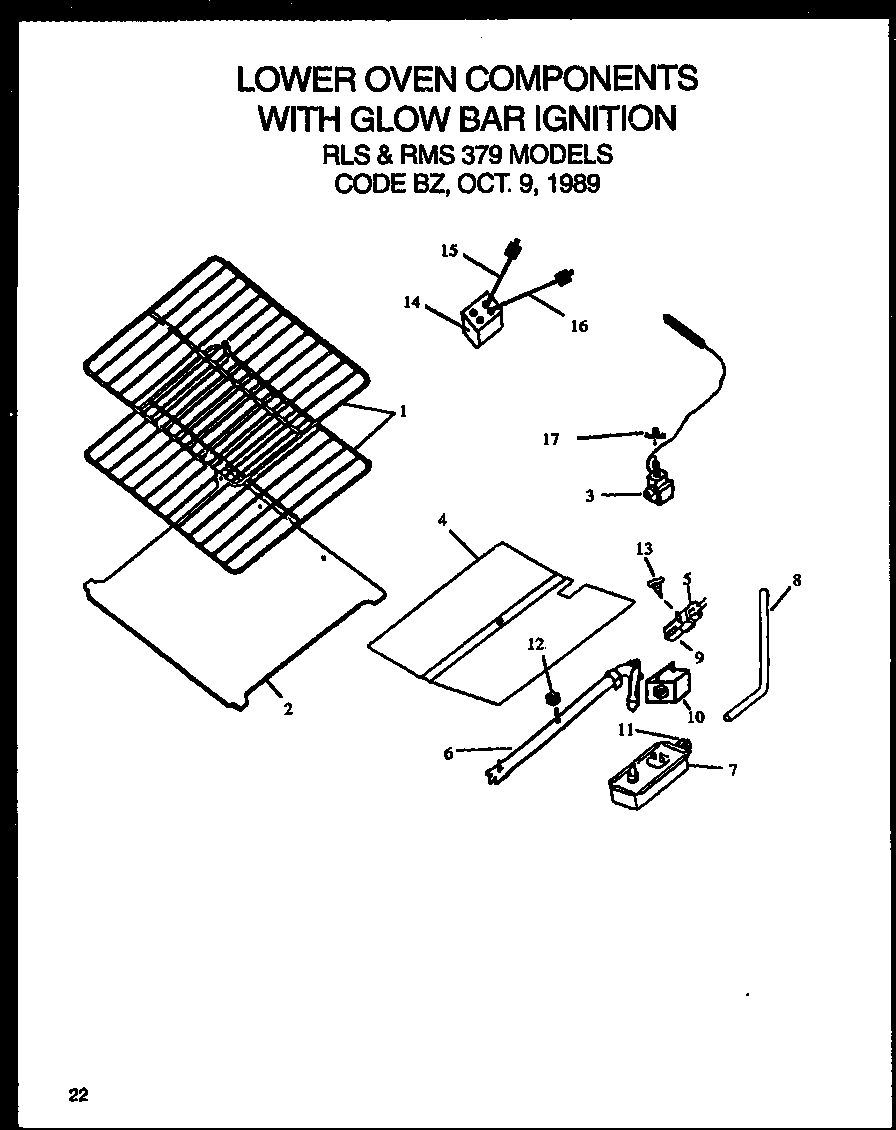

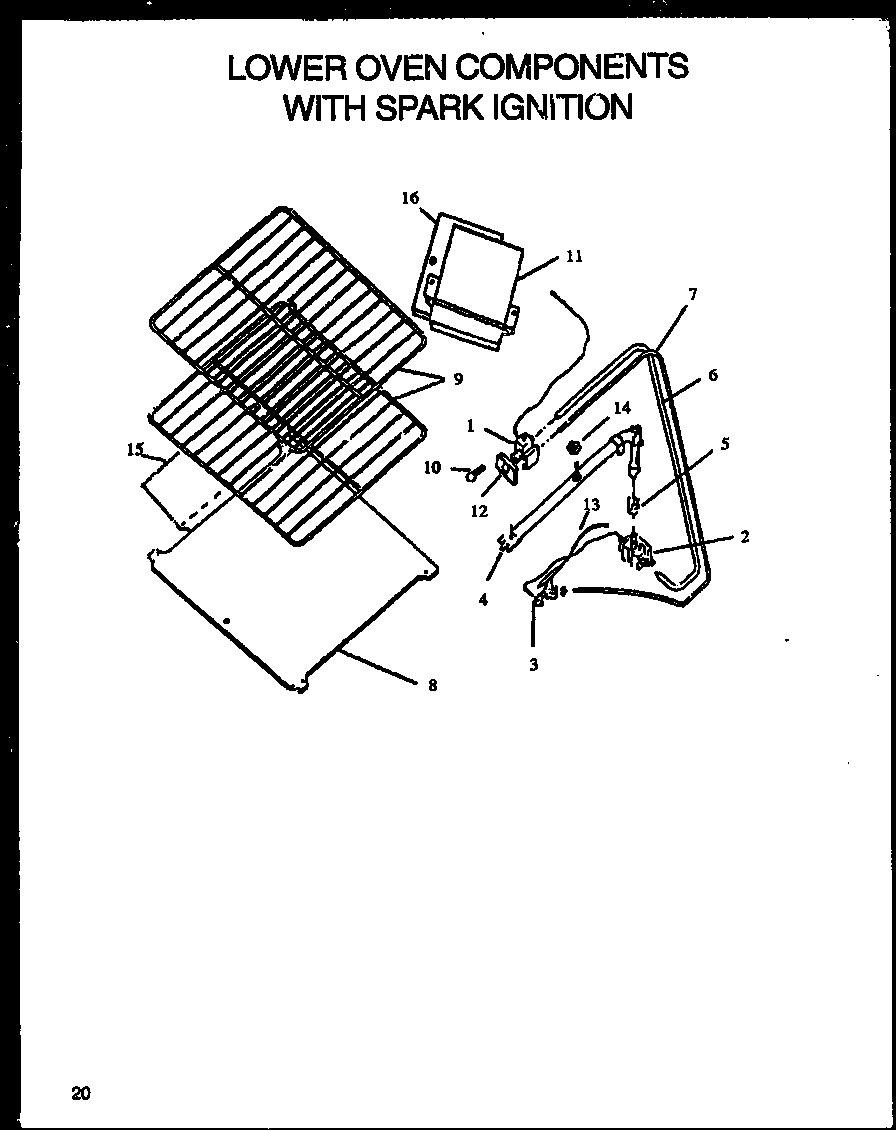

All parts diagram

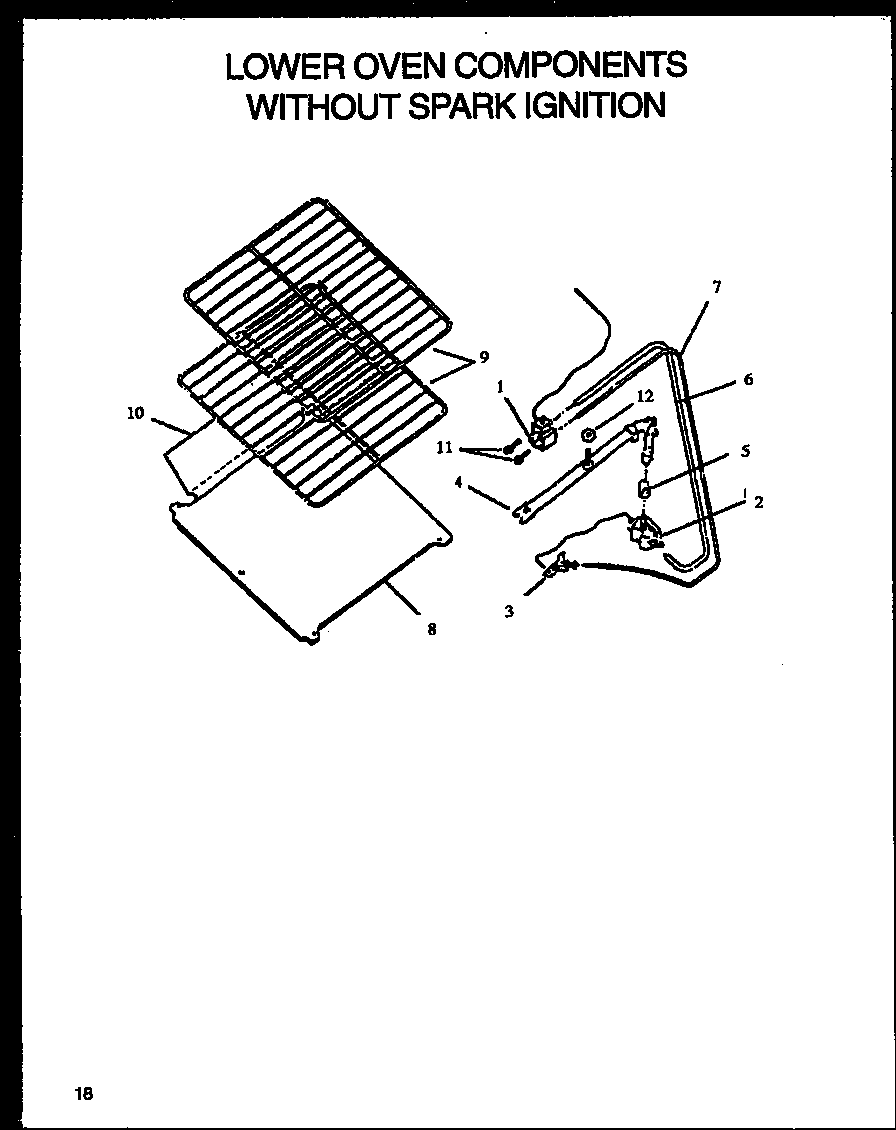

Oven pilot (112,312,335,340,341,343,351,352,353,354,640,Part #089063
The manufacturer no longer makes this part, and there's no substitute part
- Locating stud, nylon
Part #0311086
The manufacturer no longer makes this part, and there's no substitute part
- #1A

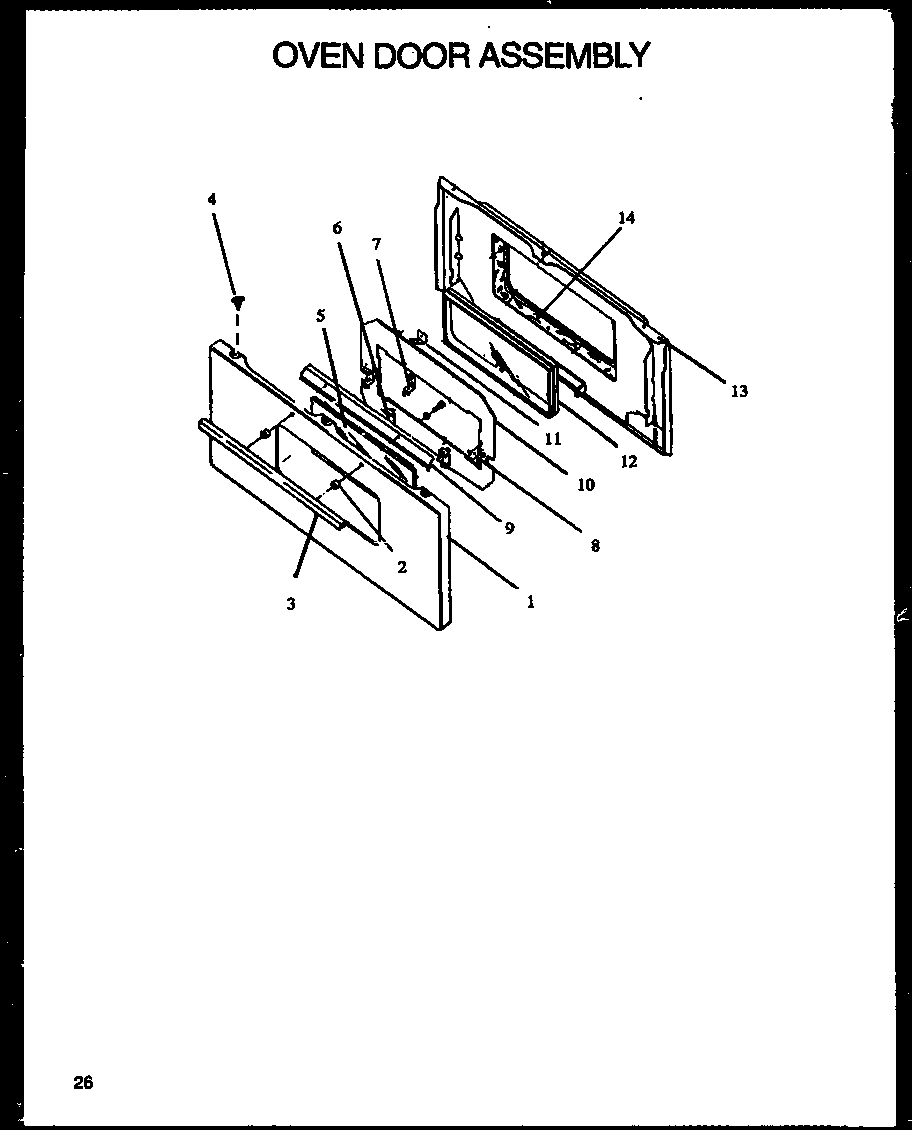

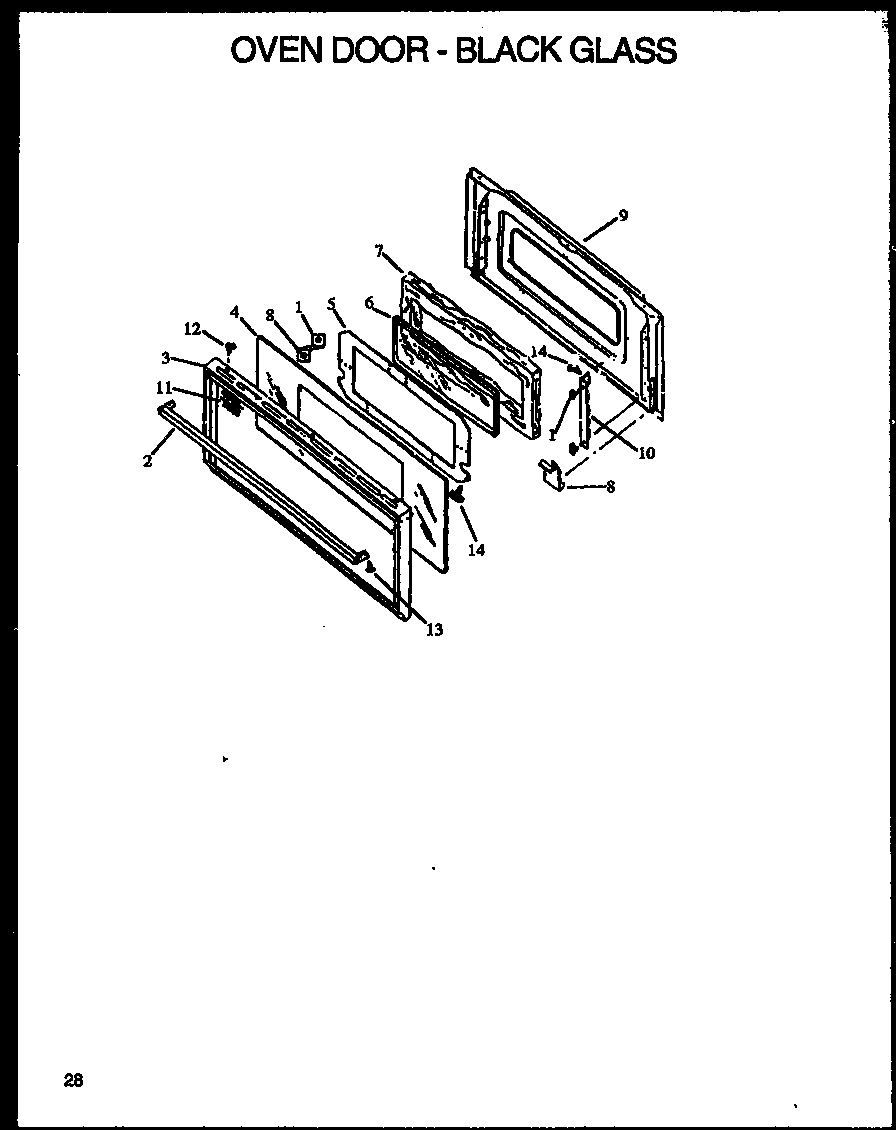

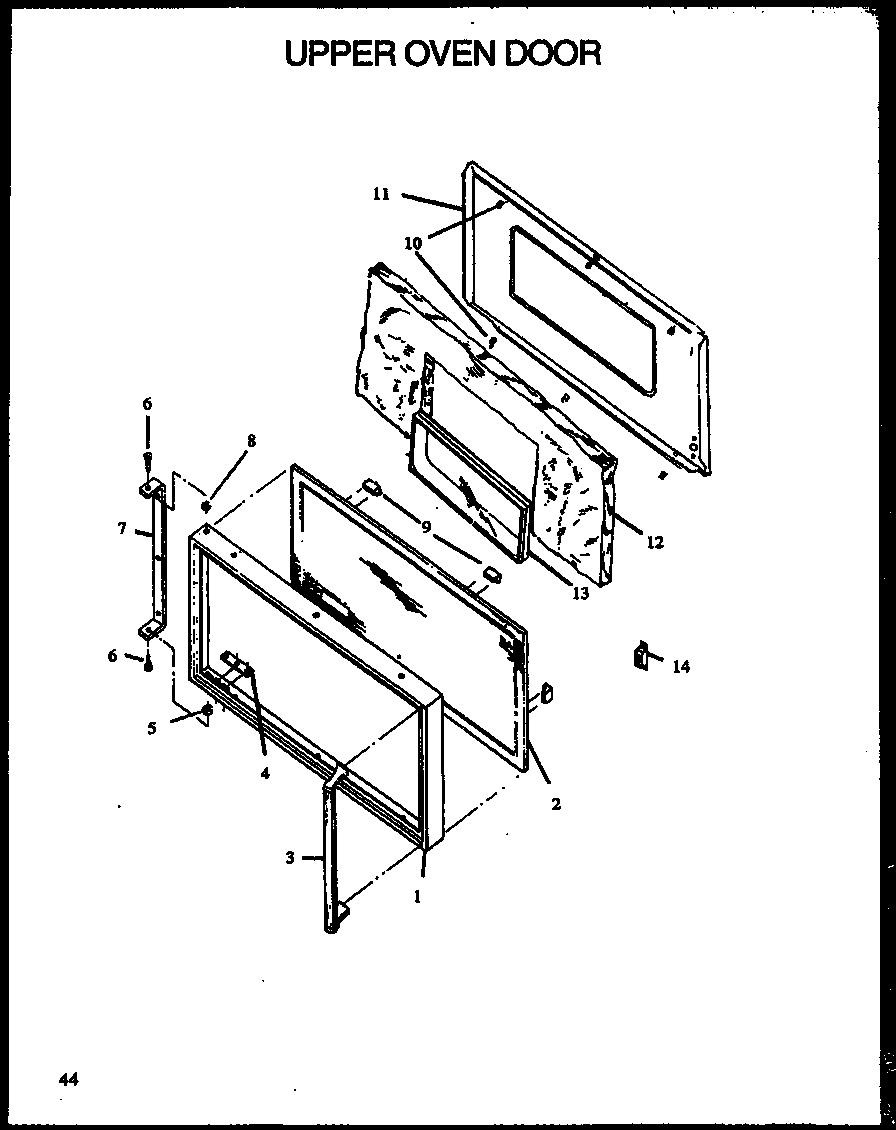

Oven door assembly (rls112) (rls312) (rms312) (rls341) (rms341) (rls351) (rms351) (rls113) (rms113) (rms313) (rls313) (rls346) (rms346) (rls356) (rms356) diagram
Panel, oven door, gold (code ay, aug. 7, 1987, 112)Part #054683H
The manufacturer no longer makes this part, and there's no substitute part
- #4A

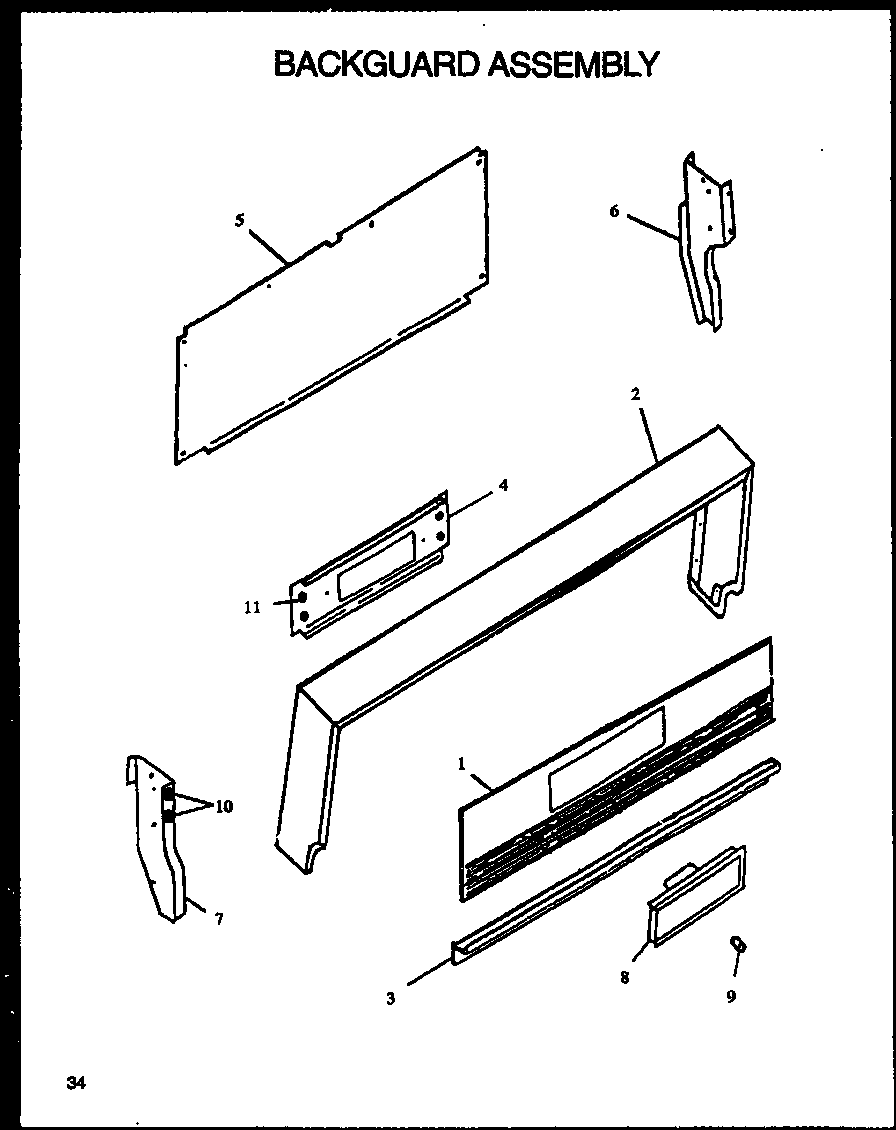

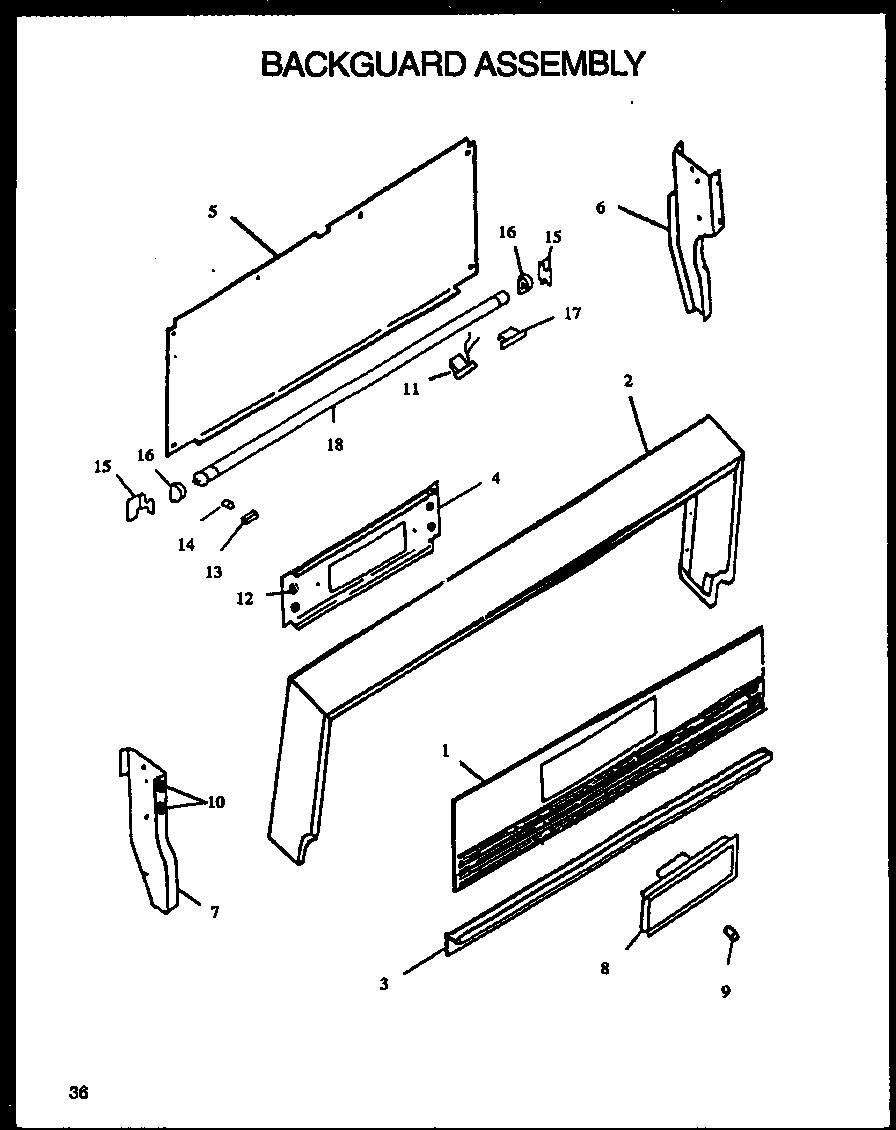

Backguard assembly (rls112) (rms112) (rls312) (rms312) (rls335) (rms335) (rls340) (rms340) (rls341) (rms341) (rls343) (rms343) (rls113) (rms113) (rms269) (rls269) (rms313) (rls313) (rls339) (rms339) (rls345) (rms345) (rls357) (rms357) diagram
Bracket clockPart #0086779
The manufacturer no longer makes this part, and there's no substitute part

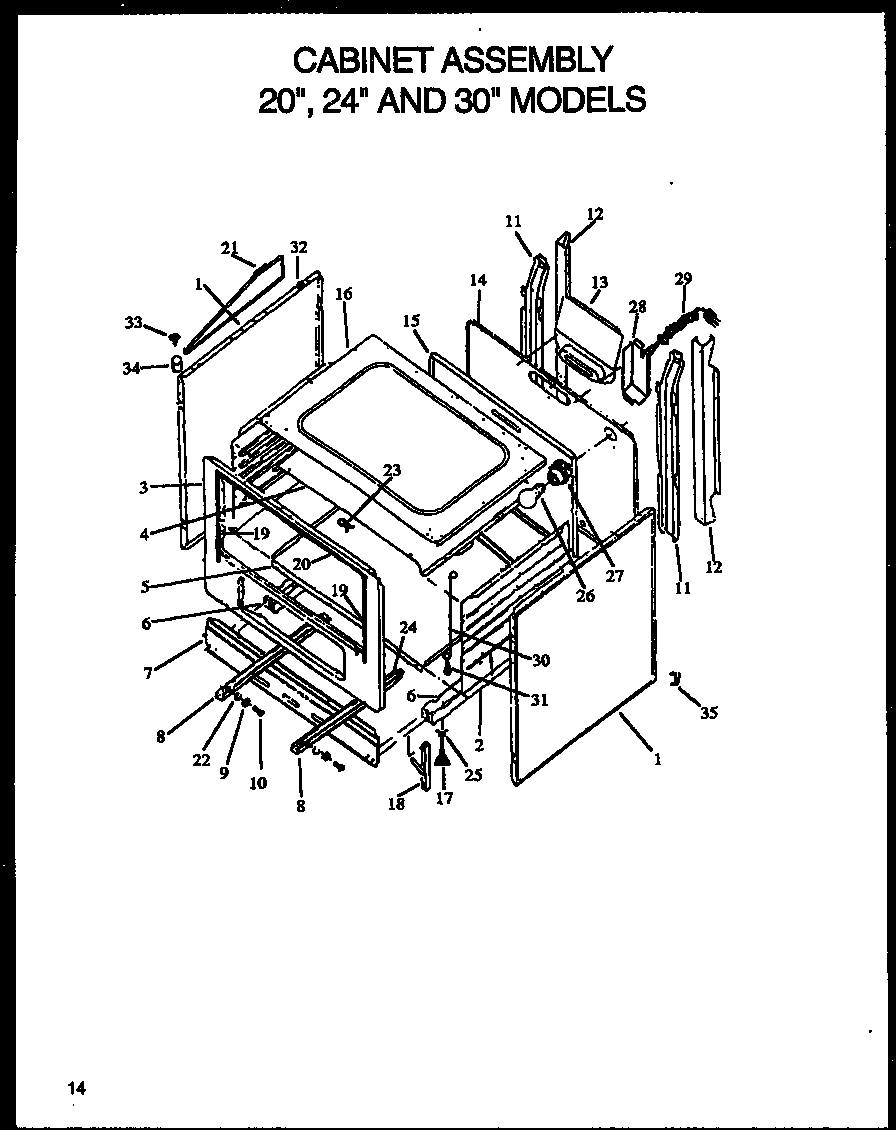

- Oven bottom
Part #311822E
The manufacturer no longer makes this part, and there's no substitute part
- #10

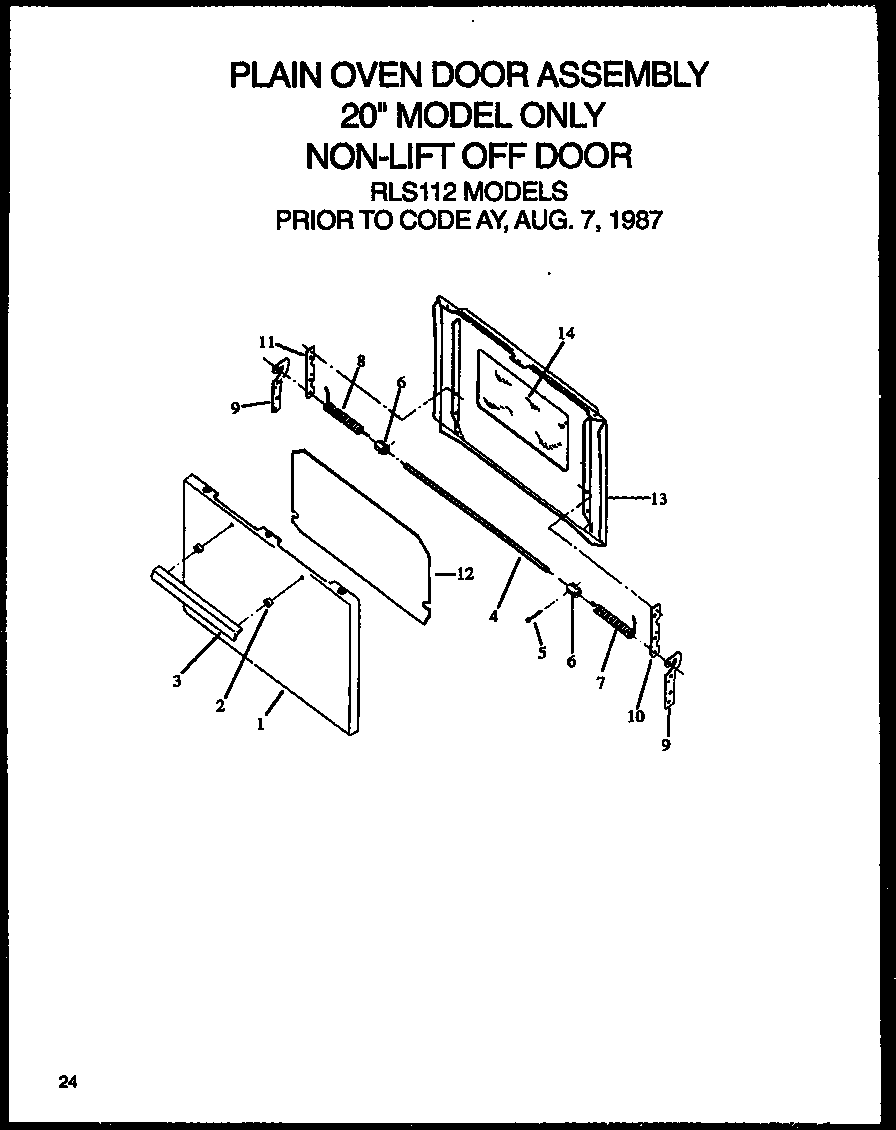

Plain oven door assembly 20" model only non-lift off door (rls112) diagram
Hinged arm, rhPart #0088552
The manufacturer no longer makes this part, and there's no substitute part
- #4B

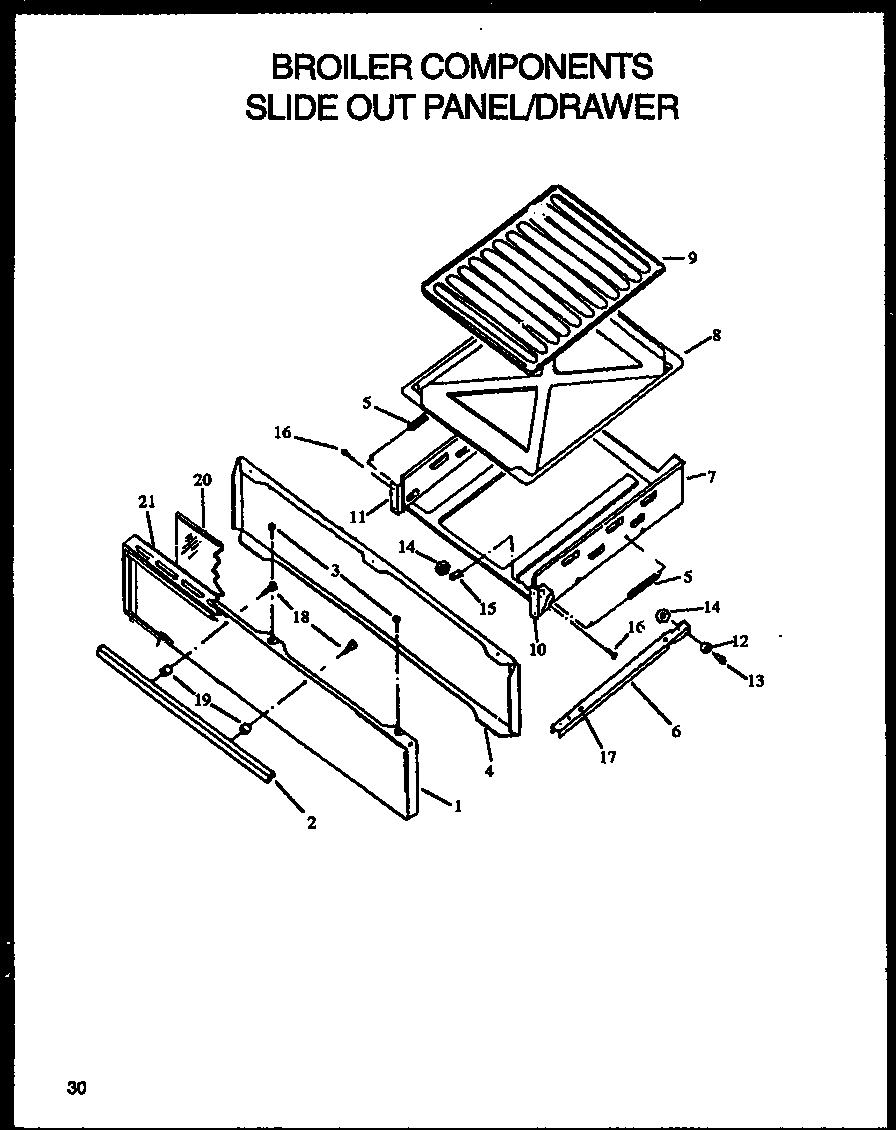

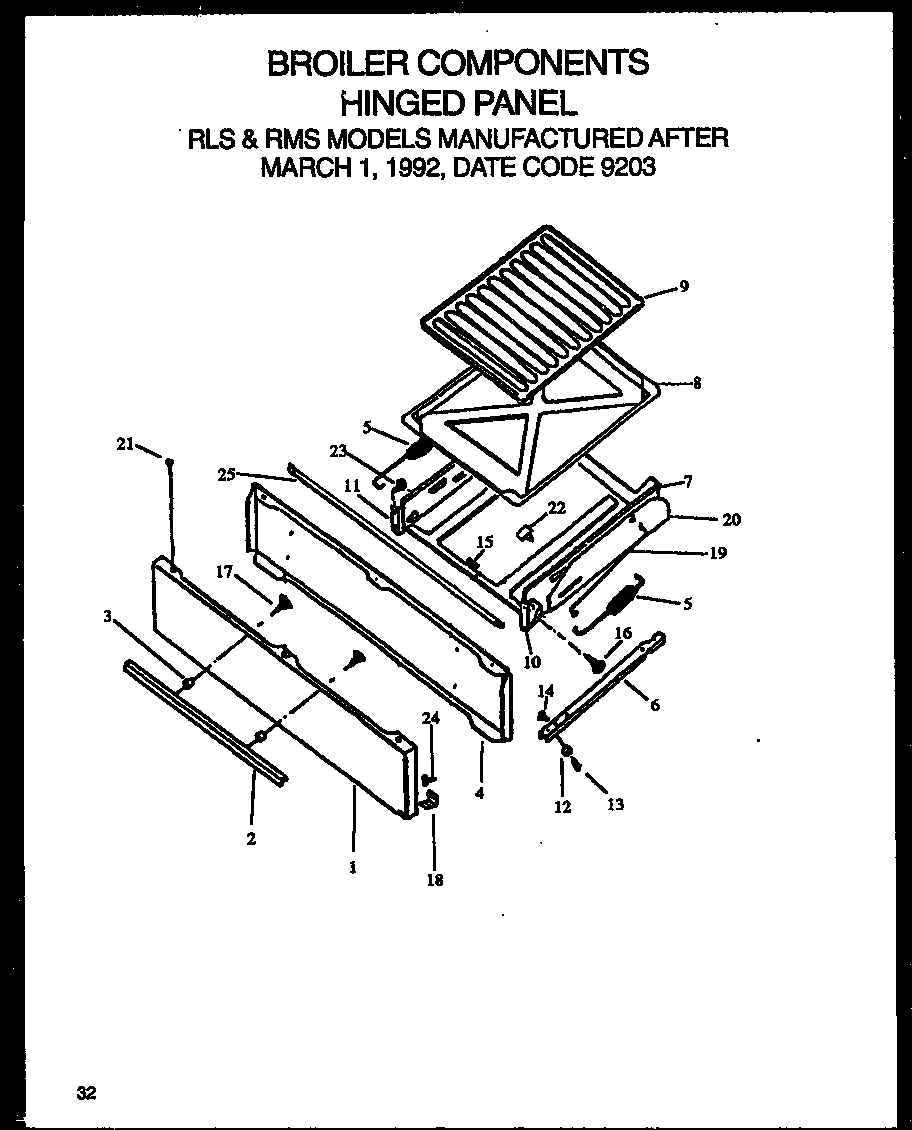

Broiler components slide out panel/drawer (rls112) (rms112) (rls312) (rms312) (rls335) (rms335) (rls340) (rms340) (rls341) (rms341) (rls343) (rms343) (rls351) (rms351) (rls352) (rms352) (rls353) (rms353) (rms354) (rls354) (rls113) (rms113) (rms269) (rls26 diagram
Broiler door linerPart #0054688
The manufacturer no longer makes this part, and there's no substitute part
- #1B
Broiler components slide out panel/drawer (rls112) (rms112) (rls312) (rms312) (rls335) (rms335) (rls340) (rms340) (rls341) (rms341) (rls343) (rms343) (rls351) (rms351) (rls352) (rms352) (rls353) (rms353) (rms354) (rls354) (rls113) (rms113) (rms269) (rls26 diagram
Panel, broiler door, almondPart #052787L
The manufacturer no longer makes this part, and there's no substitute part
- #1E

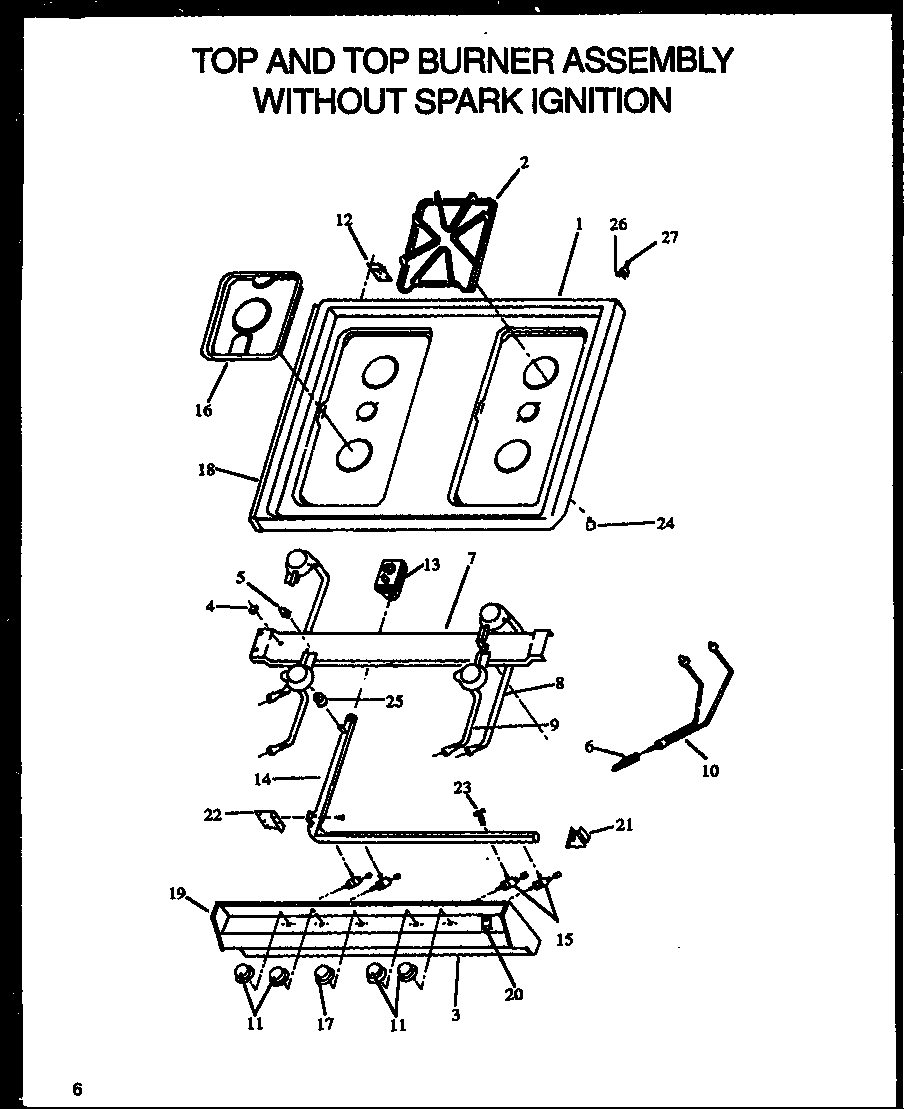

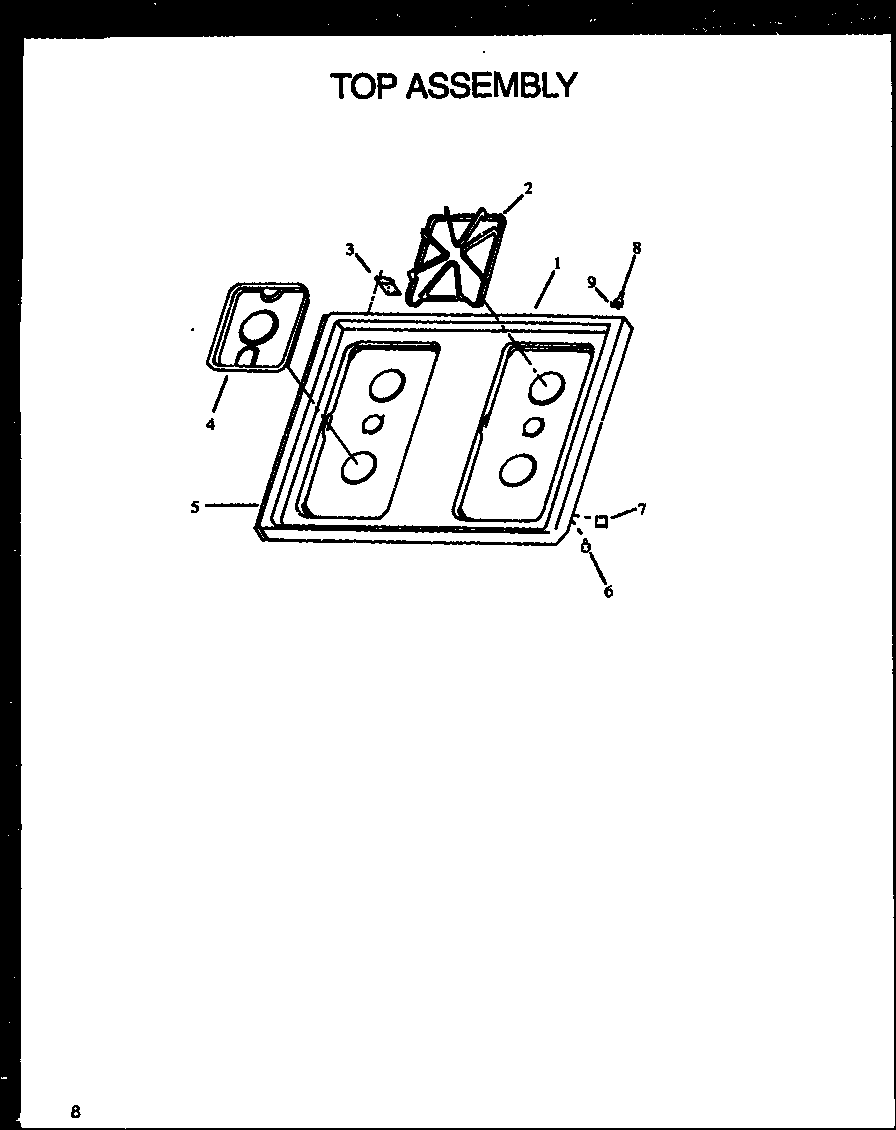

(rls113) (rms113) (rms269) (rls269) (rls305) (rms305) (rls306) (rms306) (rms313) (rls313) (rls339) (rms339) (rls345) (rms345) (rls346) (rms346) (rls356) (rms356) (rls357) (rms357) (rls359) (rms359) (rls358) (rms358) (rls368) (rms368) diagram
Main top (almond)Part #086959L
The manufacturer no longer makes this part, and there's no substitute part
