Model # DOAB1305A Official Maytag dynasty accessory

Here are the diagrams and repair parts for Official Maytag DOAB1305A dynasty accessory, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Ring 70002562
#19

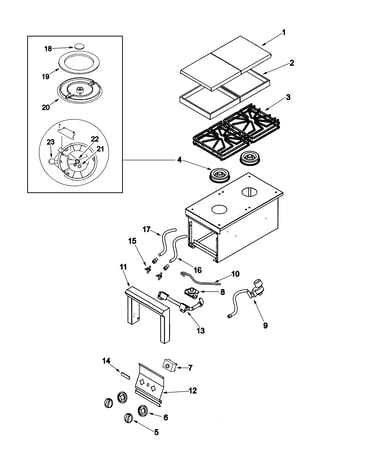

Side burner diagram

Ring

Part #70002562

The manufacturer no longer makes this part, and there's no substitute part

Flexible Tub 70002474
#10

Side burner diagram

Flexible tub

Part #70002474

The manufacturer no longer makes this part, and there's no substitute part

Valve, Lml L 70002493
#15

Side burner diagram

Valve, lml l

Part #70002493

The manufacturer no longer makes this part, and there's no substitute part

Valve, Lml N 70002494
#15A

Side burner diagram

Valve, lml n

Part #70002494

The manufacturer no longer makes this part, and there's no substitute part

Orifice 1.00 70002568
#23

Side burner diagram

Orifice 1.00

Part #70002568

The manufacturer no longer makes this part, and there's no substitute part

Tubing, Al 5 70002497
#17

Side burner diagram

Tubing, al 5

Part #70002497

The manufacturer no longer makes this part, and there's no substitute part

Clip Elctro 70002570
#21A

Side burner diagram

Clip elctro

Part #70002570

The manufacturer no longer makes this part, and there's no substitute part

Tubing, Al 5 70002496
#16

Side burner diagram

Tubing, al 5

Part #70002496

The manufacturer no longer makes this part, and there's no substitute part

Cap (sml-blk 70002561
#18

Side burner diagram

Cap (sml-blk

Part #70002561

The manufacturer no longer makes this part, and there's no substitute part

Logo, Dynast 70002490
#14

Side burner diagram

Logo, dynast

Part #70002490

The manufacturer no longer makes this part, and there's no substitute part
