Panasonic
DVD Player

Model # DMP-BD77P Official Panasonic dvd player

Here are the diagrams and repair parts for Official Panasonic DMP-BD77P dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Power Pcb VEP71278A
#3

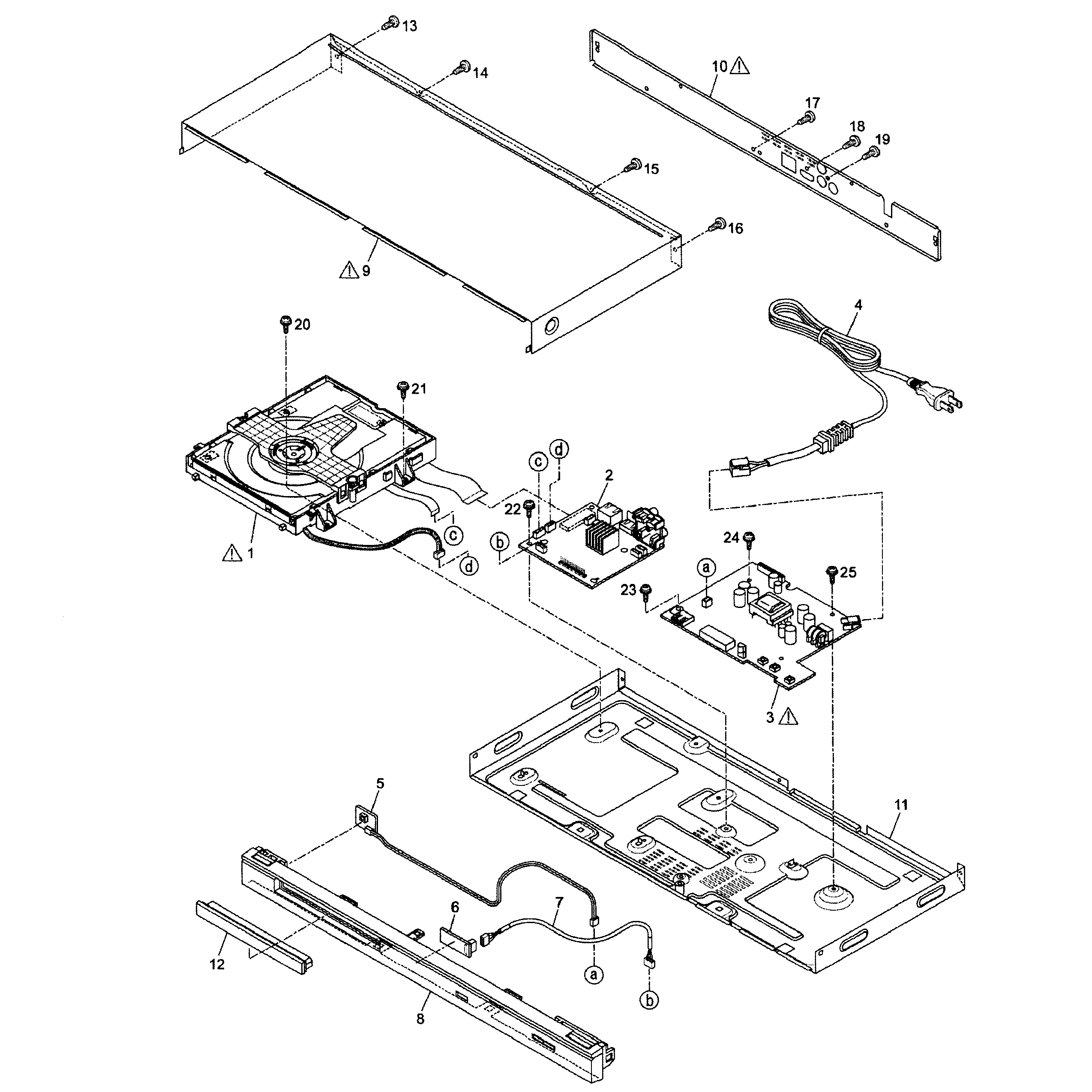

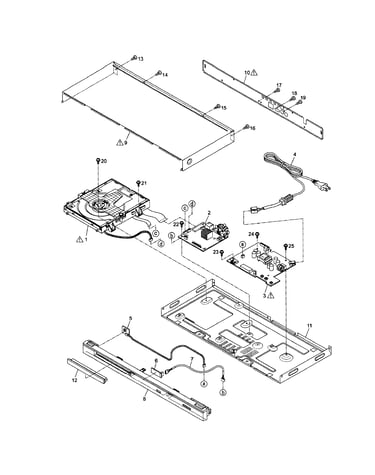

Cabinet parts diagram

Power pcb

Part #VEP71278A

The manufacturer no longer makes this part, and there's no substitute part

Panel VGP6498
#9

Cabinet parts diagram

Panel

Part #VGP6498

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Panel VGP6492
#8

Cabinet parts diagram

Panasonic panel

Part #VGP6492

The manufacturer no longer makes this part, and there's no substitute part

Screw VHD2326
Screw

Part #VHD2326

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Panel VGP6502
#10

Cabinet parts diagram

Panasonic panel

Part #VGP6502

The manufacturer no longer makes this part, and there's no substitute part

Sw Pcb VEK0T07
#5

Cabinet parts diagram

Sw pcb

Part #VEK0T07

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord K2CB2YY00073
#4

Cabinet parts diagram

Ac cord

Part #K2CB2YY00073

The manufacturer no longer makes this part, and there's no substitute part

Remote Control N2QAYB000734
#NI

Cabinet parts diagram

Remote control

Part #N2QAYB000734

The manufacturer no longer makes this part, and there's no substitute part

Operating VQT3V18
#NI

Cabinet parts diagram

Operating

Part #VQT3V18

The manufacturer no longer makes this part, and there's no substitute part

Mechanism VXY2157
#1

Cabinet parts diagram

Mechanism

Part #VXY2157

The manufacturer no longer makes this part, and there's no substitute part
