Haier
Air Handler

Model # HSU18VHJDBW Official Haier split air conditioner

Here are the diagrams and repair parts for Official Haier HSU18VHJDBW split air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Central Air Conditioner Compressor WJ98X23285
#55

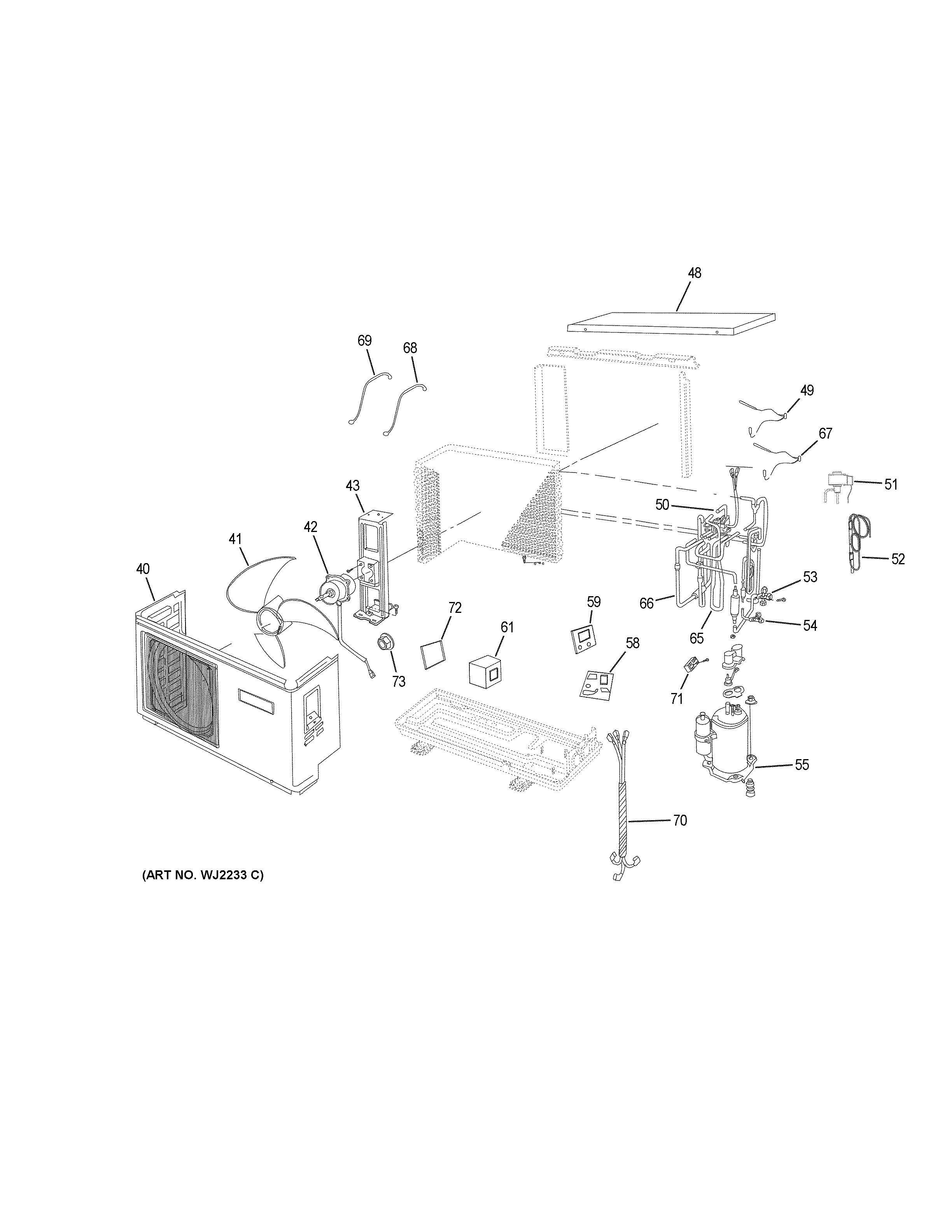

Room air conditioner diagram

Central air conditioner compressor

Part #WJ98X23285

$466.62
In Stock
Top Cover WJ76X23200
#48

Room air conditioner diagram

Top cover

Part #WJ76X23200

$38.62
In Stock
Outdoor Fan Motor WJ94X22975
#42

Room air conditioner diagram

Outdoor fan motor

Part #WJ94X22975

$109.03 |
10% OFF Phone Price : $121.03
In Stock
Electronic Expansion Valve WJ53X23303
#51

Room air conditioner diagram

Electronic expansion valve

Part #WJ53X23303

$85.56
In Stock
Suction Temperature Sensor WJ26X23346
#69

Room air conditioner diagram

Suction temperature sensor

Part #WJ26X23346

$8.14
In Stock
Compressor Temperature Sensor WJ26X23286
#67

Room air conditioner diagram

Compressor temperature sensor

Part #WJ26X23286

$13.19 |
13% OFF Phone Price : $15.19
In Stock
Outdoor Wiring Harness WJ35X23332
#70

Room air conditioner diagram

Outdoor wiring harness

Part #WJ35X23332

$36.91
In Stock
Reactor WJ27X22981
#61

Room air conditioner diagram

Reactor

Part #WJ27X22981

$26.16
In Stock
Ambient Temperature Sensor WJ26X23278
#68

Room air conditioner diagram

Ambient temperature sensor

Part #WJ26X23278

$12.72 |
14% OFF Phone Price : $14.72
In Stock
Radiator WJ26X23195
#72

Room air conditioner diagram

Radiator

Part #WJ26X23195

$22.94
In Stock
