Model # 20/18 COPPER Official Fridgette refrigerator

Here are the diagrams and repair parts for Official Fridgette 20-18-COPPER refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |

Drip Tray 114CMP17/19
#114

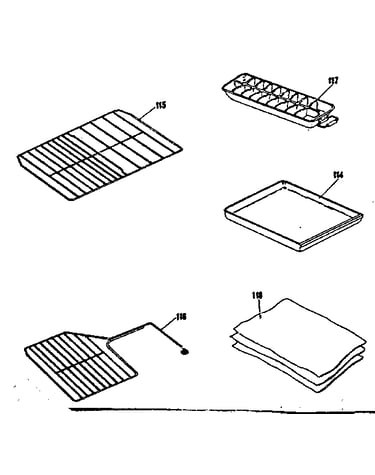

Accessory parts diagram

Drip tray

Part #114CMP17/19

The manufacturer no longer makes this part, and there's no substitute part

Cord 113CMP17/19
#113

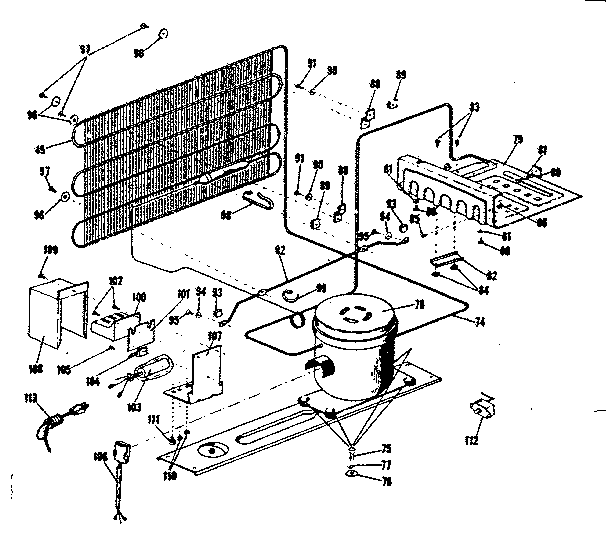

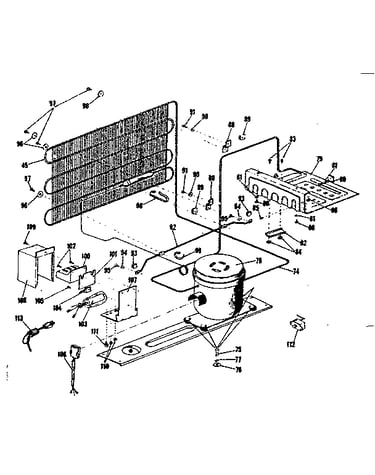

Compressor unit parts diagram

Cord

Part #113CMP17/19

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 8312410182800
#79

Compressor unit parts diagram

Evaporator

Part #8312410182800

The manufacturer no longer makes this part, and there's no substitute part

Cover 23CMP17/19
#23

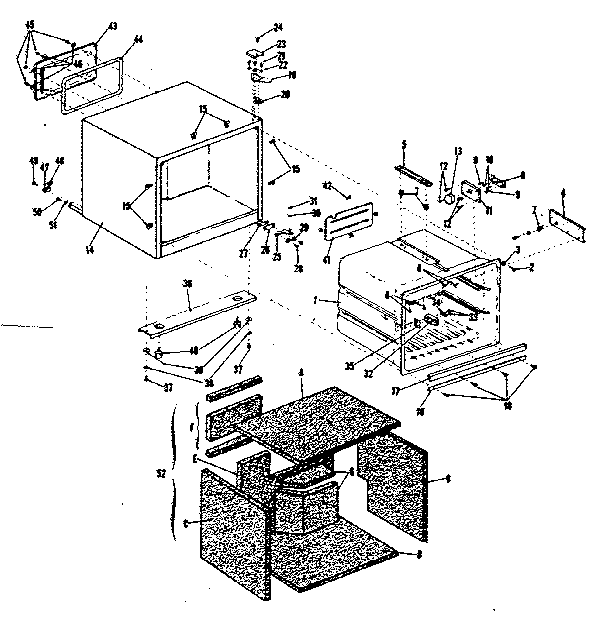

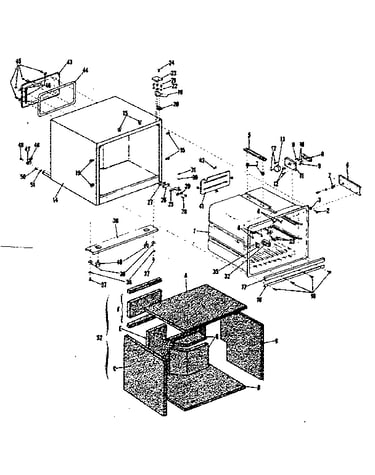

Cabinet parts diagram

Cover

Part #23CMP17/19

The manufacturer no longer makes this part, and there's no substitute part

Absorber 93CMP17/19
#93

Compressor unit parts diagram

Absorber

Part #93CMP17/19

The manufacturer no longer makes this part, and there's no substitute part

Cover Relay 108CMP17/19
#108

Compressor unit parts diagram

Cover relay

Part #108CMP17/19

The manufacturer no longer makes this part, and there's no substitute part

Unit Assembly 74CMP17/19
#74

Compressor unit parts diagram

Unit assembly

Part #74CMP17/19

The manufacturer no longer makes this part, and there's no substitute part

Mounting Plate 65CMP17/19
#65

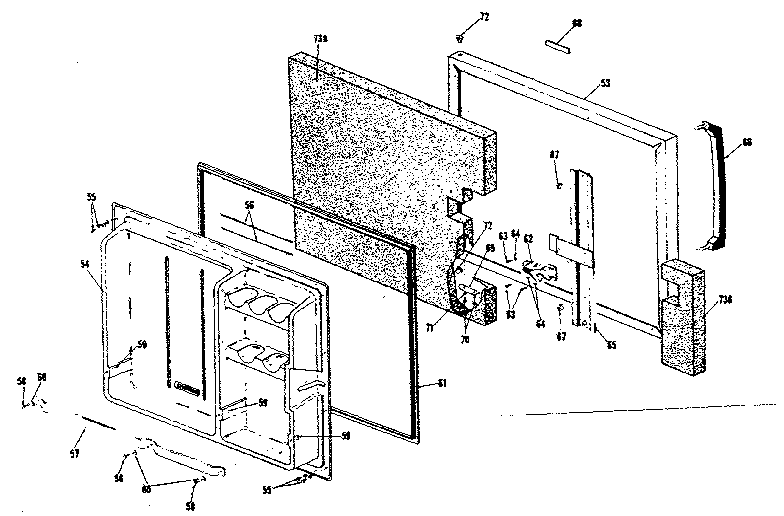

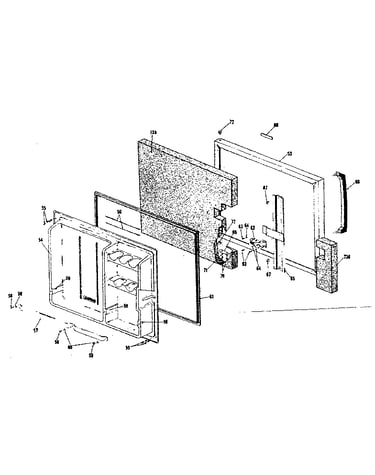

Door parts diagram

Mounting plate

Part #65CMP17/19

The manufacturer no longer makes this part, and there's no substitute part

Washer 38CMP17/19
#38

Cabinet parts diagram

Washer

Part #38CMP17/19

The manufacturer no longer makes this part, and there's no substitute part

Grommet 110CMP17/19
#110

Compressor unit parts diagram

Grommet

Part #110CMP17/19

The manufacturer no longer makes this part, and there's no substitute part
