Model # AD35DSS1 Official Whirlpool dehumidifier

Here are the diagrams and repair parts for Official Whirlpool AD35DSS1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Screw 489470
#11

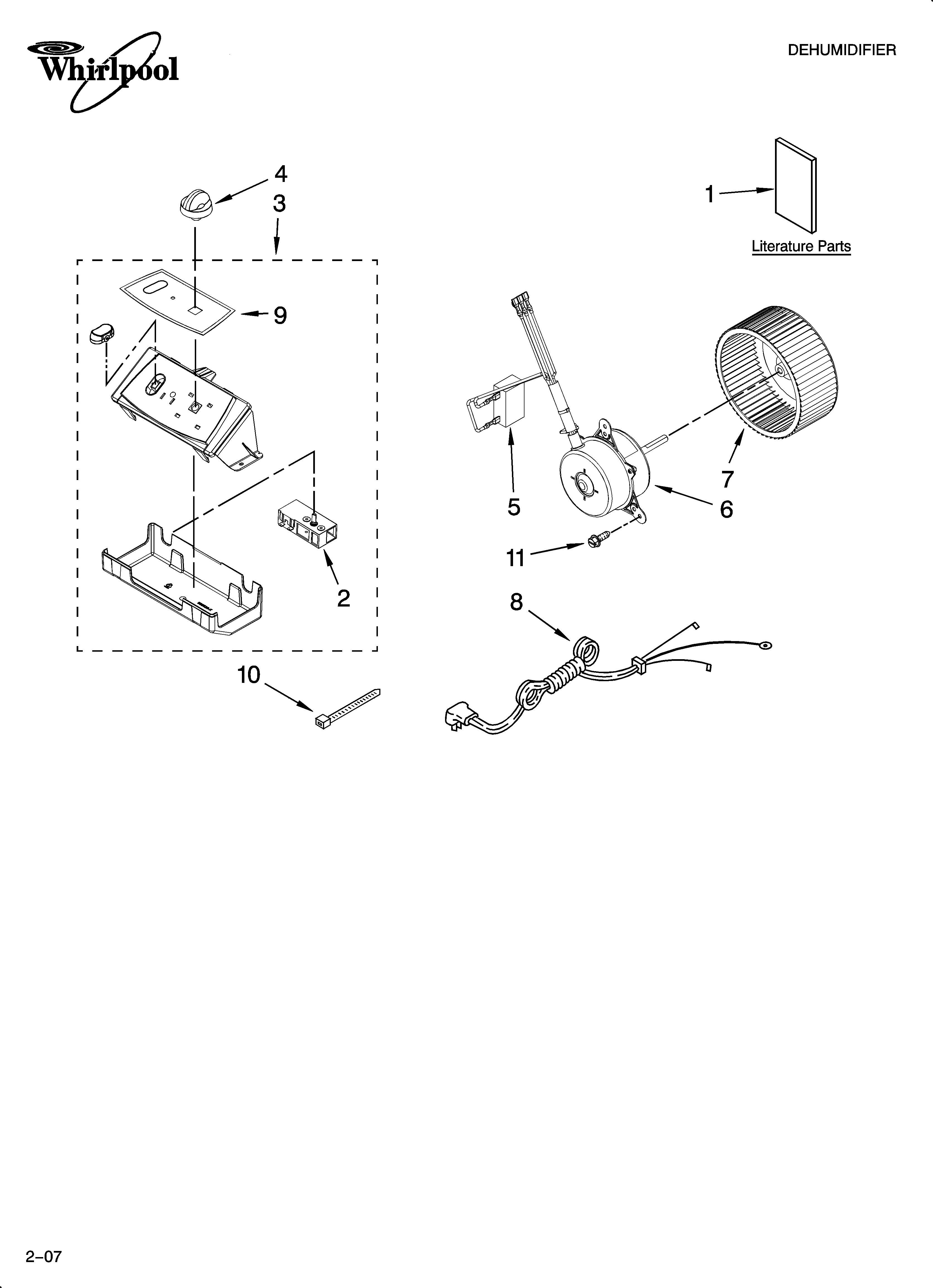

Air flow and control parts diagram

Screw

Part #489470

Replaced by #WPW10109200

?
Manufacturer substitution
This part replaces 489470. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Valve Kit 978026
#NI

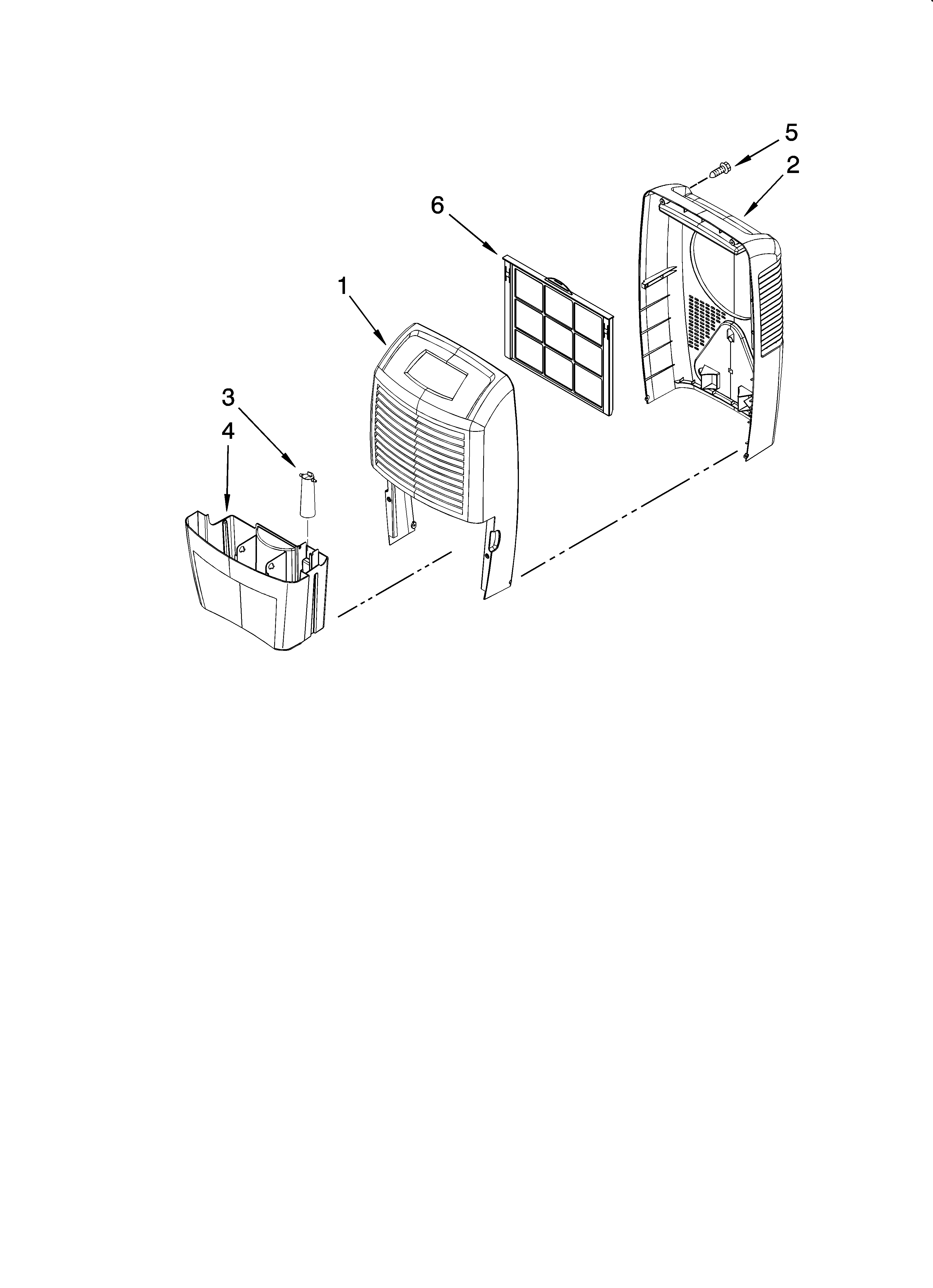

Cabinet parts diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Dishwasher Screw 9740848
#11

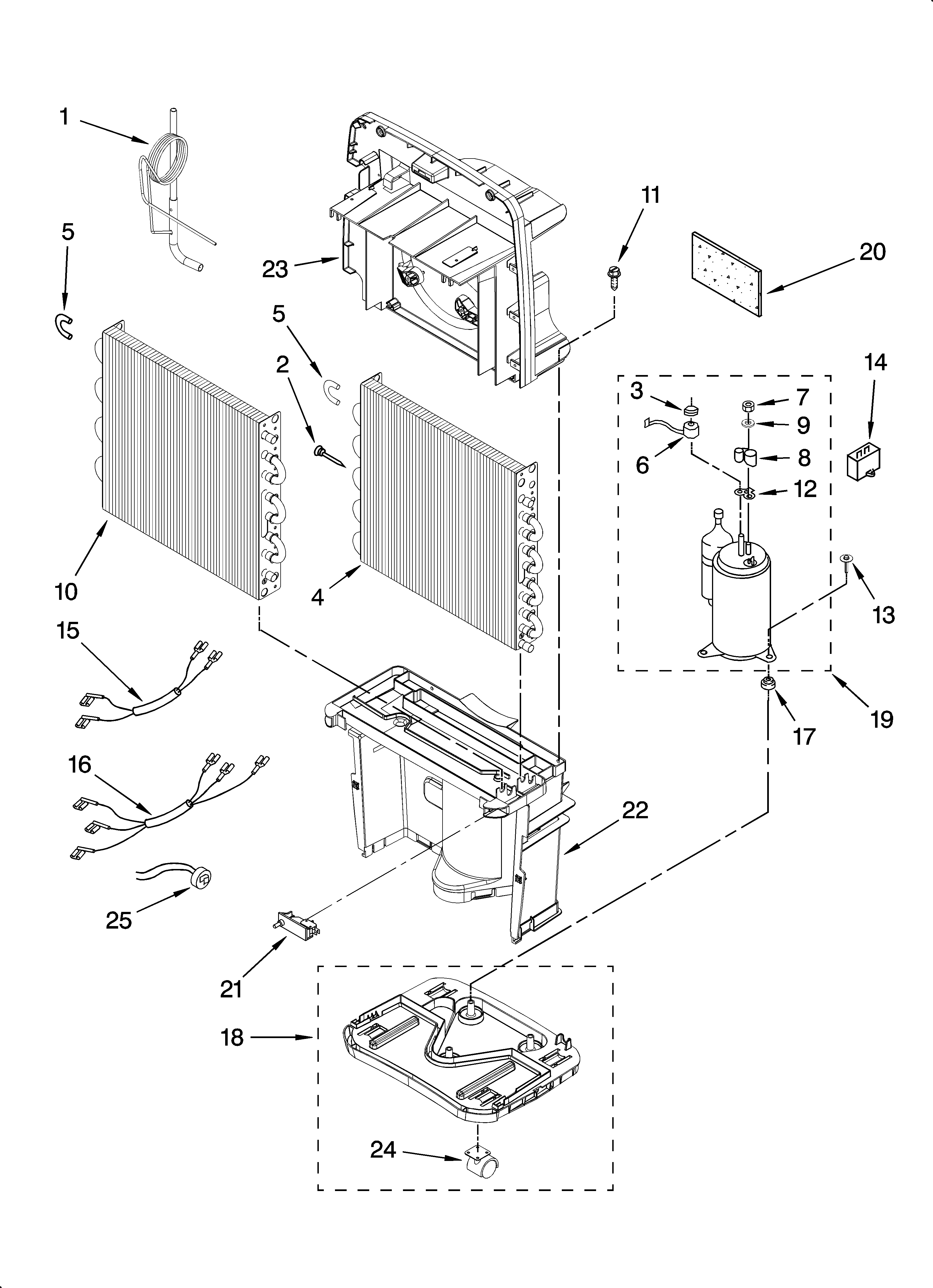

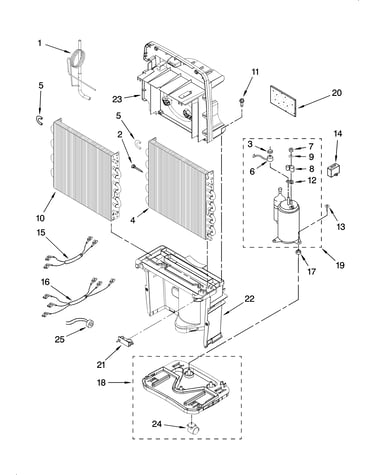

Unit parts diagram

Dishwasher screw

Part #9740848

Replaced by #WP9740848

?
Manufacturer substitution
This part replaces 9740848. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cable Tie 857547
#10

Air flow and control parts diagram

Cable tie

Part #857547

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 857547. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Humidistat 1168670
#2

Air flow and control parts diagram

Humidistat

Part #1168670

Replaced by #WP1168670

?
Manufacturer substitution
This part replaces 1168670. Substitute parts can look different from the original.
$50.57 |
11% OFF Phone Price : $56.57
In Stock
Valve Kit 978030
#NI

Cabinet parts diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Refrigerant Access Valve, 5/8-in 978029
#NI

Cabinet parts diagram

Refrigerant access valve, 5/8-in

Part #978029

Replaced by #978029

?
Manufacturer substitution
This part replaces 978029. Substitute parts can look different from the original.
$41.18
In Stock
Valve Kit 978027
#NI

Cabinet parts diagram

Valve kit

Part #978027

Replaced by #978027

?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Screw W10001320
#13

Unit parts diagram

Screw

Part #W10001320

This item is not returnable
$3.29
In Stock
Base 1188558
#18

Unit parts diagram

Base

Part #1188558

$26.18
In Stock
