Magic Chef
Gas Cooktop

Model # 8241RT Official Magic Chef gas counter unit cooktop

Here are the diagrams and repair parts for Official Magic Chef 8241RT gas counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

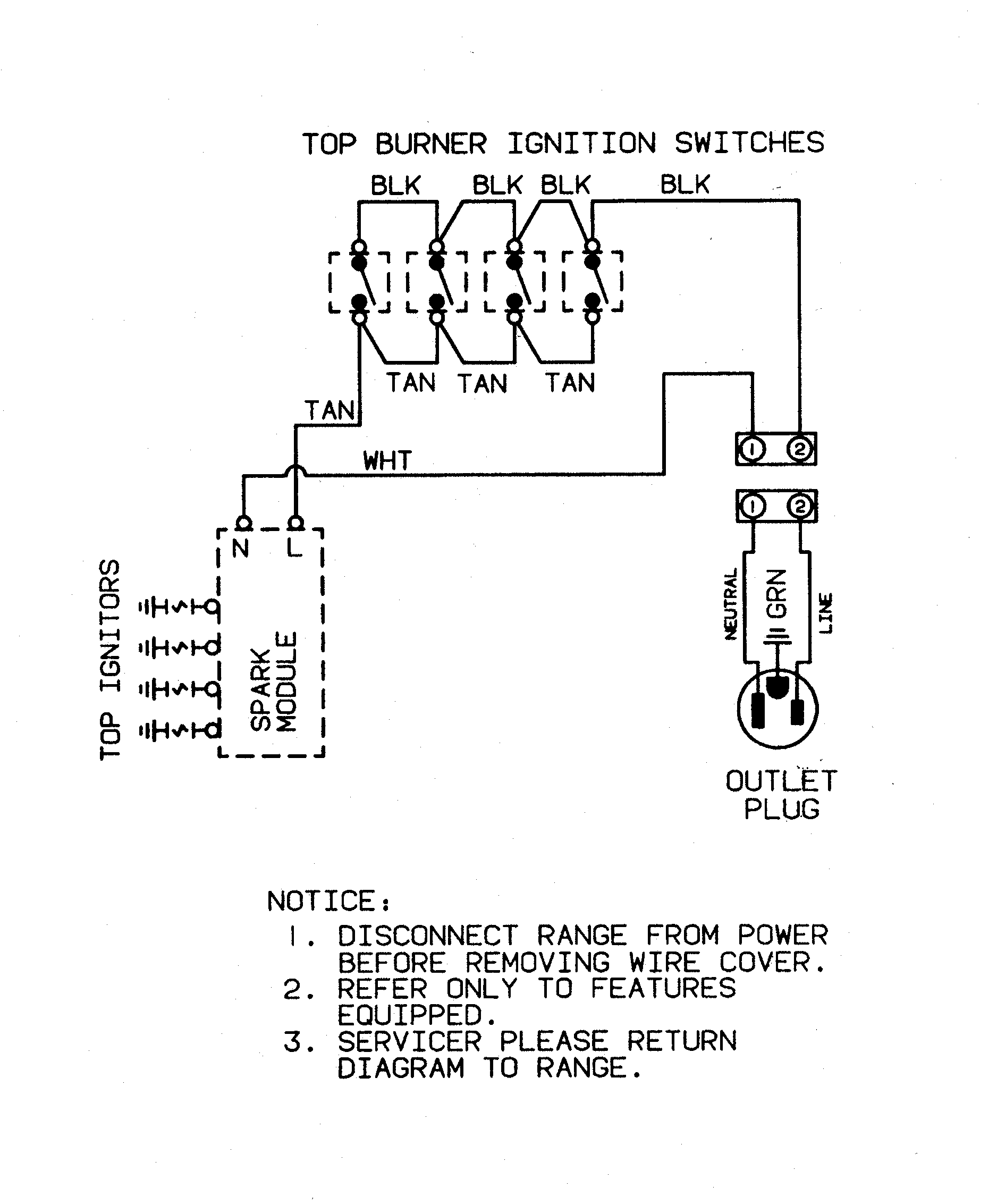

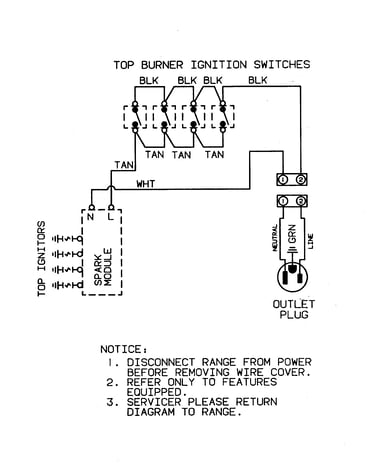

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Screw 74004288
#7

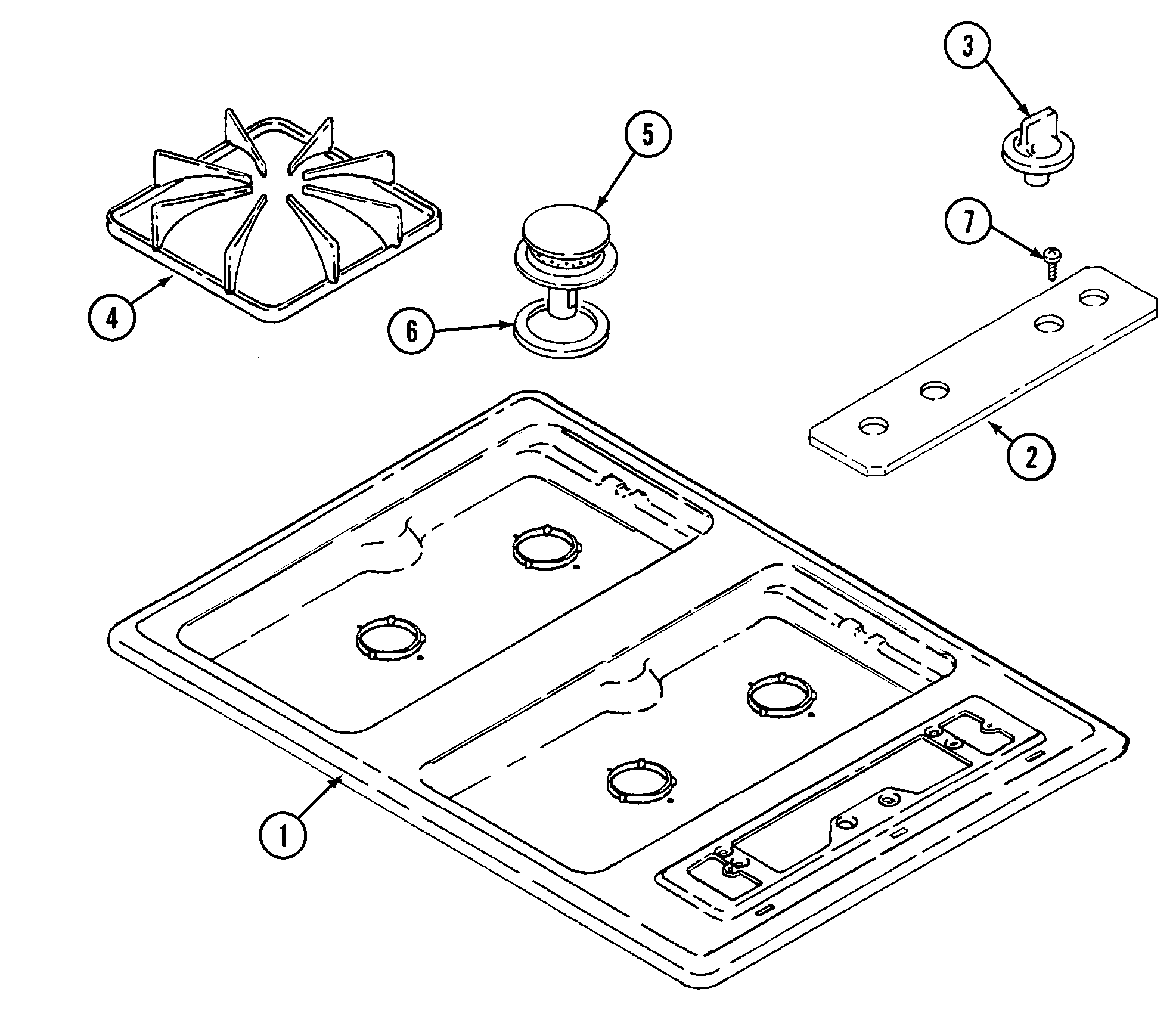

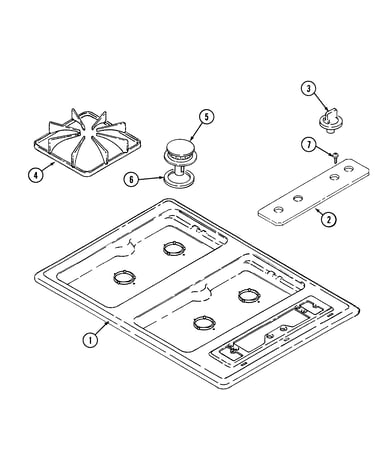

Top assembly (rt) diagram

Screw

Part #74004288

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 74004288. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Control Knob 74001253
#3

Top assembly (rt) diagram

Range control knob

Part #74001253

Replaced by #WP74001253

?
Manufacturer substitution
This part replaces 74001253. Substitute parts can look different from the original.
$21.22 |
22% OFF Phone Price : $27.22
In Stock
Range Surface Burner Igniter (replaces 7432p100-60) 74004053
#5A

Top assembly (rt) diagram

Range surface burner igniter (replaces 7432p100-60)

Part #74004053

$26.63 |
18% OFF Phone Price : $32.63
In Stock
Screw 7101P060-60
#16A

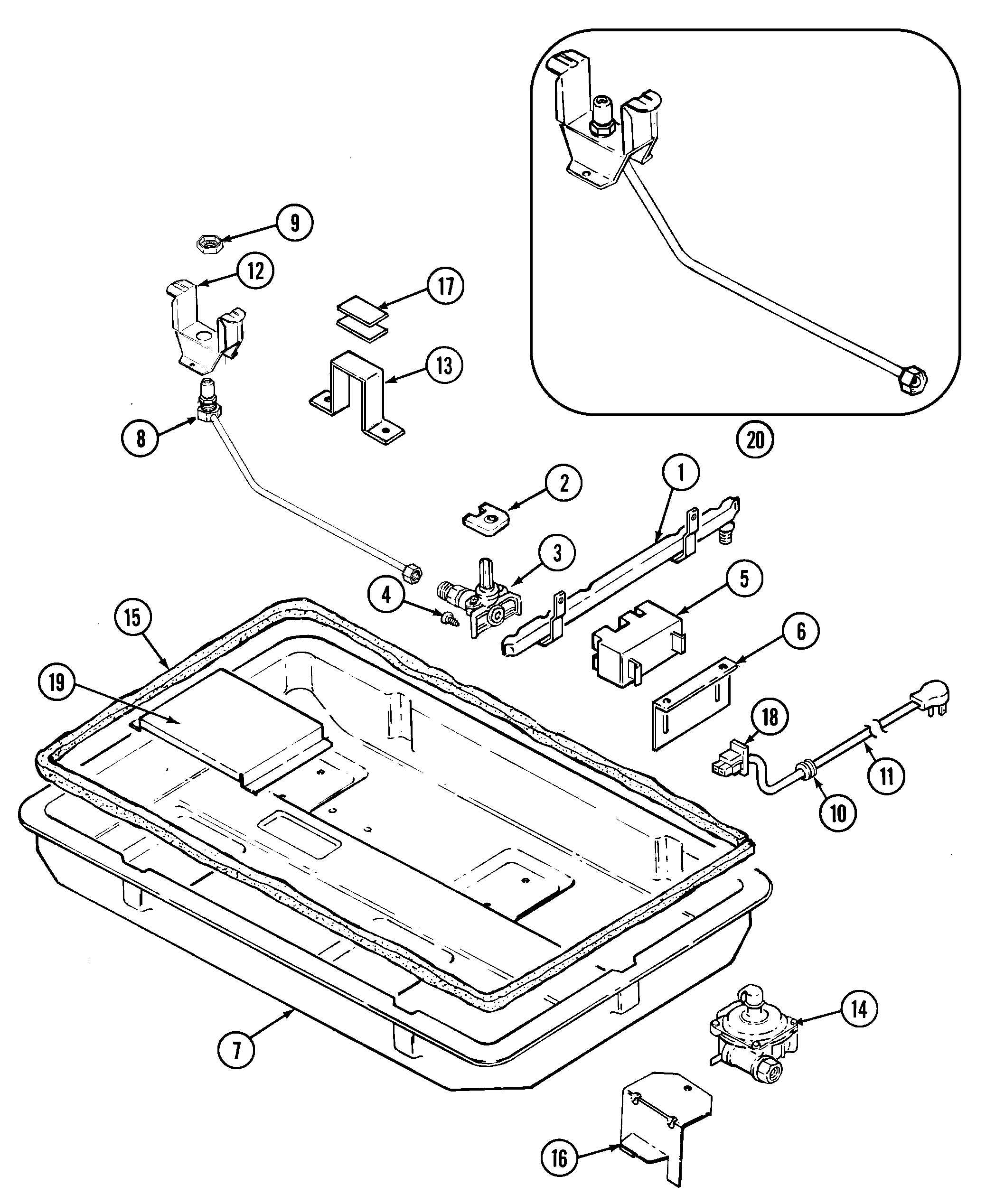

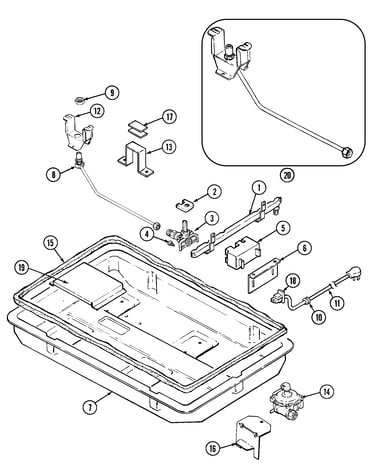

Body (rt) diagram

Screw

Part #7101P060-60

Replaced by #W11684512

?
Manufacturer substitution
This part replaces 7101P060-60. Substitute parts can look different from the original.
$13.06
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Pressure Regulator 74001252
#14

Body (rt) diagram

Pressure regulator

Part #74001252

Replaced by #74007704

?
Manufacturer substitution
This part replaces 74001252. Substitute parts can look different from the original.
$123.79 |
9% OFF Phone Price : $135.79
In Stock
Burner Switch 7403P367-60
#2

Body (rt) diagram

Burner switch

Part #7403P367-60

Replaced by #WP7403P367-60

?
Manufacturer substitution
This part replaces 7403P367-60. Substitute parts can look different from the original.
$60.09 |
9% OFF Phone Price : $66.09
In Stock
Manifold Seal 74001380
#1A

Body (rt) diagram

Manifold seal

Part #74001380

Replaced by #WP74001380

?
Manufacturer substitution
This part replaces 74001380. Substitute parts can look different from the original.
$33.58
In Stock
Spark Module 74004283
#5

Body (rt) diagram

Spark module

Part #74004283

Replaced by #8215557

?
Manufacturer substitution
This part replaces 74004283. Substitute parts can look different from the original.
$97.33 |
11% OFF Phone Price : $109.33
In Stock
Sealed Burner (black) 74003963
#5

Top assembly (rt) diagram

Sealed burner (black)

Part #74003963

Replaced by #WP3412D024-09

?
Manufacturer substitution
This part replaces 74003963. Substitute parts can look different from the original.
$58.10 |
9% OFF Phone Price : $64.10
In Stock
