Model # 390283800 Official Craftsman submersible pump

Here are the diagrams and repair parts for Official Craftsman 390283800 submersible pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Capacitor U18-881
#13A

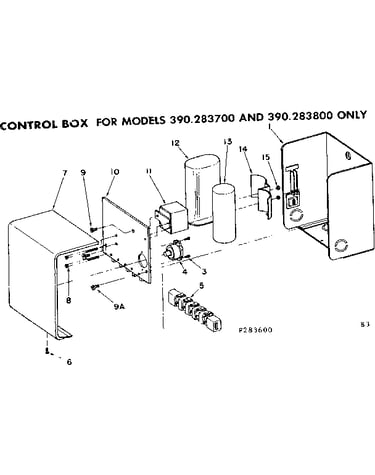

Control box/ 283700 and 283800 only diagram

Capacitor

Part #U18-881

Replaced by #43-17075-04

?
Manufacturer substitution
This part replaces U18-881. Substitute parts can look different from the original.
This item is not returnable
$28.38
In Stock
Screen P8-20
#10

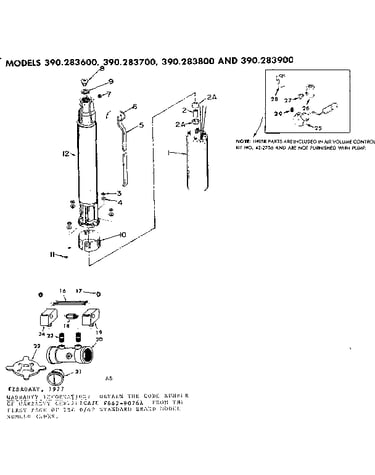

Replacement parts diagram

Screen

Part #P8-20

This item is not returnable
$5.19
In Stock
Connector J43-13C
#18

Replacement parts diagram

Connector

Part #J43-13C

$9.39
In Stock
Control E238-2
#25

Replacement parts diagram

Control

Part #E238-2

$68.79
In Stock
Coupling P11-21
#2C

Replacement parts diagram

Coupling

Part #P11-21

$48.64
In Stock
Centrng Gde P97-23P
#22

Replacement parts diagram

Centrng gde

Part #P97-23P

$14.64
In Stock
Pipe Nipple U37-17GP
#23

Replacement parts diagram

Pipe nipple

Part #U37-17GP

This item is not returnable
$6.98
In Stock
Panel P17-57
#3

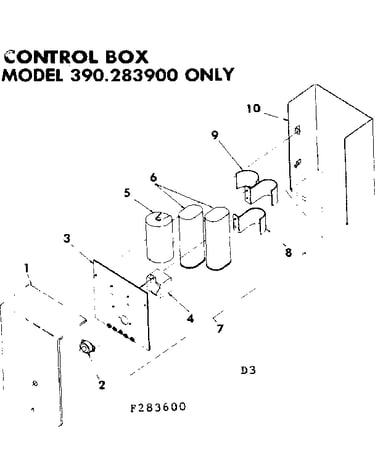

Control box / 283900 diagram

Panel

Part #P17-57

$32.27
In Stock
Pump Start Relay U18-811
#4

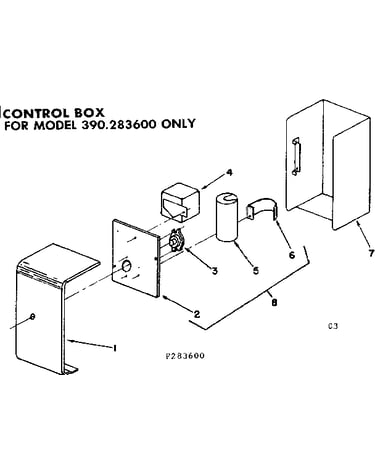

Control box / 283600 only diagram

Pump start relay

Part #U18-811

$190.39 |
6% OFF Phone Price : $202.39
Back Order
Gauge U239-3
#21

Replacement parts diagram

Gauge

Part #U239-3

Replaced by #TC104-P2

?
Manufacturer substitution
This part replaces U239-3. Substitute parts can look different from the original.
$27.99 |
18% OFF Phone Price : $33.99
In Stock
