Frigidaire
Top-Mount Refrigerator

Model # FFTR2045VB2 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFTR2045VB2 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

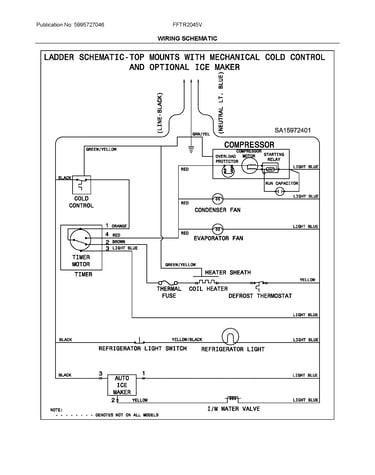

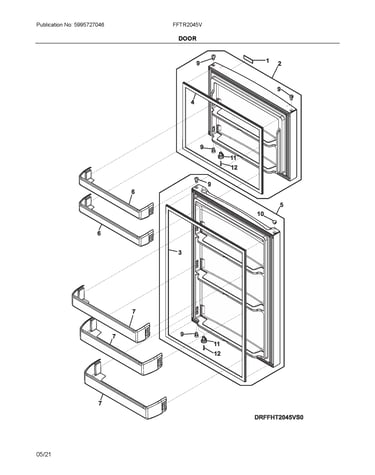

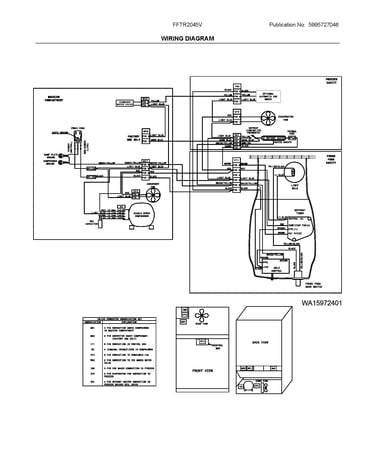

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Refrigerator Defrost Timer 5304522331
#19

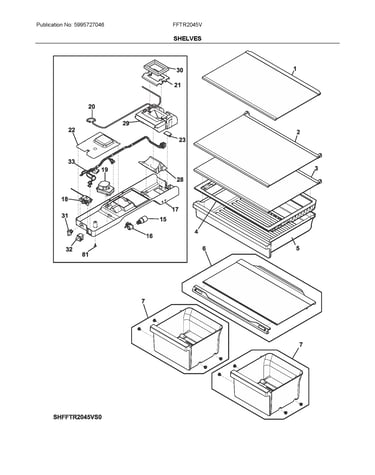

Shelves diagram

Refrigerator defrost timer

Part #5304522331

Replaced by #5304526183

?
Manufacturer substitution
This part replaces 5304522331. Substitute parts can look different from the original.
BEST SELLER
$82.73
In Stock
Refrigerator Filter Dryer 5304522277
#10

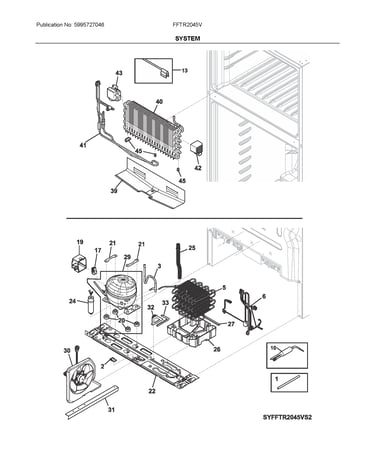

System diagram

Refrigerator filter dryer

Part #5304522277

BEST SELLER
$18.89 |
10% OFF Phone Price : $20.89
In Stock
S/a Pur Compressor Esx55cbt 5304529496
#29

System diagram

S/a pur compressor esx55cbt

Part #5304529496

Replaced by #5304532451

?
Manufacturer substitution
This part replaces 5304529496. Substitute parts can look different from the original.
BEST SELLER
$193.64
In Stock
Refrigerator Temperature Control Thermostat 5304522330
#18

Shelves diagram

Refrigerator temperature control thermostat

Part #5304522330

BEST SELLER
$58.06 |
9% OFF Phone Price : $64.06
In Stock
Refrigerator Defrost Heater And Thermostat 5304522340
#41

System diagram

Refrigerator defrost heater and thermostat

Part #5304522340

BEST SELLER
$81.16 |
7% OFF Phone Price : $87.16
In Stock
Refrigerator Evaporator Fan Motor 242077704
#16

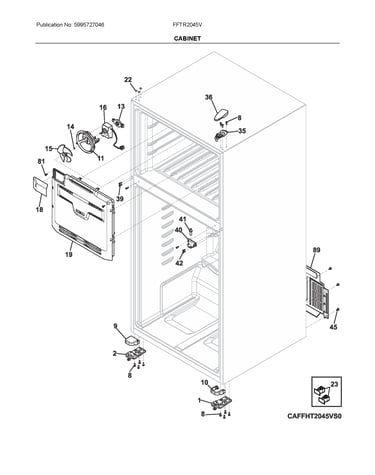

Cabinet diagram
