Frigidaire
Electric Range

Model # FPEH3077RFG Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FPEH3077RFG electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

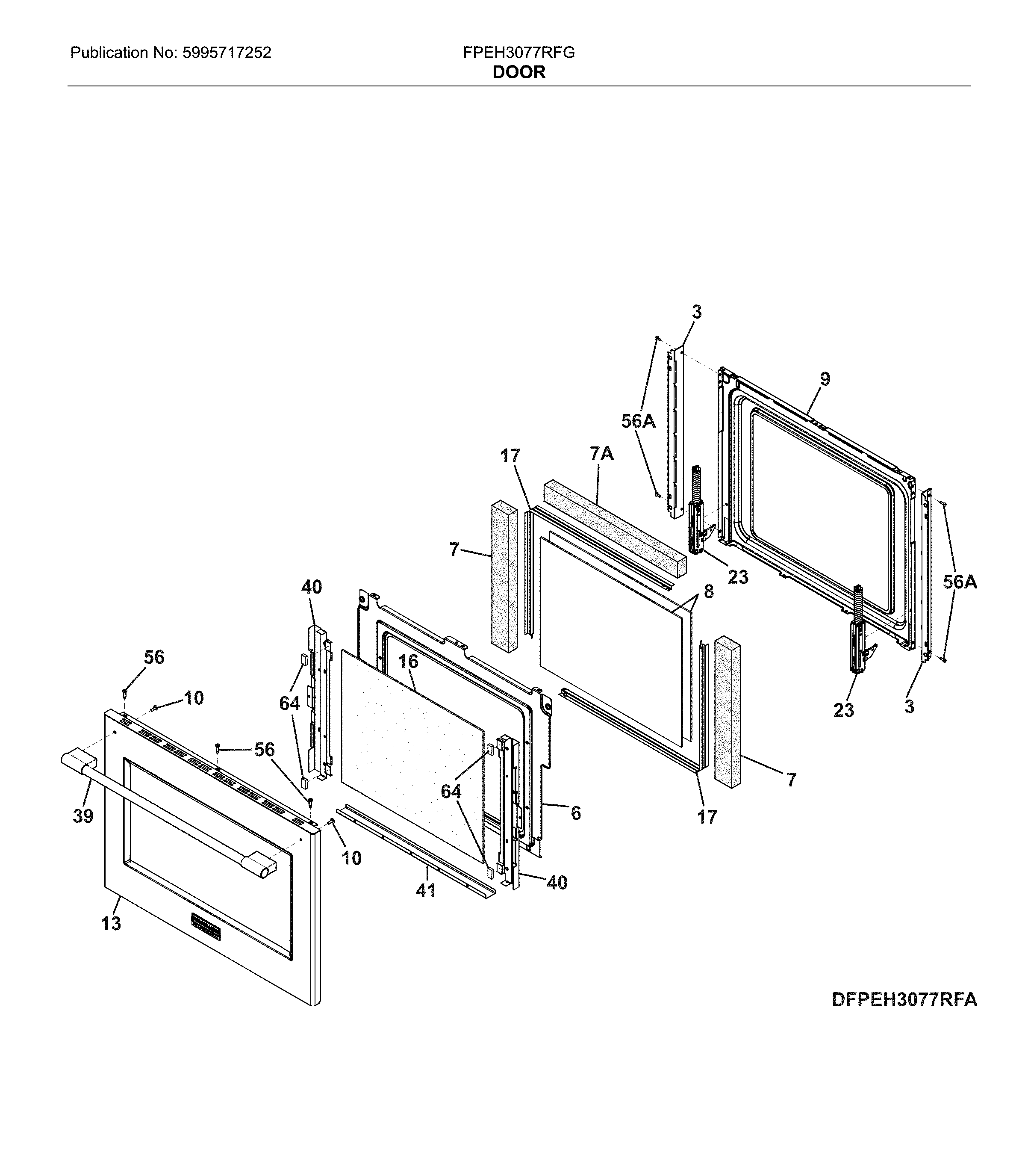

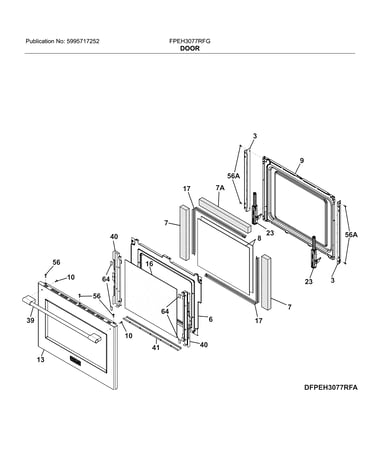

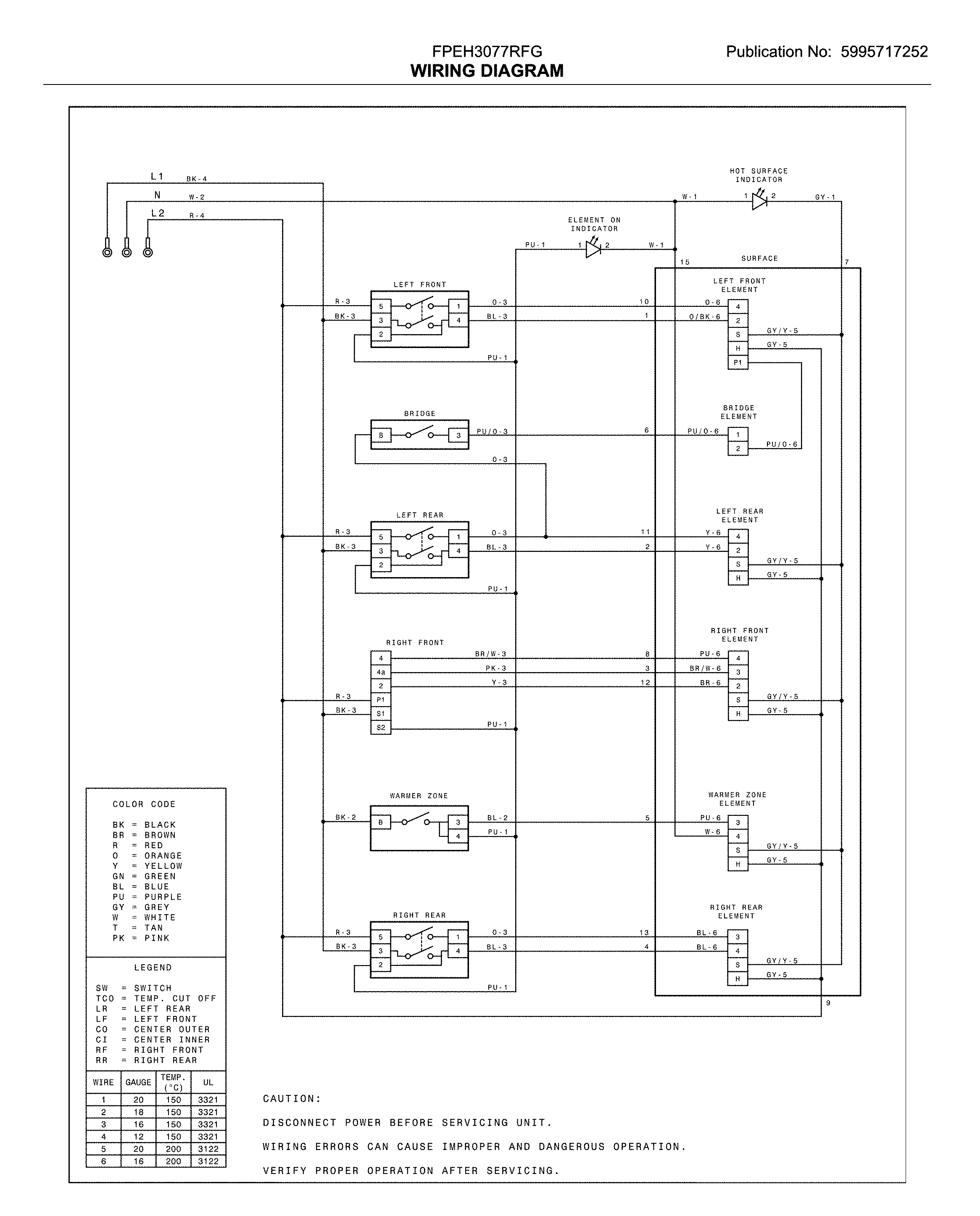

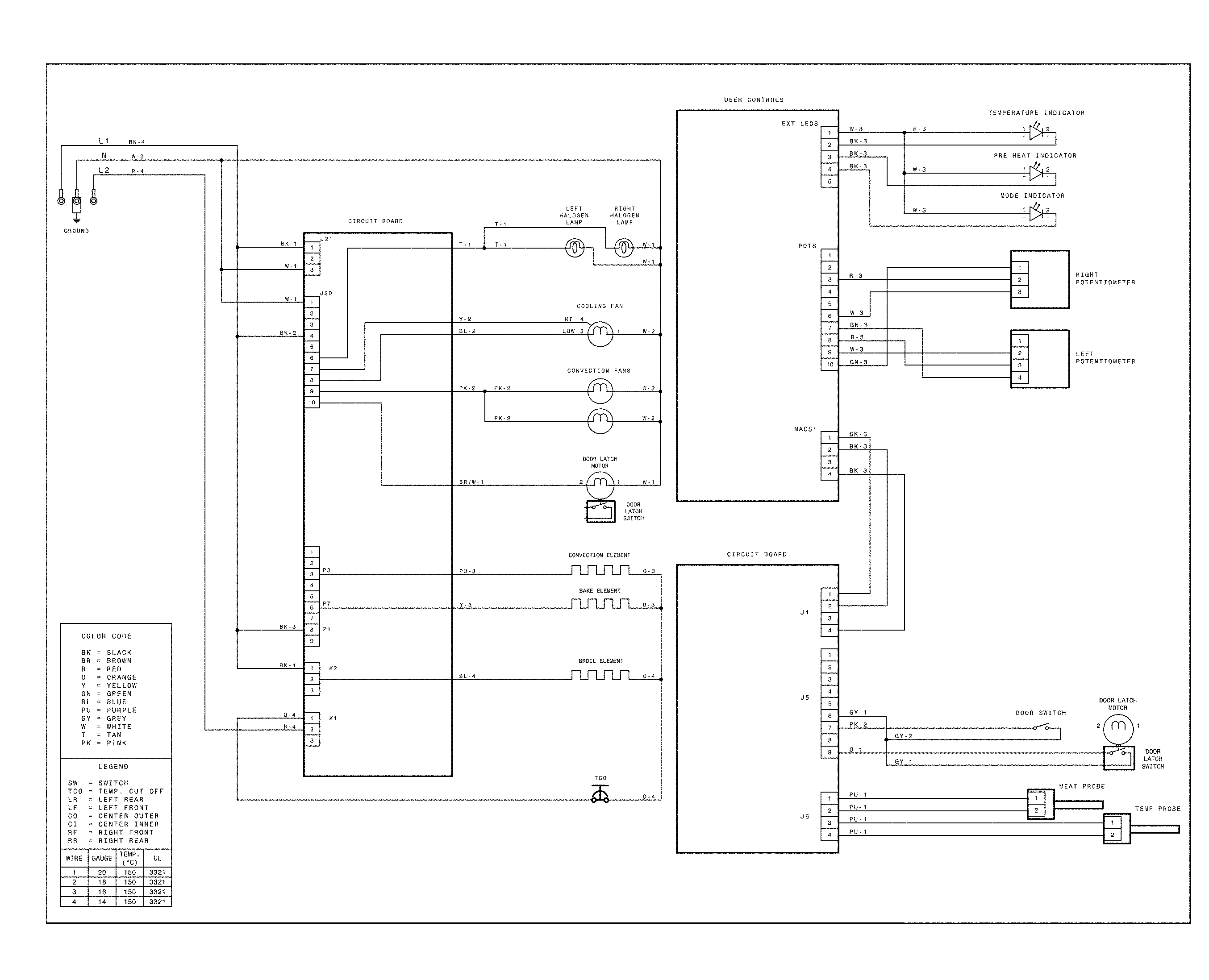

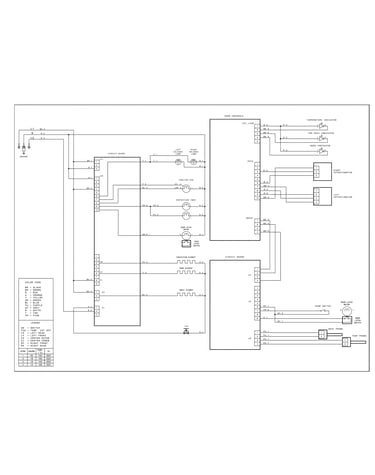

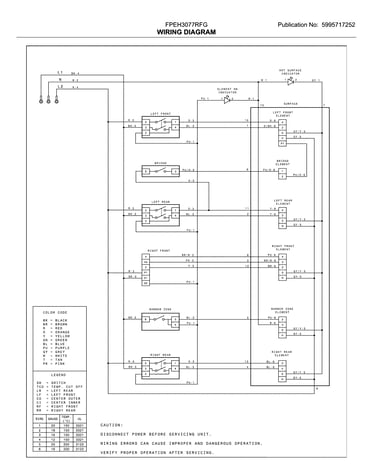

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Frigidaire Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

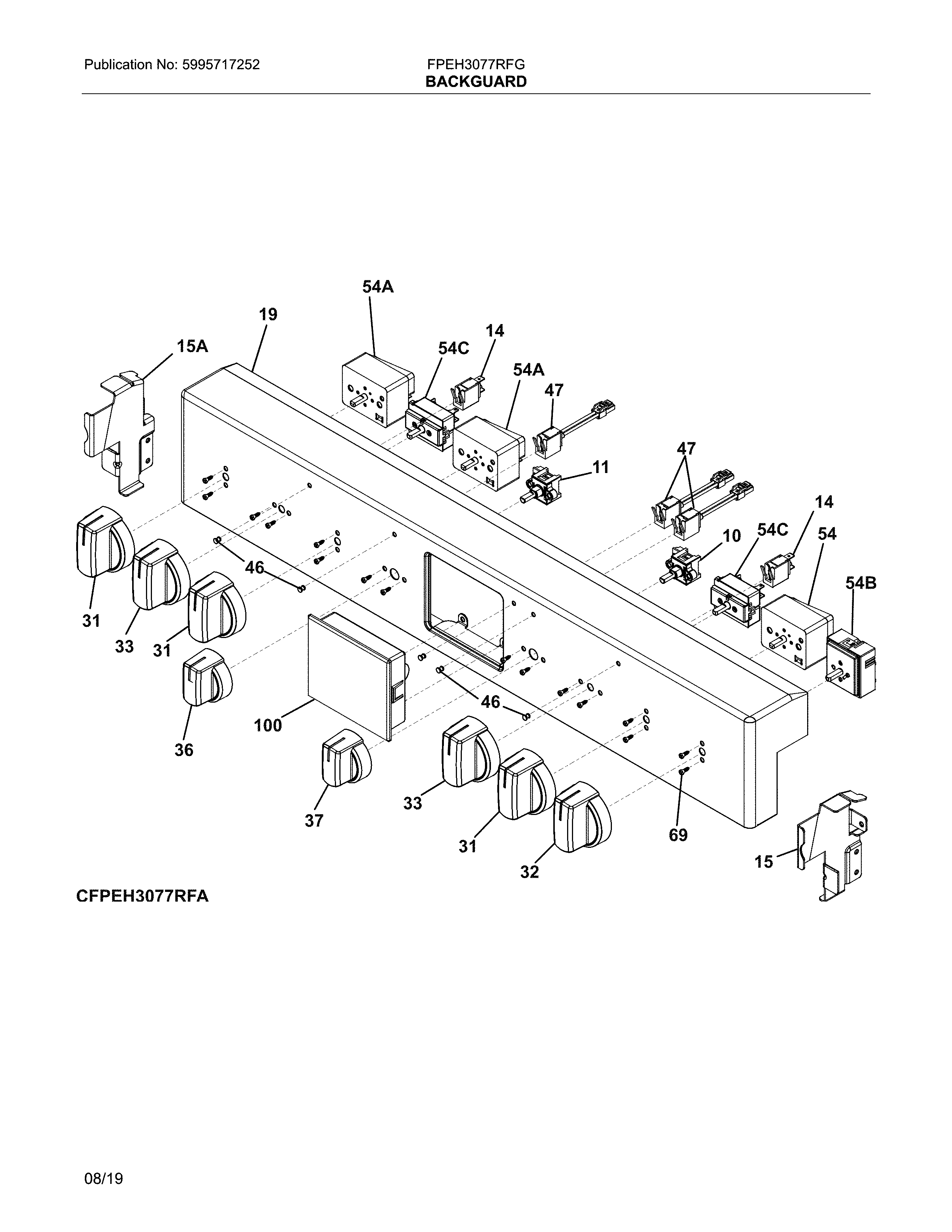

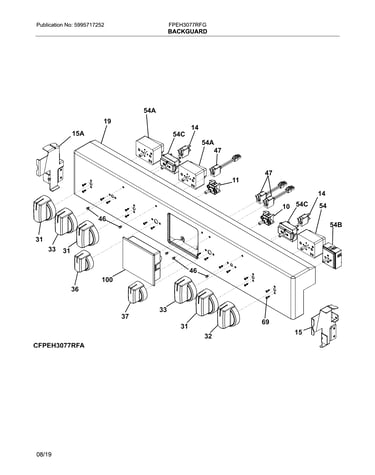

Backguard diagram

Frigidaire range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.82 |
14% OFF Phone Price : $42.82
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

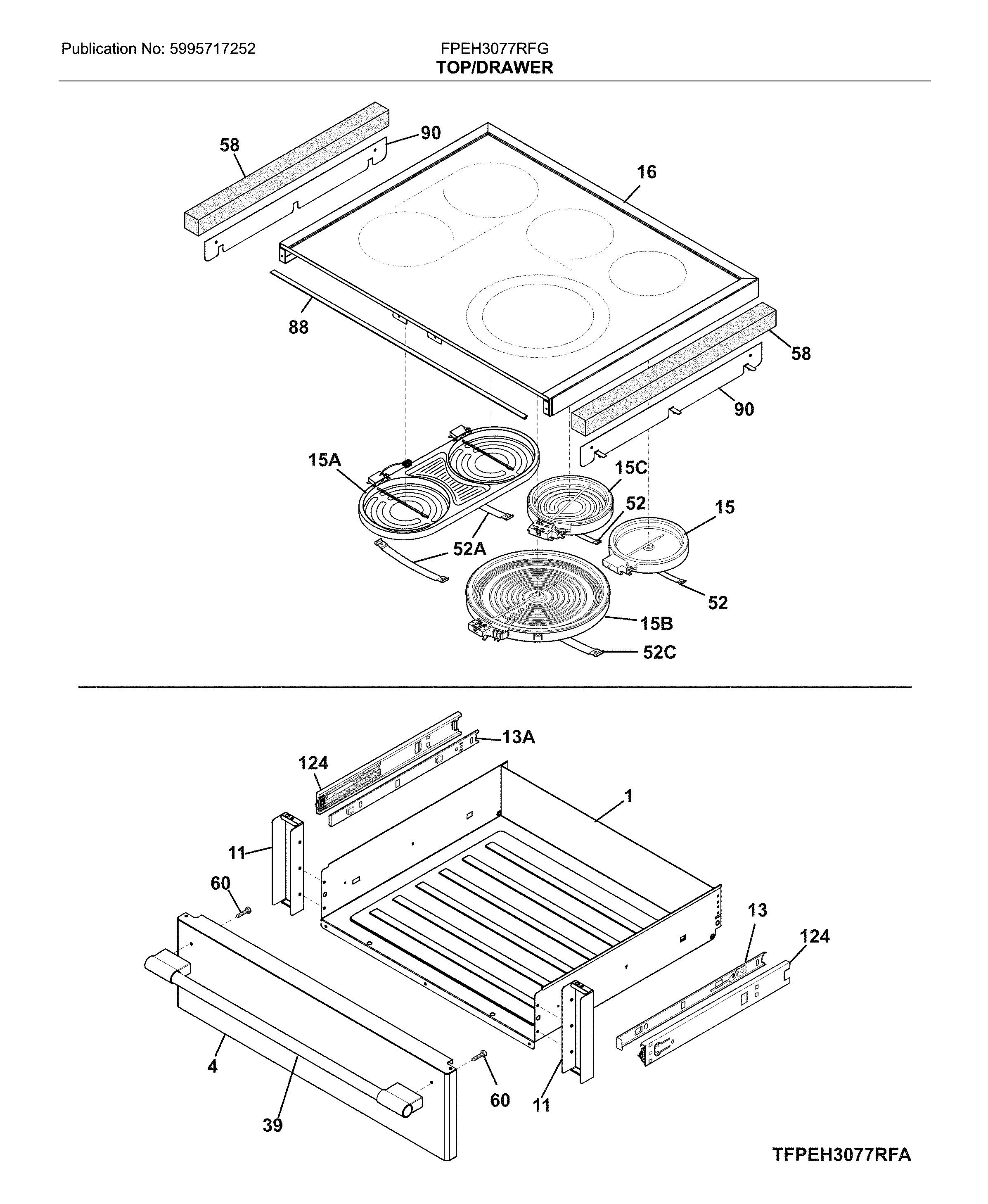

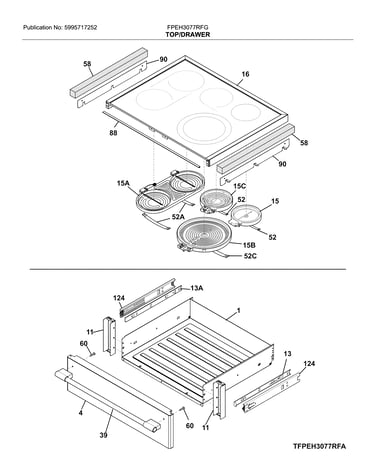

Top draw diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Range Dual Radiant Surface Element (replaces 316282102, 318198941, 389087301) 316282101
#15B

Top draw diagram

Range dual radiant surface element (replaces 316282102, 318198941, 389087301)

Part #316282101

BEST SELLER
$163.94 |
7% OFF Phone Price : $175.94
In Stock
Washer 5304490894
Washer

Part #5304490894

Replaced by #316008401

?
Manufacturer substitution
This part replaces 5304490894. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Dual Surface Element Control Switch 316238202
#54B

Backguard diagram

Range dual surface element control switch

Part #316238202

BEST SELLER
$84.24 |
7% OFF Phone Price : $90.24
In Stock
Range Screw, #8-32 X 3/16-in (replaces 5304497581, 73201-2580) 5303288565
#69

Backguard diagram

Range screw, #8-32 x 3/16-in (replaces 5304497581, 73201-2580)

Part #5303288565

This item is not returnable
$3.43
In Stock
Range Oven Meat Probe Sensor 5304514885
#53

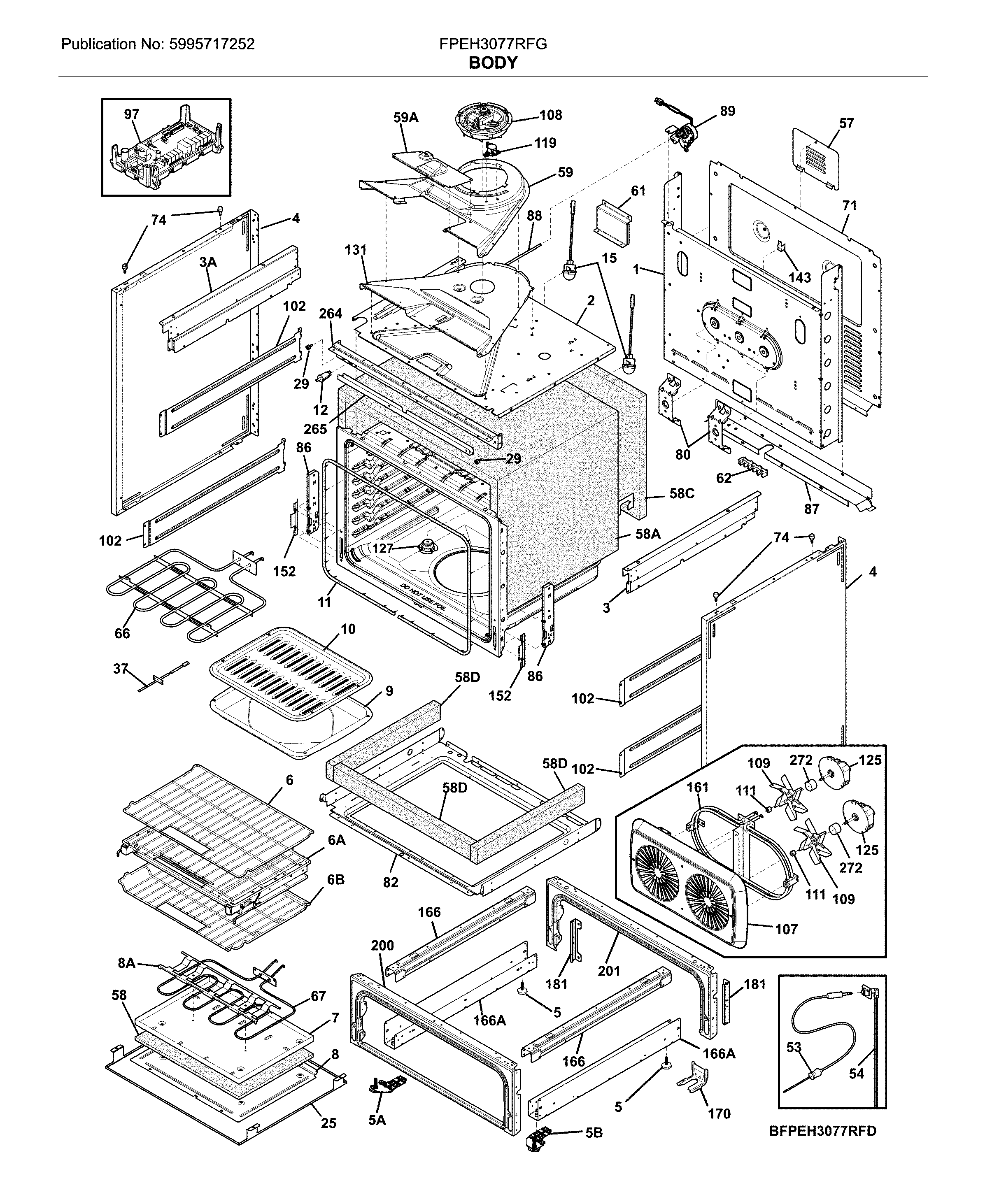

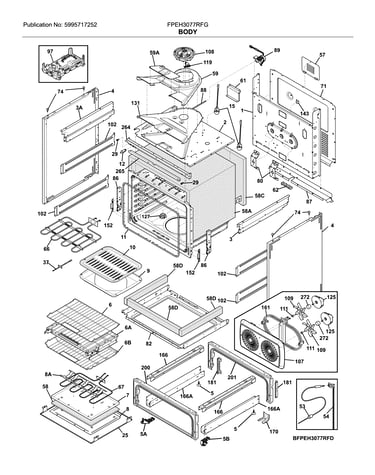

Body diagram

Range oven meat probe sensor

Part #5304514885

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 5304514885. Substitute parts can look different from the original.
$89.51 |
6% OFF Phone Price : $95.51
In Stock
Range Oven Light Bulb (replaces 808564103) 318946500
#NI

Body diagram

Range oven light bulb (replaces 808564103)

Part #318946500

$38.98 |
13% OFF Phone Price : $44.98
In Stock
Range Door Light Switch 318394802
#12

Body diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
