KitchenAid
Wall Oven/Microwave Combo

Model # KEMS307DBS2 Official KitchenAid 30" electric built-in double oven

Here are the diagrams and repair parts for Official KitchenAid KEMS307DBS2 30" electric built-in double oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

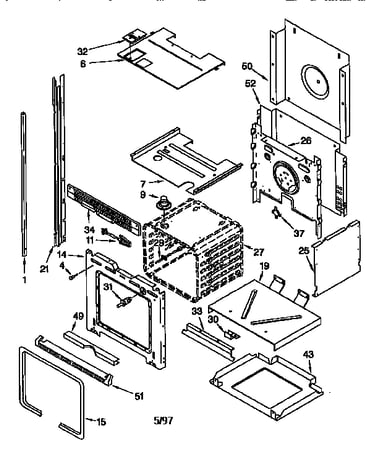

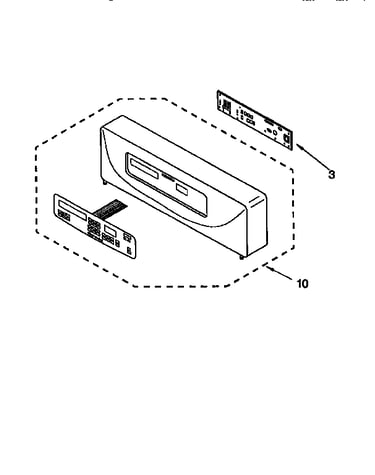

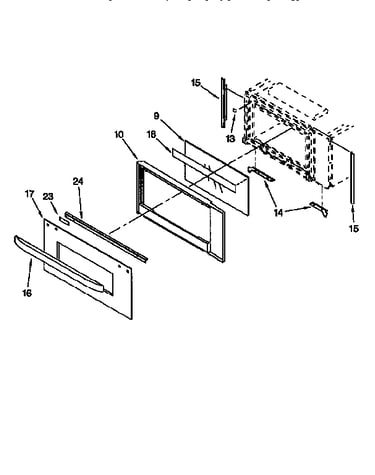

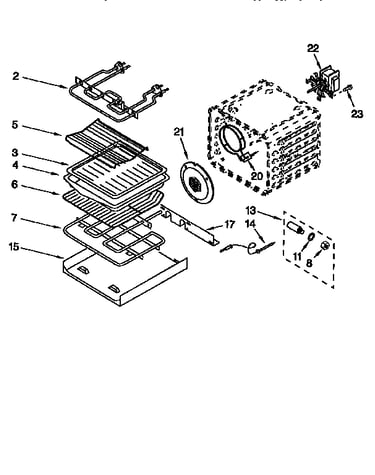

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Microwave Door Interlock Switch 4375346
#53

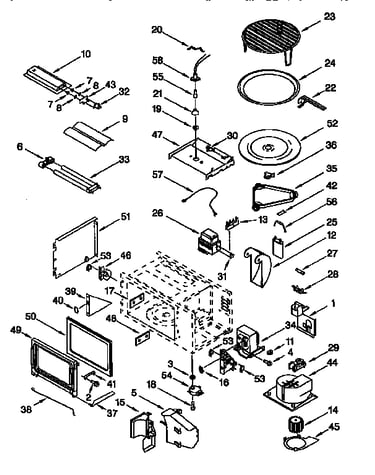

Cabinet and stirrer diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$30.85 |
16% OFF Phone Price : $36.85
In Stock
Wall Oven Door Inner Glass 4449259
#3

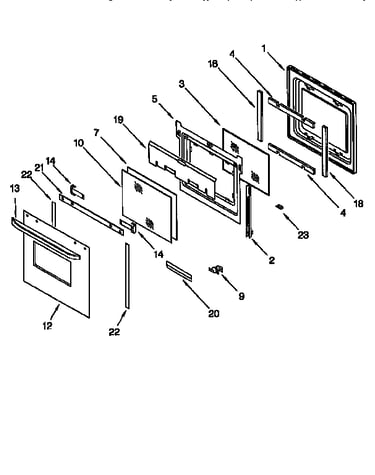

Oven door diagram

Wall oven door inner glass

Part #4449259

Replaced by #WP4449259

?
Manufacturer substitution
This part replaces 4449259. Substitute parts can look different from the original.
BEST SELLER
$80.39 |
7% OFF Phone Price : $86.39
In Stock
Magnetron 4375072
#26

Cabinet and stirrer diagram

Magnetron

Part #4375072

The manufacturer no longer makes this part, and there's no substitute part

Oven Baseless Lamp 4375348
#55

Cabinet and stirrer diagram

Oven baseless lamp

Part #4375348

Replaced by #WPW10440740

?
Manufacturer substitution
This part replaces 4375348. Substitute parts can look different from the original.
BEST SELLER
$22.69 |
21% OFF Phone Price : $28.69
In Stock
Diode 4375349
#56

Cabinet and stirrer diagram

Diode

Part #4375349

Replaced by #WPW10687786

?
Manufacturer substitution
This part replaces 4375349. Substitute parts can look different from the original.
BEST SELLER
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Microwave High-voltage Capacitor 4375020
#25

Cabinet and stirrer diagram

Microwave high-voltage capacitor

Part #4375020

Replaced by #WP4375020

?
Manufacturer substitution
This part replaces 4375020. Substitute parts can look different from the original.
BEST SELLER
$108.39 |
10% OFF Phone Price : $120.39
In Stock
Touch-up Paint (black) 72032

#NI

All parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Microwave Turntable Motor 4375347
#54

Cabinet and stirrer diagram

Microwave turntable motor

Part #4375347

Replaced by #W10642989

?
Manufacturer substitution
This part replaces 4375347. Substitute parts can look different from the original.
$69.48 |
8% OFF Phone Price : $75.48
In Stock
Fuse (black) 4375321
#27

Cabinet and stirrer diagram

Fuse (black)

Part #4375321

Replaced by #WP4375321

?
Manufacturer substitution
This part replaces 4375321. Substitute parts can look different from the original.
$14.13 |
12% OFF Phone Price : $16.13
In Stock
Fuse 309796
#10

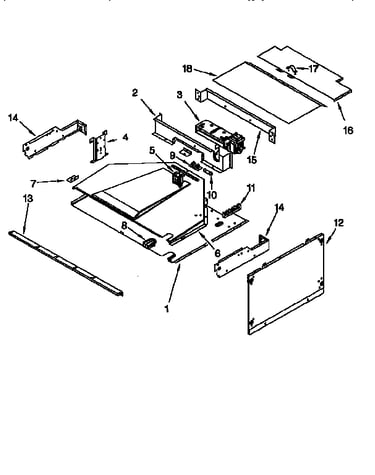

Top venting diagram

Fuse

Part #309796

Replaced by #WPW10017410

?
Manufacturer substitution
This part replaces 309796. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
