Gibson
Room Air Conditioner

Model # GAX128Y1A2 Official Gibson room air conditioner - p5995304358

Here are the diagrams and repair parts for Official Gibson GAX128Y1A2 room air conditioner - p5995304358, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

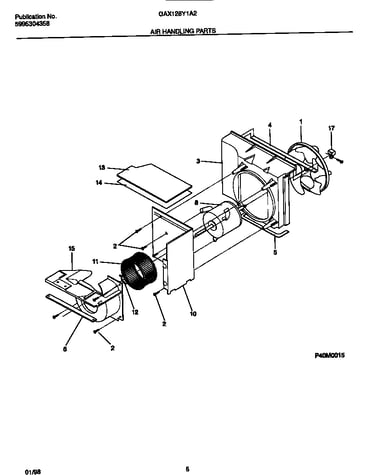

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Westinghouse Screw-wrapper 5303293767
#29

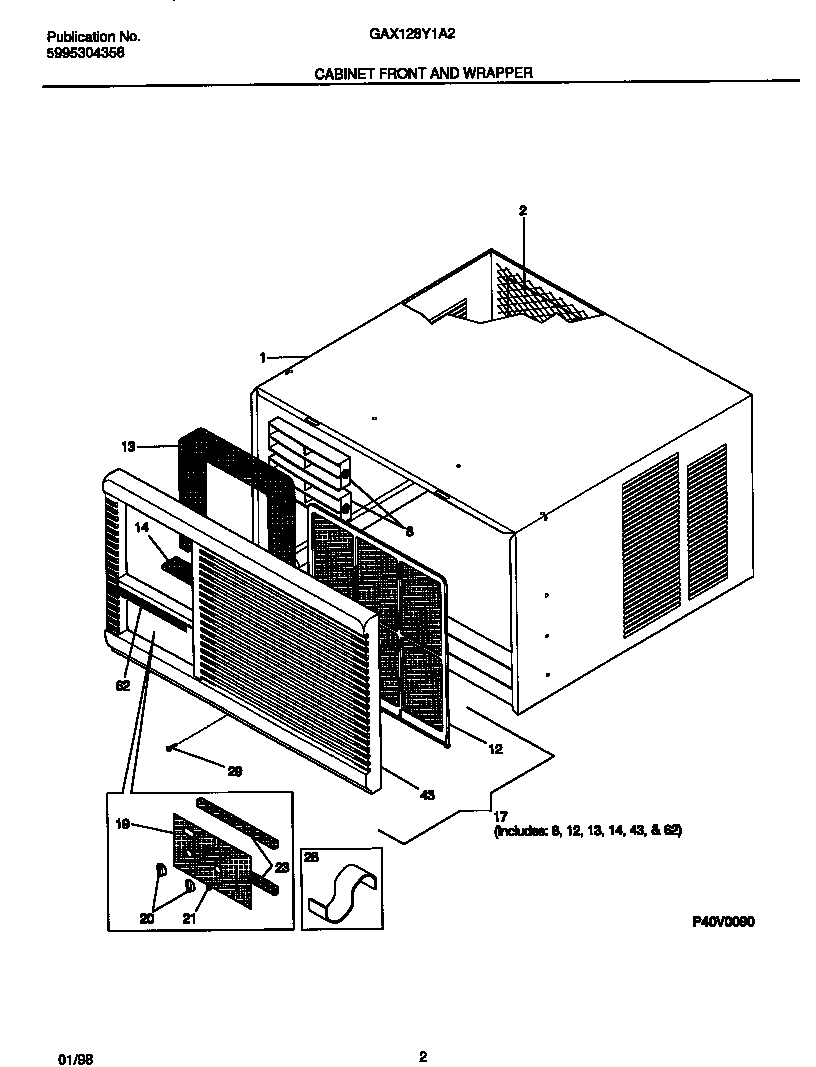

Cabinet front and wrapper diagram

Westinghouse screw-wrapper

Part #5303293767

This item is not returnable
In Stock
Room Air Conditioner Screw 5303015427
#14

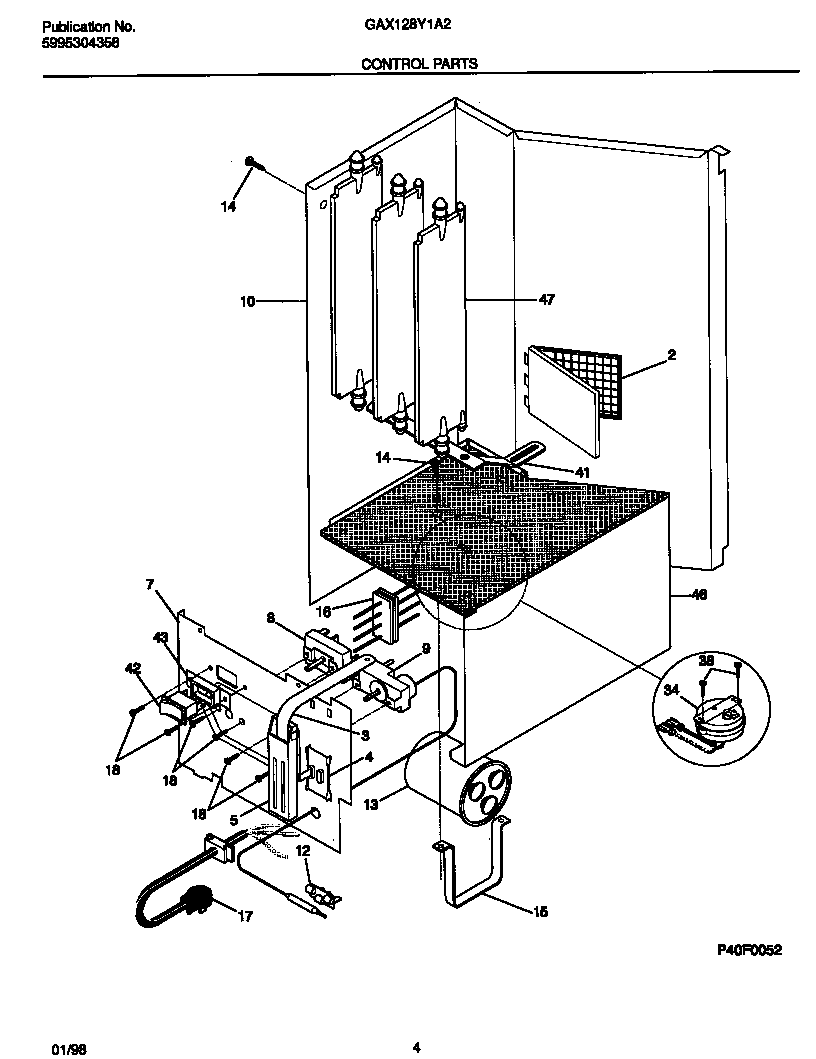

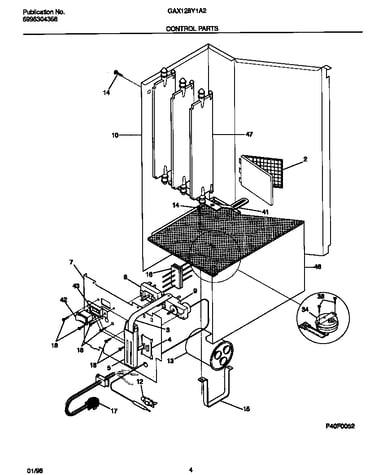

Control parts diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Kenmore Cover-acusti 5303311100
#45

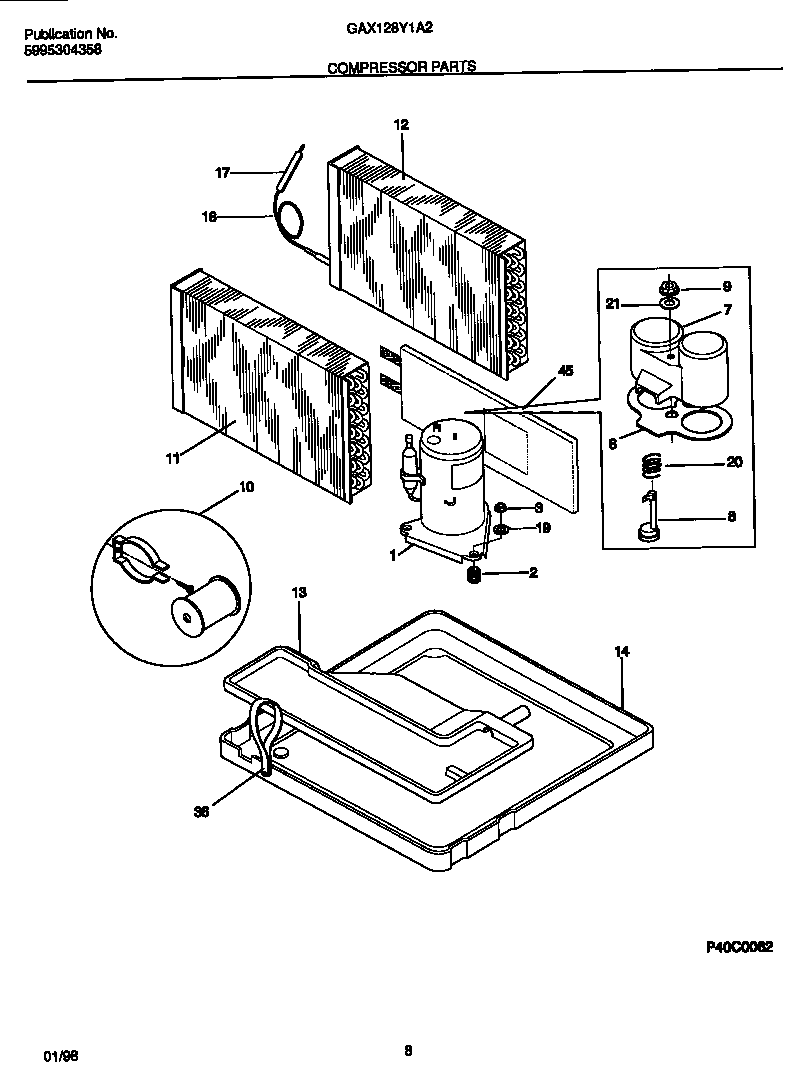

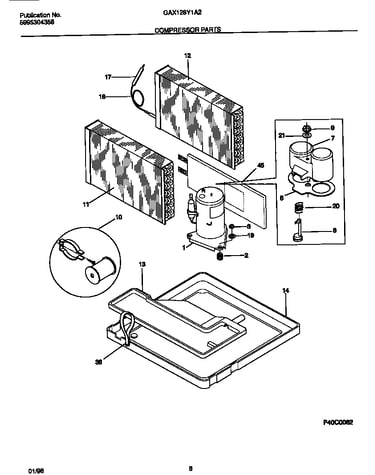

Compressor parts diagram

Kenmore cover-acusti

Part #5303311100

In Stock
Rear Panel 5303303597
#2

Cabinet front and wrapper diagram

Rear panel

Part #5303303597

In Stock
Spacer 5303211009
#12

Control parts diagram

Spacer

Part #5303211009

This item is not returnable
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

In Stock
Front Comple 309610308
#17

Cabinet front and wrapper diagram

Front comple

Part #309610308

In Stock
Room Air Conditioner Power Cord 5303301021
#17

Control parts diagram

Room air conditioner power cord

Part #5303301021

In Stock
Room Air Conditioner Accordion Filler 5303301247
#15

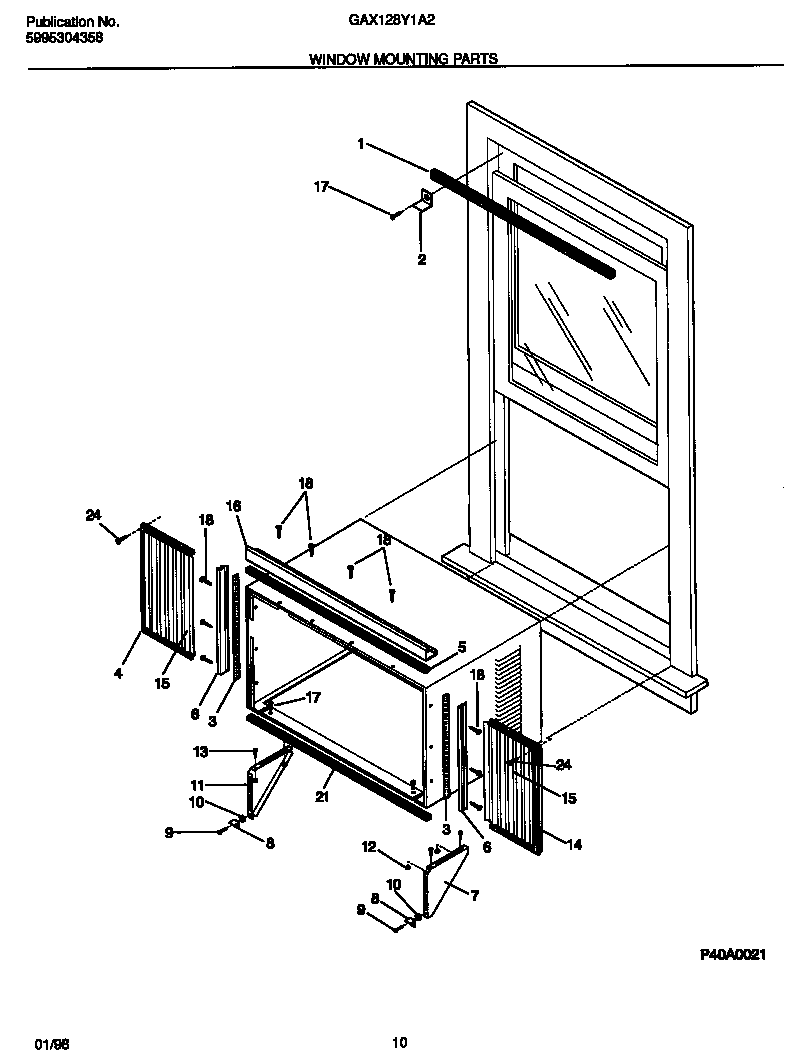

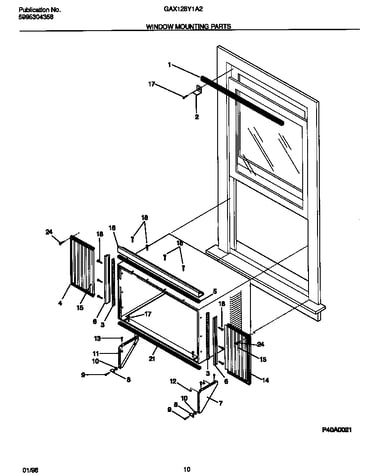

Window mounting parts diagram

Room air conditioner accordion filler

Part #5303301247

$52.47
10% OFF Phone Price : $58.47
In Stock
