Frigidaire
Top-Mount Refrigerator

Model # FRT18KD3AW4 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT18KD3AW4 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

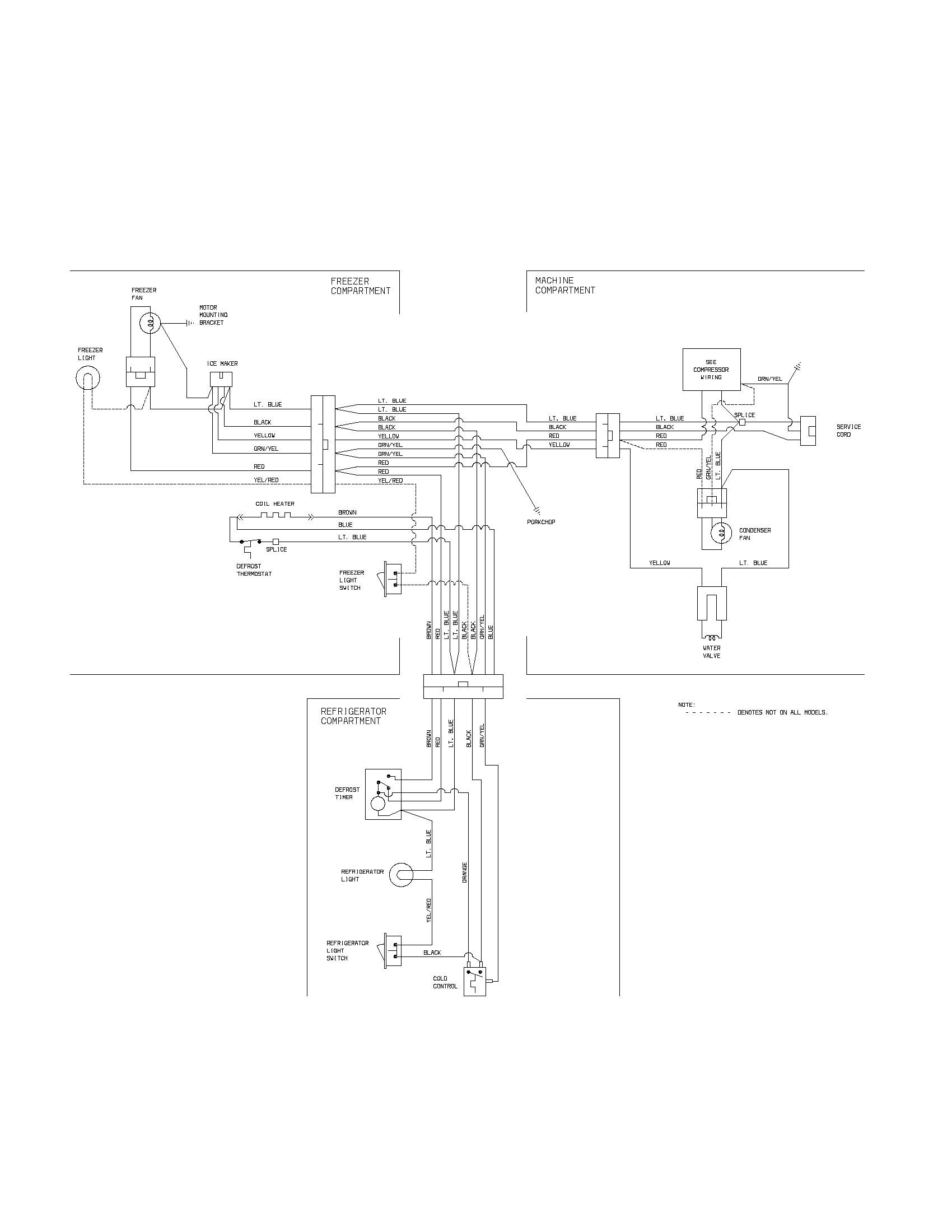

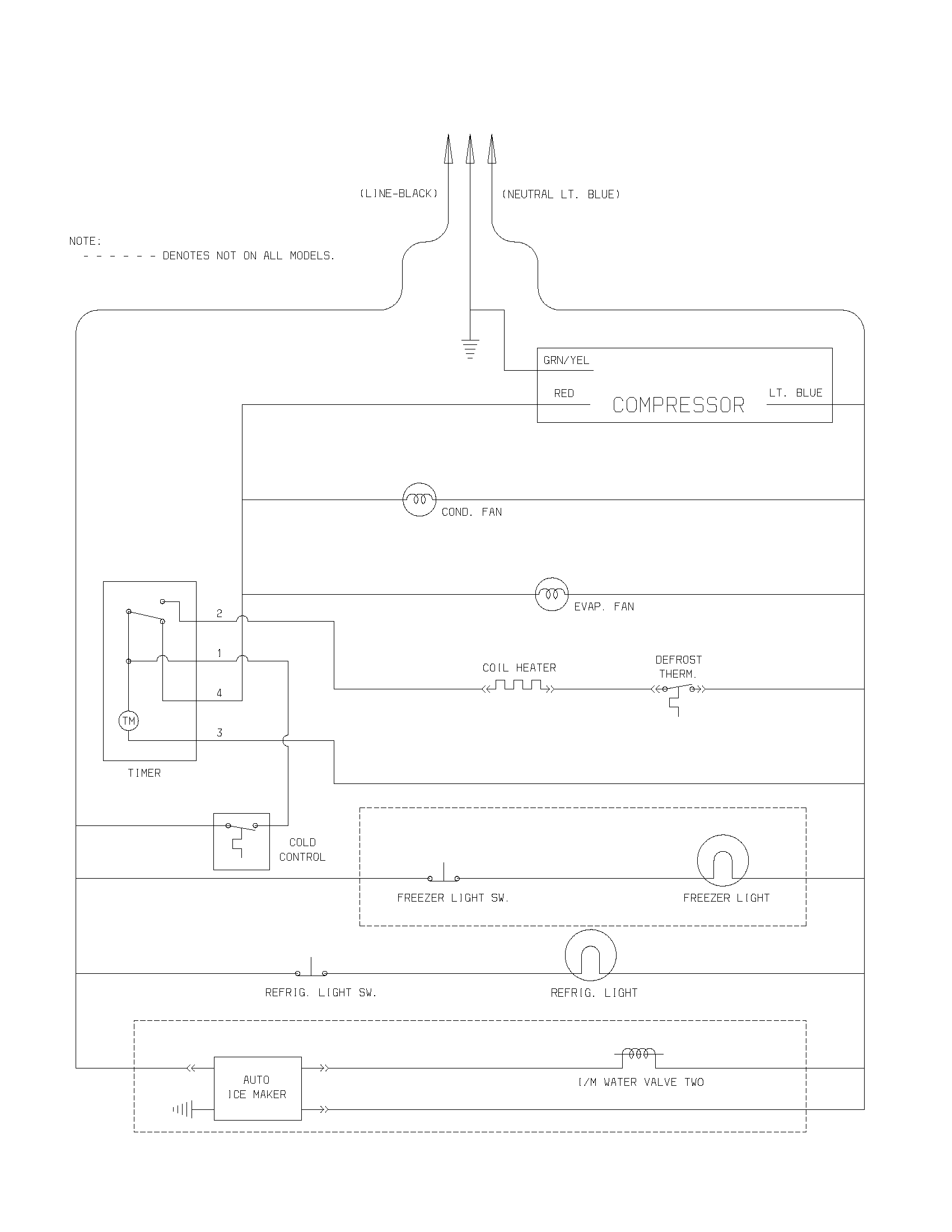

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Refrigerator Filter Drier 218944001
#4

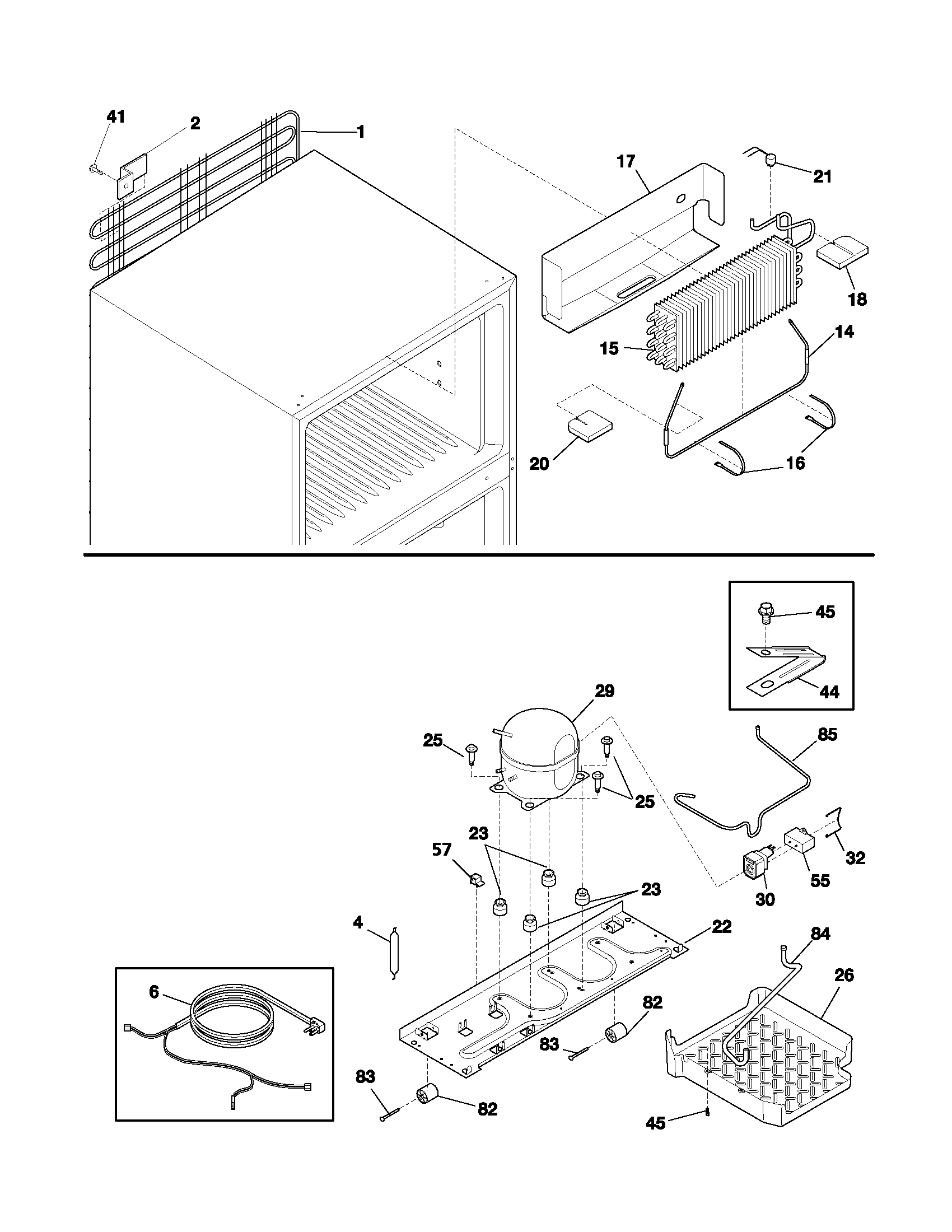

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Gasket-wh 240514606
#2

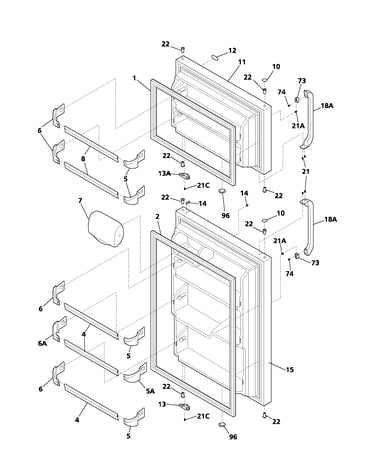

Doors diagram

Gasket-wh

Part #240514606

Replaced by #241872513

?
Manufacturer substitution
This part replaces 240514606. Substitute parts can look different from the original.
BEST SELLER
$100.58 |
11% OFF Phone Price : $112.58
In Stock
Refrigerator Crisper Drawer Cover Insert (replaces 240350655, 241711220, 241711270, 297194400) 240350608
#47

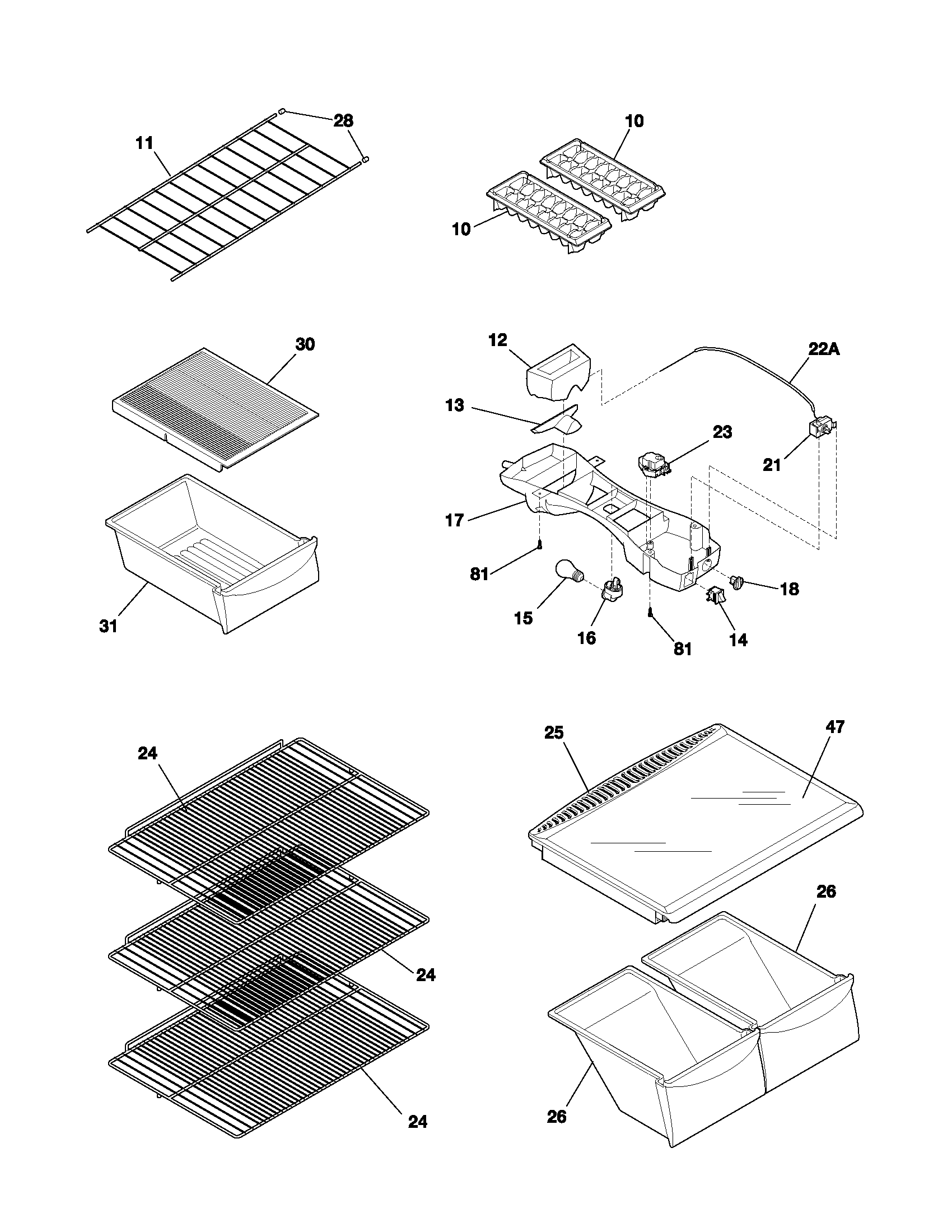

Shelves diagram

Refrigerator crisper drawer cover insert (replaces 240350655, 241711220, 241711270, 297194400)

Part #240350608

BEST SELLER
$104.62 |
10% OFF Phone Price : $116.62
In Stock
Washer 240311301
#34

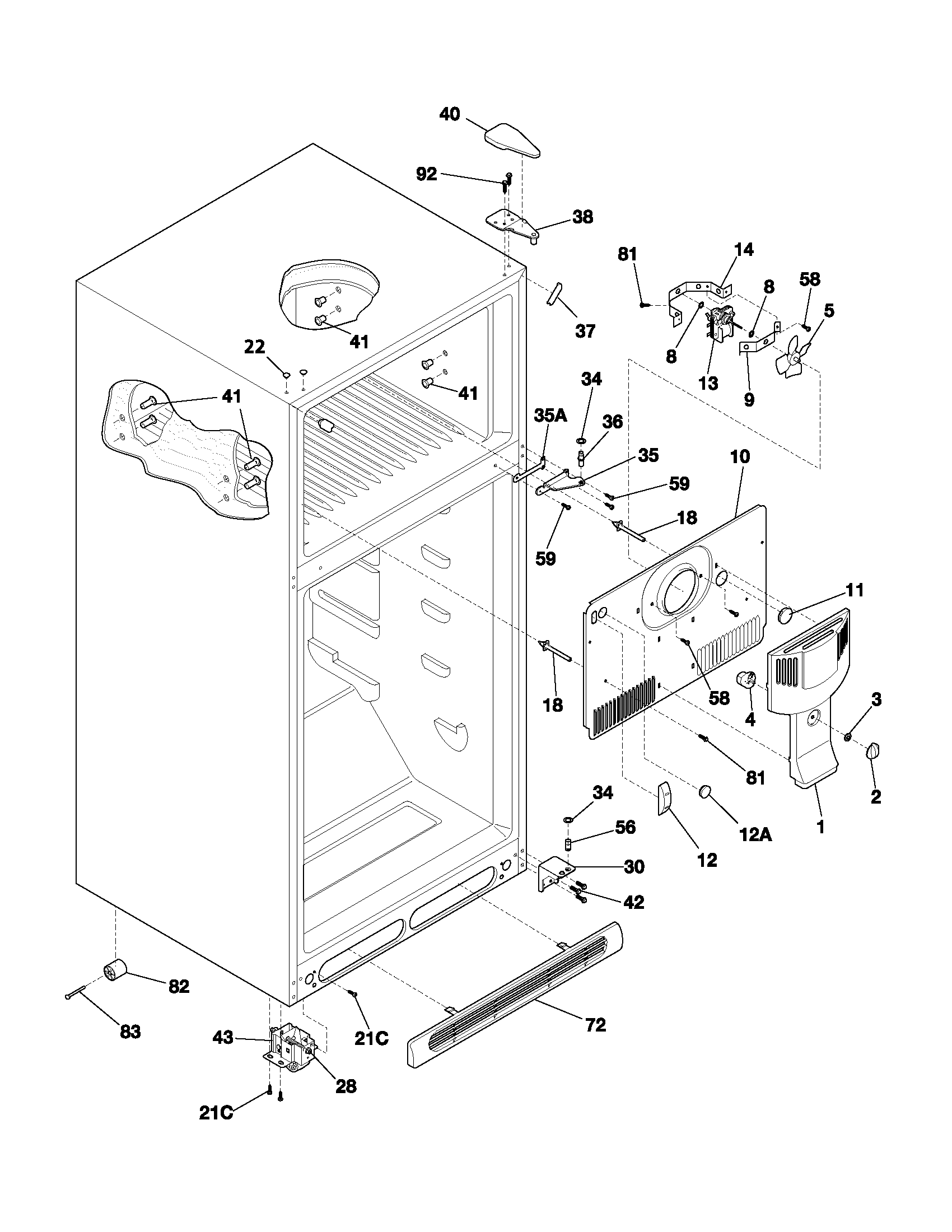

Cabinet diagram

Washer

Part #240311301

Replaced by #240311303

?
Manufacturer substitution
This part replaces 240311301. Substitute parts can look different from the original.
BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Compressor 5303918264
#29

System diagram

Refrigerator compressor

Part #5303918264

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 5303918264. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Refrigerator Timer 215846606
#23

Shelves diagram

Refrigerator timer

Part #215846606

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215846606. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Galaxy Refrigerator Door Shelf Rail End Cap, Right 240311502
#5

Doors diagram

Galaxy refrigerator door shelf rail end cap, right

Part #240311502

BEST SELLER
$10.73 |
16% OFF Phone Price : $12.73
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 241619705) 5303918202
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 241619705)

Part #5303918202

BEST SELLER
$27.56 |
18% OFF Phone Price : $33.56
In Stock
Galaxy Refrigerator Door Bin Support 240311501
#6

Doors diagram

Galaxy refrigerator door bin support

Part #240311501

BEST SELLER
$10.73 |
16% OFF Phone Price : $12.73
In Stock
Refrigerator Freezer Door Handle Screw 240383401
#21

Doors diagram

Refrigerator freezer door handle screw

Part #240383401

Replaced by #5304515677

?
Manufacturer substitution
This part replaces 240383401. Substitute parts can look different from the original.
BEST SELLER
$8.79 |
10% OFF Phone Price : $9.79
In Stock
