Heating & Cooling Combined Unit

Model # PGMF60F150C Official ICP heating & cooling unit

Here are the diagrams and repair parts for Official ICP PGMF60F150C heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Cap Rnrd 1094965

#28

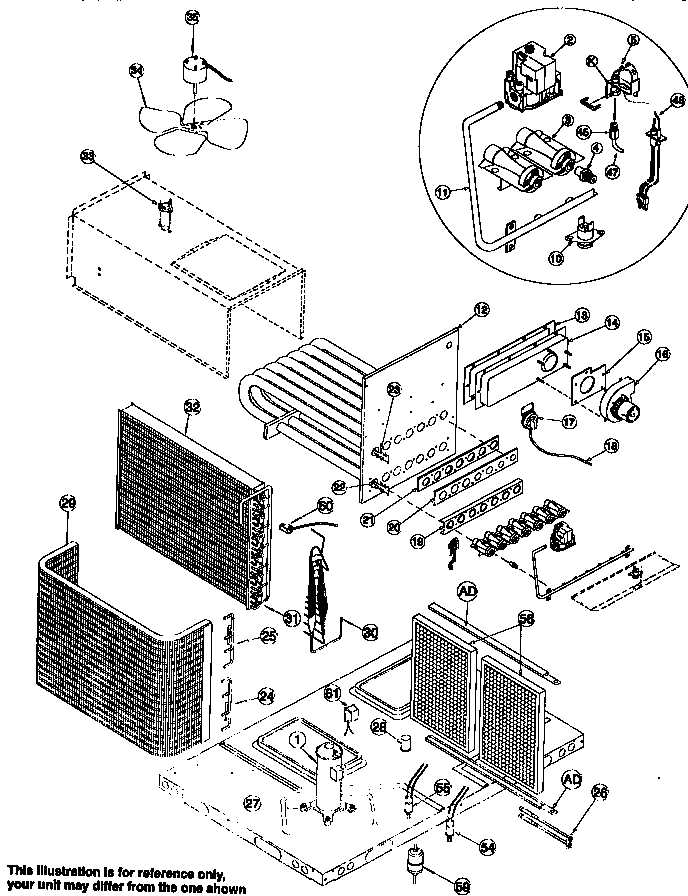

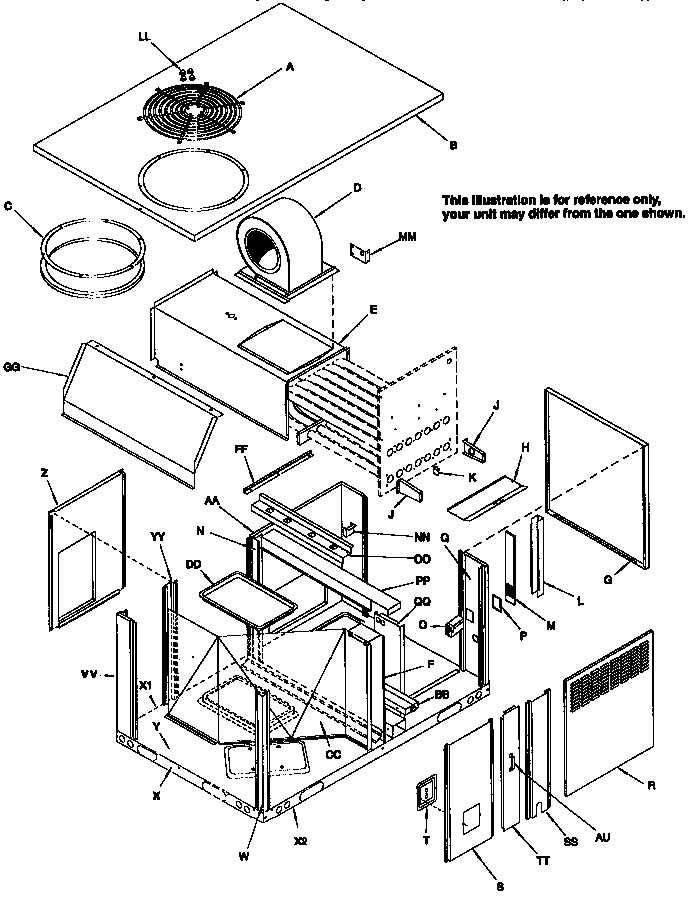

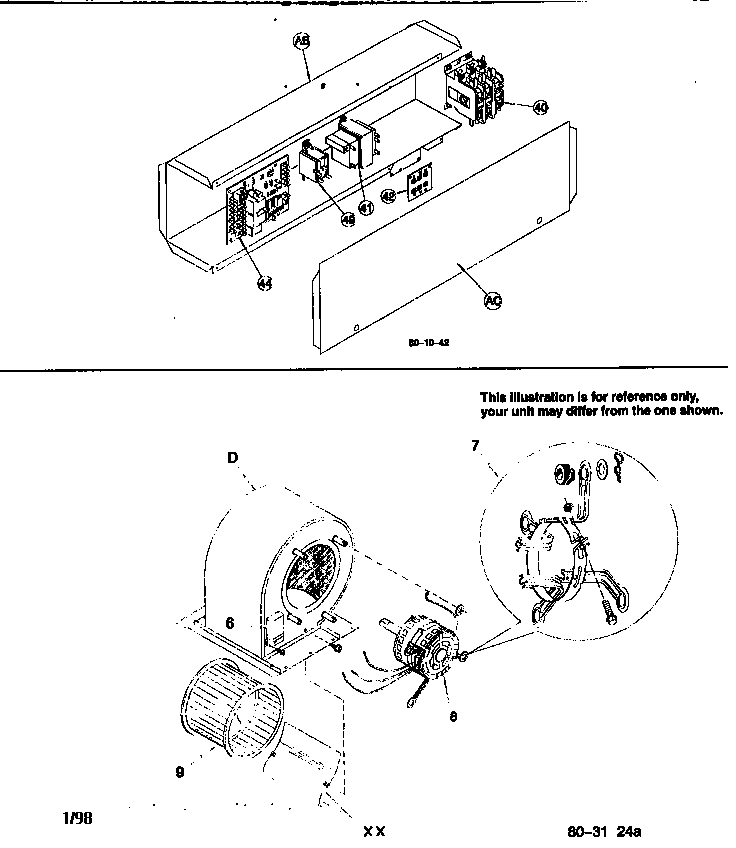

All parts diagram

Cap rnrd

Part #1094965

Replaced by #12932

?
Manufacturer substitution
This part replaces 1094965. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.35
In Stock
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524

#48

All parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Cont Fan Tmr 1009838

#44

All parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Panel Filter 1068175

#TT

All parts diagram

Panel filter

Part #1068175

$170.62
In Stock
Gasket 1065260

#P

All parts diagram

Gasket

Part #1065260

This item is not returnable
$2.54
In Stock
Board Termin 1054627

#42

All parts diagram

Board termin

Part #1054627

$289.25
In Stock
Air Filter 1054503

#58

All parts diagram

Air filter

Part #1054503

$31.78
In Stock
Central Air Conditioner Evaporator Coil Assembly 1082453

#32

All parts diagram

Central air conditioner evaporator coil assembly

Part #1082453

$2951.77
In Stock
Extension Bl 1054461

#O

All parts diagram

Extension bl

Part #1054461

$158.46
In Stock
Dryer Filter 713894

#59

All parts diagram

Dryer filter

Part #713894

$69.76
In Stock
