Model # 1163510091 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163510091 vacuum cleaner, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for1163510091 Vacuum Cleaners

  • Vacuum Screw 4368563
    #3

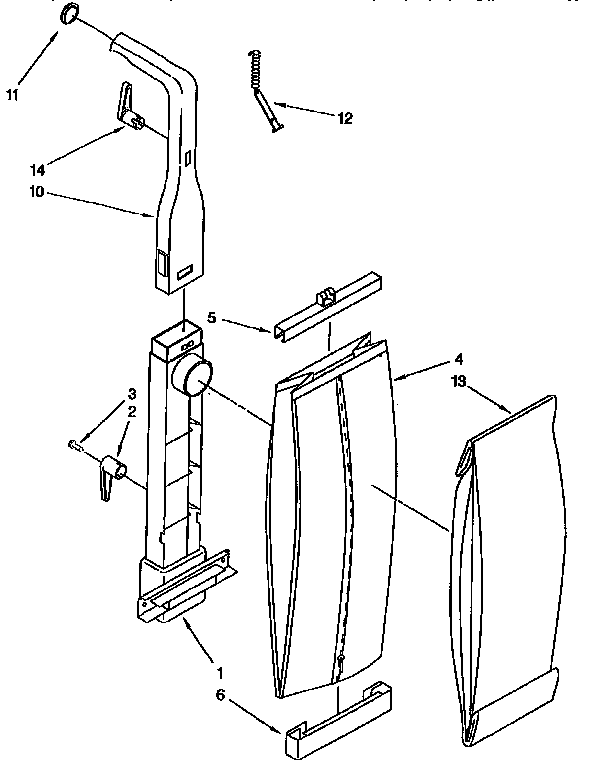

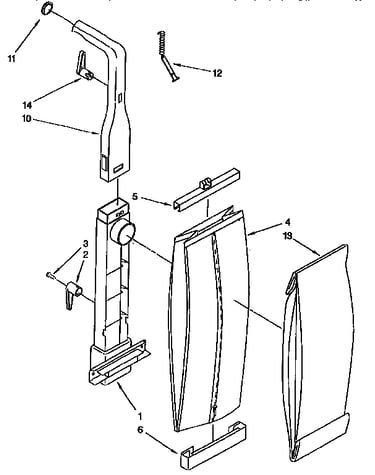

    Bag housing and handle diagram

    Vacuum screw

    Part #4368563

    The manufacturer no longer makes this part, and there's no substitute part

  • Cord Hook 4369044
    #14

    Bag housing and handle diagram

    Cord hook

    Part #4369044

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover 4369698
    #6

    Bag housing and handle diagram

    Cover

    Part #4369698

    The manufacturer no longer makes this part, and there's no substitute part

  • Slider Support 4369200
    #5

    Bag housing and handle diagram

    Slider support

    Part #4369200

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 681297
    #40

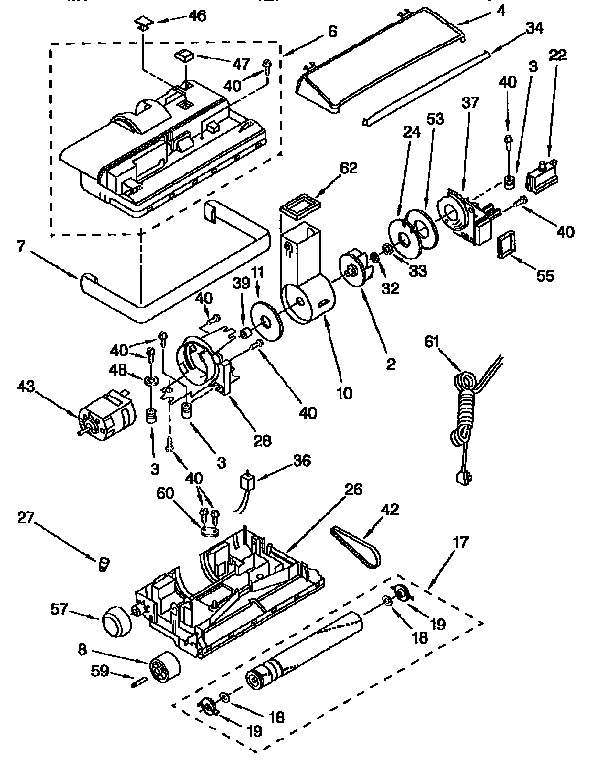

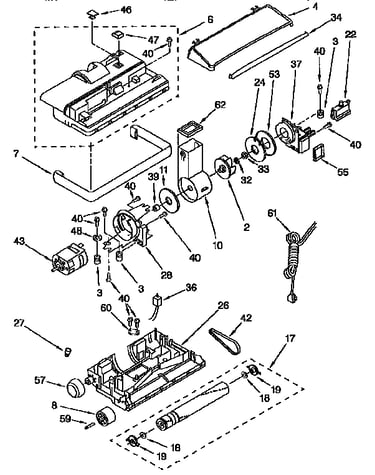

    Power head diagram

    Screw

    Part #681297

    The manufacturer no longer makes this part, and there's no substitute part

  • Grommet 4149498
    #3

    Power head diagram

    Grommet

    Part #4149498

    The manufacturer no longer makes this part, and there's no substitute part

  • Agitator 4369701
    #17

    Power head diagram

    Agitator

    Part #4369701

    The manufacturer no longer makes this part, and there's no substitute part

  • Bumper 4369703
    #7

    Power head diagram

    Bumper

    Part #4369703

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Cord 4369696
    #61

    Power head diagram

    Power cord

    Part #4369696

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer 665705
    #32

    Power head diagram

    Washer

    Part #665705

    The manufacturer no longer makes this part, and there's no substitute part
