Model # FH50020 Official Hoover steam vacuum

Here are the diagrams and repair parts for Official Hoover FH50020 steam vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

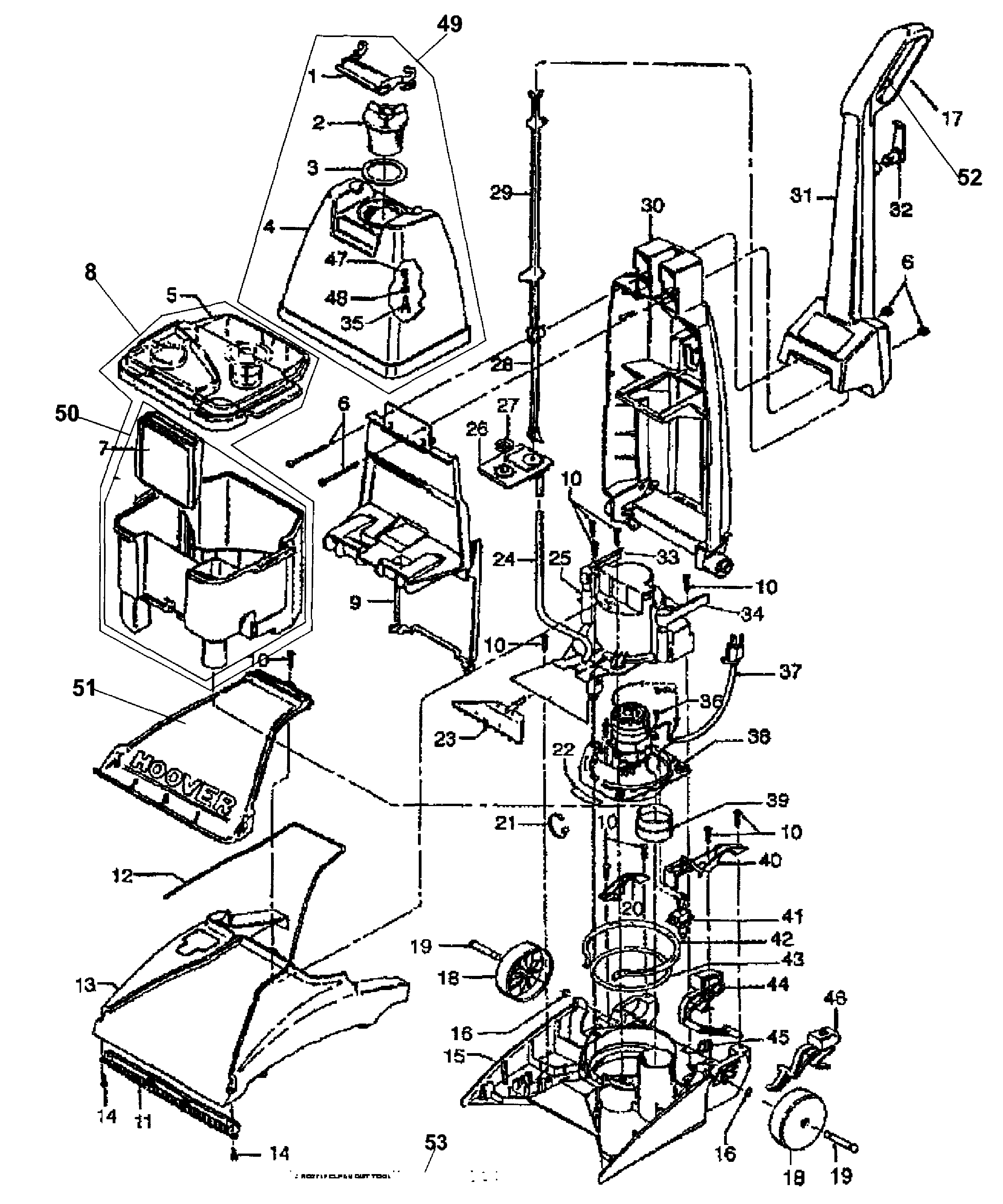

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Handle Release 522205001
#45

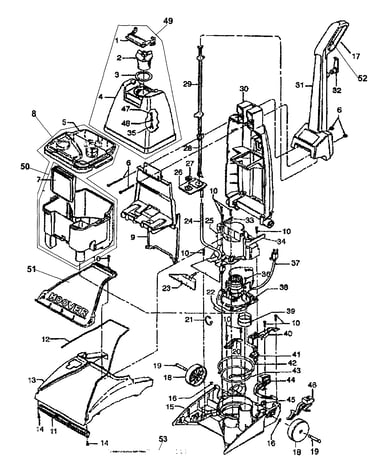

Carpet cleaner diagram

Handle release

Part #522205001

The manufacturer no longer makes this part, and there's no substitute part

Switch 522203001
#NI

Carpet cleaner diagram

Switch

Part #522203001

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Screw 21447232
#36

Carpet cleaner diagram

Regina carpet cleaner screw

Part #21447232

The manufacturer no longer makes this part, and there's no substitute part

Seal 38784064
#43

Carpet cleaner diagram

Seal

Part #38784064

The manufacturer no longer makes this part, and there's no substitute part

Seal 38781037
#12

Carpet cleaner diagram

Seal

Part #38781037

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Solution Valve Control Rod, Lower 38458033
#28

Carpet cleaner diagram

Regina carpet cleaner solution valve control rod, lower

Part #38458033

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Wheel 522206001
#NI

Carpet cleaner diagram

Carpet cleaner wheel

Part #522206001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Valve Control Rod, Upper 38458031
#29

Carpet cleaner diagram

Carpet cleaner solution valve control rod, upper

Part #38458031

The manufacturer no longer makes this part, and there's no substitute part

Regina Actuat Lever 38434025
#46

Carpet cleaner diagram

Regina actuat lever

Part #38434025

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing Seal 34122021
#22

Carpet cleaner diagram

Motor housing seal

Part #34122021

The manufacturer no longer makes this part, and there's no substitute part
