Model # 56421613050 Official LXI cassette recorder

Here are the diagrams and repair parts for Official LXI 56421613050 cassette recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 104 parts |

Screw, Bind Hd. Tapping-2 +m2.0x6, Switch Plate Mtg. 1033170200611

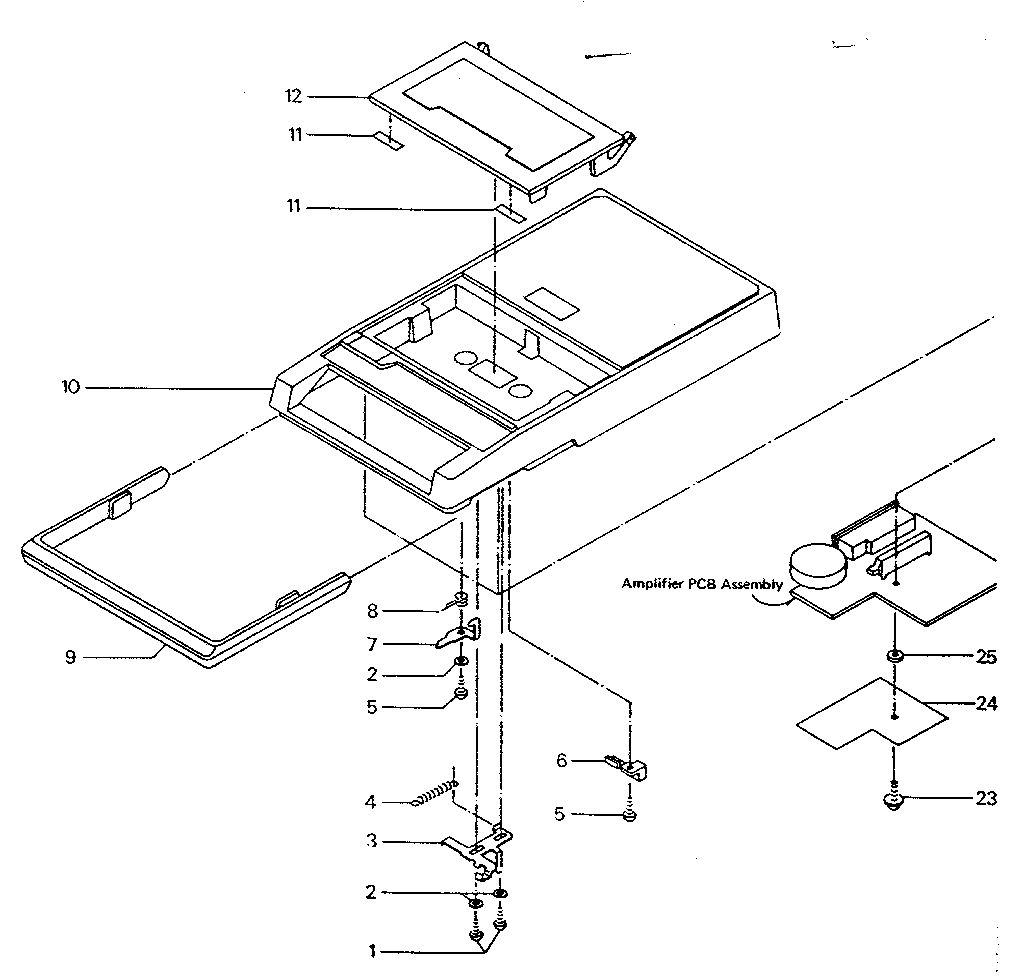

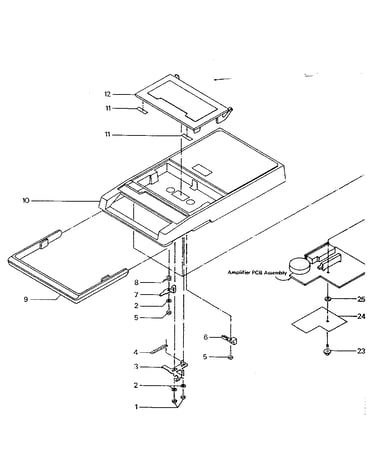

Cabinet diagram

Screw, bind hd. tapping-2 +m2.0x6, switch plate mtg.

Part #1033170200611

The manufacturer no longer makes this part, and there's no substitute part

Cushion, Cassette Lid 1412441907200

Cabinet diagram

Cushion, cassette lid

Part #1412441907200

The manufacturer no longer makes this part, and there's no substitute part

Washer Flywheel 1412453908200

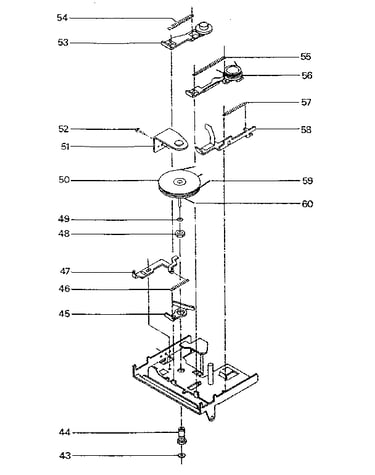

Flywheel diagram

Washer flywheel

Part #1412453908200

The manufacturer no longer makes this part, and there's no substitute part

Screw, Pan Hd. Tapping-b +m3.0x12, Cabinet Bottom Mtg. 1433130301211

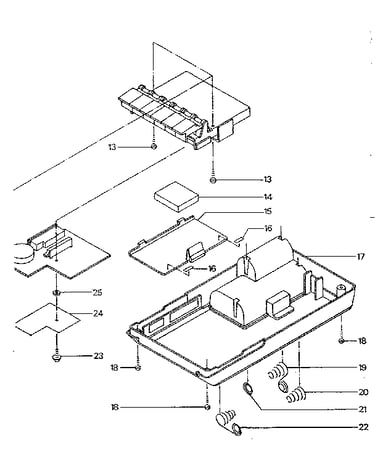

Cabinet bottom diagram

Screw, pan hd. tapping-b +m3.0x12, cabinet bottom mtg.

Part #1433130301211

The manufacturer no longer makes this part, and there's no substitute part

Ac Power Cord 4243970900

#NI

All parts diagram

Ac power cord

Part #4243970900

The manufacturer no longer makes this part, and there's no substitute part

Lug, Erase Head 1412472900100

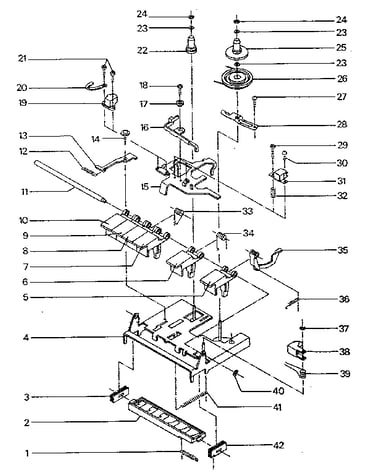

Cassette mechanism diagram

Lug, erase head

Part #1412472900100

The manufacturer no longer makes this part, and there's no substitute part

Select Button, Record 1412161971005

Cassette mechanism diagram

Select button, record

Part #1412161971005

The manufacturer no longer makes this part, and there's no substitute part

Select Button, F.f. 1412161971002

Cassette mechanism diagram

Select button, f.f.

Part #1412161971002

The manufacturer no longer makes this part, and there's no substitute part

Spring, Button Play 1412851964200

Cassette mechanism diagram

Spring, button play

Part #1412851964200

The manufacturer no longer makes this part, and there's no substitute part

Screw, Pan Hd. Tapping-b +m3.0x8, Bracket Speaker Mtg. 1433130300811

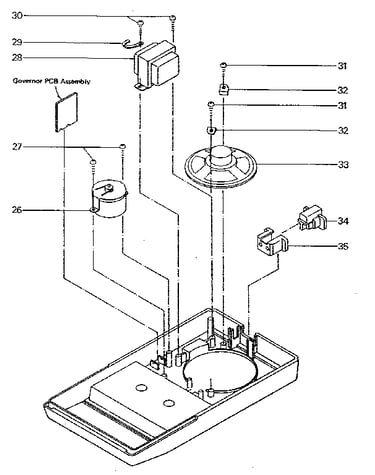

Speaker mtg bracket diagram

Screw, pan hd. tapping-b +m3.0x8, bracket speaker mtg.

Part #1433130300811

The manufacturer no longer makes this part, and there's no substitute part
