Model # 13-0235 Official DP exercise bike

Here are the diagrams and repair parts for Official DP 13-0235 exercise bike, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

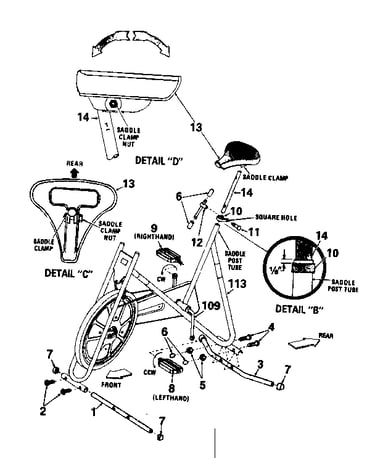

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Screw 20010200
#120

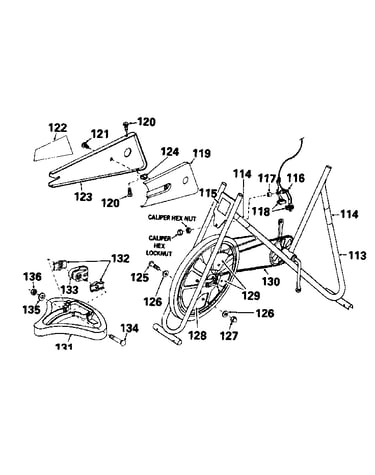

Main frame assembly diagram

Screw

Part #20010200

The manufacturer no longer makes this part, and there's no substitute part

Cap 02020600
Cap

Part #02020600

The manufacturer no longer makes this part, and there's no substitute part

Eye Bolt 28022467
#106

Wheel hub assembly diagram

Eye bolt

Part #28022467

The manufacturer no longer makes this part, and there's no substitute part

Wheel 28032000
#102

Wheel hub assembly diagram

Wheel

Part #28032000

The manufacturer no longer makes this part, and there's no substitute part

Insert 30104867
Insert

Part #30104867

The manufacturer no longer makes this part, and there's no substitute part

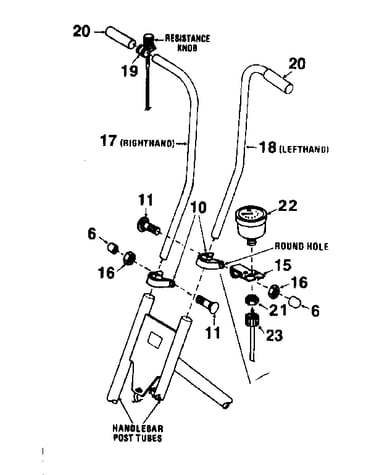

L Handlebar 30119267
L handlebar

Part #30119267

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 28018500
Lock nut

Part #28018500

The manufacturer no longer makes this part, and there's no substitute part

Cap Nut 25012000
#127

Main frame assembly diagram

Cap nut

Part #25012000

The manufacturer no longer makes this part, and there's no substitute part

Caliper 28035200
#116

Main frame assembly diagram

Caliper

Part #28035200

The manufacturer no longer makes this part, and there's no substitute part

Innr Chngard 09041800
#119

Main frame assembly diagram

Innr chngard

Part #09041800

The manufacturer no longer makes this part, and there's no substitute part
