Model # HDC-HS700P Official Panasonic camcorder

Here are the diagrams and repair parts for Official Panasonic HDC-HS700P camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

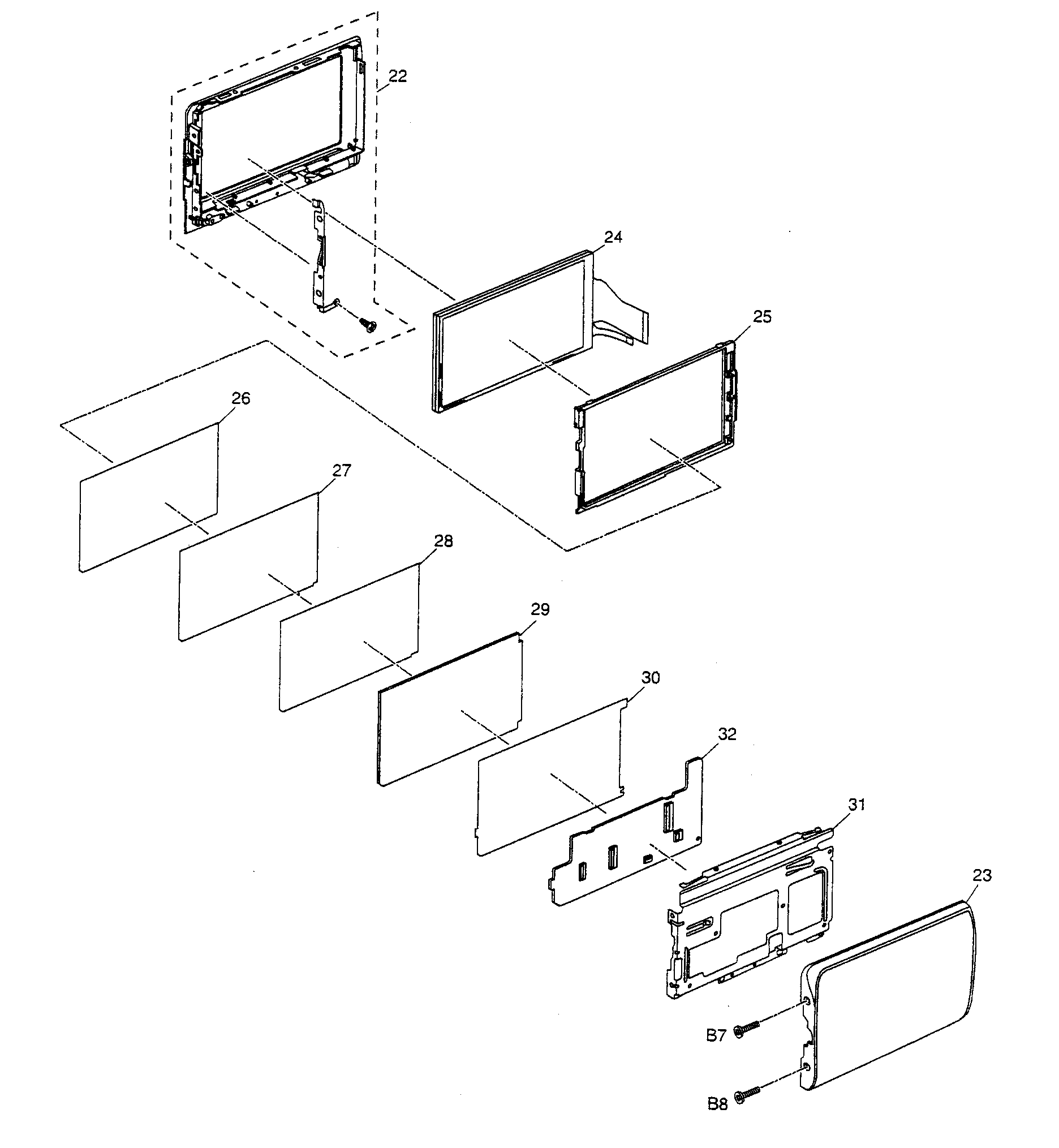

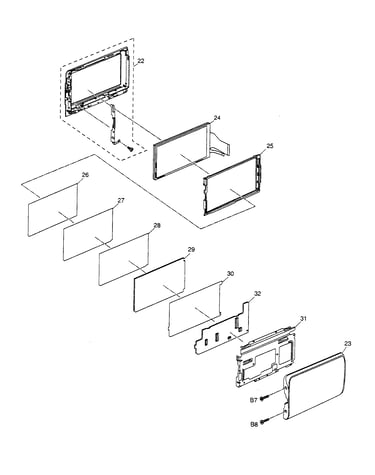

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Cover,flng VDW1995
#212

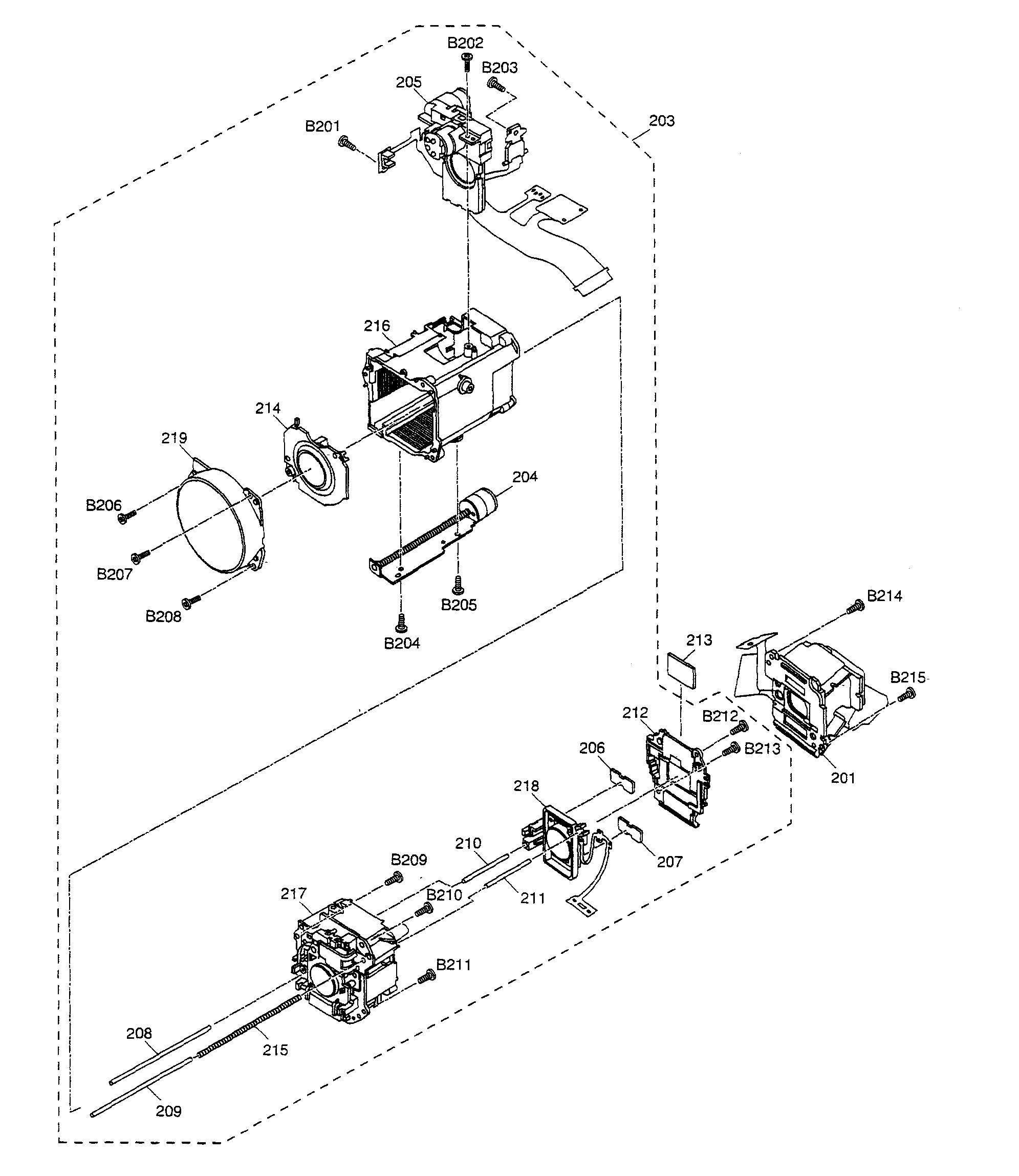

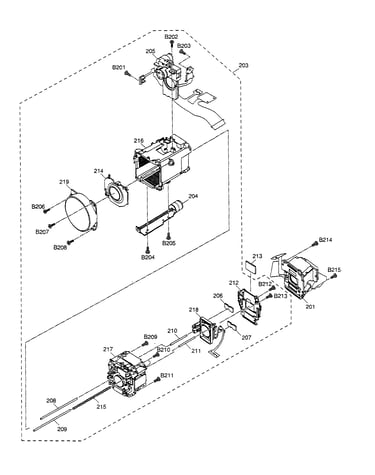

Lens assy diagram

Cover,flng

Part #VDW1995

The manufacturer no longer makes this part, and there's no substitute part

Transformer G5DYZ0000025
#NI

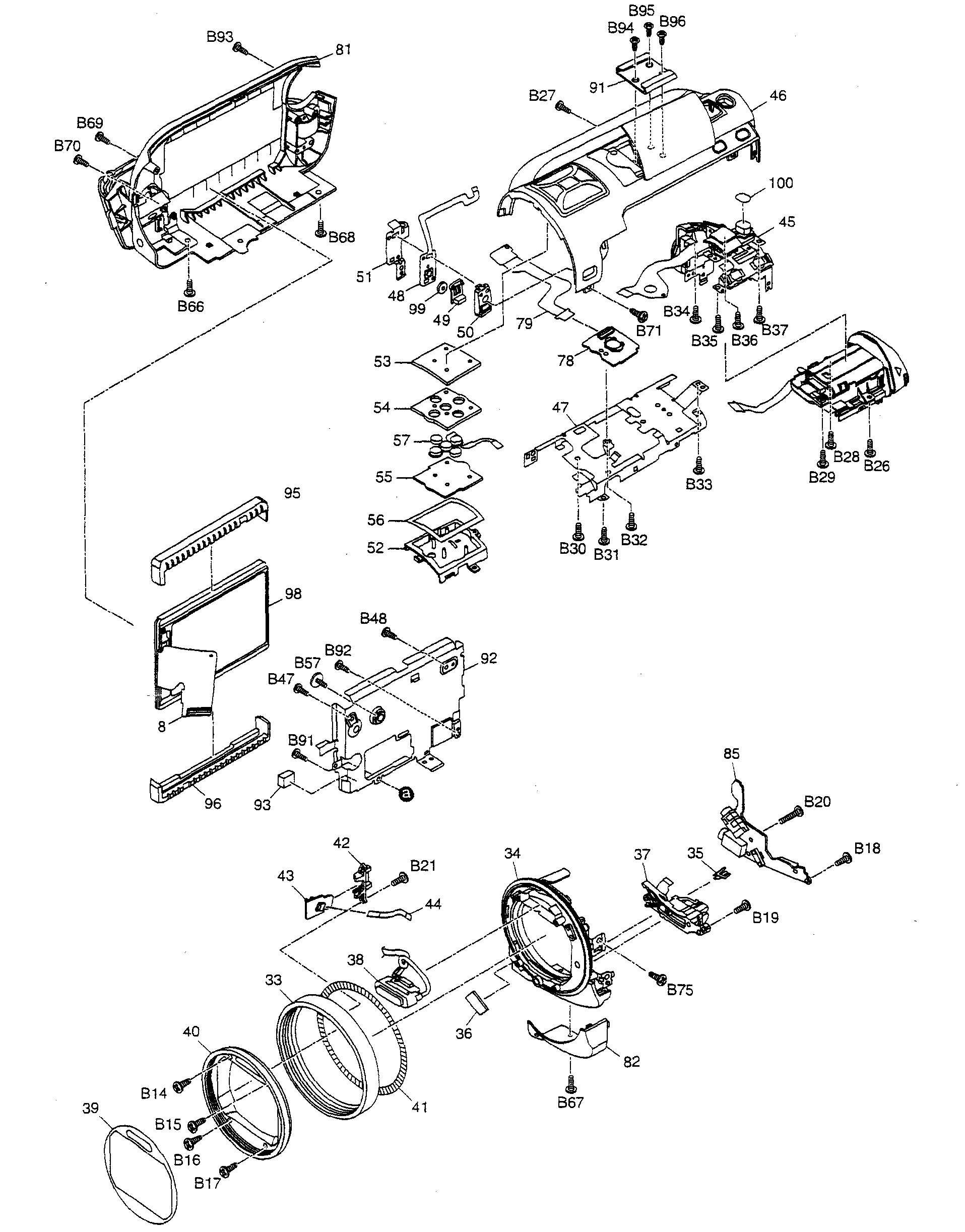

Frame assy 1 diagram

Transformer

Part #G5DYZ0000025

The manufacturer no longer makes this part, and there's no substitute part

Ois Unit VXQ1856
#217

Lens assy diagram

Ois unit

Part #VXQ1856

The manufacturer no longer makes this part, and there's no substitute part

Eye Cup VGQ0K38
#58

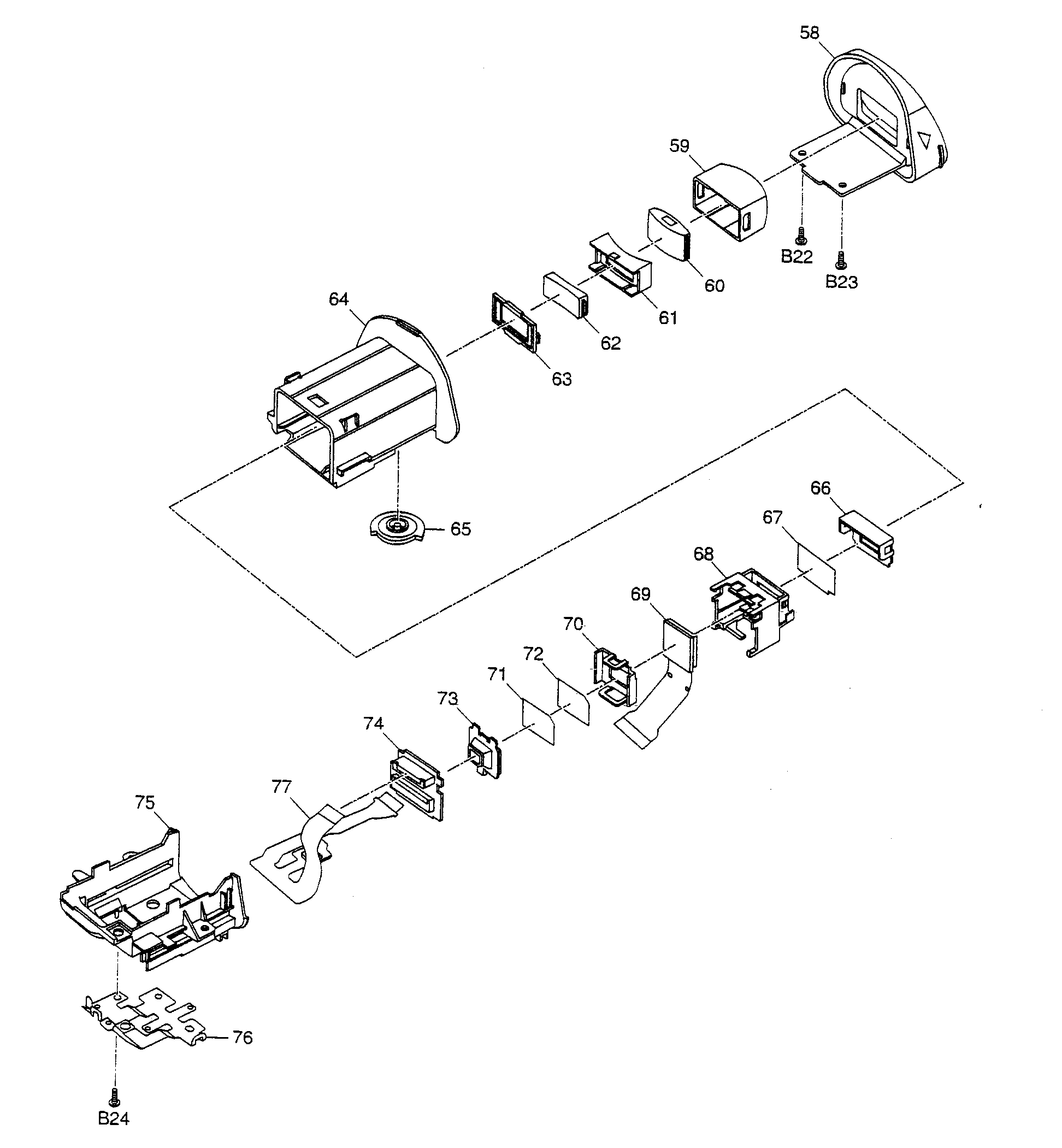

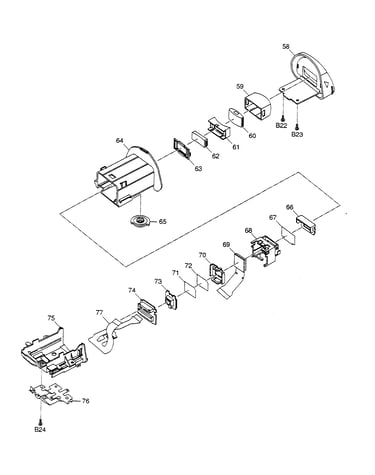

Evf assy diagram

Eye cup

Part #VGQ0K38

The manufacturer no longer makes this part, and there's no substitute part

B/l Piece VGQ0D04
#73

Evf assy diagram

B/l piece

Part #VGQ0D04

The manufacturer no longer makes this part, and there's no substitute part

Dc Cable K2GJYDC00004
#NI

Frame assy 1 diagram

Dc cable

Part #K2GJYDC00004

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Ring VGK3616
#33

Frame assy 1 diagram

Panasonic ring

Part #VGK3616

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Flat Cable VEP79258A
#8

Frame assy 1 diagram

Panasonic flat cable

Part #VEP79258A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C1AB00002388
#NI

Frame assy 1 diagram

Integrated circuit

Part #C1AB00002388

The manufacturer no longer makes this part, and there's no substitute part

Pcb Unit VEP06G50A
#21

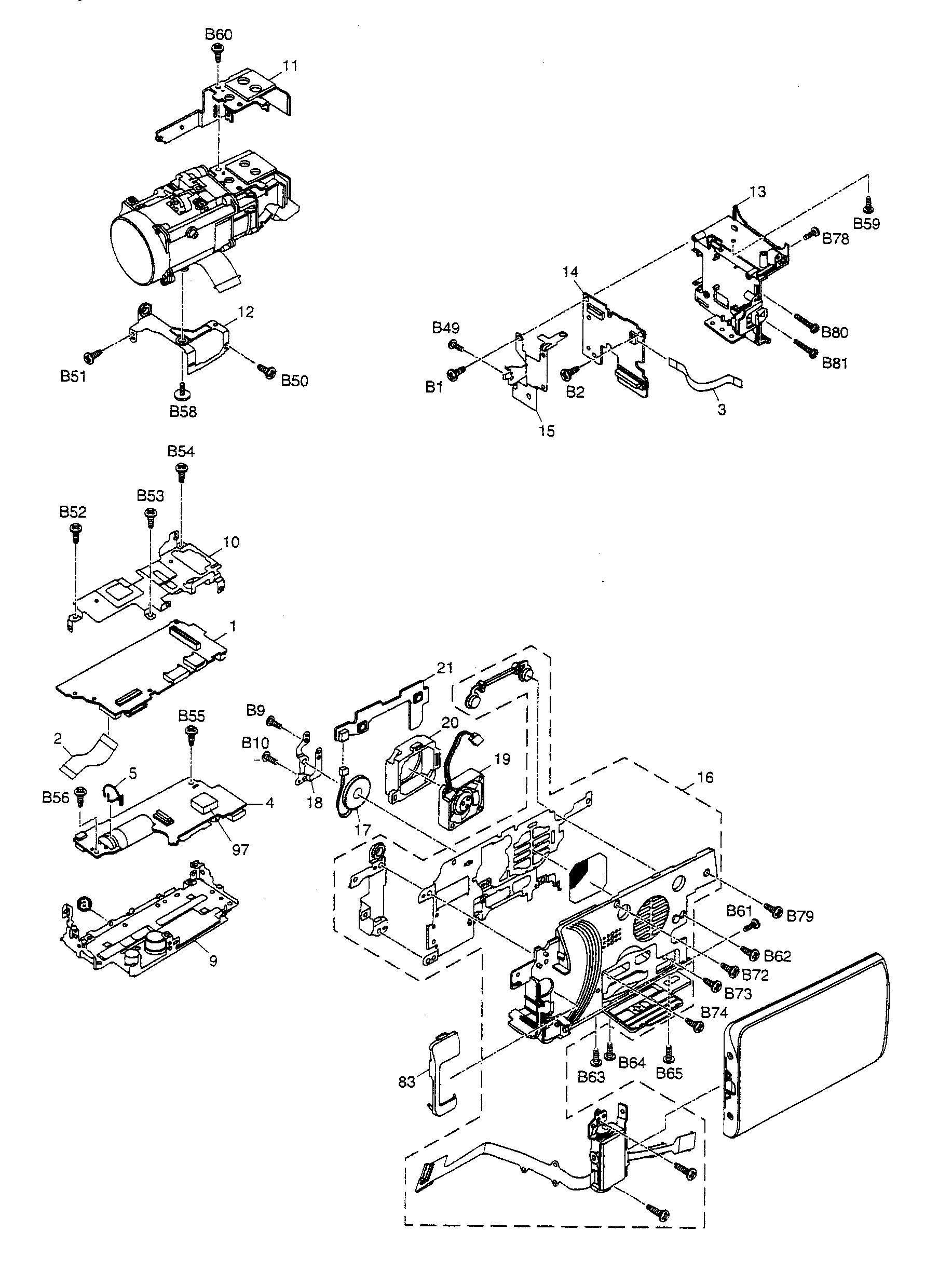

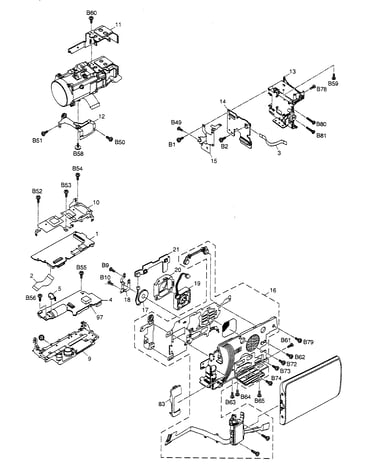

Frame assy 2 diagram

Pcb unit

Part #VEP06G50A

The manufacturer no longer makes this part, and there's no substitute part
