Model # 6990A Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 6990A upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

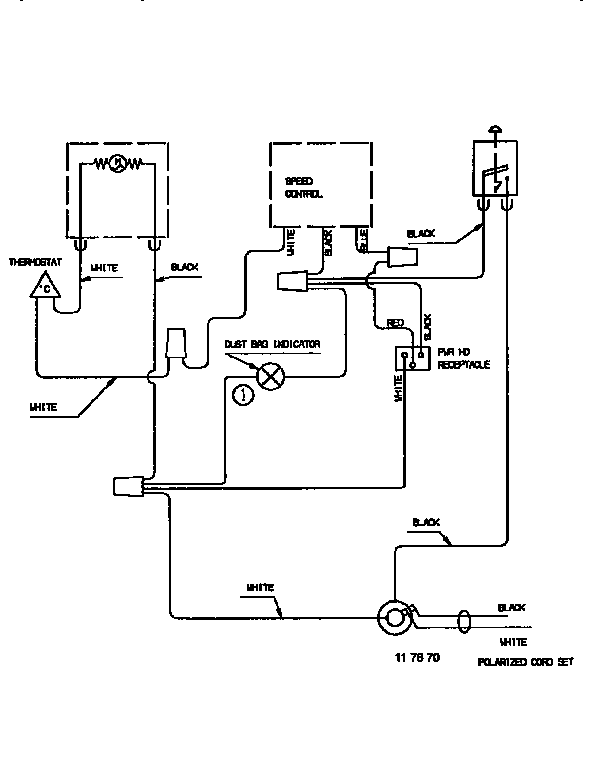

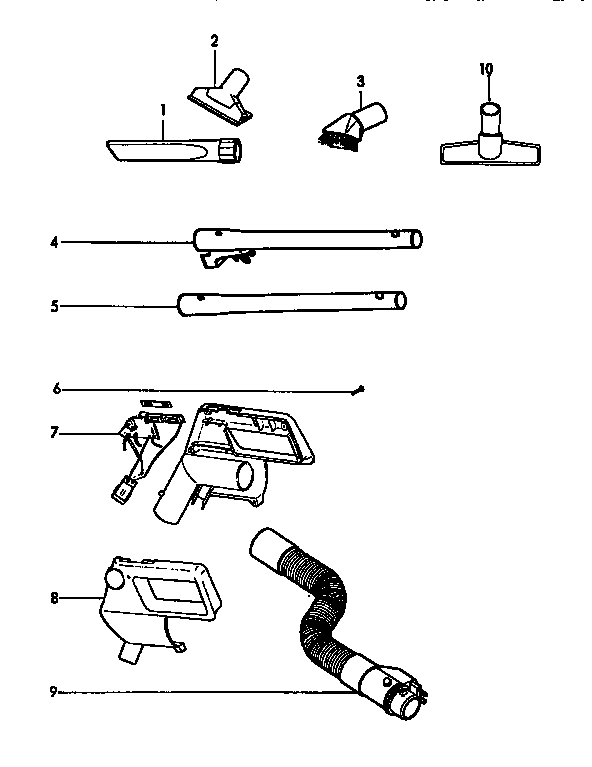

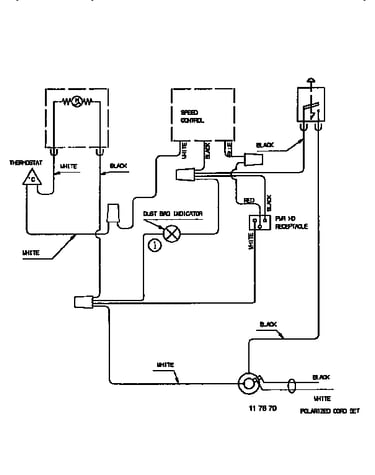

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Indicator 54974
#17B

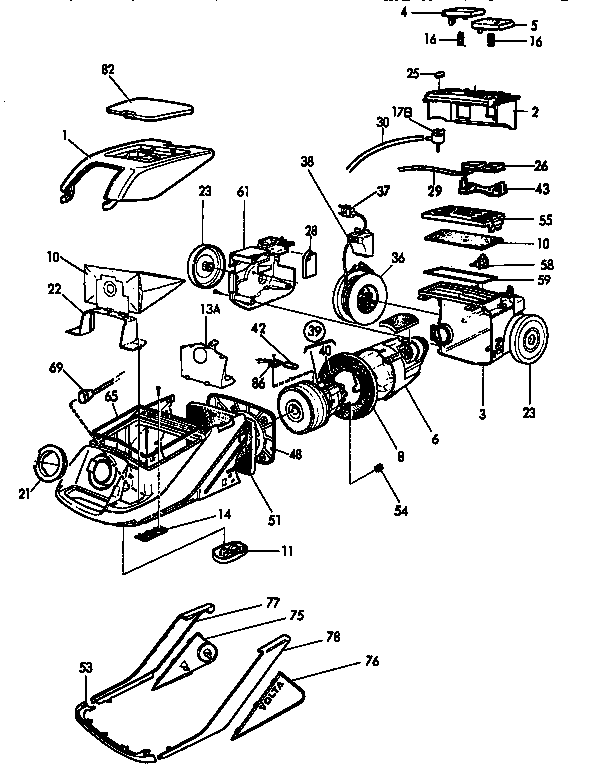

Unit parts diagram

Indicator

Part #54974

The manufacturer no longer makes this part, and there's no substitute part

Foot Pedal 14940-1
#19

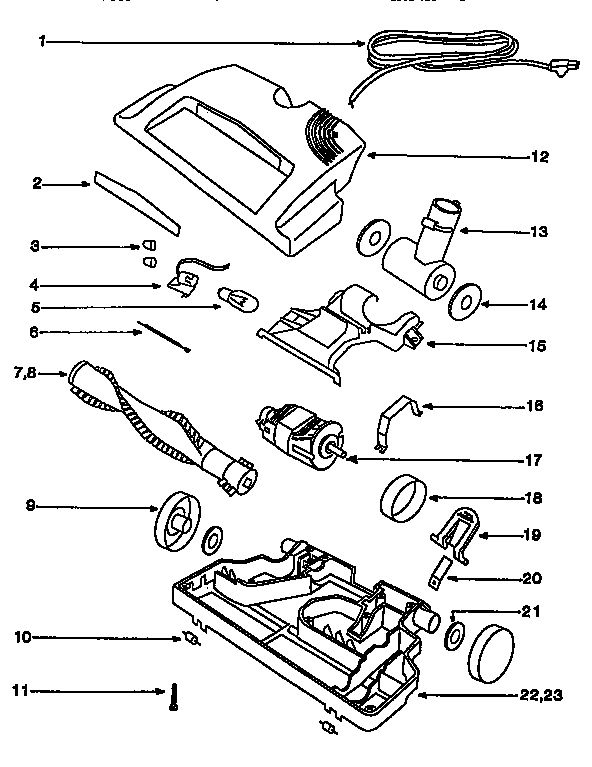

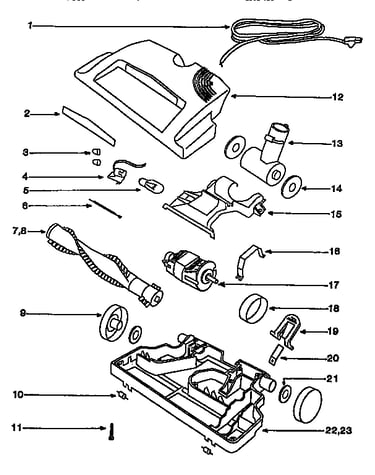

Nozzle and motor assembly diagram

Foot pedal

Part #14940-1

The manufacturer no longer makes this part, and there's no substitute part

Catch 54971
#13A

Unit parts diagram

Catch

Part #54971

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-8
#11

Nozzle and motor assembly diagram

Vacuum screw, 10-pack

Part #53238-8

The manufacturer no longer makes this part, and there's no substitute part

Hood Lens 27397-1
#2

Nozzle and motor assembly diagram

Hood lens

Part #27397-1

The manufacturer no longer makes this part, and there's no substitute part

Cover 60001
#76

Unit parts diagram

Cover

Part #60001

The manufacturer no longer makes this part, and there's no substitute part

Button 54967
#4

Unit parts diagram

Button

Part #54967

The manufacturer no longer makes this part, and there's no substitute part

Spring 54973
#16

Unit parts diagram

Spring

Part #54973

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel 54978
#23

Unit parts diagram

Rear wheel

Part #54978

The manufacturer no longer makes this part, and there's no substitute part

Gasket 54998
#65

Unit parts diagram

Gasket

Part #54998

The manufacturer no longer makes this part, and there's no substitute part
