Model # FFEF3003UWA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FFEF3003UWA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

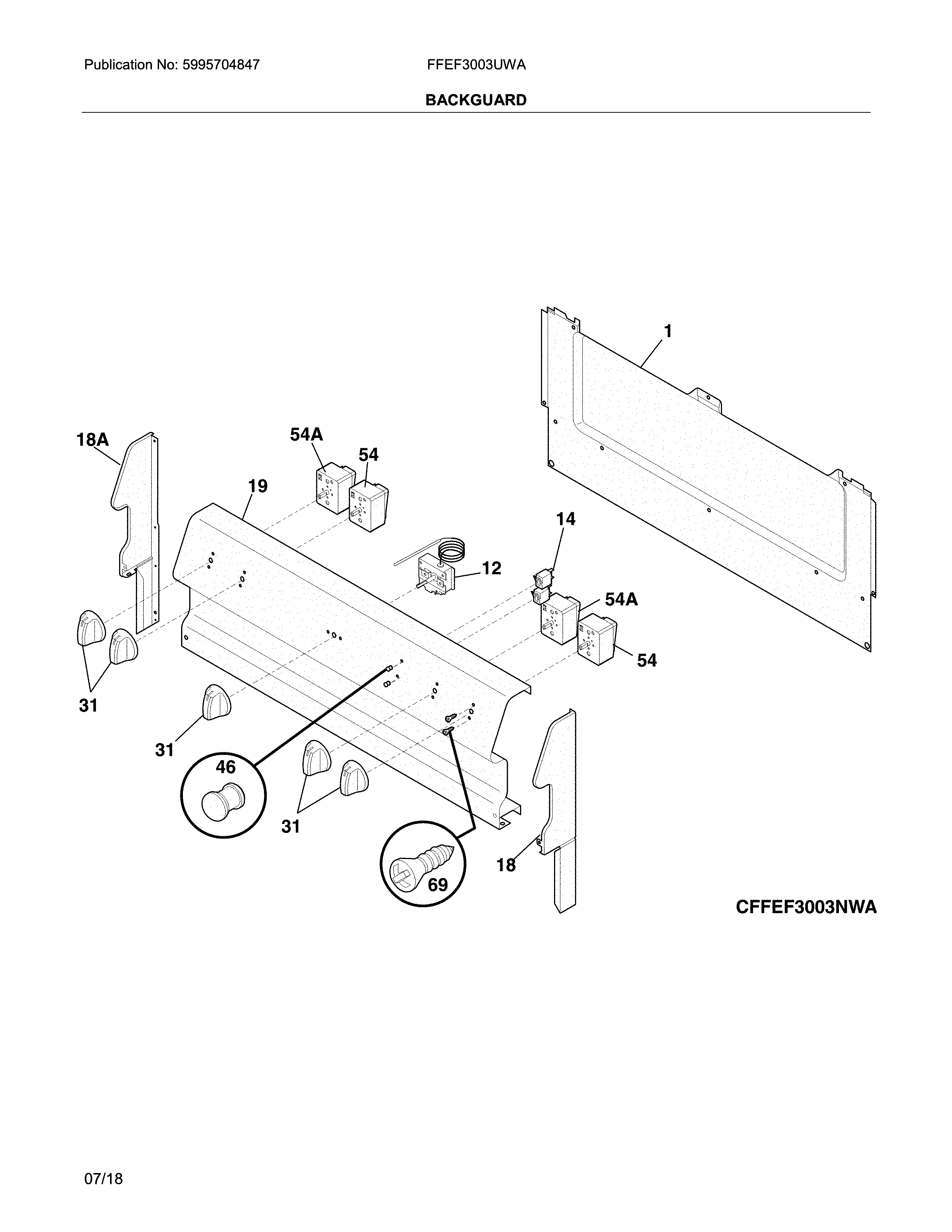

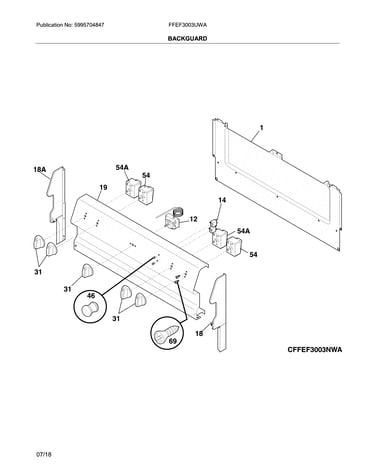

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Galaxy Range Bake Element (replaces 316075104) 316075103
#67

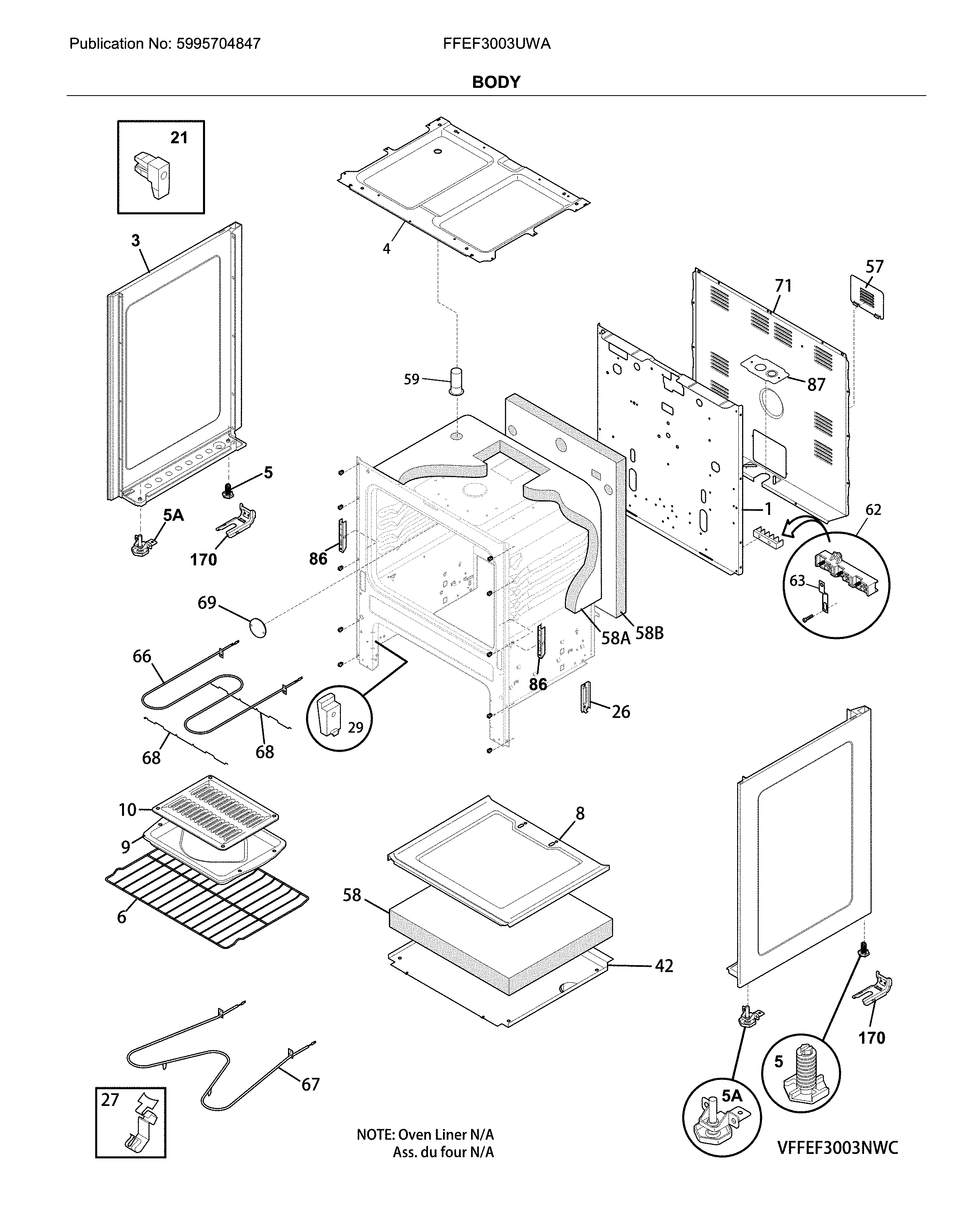

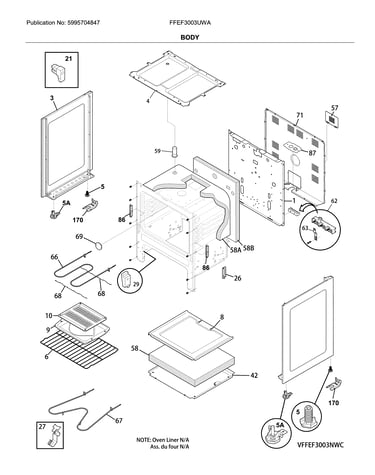

Body diagram

Galaxy range bake element (replaces 316075104)

Part #316075103

BEST SELLER
$27.06 |
18% OFF Phone Price : $33.06
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Range Surface Burner Drip Pan, 8-in 318067075
#19

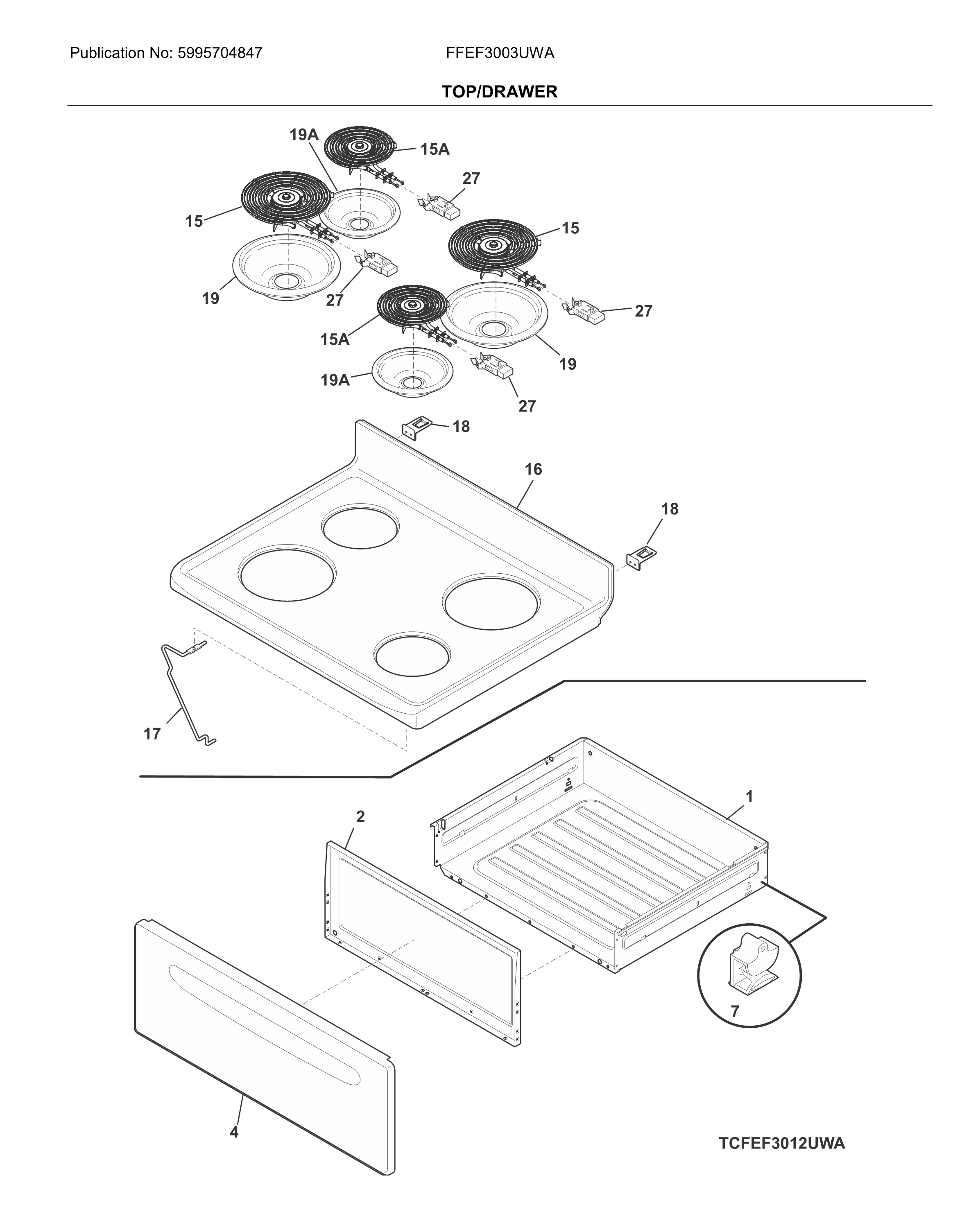

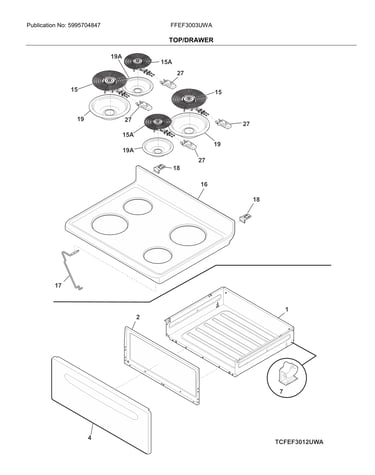

Top/drawer diagram

Range surface burner drip pan, 8-in

Part #318067075

Replaced by #A316222301

?
Manufacturer substitution
This part replaces 318067075. Substitute parts can look different from the original.
BEST SELLER
$12.67 |
14% OFF Phone Price : $14.67
In Stock
Universal/multiflex (frigidaire) Range Terminal Block (replaces 75303935271) 5303935271
#62

Body diagram

Universal/multiflex (frigidaire) range terminal block (replaces 75303935271)

Part #5303935271

BEST SELLER
$43.74 |
12% OFF Phone Price : $49.74
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

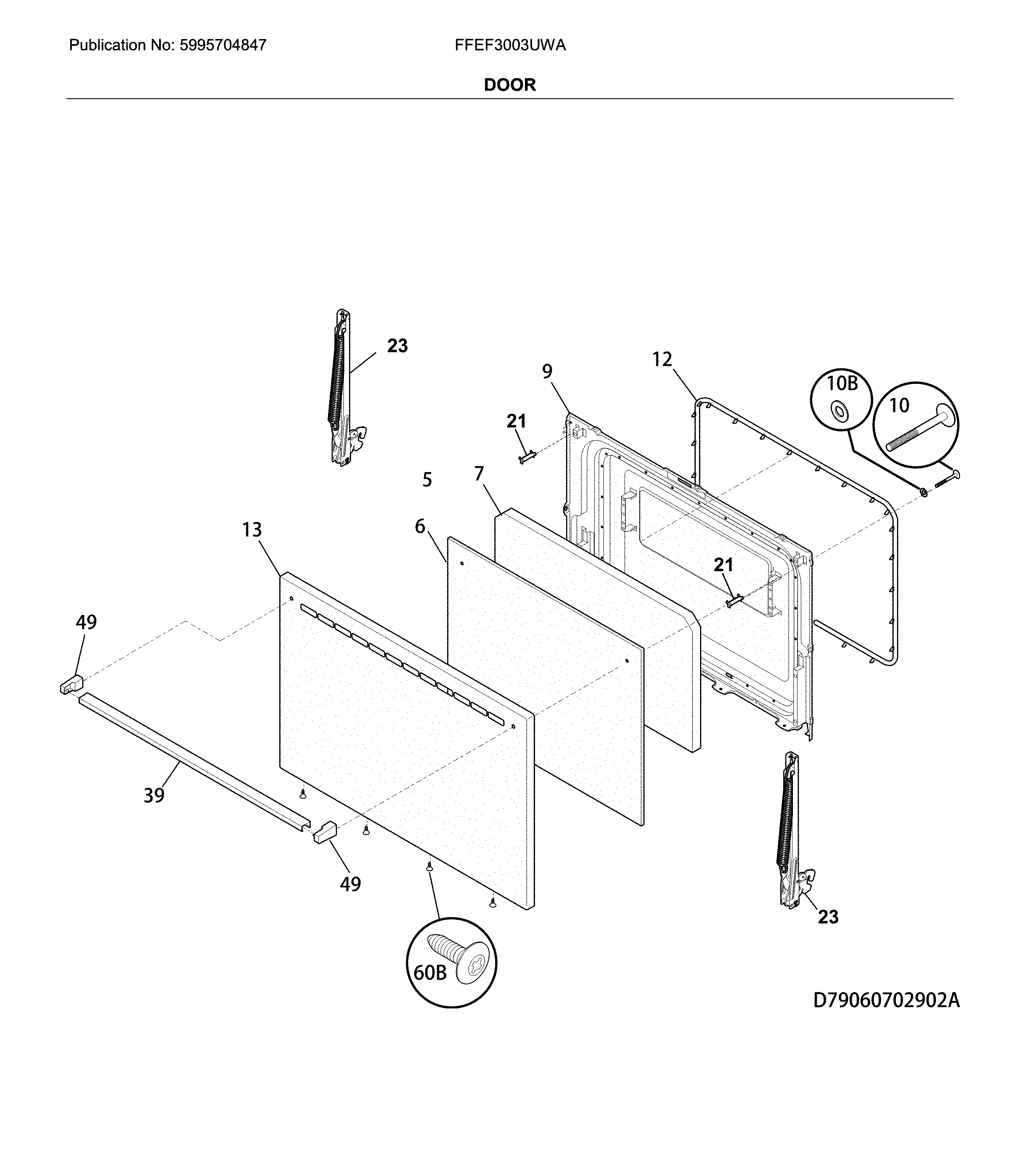

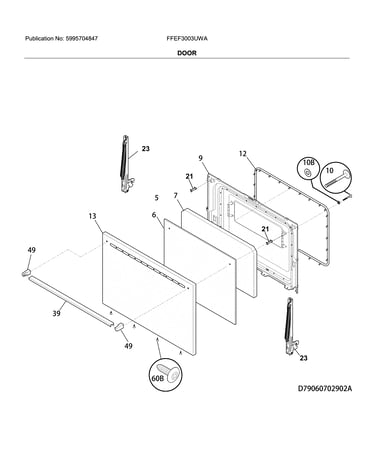

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Kelvinator Cooking Appliance Surface Element (replaces A13197401) 5304516159
#15

Top/drawer diagram

Kelvinator cooking appliance surface element (replaces a13197401)

Part #5304516159

BEST SELLER
$62.46 |
9% OFF Phone Price : $68.46
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Oven Rack 316067902
#6

Body diagram

Range oven rack

Part #316067902

$76.01 |
7% OFF Phone Price : $82.01
In Stock
Range Screw 316021110
#60B

Door diagram

Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
