Kenmore
Coffee Maker

Model # 165671501 Official Kenmore 5-cup poly hot pot

Here are the diagrams and repair parts for Official Kenmore 165671501 5-cup poly hot pot, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

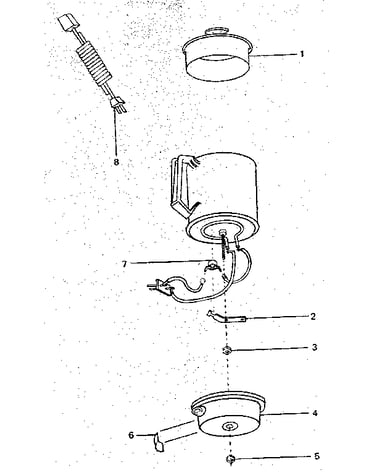

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Lock Nut P13NT248
Lock nut

Part #P13NT248

The manufacturer no longer makes this part, and there's no substitute part

Name Decal P35MC106
#6

Replacement parts diagram

Name decal

Part #P35MC106

The manufacturer no longer makes this part, and there's no substitute part

Cord P30HC021
#8

Replacement parts diagram

Cord

Part #P30HC021

The manufacturer no longer makes this part, and there's no substitute part

Base P44HP117BK
#4

Replacement parts diagram

Base

Part #P44HP117BK

The manufacturer no longer makes this part, and there's no substitute part

Spring M23ST034
#2

Replacement parts diagram

Spring

Part #M23ST034

The manufacturer no longer makes this part, and there's no substitute part

Cover P53PC016HG
#1

Replacement parts diagram

Cover

Part #P53PC016HG

The manufacturer no longer makes this part, and there's no substitute part

Thermostat P28TS042
#7

Replacement parts diagram

Thermostat

Part #P28TS042

The manufacturer no longer makes this part, and there's no substitute part
