GE
Electric Wall Oven

Model # PT9051BL2TS Official GE electric oven

Here are the diagrams and repair parts for Official GE PT9051BL2TS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Wall Oven Cooling Fan Sensor Board WB27T11463
#599

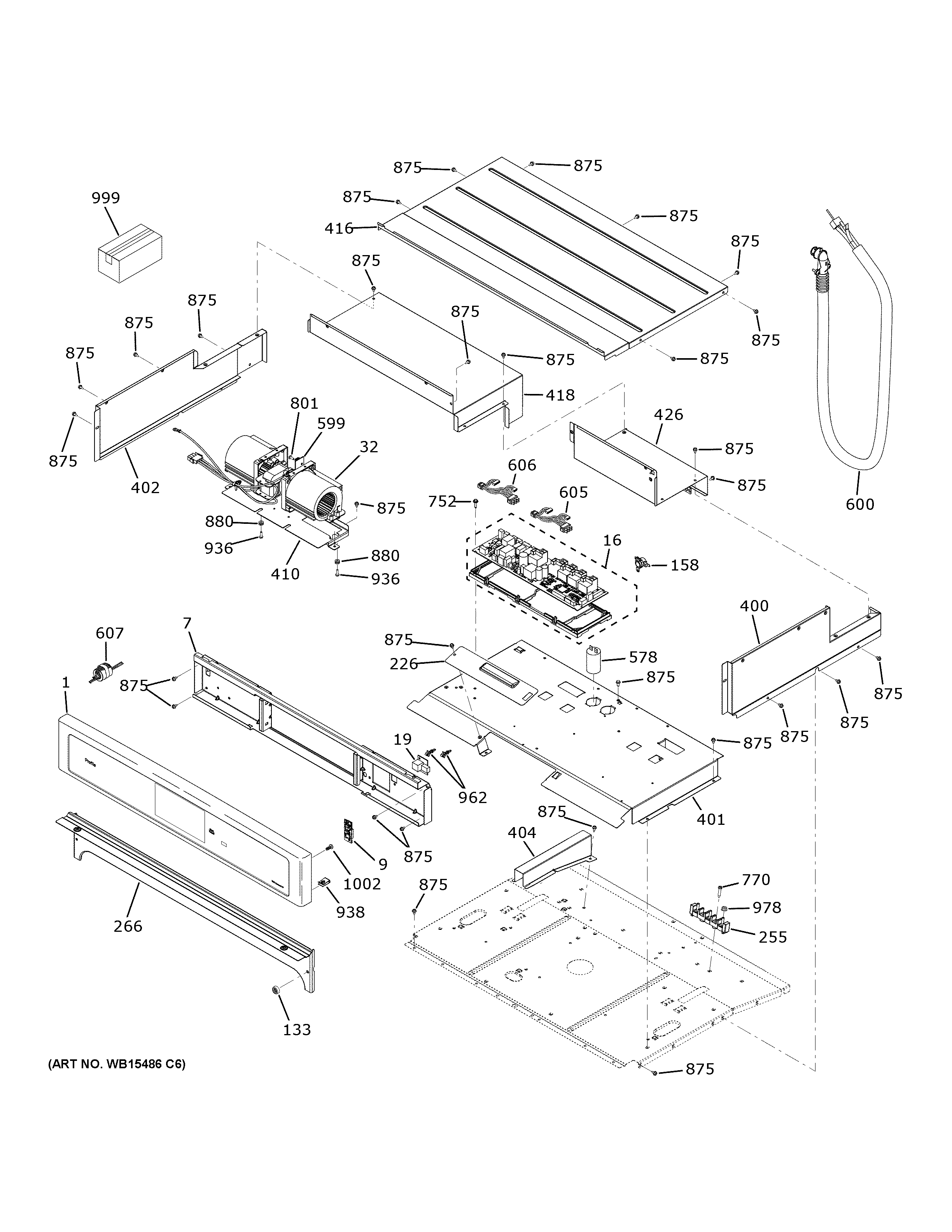

Control panel diagram

Wall oven cooling fan sensor board

Part #WB27T11463

BEST SELLER
This item is not returnable
$50.23 |
11% OFF Phone Price : $56.23
In Stock
Wall Oven Door Window Assembly WB56X27480
#338

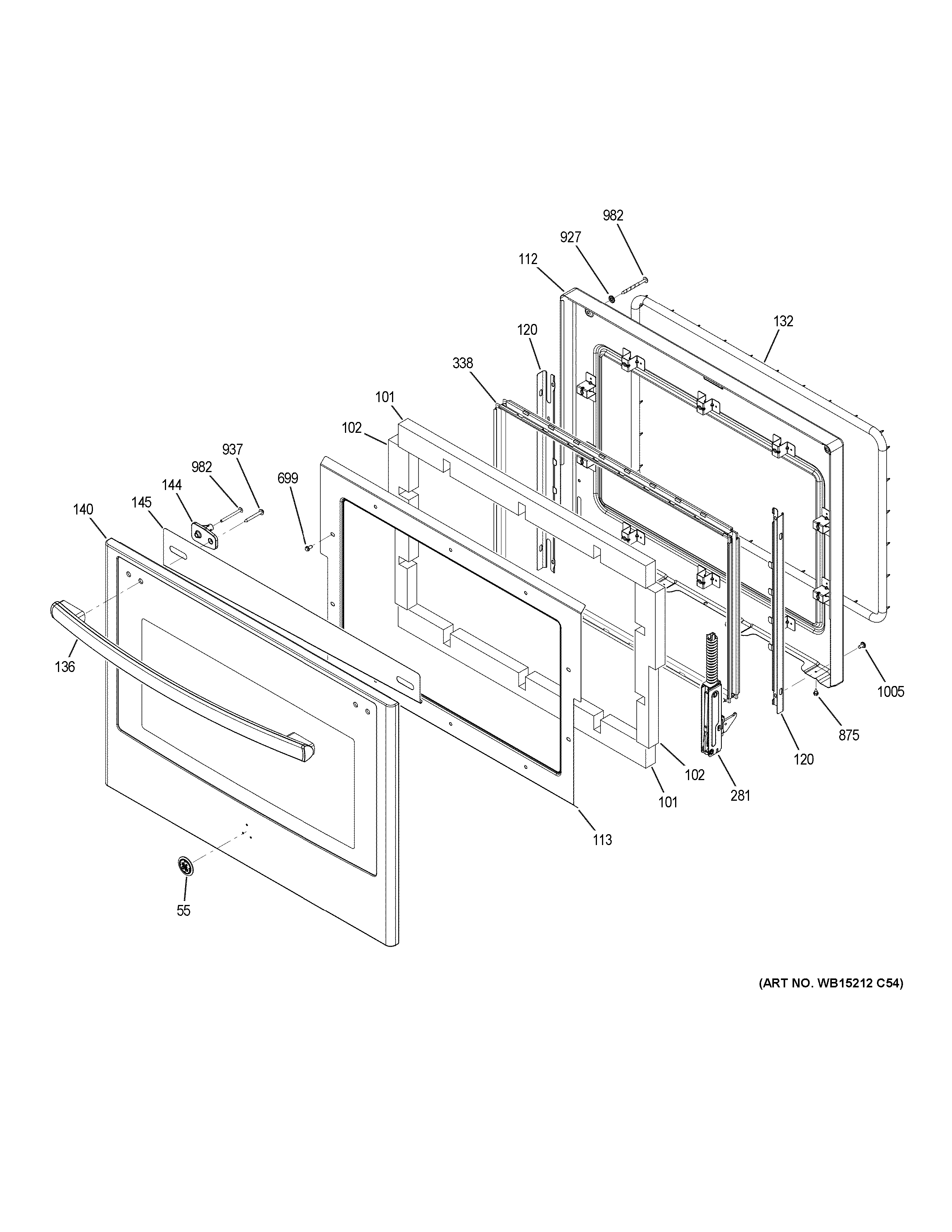

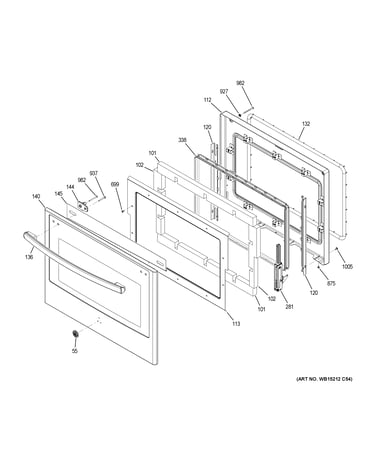

Door diagram

Wall oven door window assembly

Part #WB56X27480

BEST SELLER
$188.10 |
6% OFF Phone Price : $200.10
In Stock
Wall Oven Temperature Sensor WB21X10165
#253

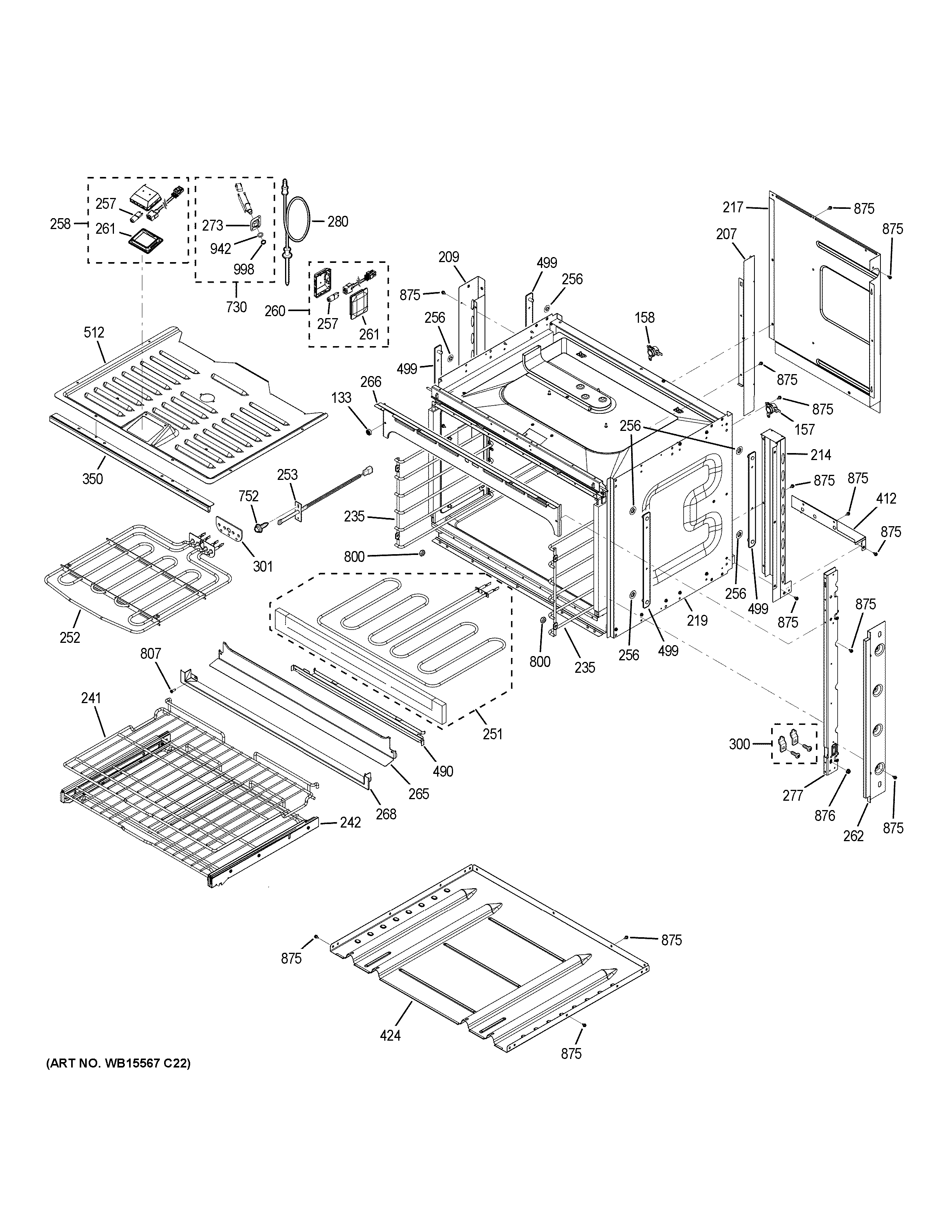

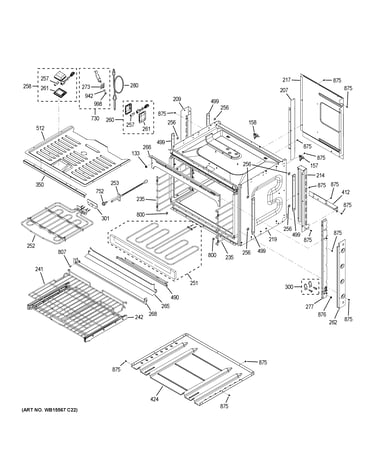

Body parts diagram

Wall oven temperature sensor

Part #WB21X10165

BEST SELLER
$19.80 |
9% OFF Phone Price : $21.80
In Stock
Wall Oven Cooling Fan Assembly (replaces Wb26x23477) WB26X31060
#32

Control panel diagram

Wall oven cooling fan assembly (replaces wb26x23477)

Part #WB26X31060

BEST SELLER
$70.44 |
8% OFF Phone Price : $76.44
In Stock
Wall Oven Door Lock Assembly (replaces Wb10x23475) WB10X28391
#150

Door lock diagram

Wall oven door lock assembly (replaces wb10x23475)

Part #WB10X28391

BEST SELLER
$54.50 |
10% OFF Phone Price : $60.50
In Stock
Range Oven Meat Probe Sensor WB20T10025
#280

Body parts diagram

Range oven meat probe sensor

Part #WB20T10025

The manufacturer no longer makes this part, and there's no substitute part

Wall Oven Light Bulb WB25T10102
#257

Body parts diagram

Wall oven light bulb

Part #WB25T10102

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
#1005

Door diagram

Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Gasket WB35X26196
#132

Door diagram

Gasket

Part #WB35X26196

Replaced by #WB35X32825

?
Manufacturer substitution
This part replaces WB35X26196. Substitute parts can look different from the original.
$40.78 |
13% OFF Phone Price : $46.78
In Stock
Screw WB01K5150
#699

Door diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
