Craftsman
Electric Leaf Blower

Model # 944511702 Official Craftsman blower

Here are the diagrams and repair parts for Official Craftsman 944511702 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Lawn & Garden Equipment Screw 530015994
#5

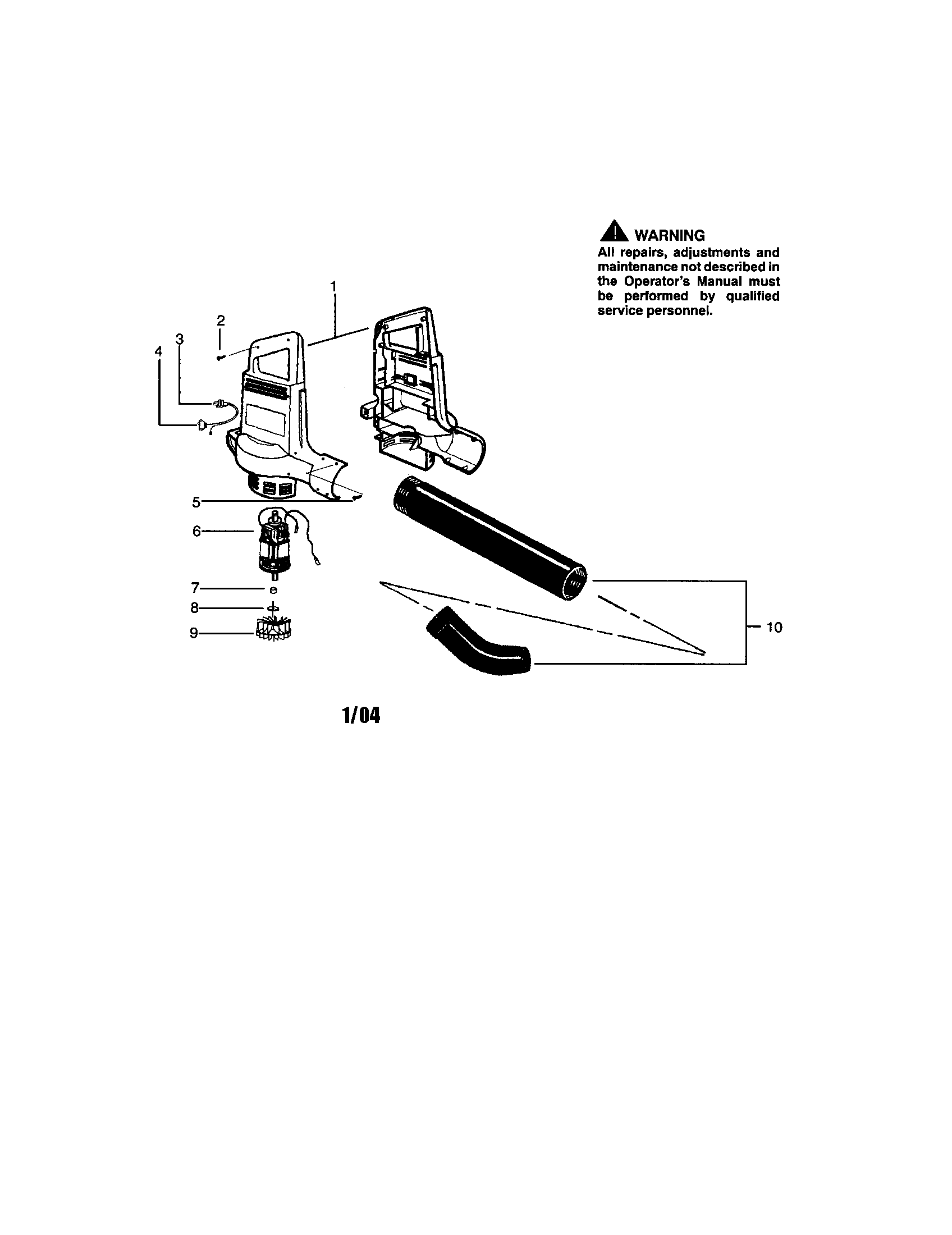

Housing set/nozzle/tube/impeller diagram

Lawn & garden equipment screw

Part #530015994

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Spacer 530404164
#7

Housing set/nozzle/tube/impeller diagram

Lawn mower spacer

Part #530404164

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Washer 530400897
#8

Housing set/nozzle/tube/impeller diagram

Lawn & garden equipment washer

Part #530400897

The manufacturer no longer makes this part, and there's no substitute part

Toggle Switch 530404161
#3

Housing set/nozzle/tube/impeller diagram

Toggle switch

Part #530404161

The manufacturer no longer makes this part, and there's no substitute part

Snowblower Impeller 530351451
#9

Housing set/nozzle/tube/impeller diagram

Snowblower impeller

Part #530351451

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Nozzle 530403682
#10

Housing set/nozzle/tube/impeller diagram

Leaf blower nozzle

Part #530403682

The manufacturer no longer makes this part, and there's no substitute part

Warning Decal 530058963

#NI02

All parts diagram

Warning decal

Part #530058963

The manufacturer no longer makes this part, and there's no substitute part

Housing 530404312
#1

Housing set/nozzle/tube/impeller diagram

Housing

Part #530404312

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Start/stop Switch 530404204
#4

Housing set/nozzle/tube/impeller diagram

Leaf blower start/stop switch

Part #530404204

The manufacturer no longer makes this part, and there's no substitute part

Motor W/e 2 530403267
#6

Housing set/nozzle/tube/impeller diagram

Motor w/e 2

Part #530403267

The manufacturer no longer makes this part, and there's no substitute part
