Amana
Room Air Conditioner

Model # AAC081STA-PAAC081STA0 Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana AAC081STA-PAAC081STA0 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Left Cond Cover Gasket R0130120
#4

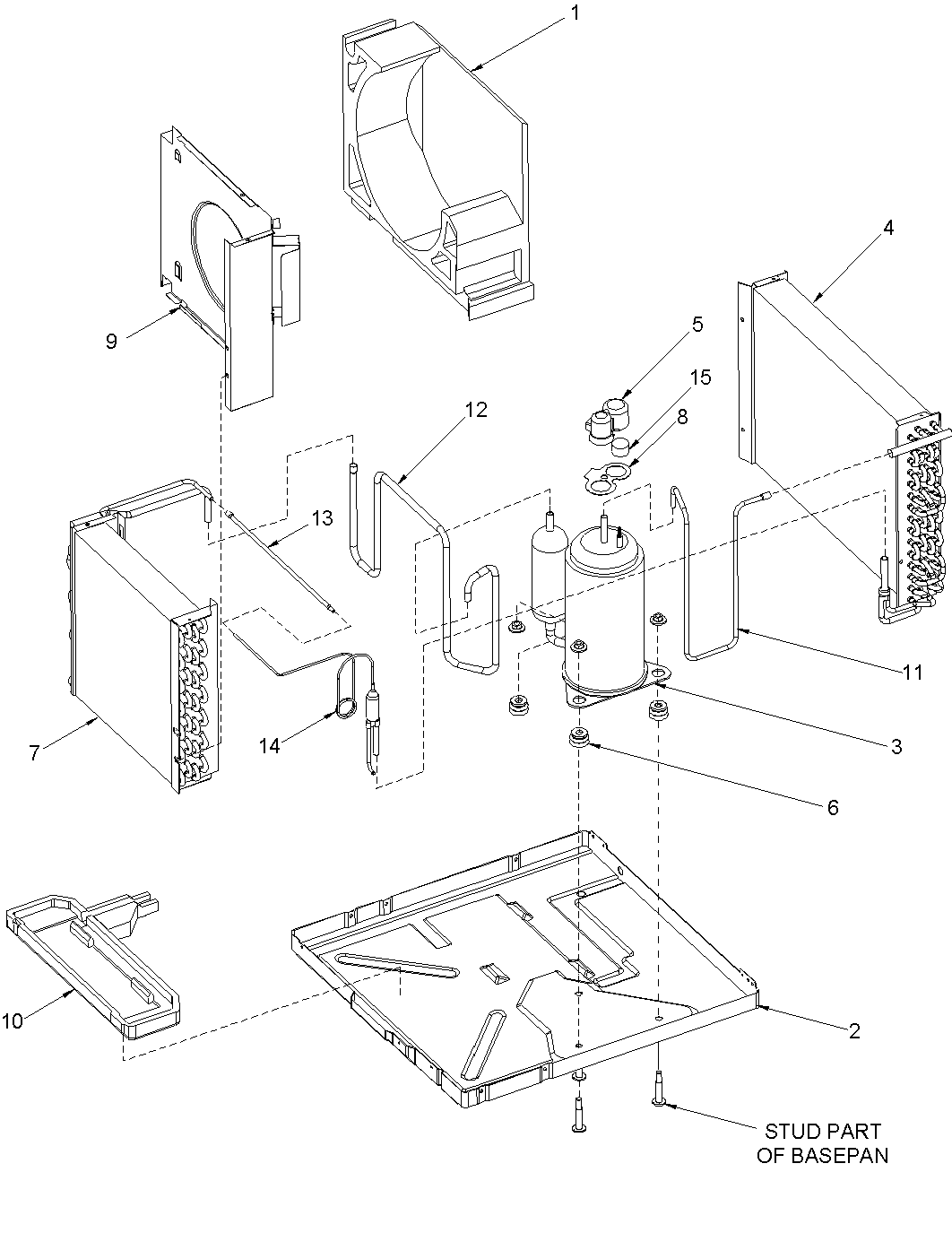

Chassis assembly diagram

Left cond cover gasket

Part #R0130120

The manufacturer no longer makes this part, and there's no substitute part

Compressor Grommet (qty 3) R0130096
#6

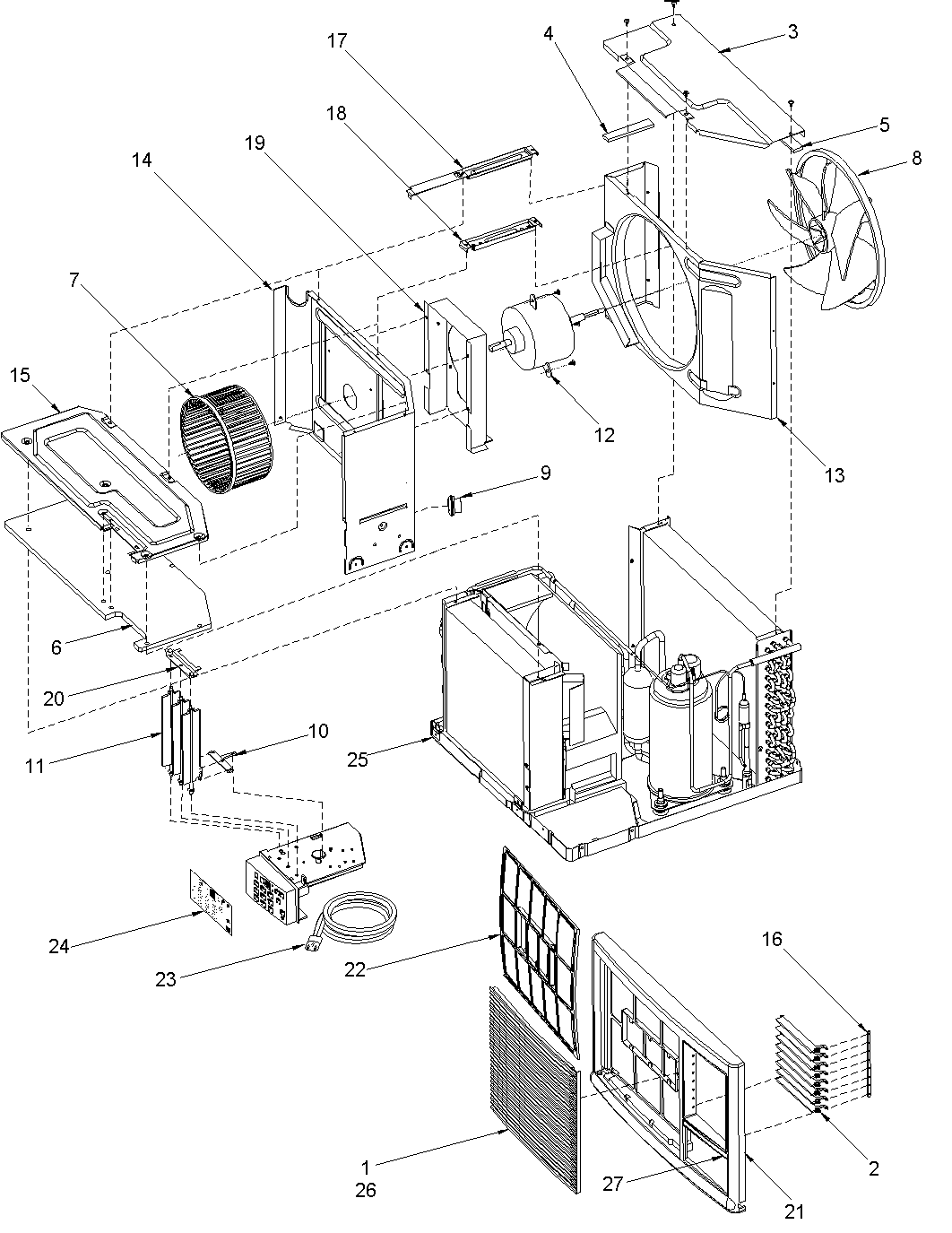

Chassis assembly diagram

Compressor grommet (qty 3)

Part #R0130096

The manufacturer no longer makes this part, and there's no substitute part

Partition Panel R0130131
#14

Chassis assembly diagram

Partition panel

Part #R0130131

The manufacturer no longer makes this part, and there's no substitute part

Filter R0130587
#22

Chassis assembly diagram

Filter

Part #R0130587

The manufacturer no longer makes this part, and there's no substitute part

Curtain R0131405
#16

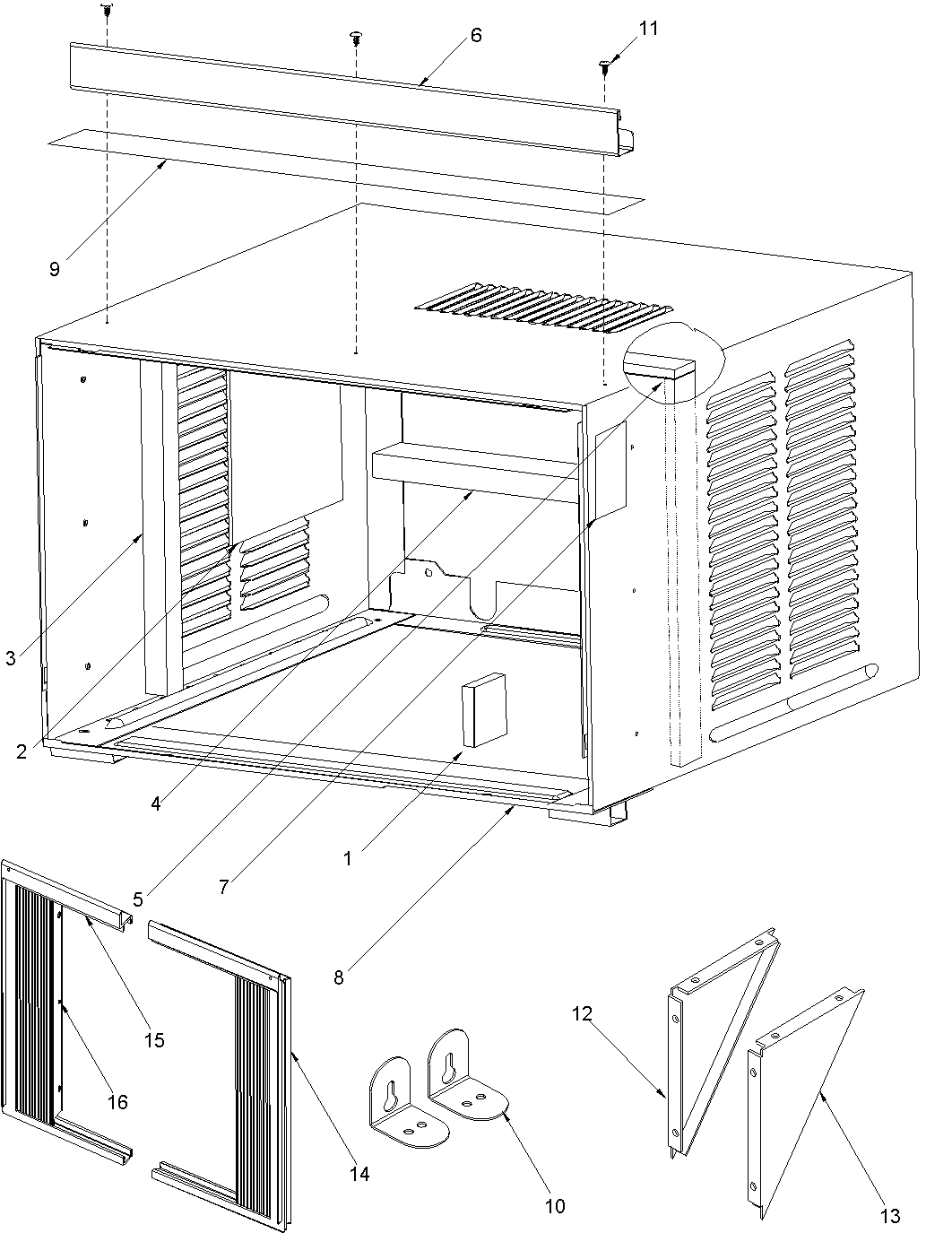

Outer case assembly diagram

Curtain

Part #R0131405

The manufacturer no longer makes this part, and there's no substitute part

Right Tie Brace R0130135
#18

Chassis assembly diagram

Right tie brace

Part #R0130135

The manufacturer no longer makes this part, and there's no substitute part

Catch Front Grille R0131150
#26

Chassis assembly diagram

Catch front grille

Part #R0131150

The manufacturer no longer makes this part, and there's no substitute part

Compressor Capacitor R0130076
#3

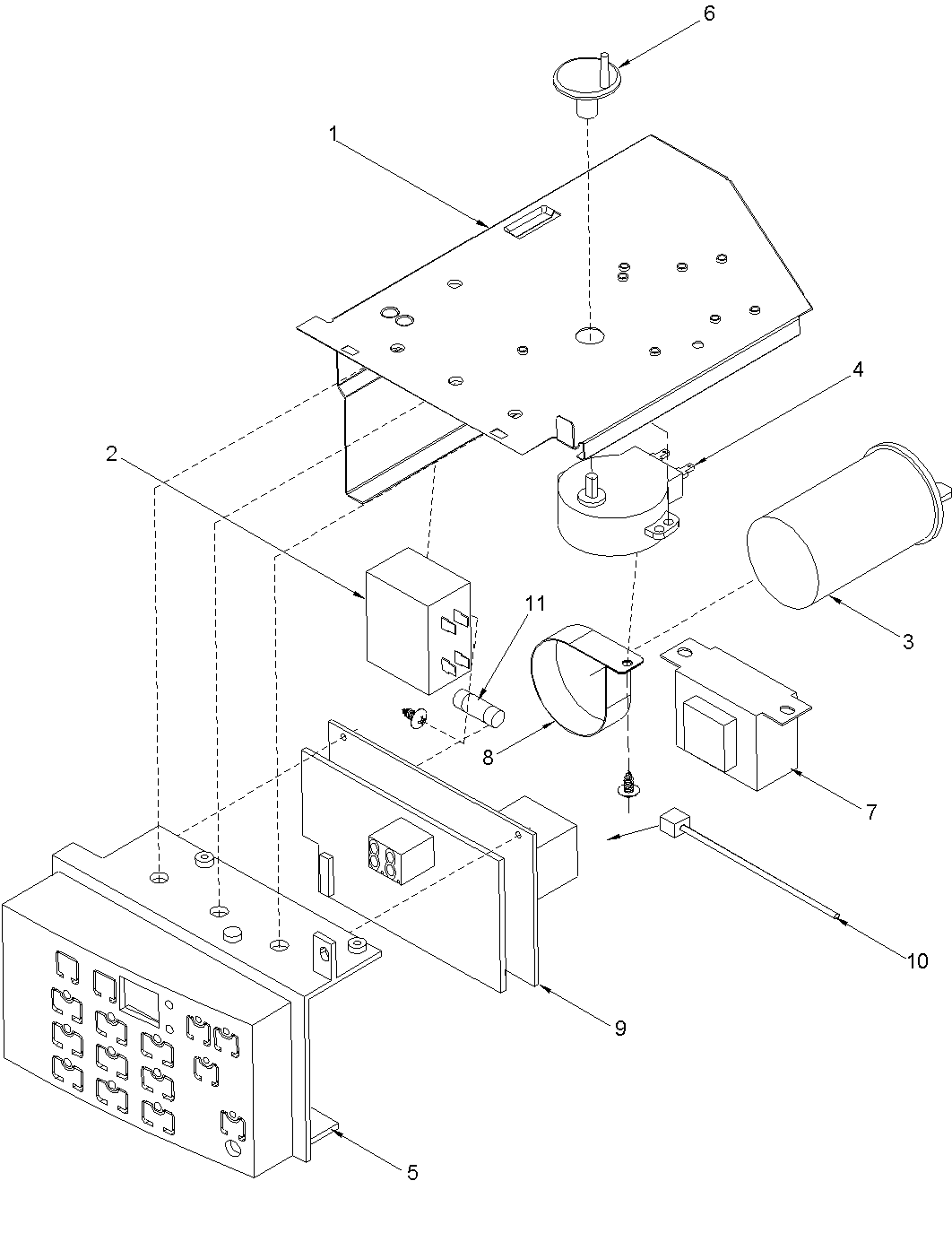

Control assembly diagram

Compressor capacitor

Part #R0130076

The manufacturer no longer makes this part, and there's no substitute part

Gasket Oc Right (qty Ar) R0130067
#1

Outer case assembly diagram

Gasket oc right (qty ar)

Part #R0130067

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor R0130756
#12

Chassis assembly diagram

Fan motor

Part #R0130756

The manufacturer no longer makes this part, and there's no substitute part
