Kenmore
Chest Freezer

Model # 1988102340 Official Kenmore freezer cabinet parts

Here are the diagrams and repair parts for Official Kenmore 1988102340 freezer cabinet parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Drier 554958
#5

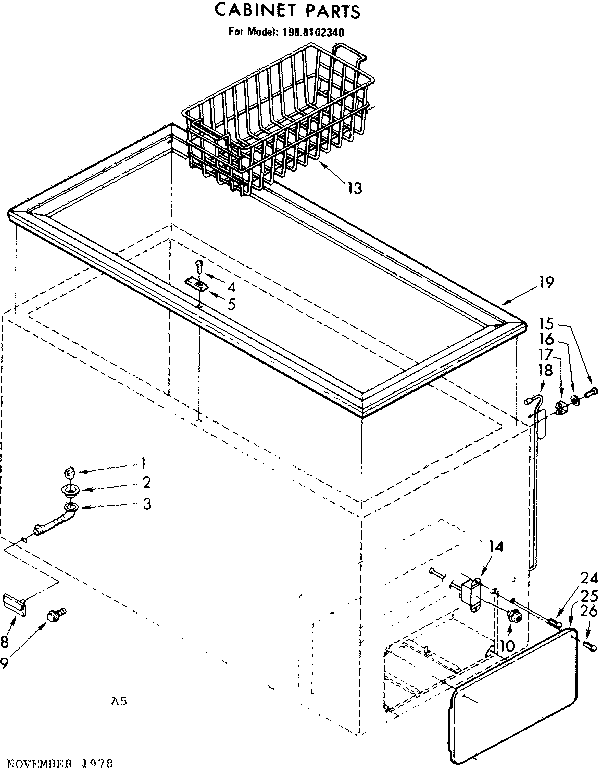

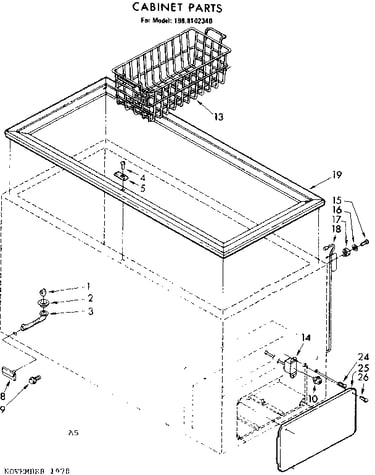

Unit parts diagram

Drier

Part #554958

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 554958. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Cement 279097

#NI

All parts diagram

Cement

Part #279097

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279097. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Cement 797403

#NI

All parts diagram

Cement

Part #797403

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 797403. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Touch-up Paint (white) 799343

#NI

All parts diagram

Touch-up paint (white)

Part #799343

Replaced by #350930

?
Manufacturer substitution
This part replaces 799343. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Refrigerator Service Valve 978025

#NI

All parts diagram

Refrigerator service valve

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Freezer Door Key 842177
#9

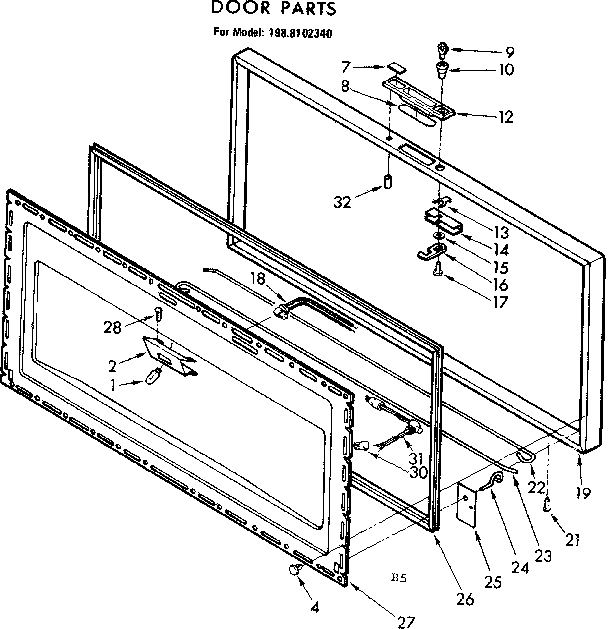

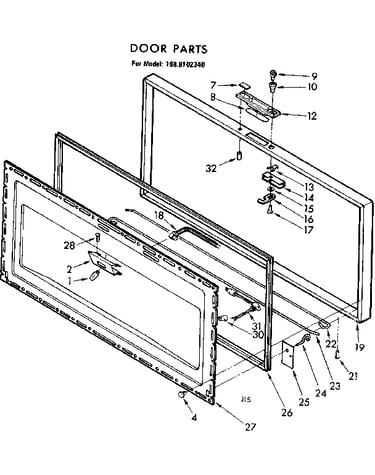

Door diagram

Freezer door key

Part #842177

Replaced by #WP842177

?
Manufacturer substitution
This part replaces 842177. Substitute parts can look different from the original.
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
Installation Kit 482331
#14A

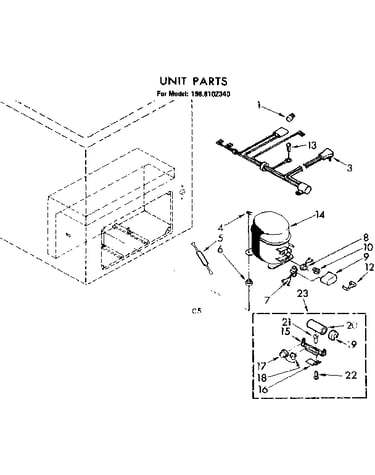

Unit parts diagram

Installation kit

Part #482331

Replaced by #876765

?
Manufacturer substitution
This part replaces 482331. Substitute parts can look different from the original.
$31.69 |
16% OFF Phone Price : $37.69
In Stock
Sears Refrigerator Service Valve 978026

#NI

All parts diagram

Sears refrigerator service valve

Part #978026

$34.19 |
15% OFF Phone Price : $40.19
In Stock
Sears Refrigerator Permagum Sealer 212643

#NI

All parts diagram

Sears refrigerator permagum sealer

Part #212643

This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
