Eureka
Upright Vacuum

Model # 7891BTX Official Eureka bravo ii upright vacuum

Here are the diagrams and repair parts for Official Eureka 7891BTX bravo ii upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Bulb 57940-1
#14

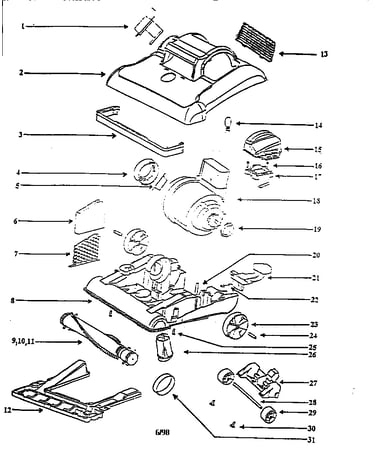

Nozzle and motor assembly diagram

Bulb

Part #57940-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-13
#9

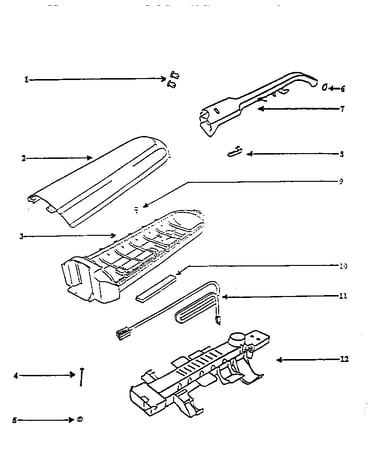

Handle diagram

Vacuum screw, 10-pack

Part #53238-13

The manufacturer no longer makes this part, and there's no substitute part

Pedal 27796-288N
#15

Nozzle and motor assembly diagram

Pedal

Part #27796-288N

The manufacturer no longer makes this part, and there's no substitute part

Valve 38873
#1

Nozzle and motor assembly diagram

Valve

Part #38873

The manufacturer no longer makes this part, and there's no substitute part

Pad-acoust 38398-1
#10

Handle diagram

Pad-acoust

Part #38398-1

The manufacturer no longer makes this part, and there's no substitute part

Washer 10pk 54811
#9

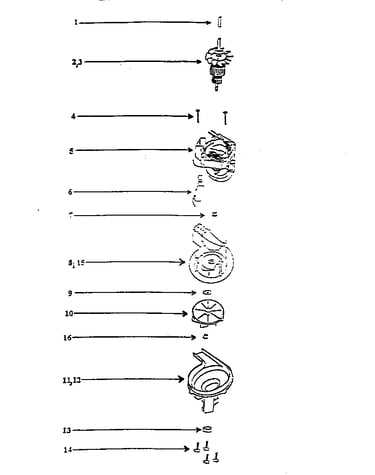

Field assembly diagram

Washer 10pk

Part #54811

The manufacturer no longer makes this part, and there's no substitute part

Nut 54413
#13

Field assembly diagram

Nut

Part #54413

The manufacturer no longer makes this part, and there's no substitute part

Cord 27674-3
#11

Handle diagram

Cord

Part #27674-3

The manufacturer no longer makes this part, and there's no substitute part

Mount-lg 27815A
#4

Nozzle and motor assembly diagram

Mount-lg

Part #27815A

The manufacturer no longer makes this part, and there's no substitute part

Distributor 60244-1
#9

Nozzle and motor assembly diagram

Distributor

Part #60244-1

The manufacturer no longer makes this part, and there's no substitute part
