Amana
Range/Microwave Combo

Model # 980.001 Official Amana range

Here are the diagrams and repair parts for Official Amana 980001 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 285 parts  |

End Cap (left) M7D198
#11A

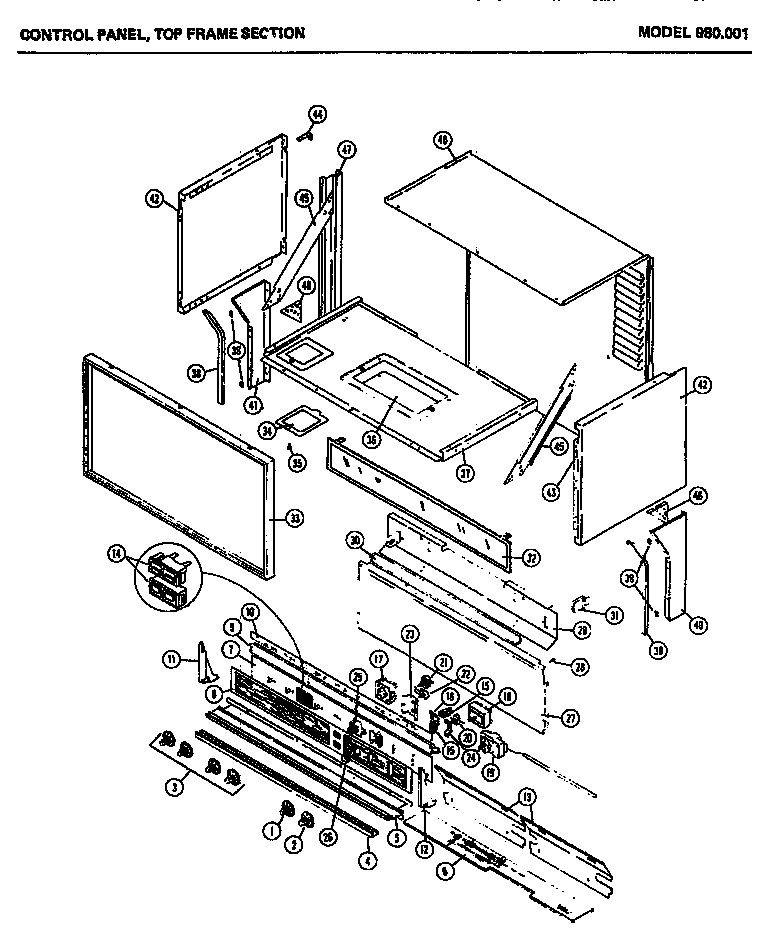

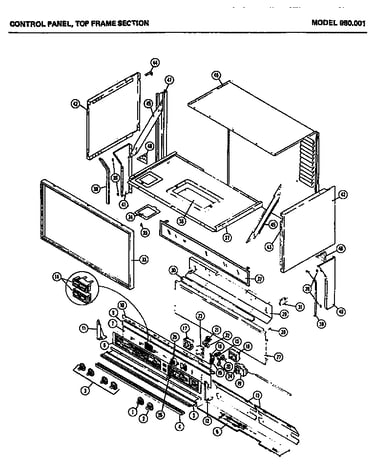

Control panel diagram

End cap (left)

Part #M7D198

The manufacturer no longer makes this part, and there's no substitute part

Cook Top Frame M75D17
#1

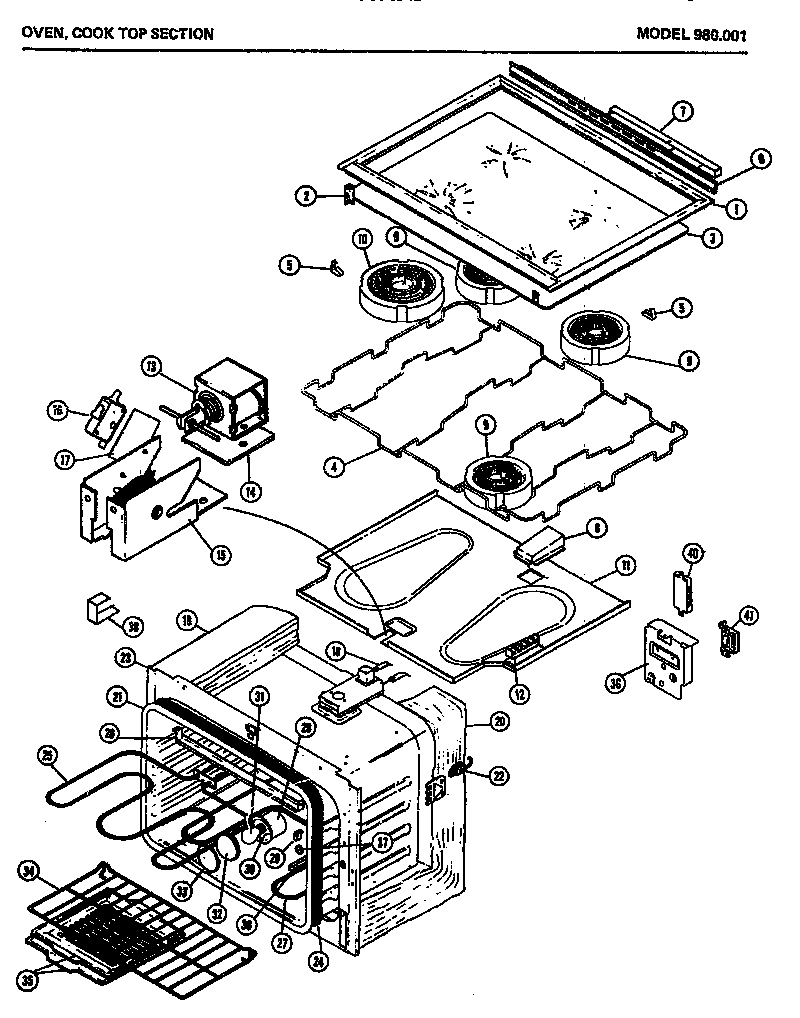

Oven diagram

Cook top frame

Part #M75D17

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light, Clean, Oven (120 V) M9D65
#15

Control panel diagram

Indicator light, clean, oven (120 v)

Part #M9D65

The manufacturer no longer makes this part, and there's no substitute part

Surface Knob M6D216
#3

Control panel diagram

Surface knob

Part #M6D216

The manufacturer no longer makes this part, and there's no substitute part

Insulator, Broil Element M5D220
#22A

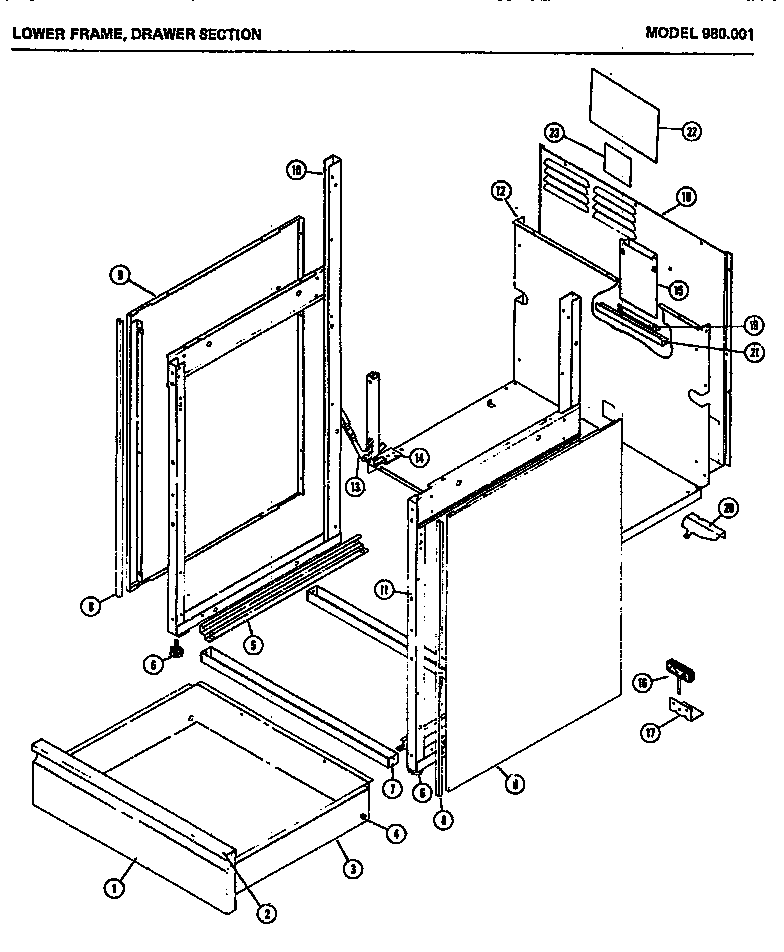

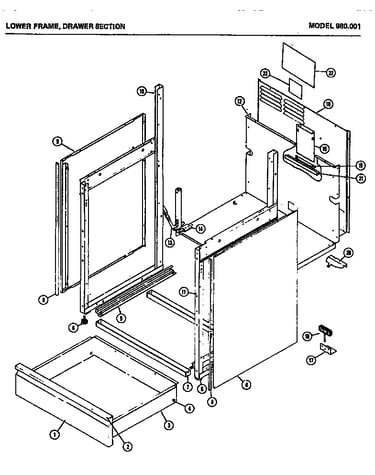

Lower frame diagram

Insulator, broil element

Part #M5D220

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light, Surface Elements - (120 V) M9D56
#14

Control panel diagram

Indicator light, surface elements - (120 v)

Part #M9D56

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Duct (oven Vent) M65D60
#8A

Oven diagram

Exhaust duct (oven vent)

Part #M65D60

The manufacturer no longer makes this part, and there's no substitute part

Harness, Main Oven (does Not Include Ref. No. 59) M27D179
#60A

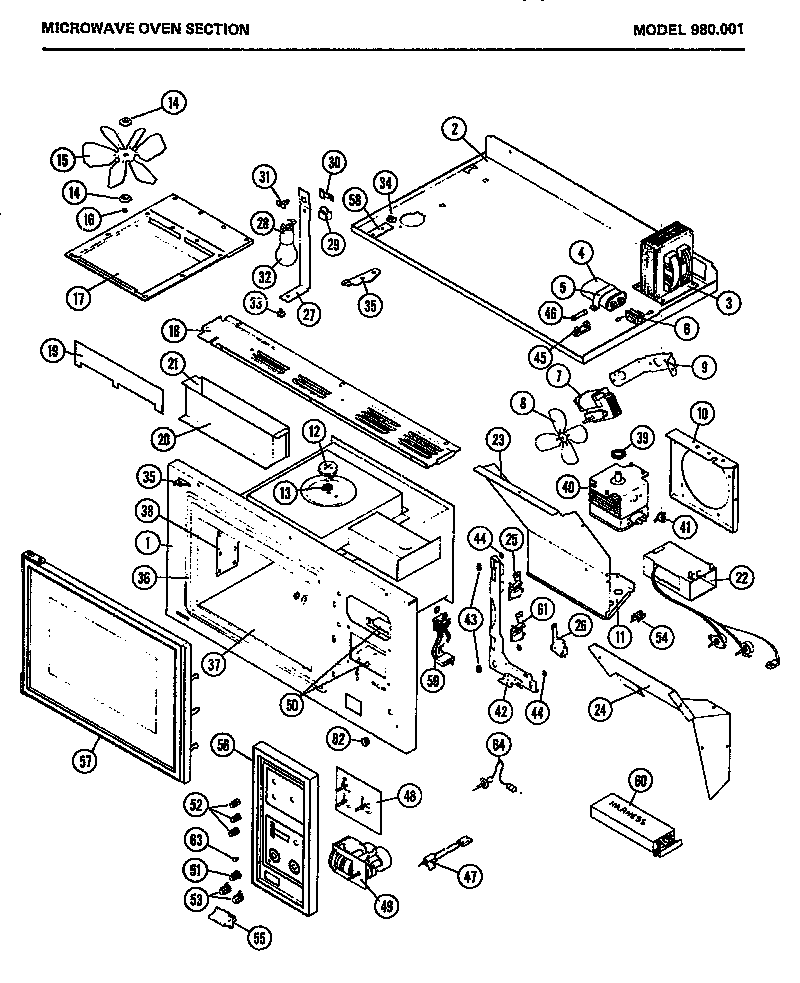

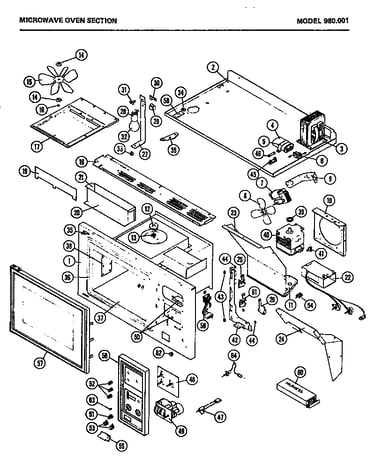

Microwave parts diagram

Harness, main oven (does not include ref. no. 59)

Part #M27D179

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Handle M49D4
#1

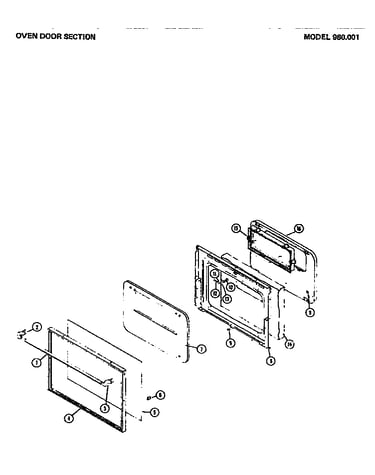

Oven door section diagram

Oven door handle

Part #M49D4

The manufacturer no longer makes this part, and there's no substitute part

Hinge Bearing, Nylon M2D171
#35D

Microwave parts diagram

Hinge bearing, nylon

Part #M2D171

The manufacturer no longer makes this part, and there's no substitute part
