Model # DW896 TYPE 2 Official DeWalt 16-gauge nibbler

Here are the diagrams and repair parts for Official DeWalt DW896-TYPE-2 16-gauge nibbler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Washer 935846-00
#50

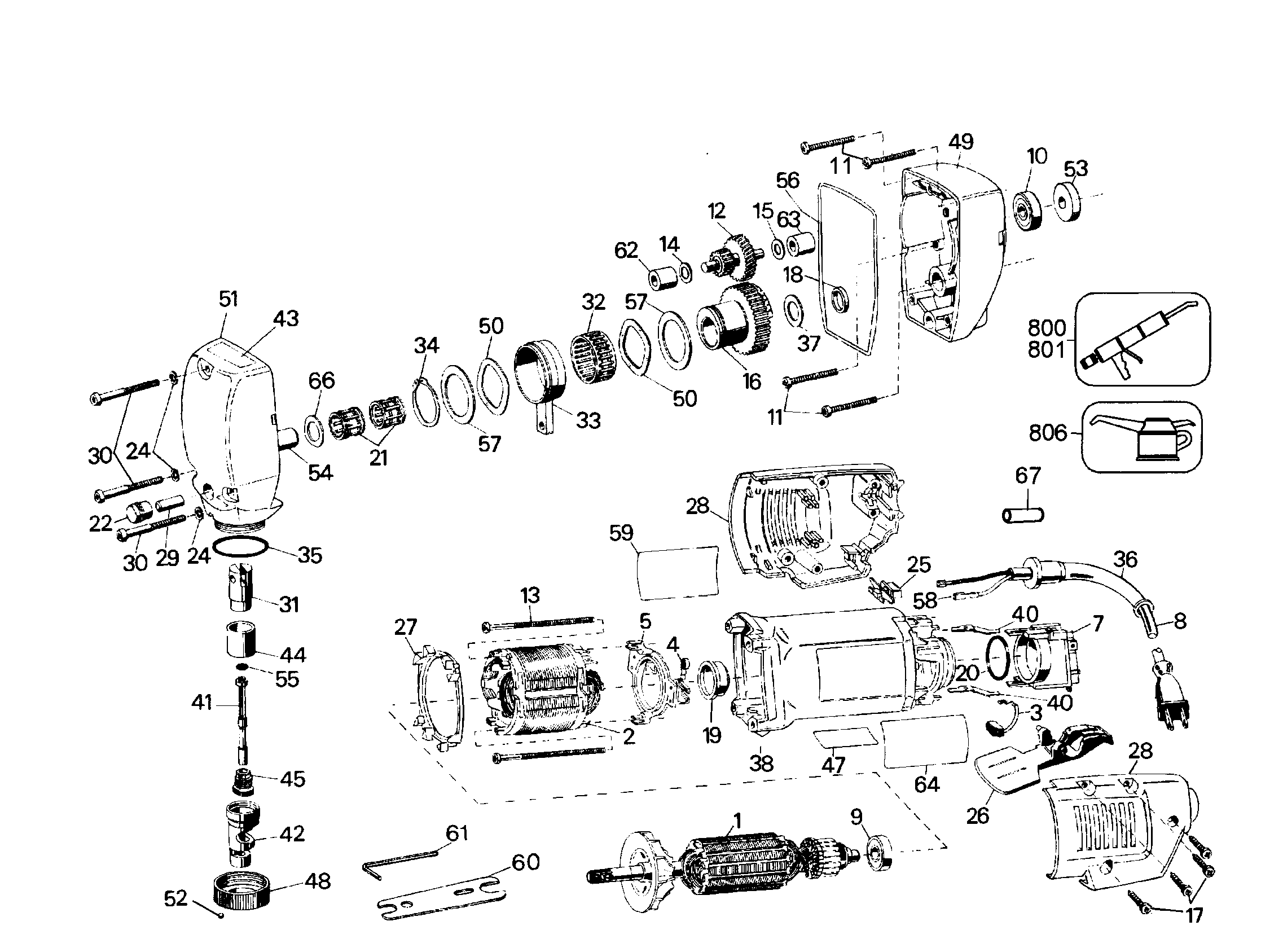

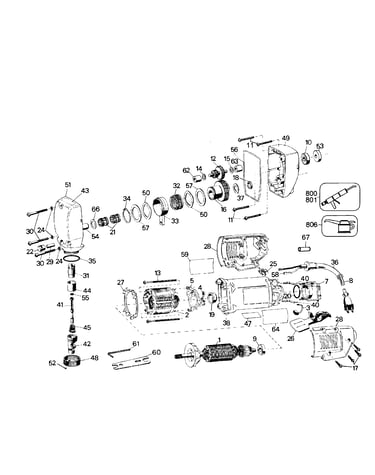

Main asy diagram

Washer

Part #935846-00

The manufacturer no longer makes this part, and there's no substitute part

Field 619549-00SV
#2

Main asy diagram

Field

Part #619549-00SV

The manufacturer no longer makes this part, and there's no substitute part

Cover 936095-00
#49

Main asy diagram

Cover

Part #936095-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#36

Main asy diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 935850-00
#57A

Main asy diagram

Washer

Part #935850-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 935854-00
#44

Main asy diagram

Bearing

Part #935854-00

The manufacturer no longer makes this part, and there's no substitute part

Gear And Pin 869219-04
#12

Main asy diagram

Gear and pin

Part #869219-04

The manufacturer no longer makes this part, and there's no substitute part

Rod 935849-00
#33

Main asy diagram

Rod

Part #935849-00

The manufacturer no longer makes this part, and there's no substitute part

Tubing 87891-05
#67

Main asy diagram

Tubing

Part #87891-05

The manufacturer no longer makes this part, and there's no substitute part

Cap 935864-00
#22

Main asy diagram

Cap

Part #935864-00

The manufacturer no longer makes this part, and there's no substitute part
